ASUS TUF Gaming FX707ZV4-HX004 RAM upgrade specifications

ASUS FX707ZV4-HX004 ASUS FX707ZV4-HX004 ASUS FX707ZV4-HX004 ASUS FX707ZV4-HX004 ASUS FX707ZV4-HX004

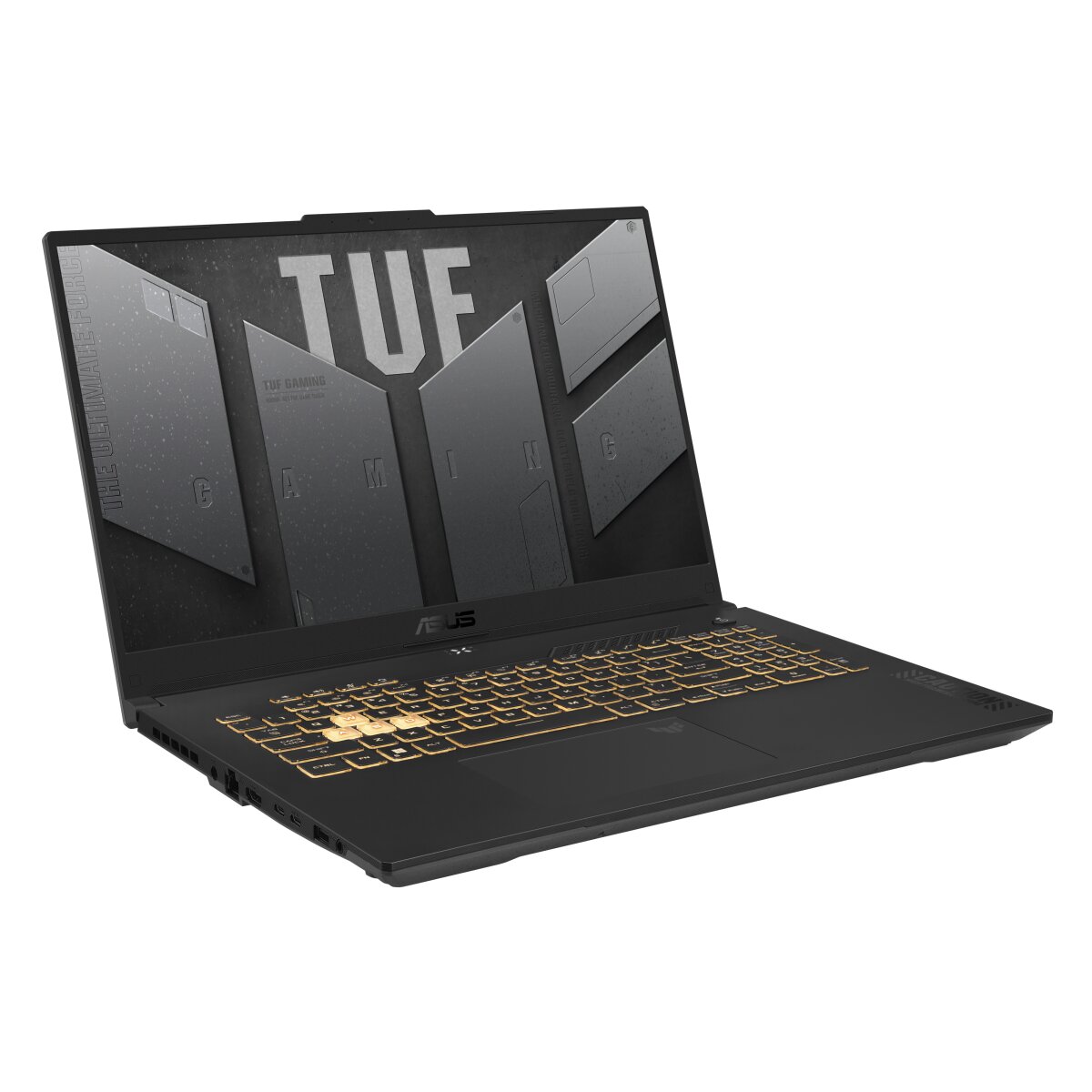

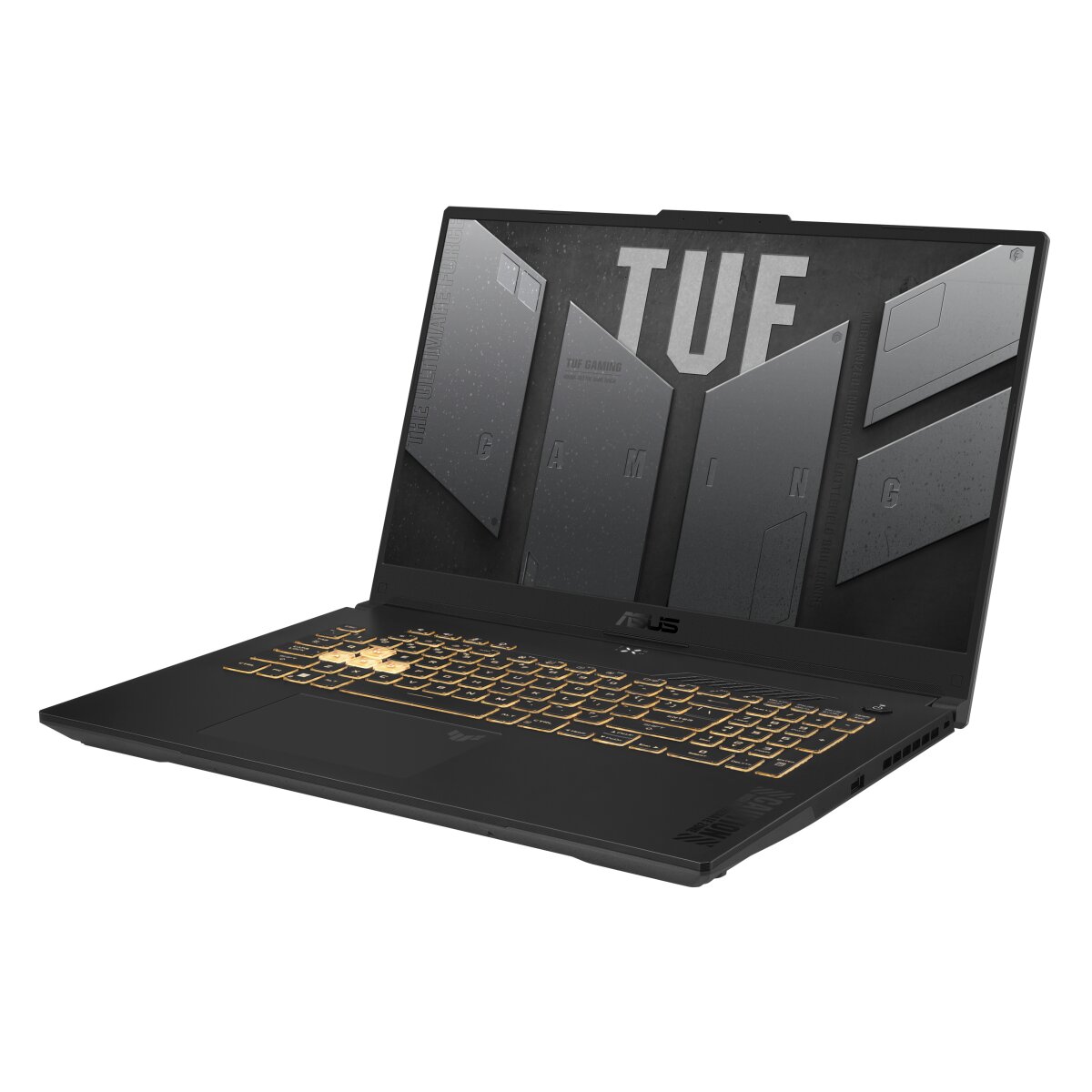

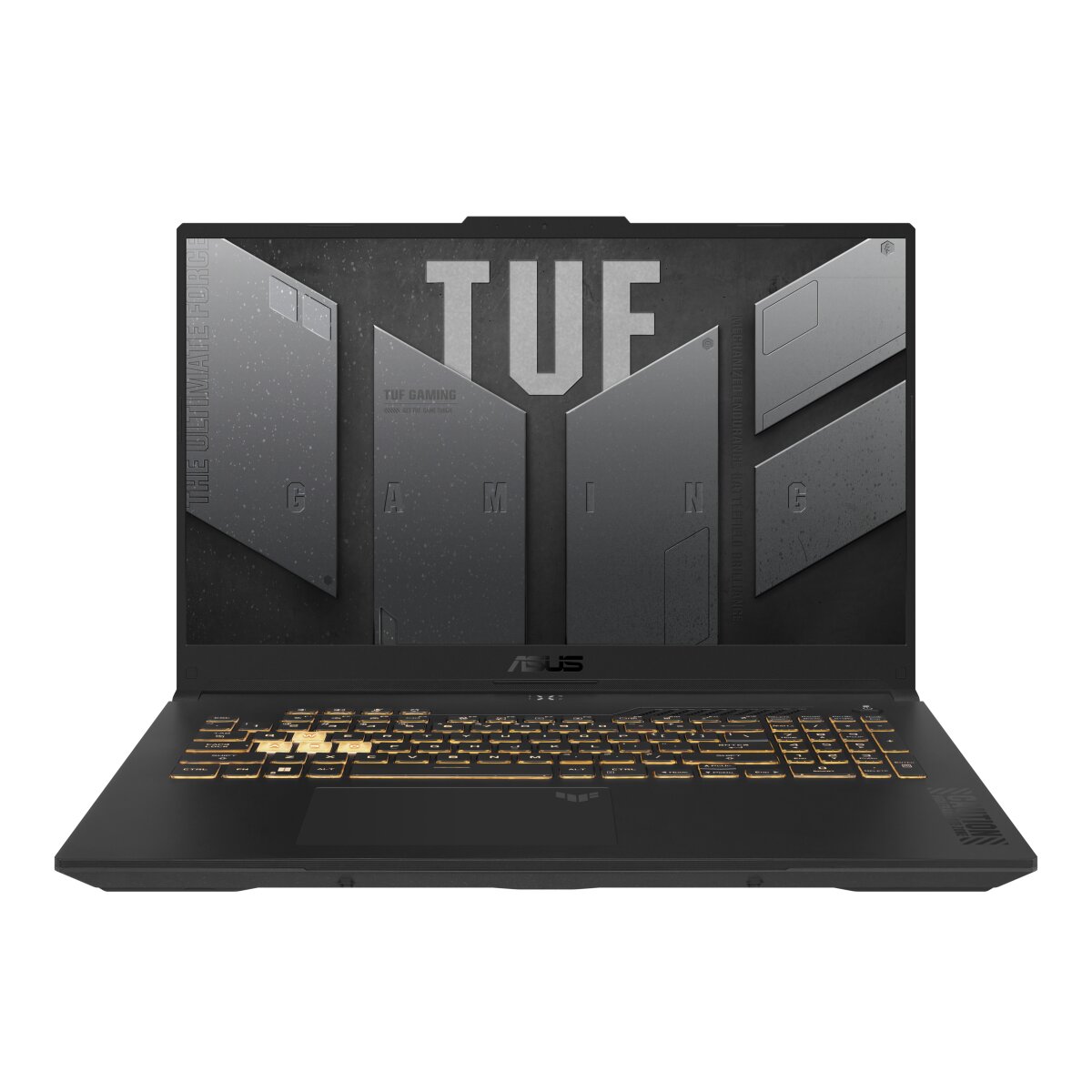

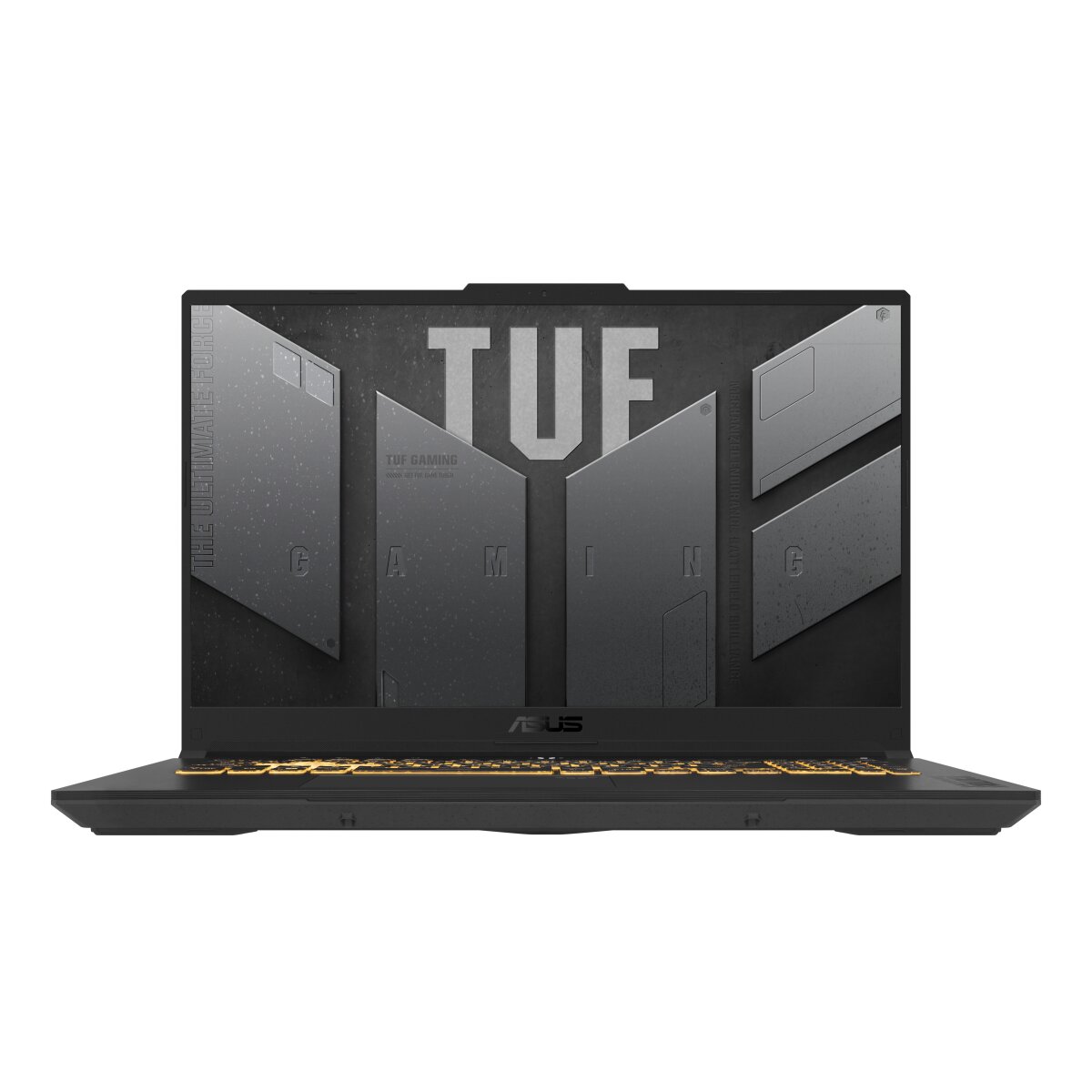

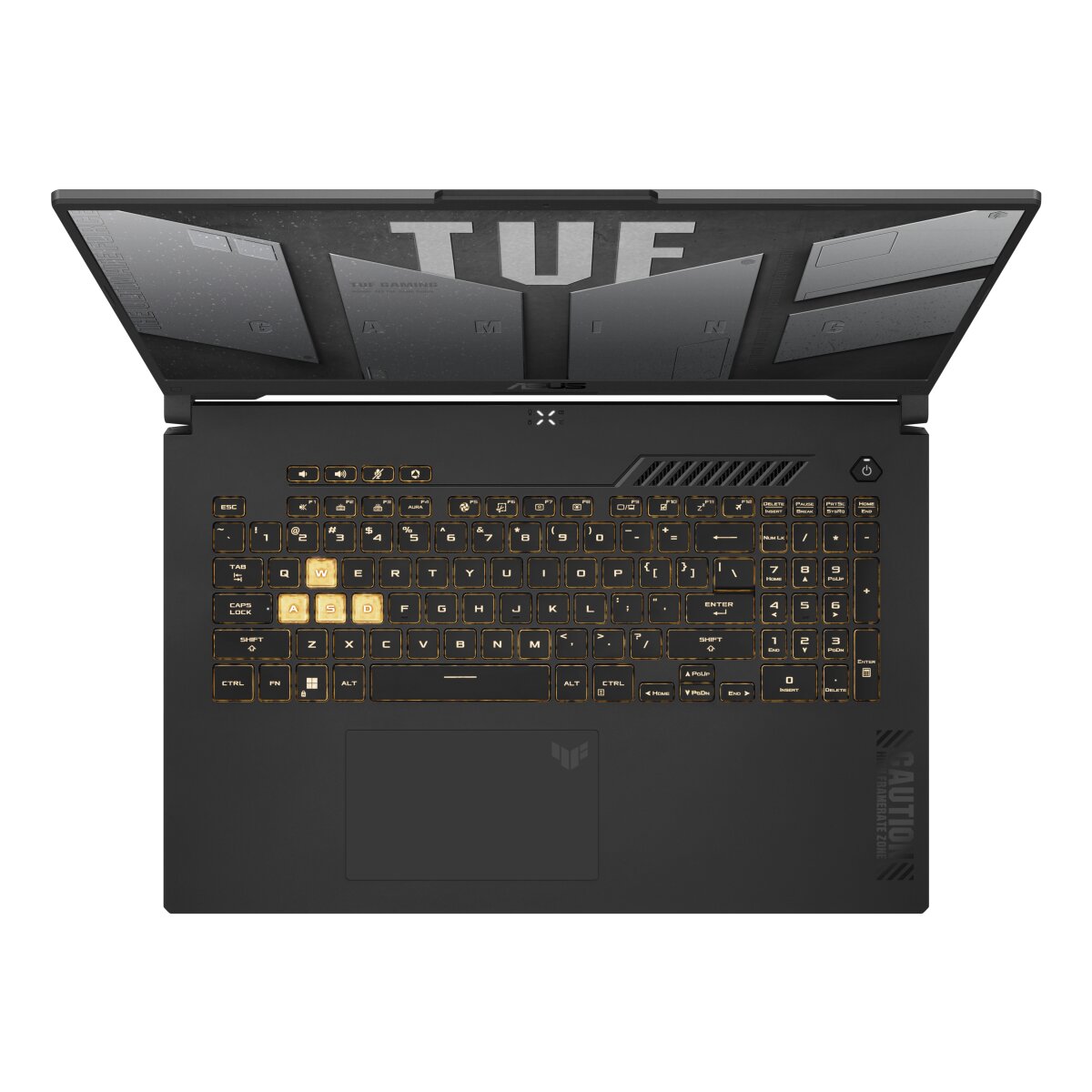

The ASUS TUF Gaming F17 FX707ZV4-HX004 laptop features DDR4-SDRAM memory configuration with two SO-DIMM slots supporting maximum upgrade capacity of 32 GB total. Compatible memory modules operate at 3200 MHz frequency specifications. The dual-slot architecture enables memory upgrade options for enhanced performance and multitasking capabilities on this gaming system. Existing memory can be supplemented or replaced to reach the maximum supported capacity through compatible DDR4 SO-DIMM modules.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR4-SDRAM
Frequency3200 MHz
Maximum RAM32 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-3200 (PC4-25600)
Bandwidth25.6 GB/s
Laptop Release date27 January 2023

Additional Notes

  • The presence of 2 dedicated slots allows for dual channel memory configurations to double effective bandwidth for the 12th generation Intel processors often found in the ASUS TUF Gaming FX707ZV4-HX004.
  • Upgrading to the 32 GB maximum requires the removal of existing modules because the system lacks empty expansion headers.
  • The hardware architecture limits data transfer rates to 3200 MHz even if modules with higher rated XMP profiles are installed.
  • Physical installation of memory requires a standard Phillips head screwdriver and a non-marring pry tool to release the plastic clips holding the bottom chassis plate.
  • Mixing internal memory densities creates an asynchronous dual channel state which degrades performance in memory intensive applications compared to matched pairs.
  • Internal layout constraints mandate the use of 1.2V standard voltage modules to prevent thermal throttling or boot failures associated with high voltage overclocking sticks.
  • Total system capacity is capped by the motherboard BIOS despite the processor technically supporting 64 GB or more in other configurations.
