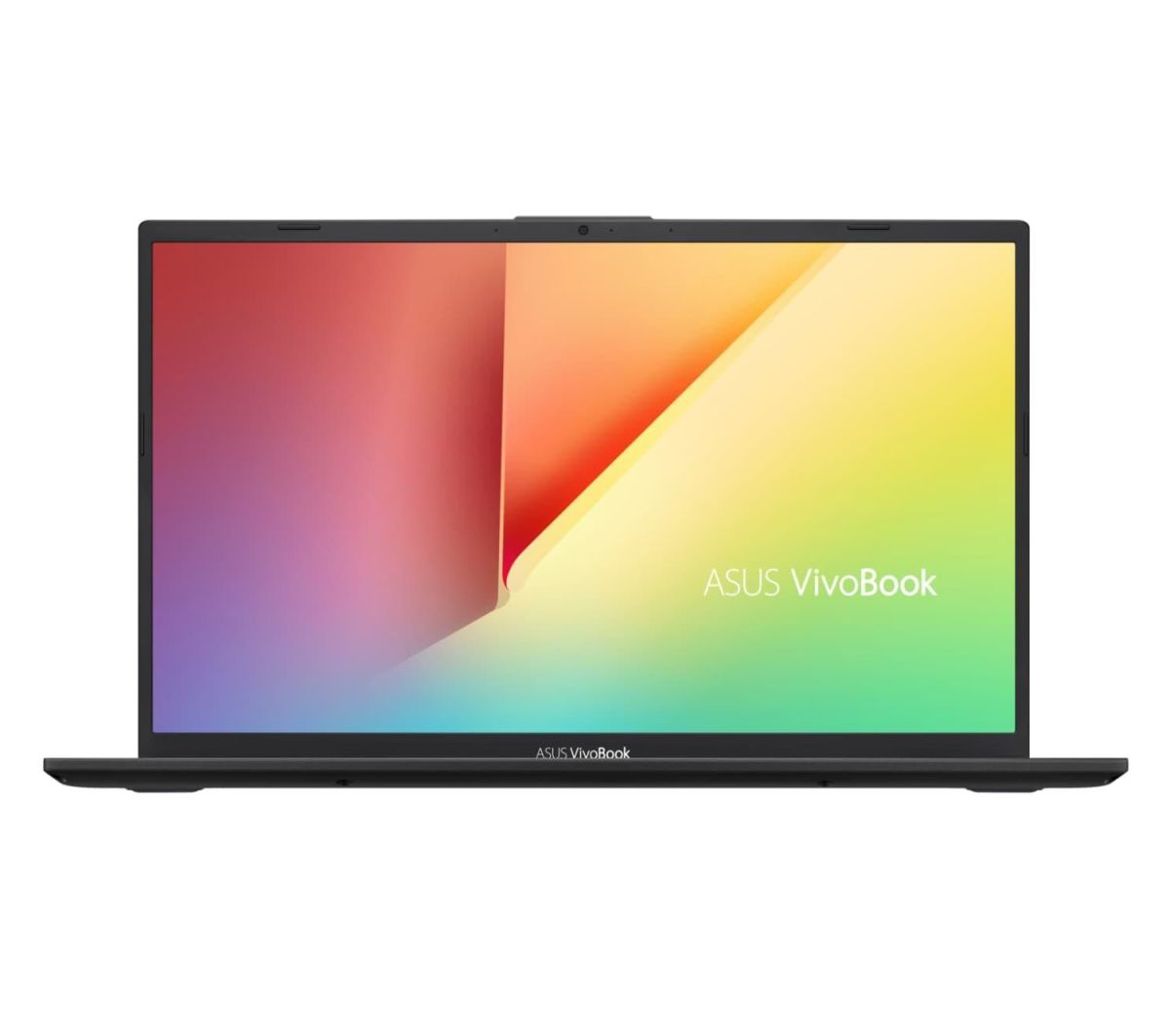

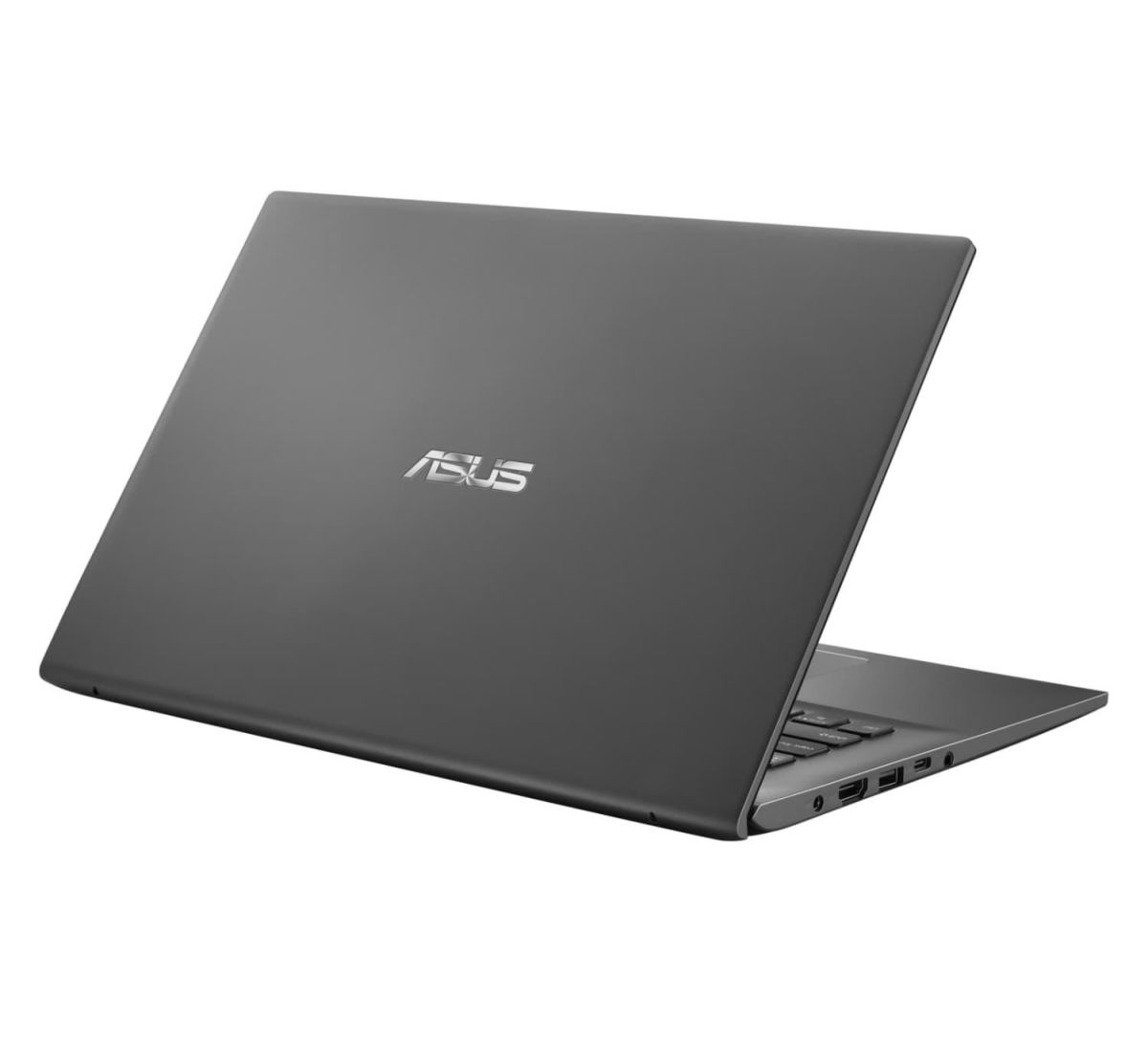

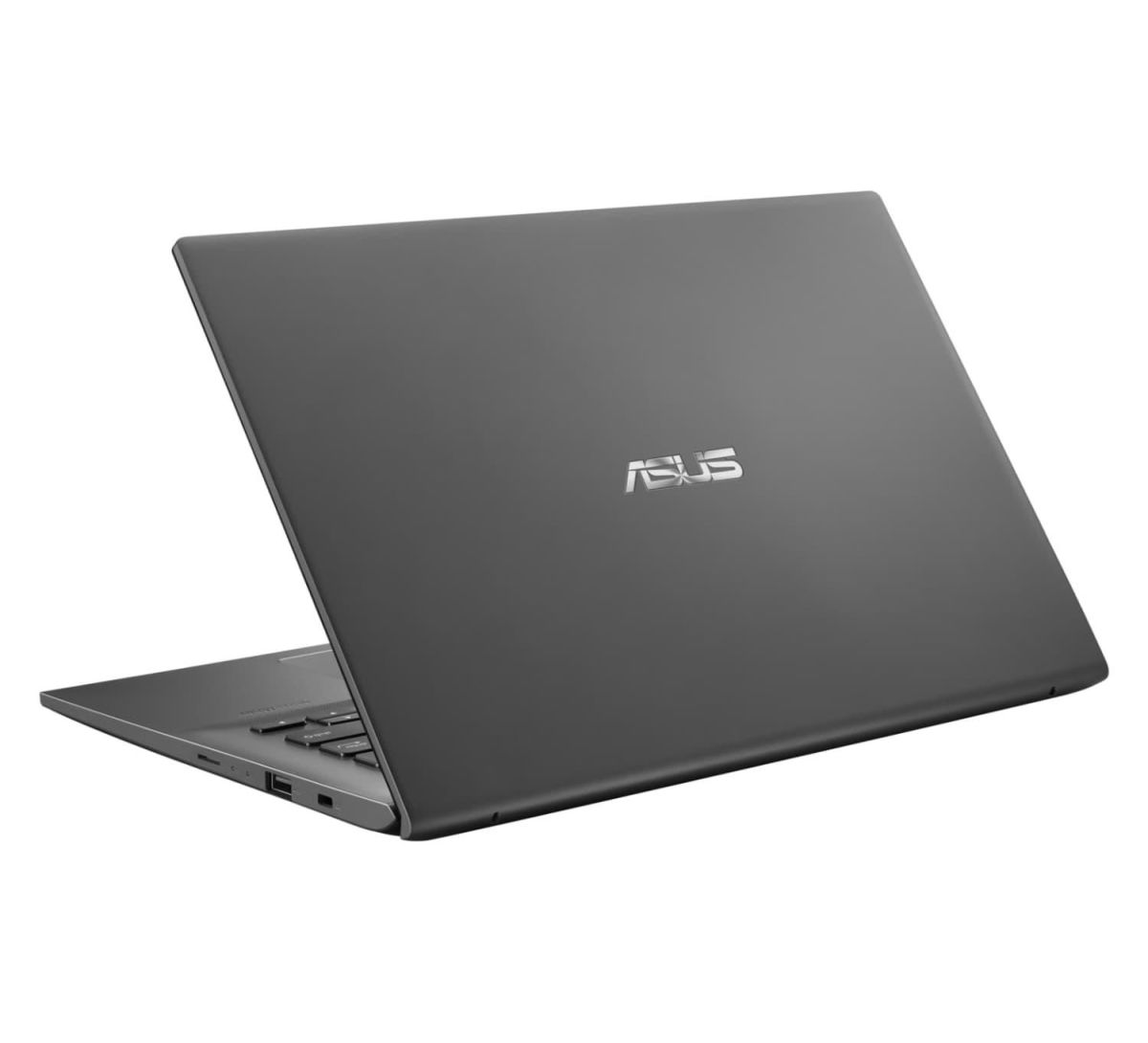

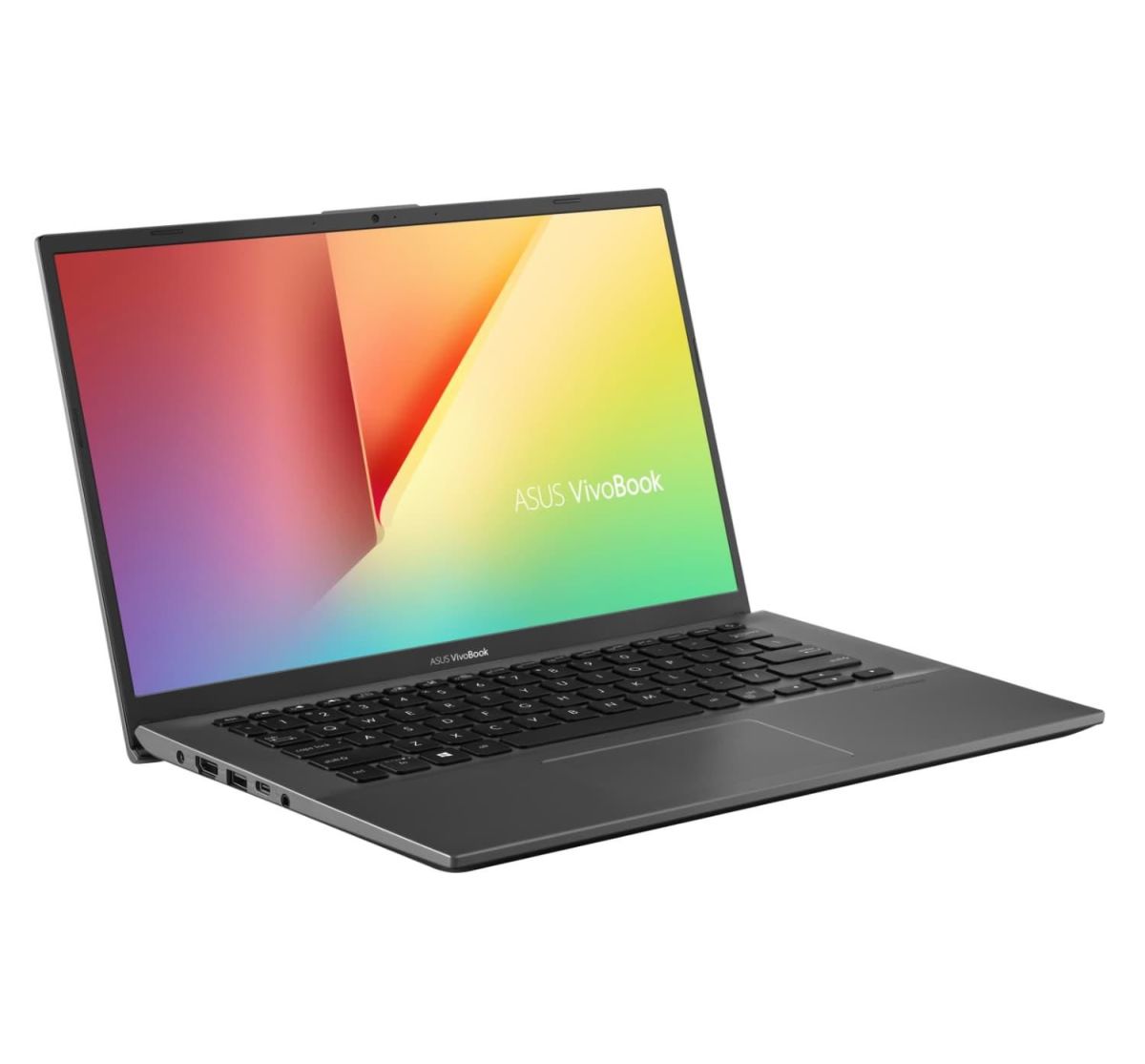

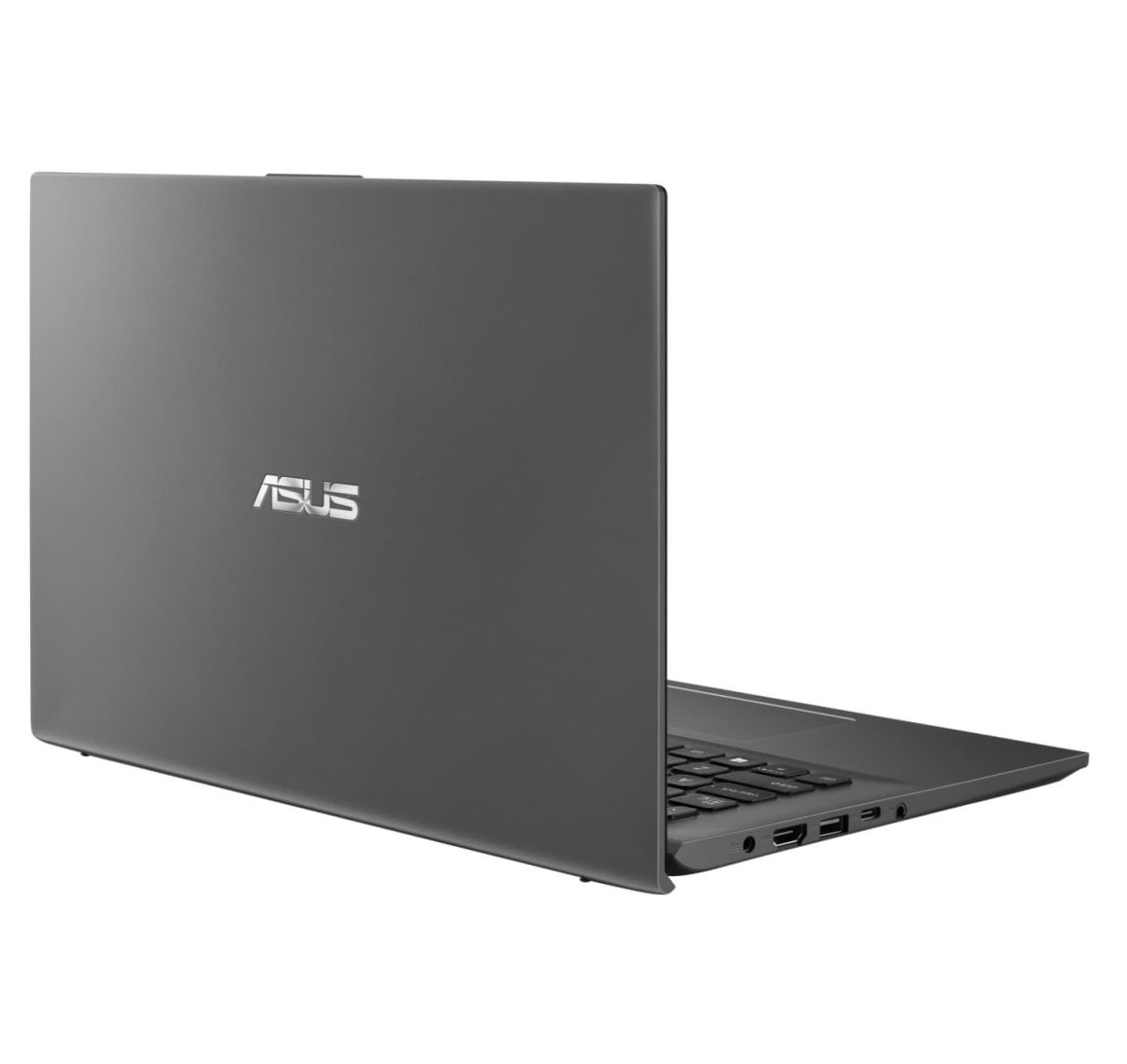

ASUS Vivobook X412FA-EK314T RAM upgrade specifications

ASUS Vivobook 14 Series X412FA-EK314T laptop RAM upgrade specifications include DDR4-SDRAM memory compatible with 1x SO-DIMM slot. The model features on-board memory combined with one replaceable SO-DIMM slot for RAM expansion. Maximum memory capacity reaches 12 GB total with DDR4-2400 MHz frequency specifications. Upgrade compatibility requires DDR4-SDRAM modules meeting SO-DIMM form factor standards. This configuration supports memory expansion up to the specified maximum capacity.

Additional Notes

• The ASUS Vivobook X412FA-EK314T features a dual-channel memory architecture with one memory bank soldered directly to the motherboard and one accessible SO-DIMM slot for expansion.
• The 12 GB maximum capacity limitation indicates that 4 GB is permanently soldered, leaving 8 GB as the maximum allowable capacity for the single SO-DIMM slot.
• Installing a module with capacity exceeding 8 GB will either prevent system boot or cause the system to recognize only 12 GB total, wasting the additional capacity.
• Dual-channel operation requires matching the soldered 4 GB module with an identical 4 GB SO-DIMM at 2400 MHz, which yields 8 GB total in dual-channel mode.
• Installing an 8 GB SO-DIMM achieves the maximum 12 GB configuration but forces asymmetric memory operation, where 8 GB runs in dual-channel and the remaining 4 GB operates in slower single-channel mode.
• Memory modules rated above 2400 MHz will downclock to match the system's native 2400 MHz specification, offering no performance advantage despite higher cost.
• The SO-DIMM slot requires 260-pin DDR4 modules specifically designed for notebook form factors, as standard 288-pin desktop DIMMs are physically incompatible.
• Operating voltage must conform to DDR4 standard of 1.2V, as higher-voltage modules designed for overclocking may cause stability issues or trigger system protection mechanisms.
• Accessing the SO-DIMM slot typically requires bottom panel removal, which may void warranty if manufacturer seals are broken or if the process is not documented as user-serviceable in official maintenance guidelines.
• Mixed-brand configurations between the soldered memory and the SO-DIMM module remain functionally compatible provided speed and voltage specifications match, though identical brands minimize potential timing incompatibilities.
• The 2400 MHz frequency represents a MT/s (megatransfers per second) rating rather than true clock speed, as DDR4 technology transfers data on both rising and falling clock edges.
