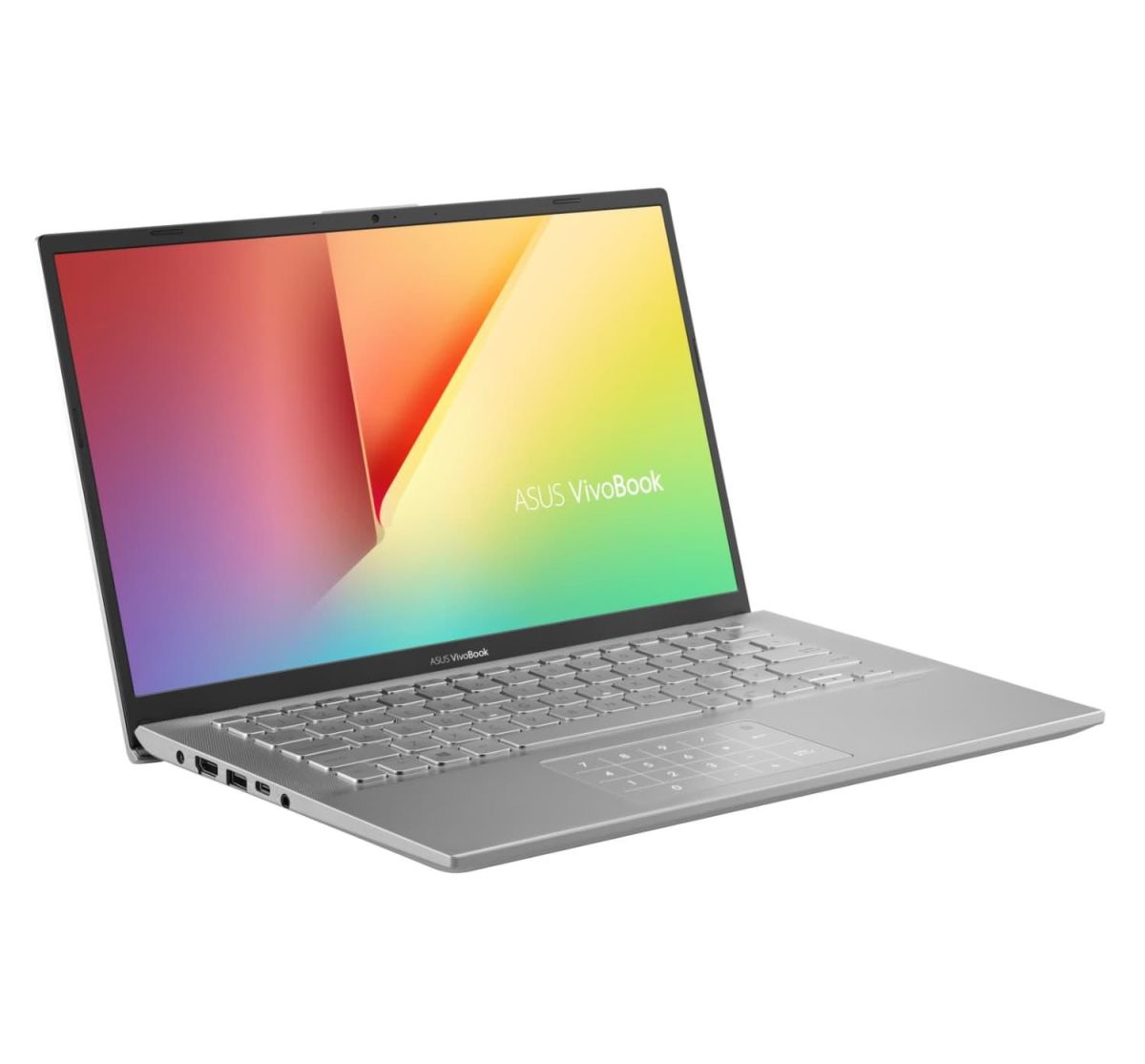

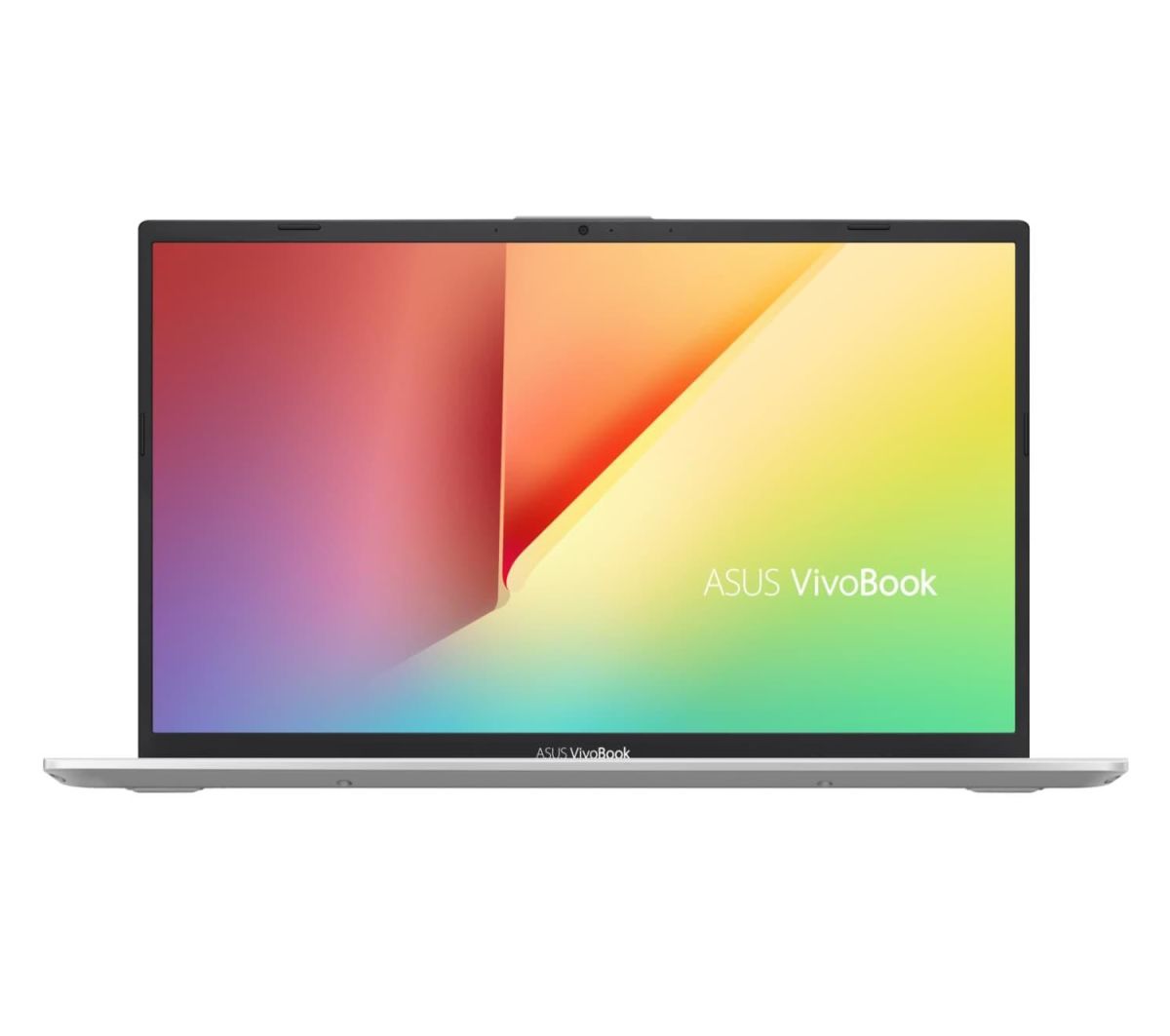

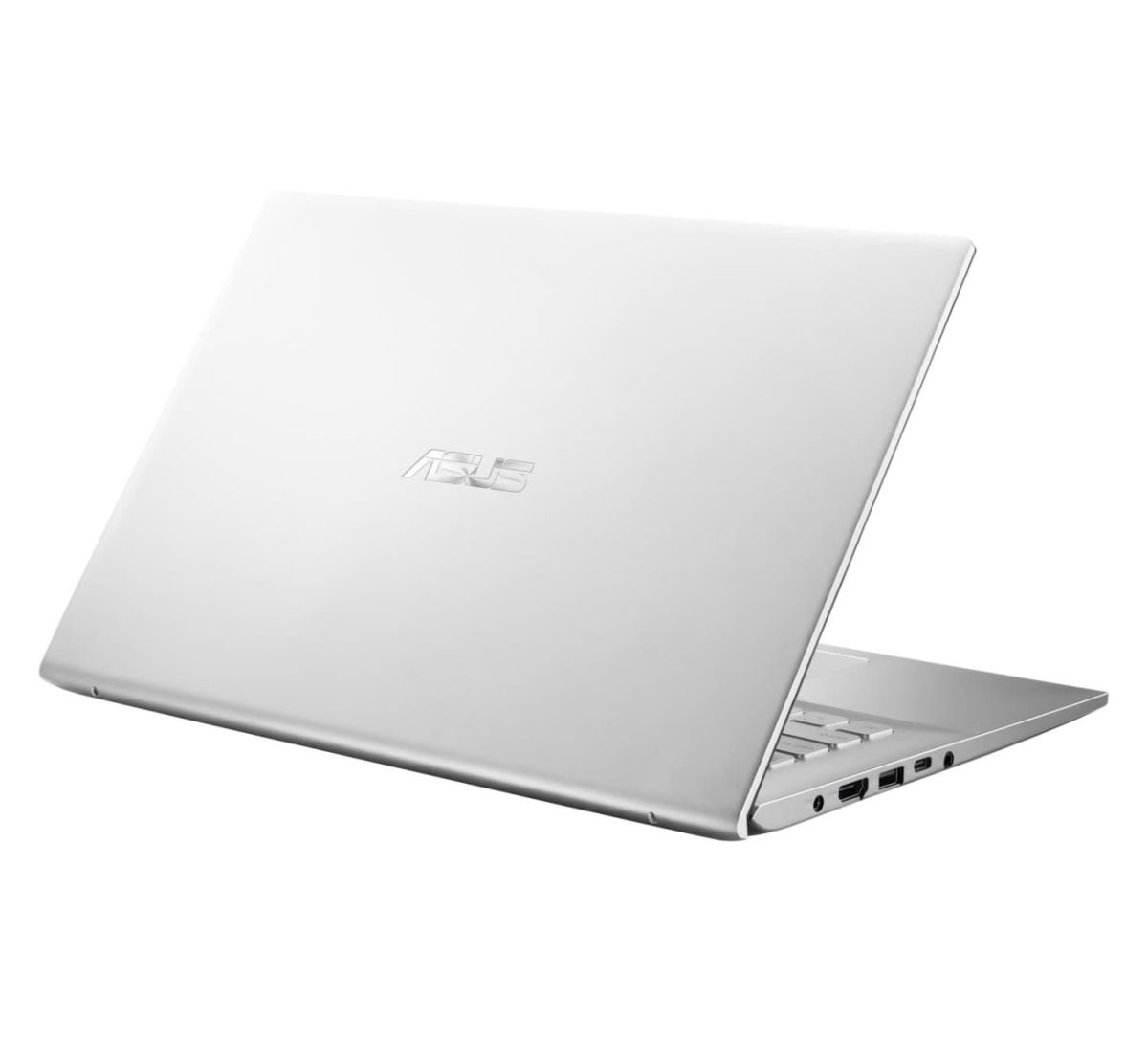

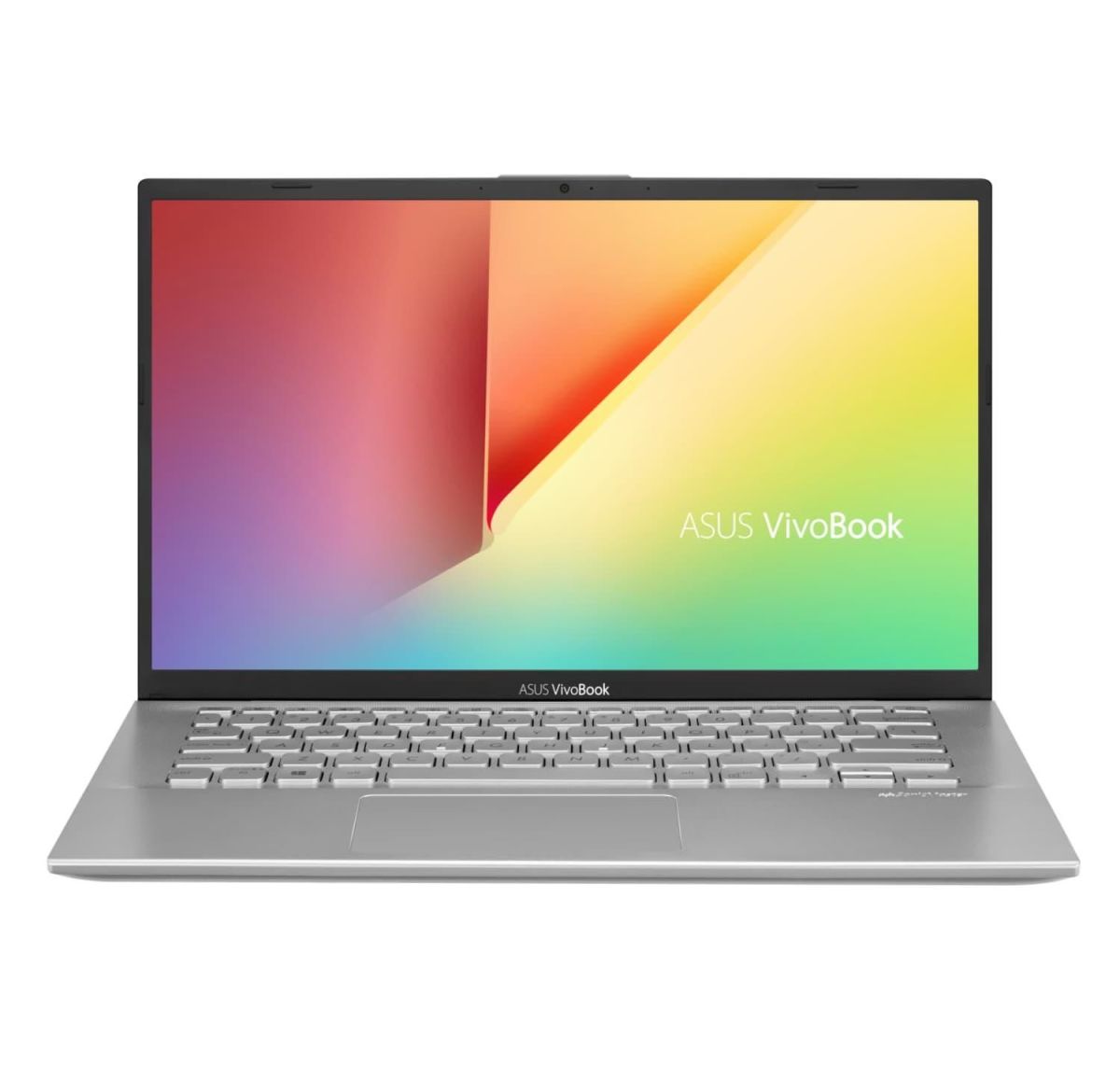

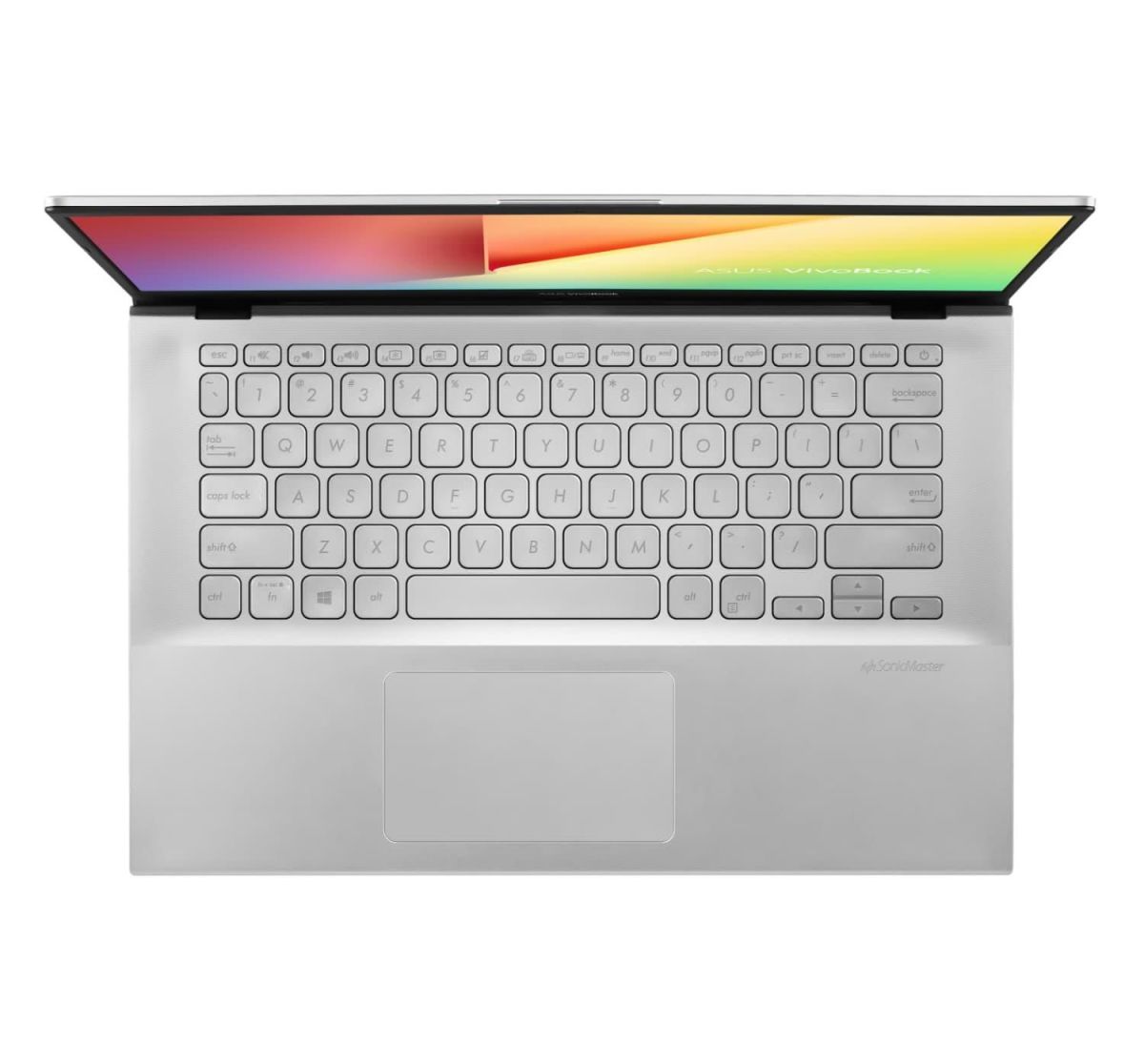

ASUS Vivobook X412FA-EK401T RAM upgrade specifications

The ASUS Vivobook 14 Series X412FA-EK401T laptop features one SO-DIMM slot for memory upgrade capability. The system supports DDR4-SDRAM memory modules operating at 2400 MHz frequency. Maximum RAM capacity reaches 12 GB with the upgrade configuration. The device combines on-board memory with expandable SO-DIMM slot specifications. Compatible memory upgrades must meet DDR4-SDRAM standards and match the specified frequency requirements for optimal performance and compatibility with the X412FA-EK401T model.

Additional Notes

• The ASUS Vivobook X412FA-EK401T features soldered memory alongside a single accessible slot, which prevents full memory replacement and creates an asymmetric dual-channel configuration when populated.
• The 12 GB ceiling indicates 4 GB of non-removable soldered RAM, limiting the SO-DIMM slot to an 8 GB module maximum regardless of module availability in higher capacities.
• Dual-channel operation will function only up to the capacity of the smaller memory bank, meaning an 8 GB SO-DIMM paired with 4 GB soldered will run 8 GB in dual-channel mode with the remaining 4 GB operating in slower single-channel mode.
• Installing a module slower than 2400 MHz will downclock the entire memory subsystem to match the slowest component, while modules rated above 2400 MHz will be throttled down to the chipset-imposed frequency limit.
• The onboard memory configuration eliminates the possibility of a fresh start troubleshooting approach, as the soldered component cannot be isolated or replaced if memory errors occur.
• SO-DIMM installation requires matching voltage specifications with the soldered component, as DDR4 modules exist in both standard 1.2V and low-voltage variants that may cause boot failures if mismatched.
• Single-slot availability means capacity upgrades permanently consume the only expansion option, eliminating future incremental upgrades without replacing the existing module.
• The hybrid memory architecture maintains manufacturer warranty coverage for SO-DIMM upgrades while keeping soldered memory under original warranty terms, creating a split responsibility scenario for memory-related issues.
• Systems shipping with less than 12 GB total have measurable headroom for performance gains in multi-tab browsing and light multitasking workloads when upgraded to the maximum supported configuration.
• Memory testing utilities will need to account for the permanent soldered component, as traditional full-coverage memory diagnostics cannot isolate potential defects in the non-accessible portion.
