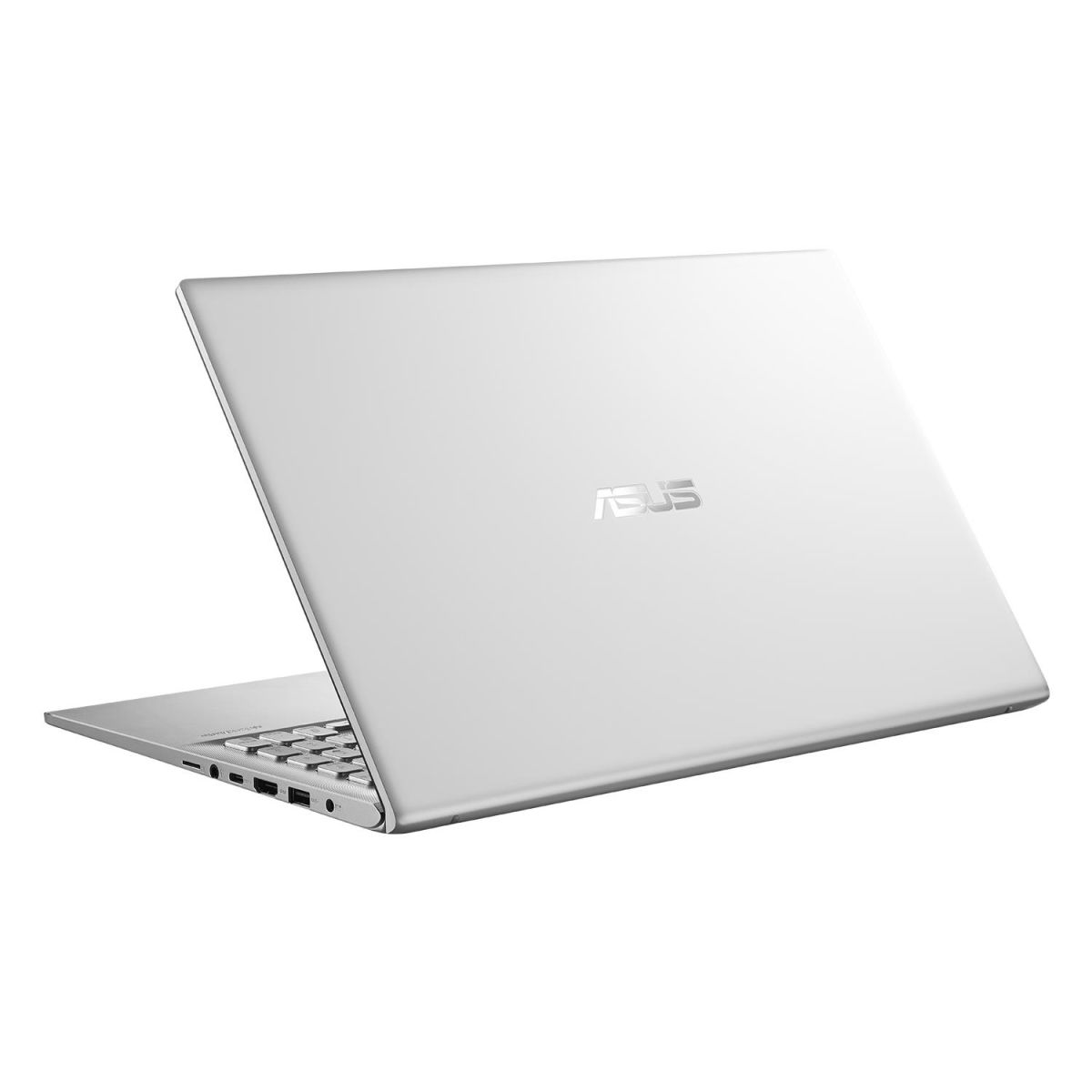

ASUS Vivobook F512DA-EJ830T RAM upgrade specifications

The ASUS Vivobook 15 Series F512DA-EJ830T features DDR4-SDRAM memory with one SO-DIMM slot available for upgrade. The laptop contains on-board memory combined with one upgradeable SO-DIMM slot. Maximum compatible RAM capacity reaches 12 GB total. Memory operates at 2400 MHz frequency. Upgrade specifications indicate single memory slot configuration supporting DDR4-SDRAM modules. Compatible memory modules must match DDR4-SDRAM specifications for this ASUS F512DA-EJ830T Vivobook model.

Additional Notes

• The ASUS Vivobook F512DA-EJ830T features a hybrid memory architecture with soldered RAM on the motherboard, permanently limiting total capacity regardless of the SO-DIMM module installed.
• The 12 GB maximum capacity indicates 4 GB is soldered directly to the motherboard, allowing only an 8 GB SO-DIMM module to reach the ceiling without exceeding system limitations.
• Dual-channel memory operation requires matching the soldered module's specifications, meaning asymmetric configurations may force single-channel mode and reduce memory bandwidth by approximately 50 percent.
• The single accessible SO-DIMM slot prevents future expansion beyond the factory-determined maximum, eliminating the option to install two user-replaceable modules for higher capacities.
• DDR4-2400 represents the baseline JEDEC standard speed, but installing faster modules such as DDR4-3200 will downclock to 2400 MHz due to motherboard controller restrictions.
• The on-board memory component cannot be removed or replaced without advanced microsoldering skills, making any failure of the soldered module a motherboard-level repair rather than a simple RAM replacement.
• Installing a non-matching SO-DIMM capacity will result in flex mode operation where only the overlapping capacity runs in dual-channel, while the remainder operates in slower single-channel mode.
• The 260-pin SO-DIMM form factor requires low-profile modules without tall heat spreaders to fit within the laptop chassis clearance between the RAM slot and bottom cover.
• Memory upgrades typically preserve warranty coverage as the accessible SO-DIMM slot is designed for user replacement, unlike soldered components which void warranty if removal is attempted.
• The AMD-based platform in this configuration may show greater performance sensitivity to dual-channel operation compared to Intel equivalents, making proper module pairing more critical for integrated graphics performance.
