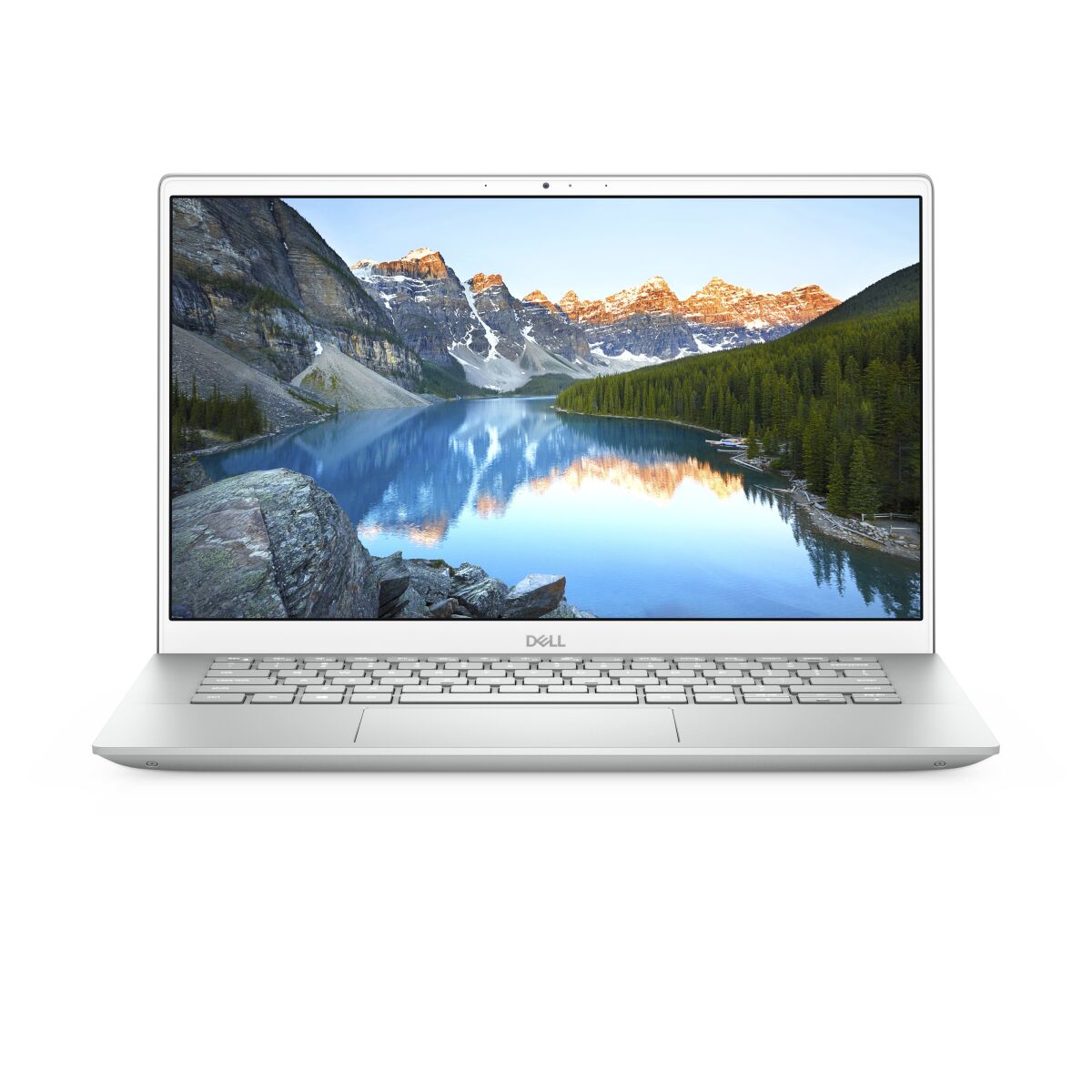

DELL Inspiron 5401 RAM upgrade specifications

Dell Inspiron 5000 Series 5401 laptop memory upgrade specifications indicate DDR4-SDRAM compatibility with 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB total. Memory modules operate at 3200 MHz frequency. Compatible DDR4 upgrades utilize SO-DIMM form factor specifications for this Dell model. Maximum supported memory configuration allows for dual-slot population to reach 32 GB RAM capacity. Upgrade specifications confirm SO-DIMM DDR4-SDRAM modules at 3200 MHz are compatible with Dell Inspiron 5401 slots.

Additional Notes

• The DELL Inspiron 5401 memory controller supports DDR4-3200 modules natively, though installing lower frequency modules will cause the system to downclock all installed memory to match the slowest module present.
• The 32 GB maximum capacity constraint requires dual-channel configuration with 2 modules of 16 GB each, as single 32 GB SO-DIMM modules exceed the per-slot density limit of this platform.
• Mixing memory modules with different CAS latencies will force the memory controller to operate at the highest latency value among installed modules, potentially reducing data access speeds.
• The dual SO-DIMM configuration enables symmetric dual-channel mode when both slots contain identical capacity modules, providing up to twice the theoretical memory bandwidth compared to single-channel operation.
• Installing non-matching voltage specification modules (standard 1.2V DDR4 versus low-voltage variants) may result in POST failures or force operation at less efficient voltage levels.
• The SO-DIMM form factor limitation excludes standard desktop DIMM modules due to incompatible physical dimensions and pin configurations, requiring laptop-specific memory purchases.
• Asymmetric memory configurations with unequal module capacities per slot will operate in flex mode, running dual-channel only for the matched capacity portion while reverting to single-channel for the remainder.
• User-accessible memory slots typically preserve manufacturer warranty on this model series, though verification of specific warranty terms before upgrade remains necessary to avoid coverage disputes.
• The 3200 MHz frequency specification represents JEDEC standard DDR4-3200 (PC4-25600), requiring module compatibility with this speed bin to prevent stability issues or automatic frequency reduction.
• Installing unbuffered (non-ECC) SO-DIMM modules maintains compatibility with this consumer-grade platform, as registered or ECC memory types designed for server applications will not function.
