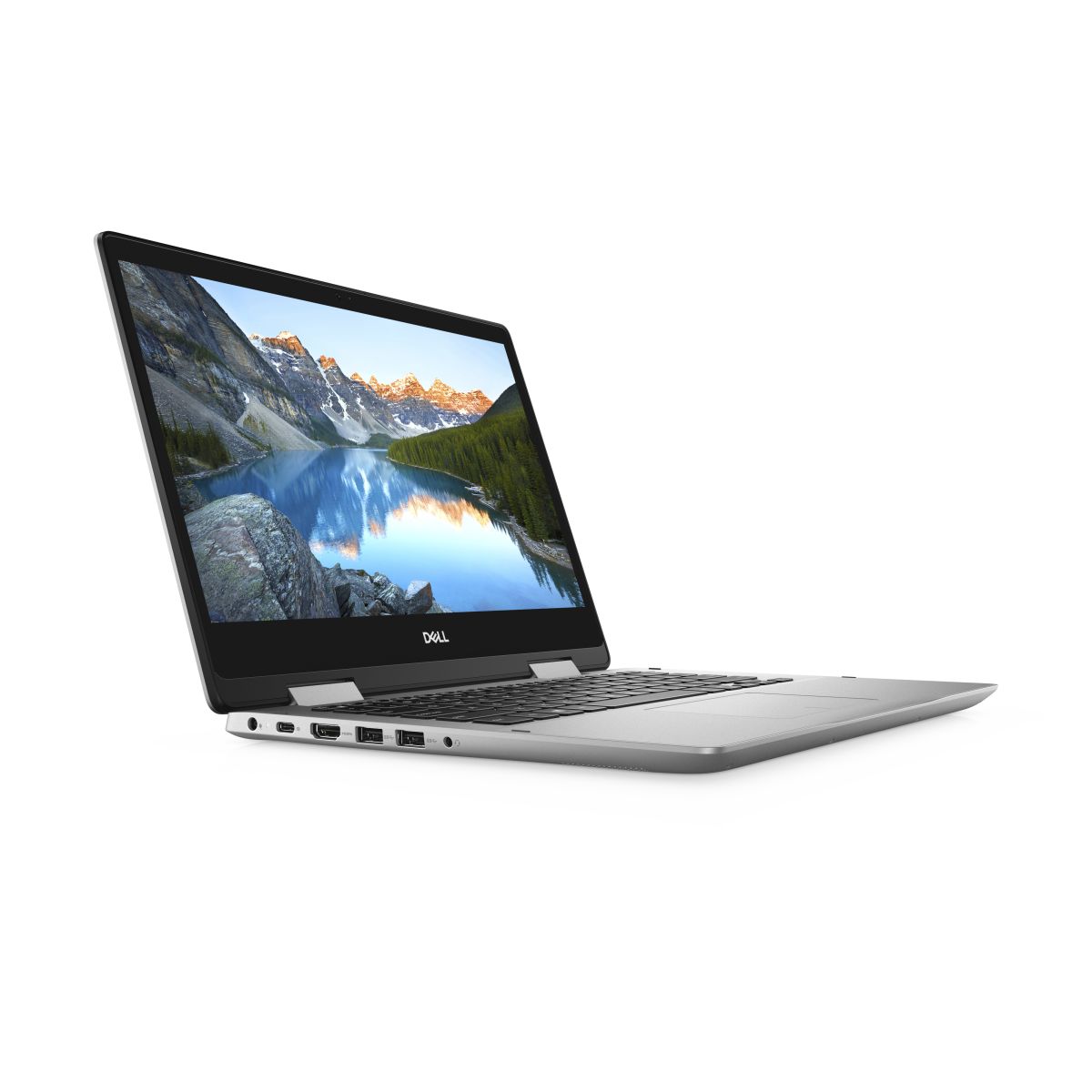

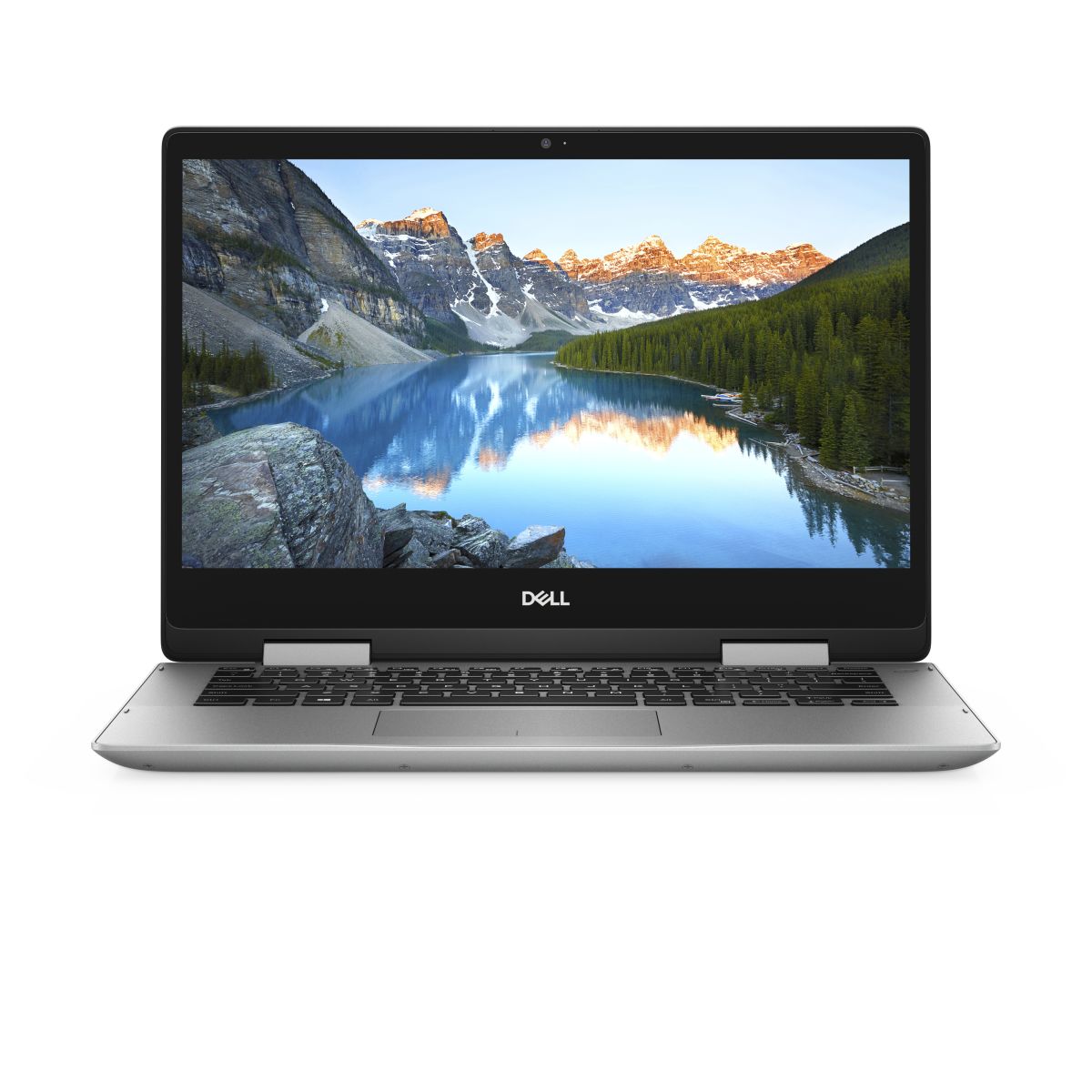

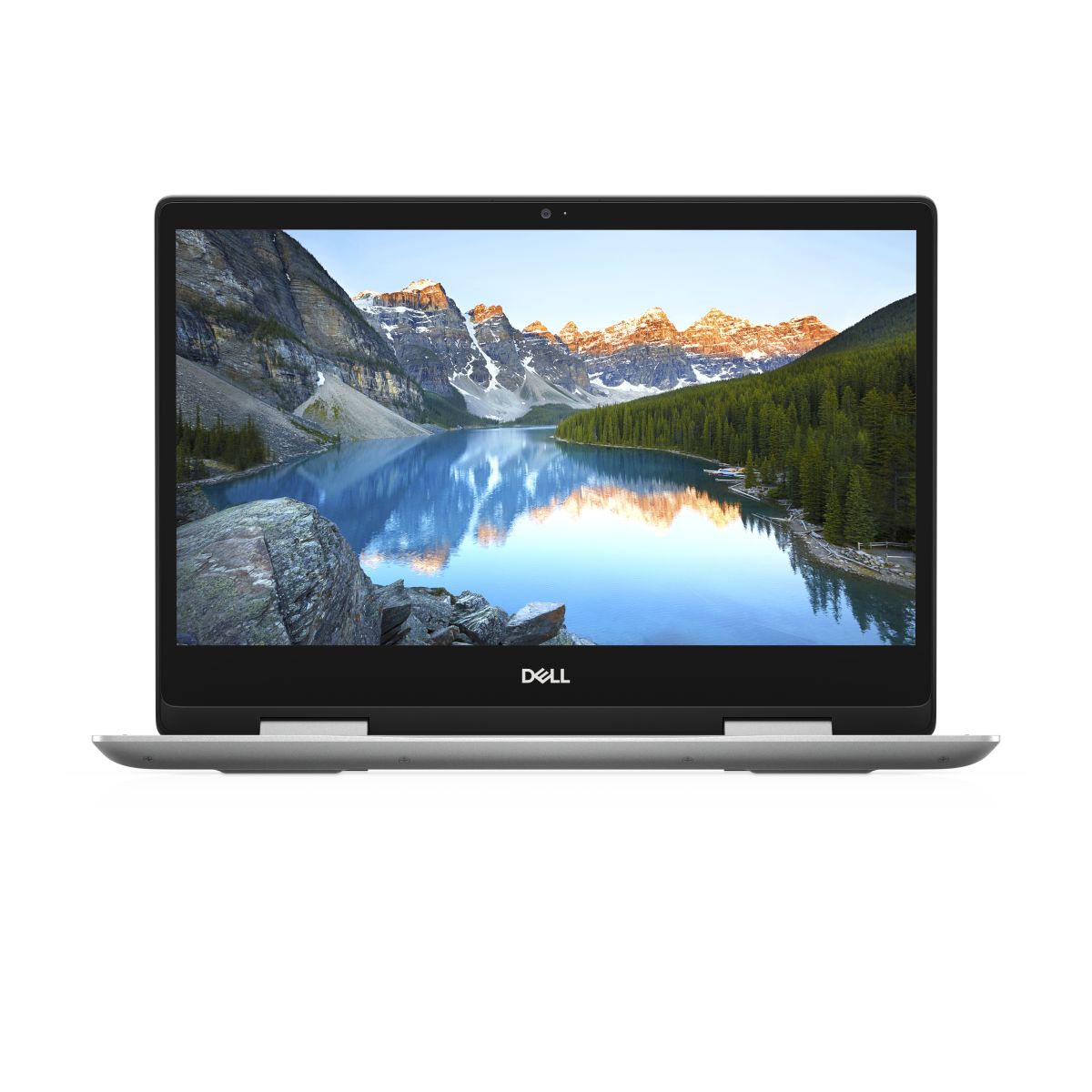

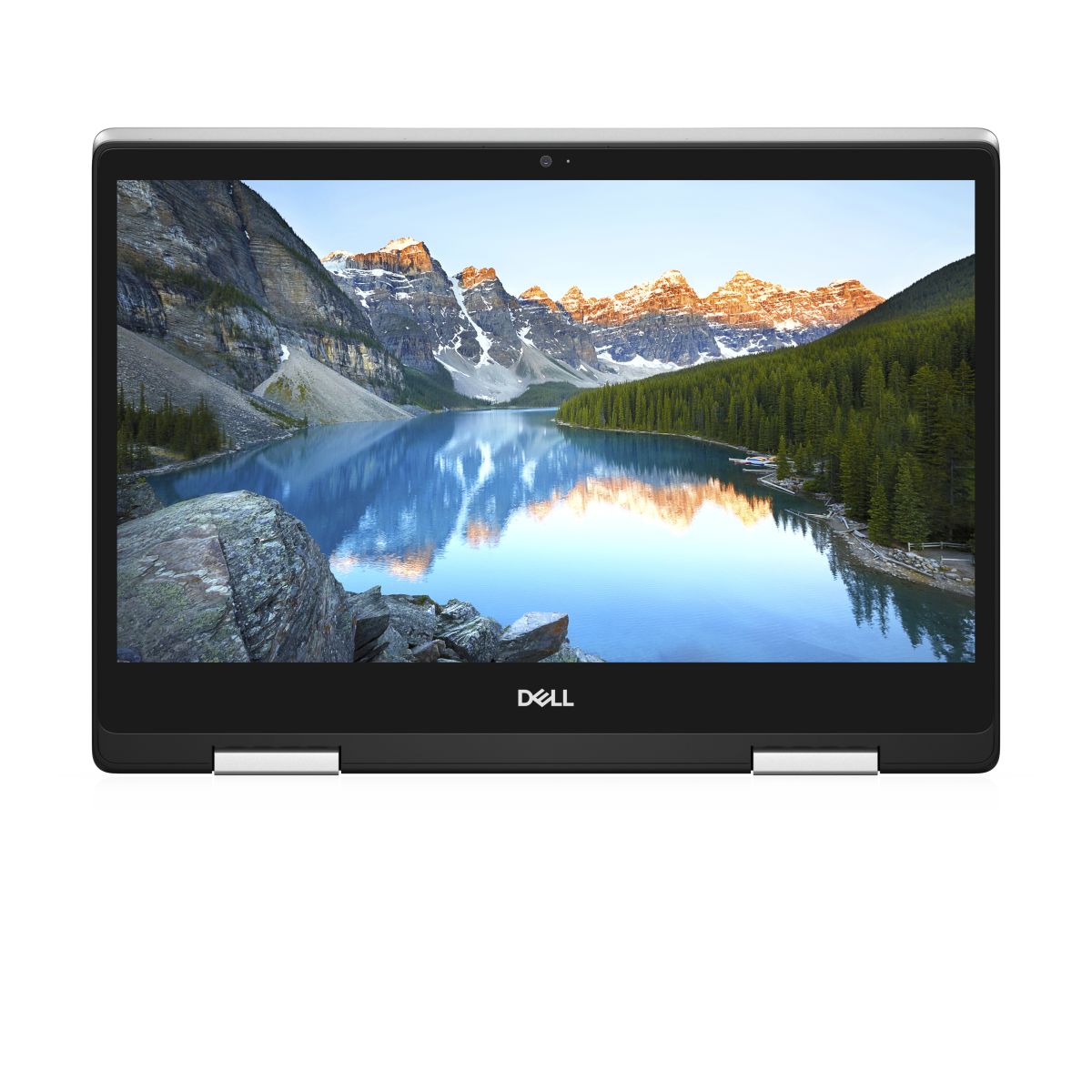

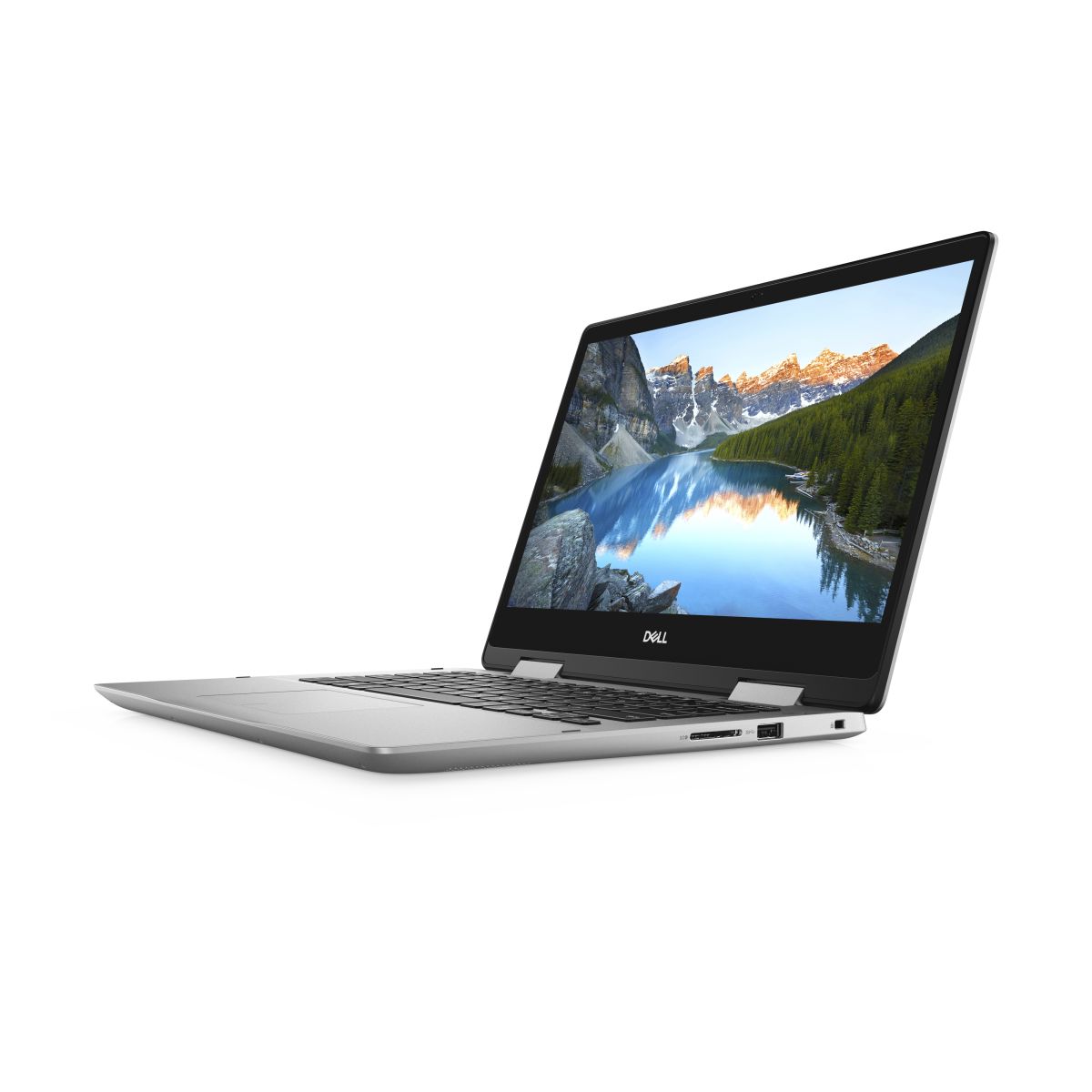

DELL Inspiron 5491 RAM upgrade specifications

DELL Inspiron 5000 series 5491 laptop supports DDR4-SDRAM memory upgrades via 2x SO-DIMM slots. Maximum compatible RAM capacity reaches 16 GB total. Memory specifications include 2666 MHz frequency with SO-DIMM form factor. Upgrade configurations accommodate DDR4 modules for enhanced system performance and multitasking capabilities on Inspiron 5491 models.

Additional Notes

• The DELL Inspiron 5491 chipset architecture limits total system memory to 16 GB, requiring either a single 16 GB module or dual 8 GB modules for maximum capacity.
• The 2 SO-DIMM slot configuration allows single-module operation but sacrifices dual-channel memory bandwidth, which reduces integrated graphics performance and memory-intensive application throughput.
• Installing non-matching modules creates asymmetric dual-channel mode, where only the capacity of the smaller module operates in dual-channel while excess capacity reverts to single-channel speed.
• The 2666 MHz specification represents the maximum supported frequency, meaning faster DDR4 modules will downclock to this speed through JEDEC standardization.
• DDR4 voltage tolerance remains fixed at 1.2V for SO-DIMM modules, preventing use of low-voltage or overclocking-oriented memory without potential stability issues.
• Accessing internal memory slots typically requires bottom panel removal, which may involve breaking adhesive seals or warranty stickers depending on regional service policies.
• Mixing different memory ranks (single-rank vs dual-rank modules) can function but may introduce latency penalties or prevent operation at rated 2666 MHz speeds.
• The SO-DIMM 260-pin standard excludes compatibility with desktop DIMM modules, requiring laptop-specific memory procurement.
• Operating a single module in one slot leaves the memory controller's second channel inactive, halving theoretical bandwidth from 42.6 GB/s to 21.3 GB/s.
• Non-ECC unbuffered memory remains the only compatible type, as the mobile platform lacks error-correction support found in workstation-class systems.
