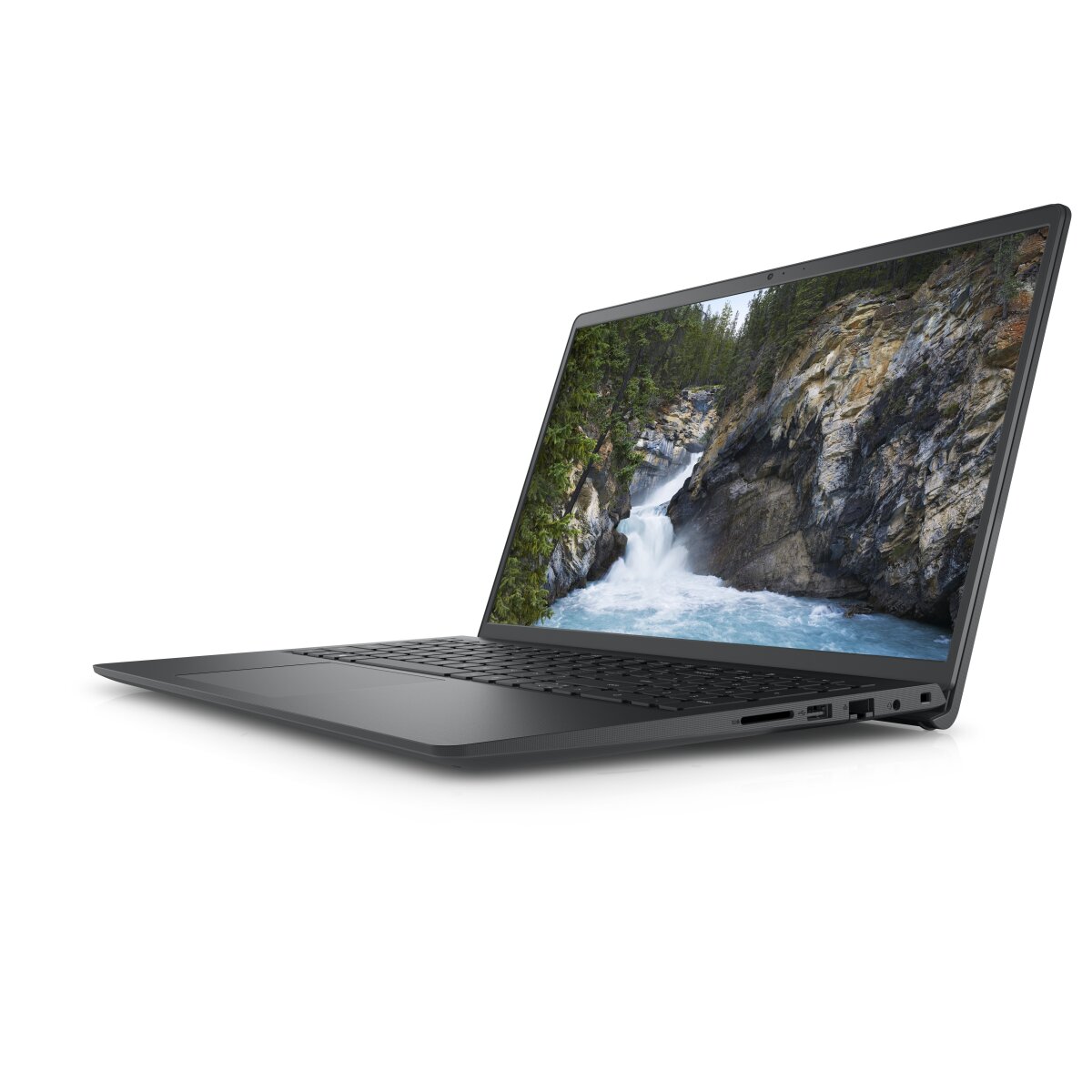

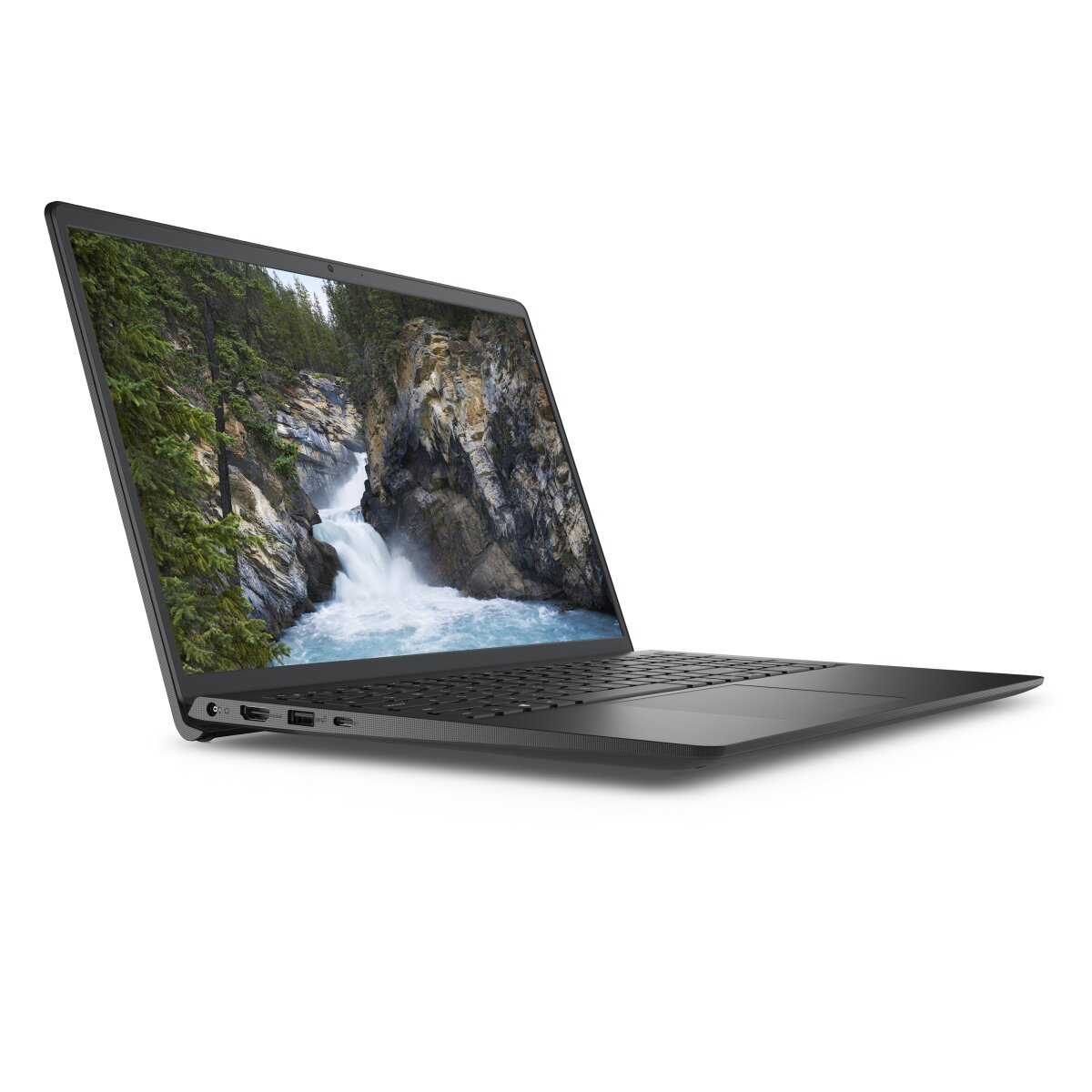

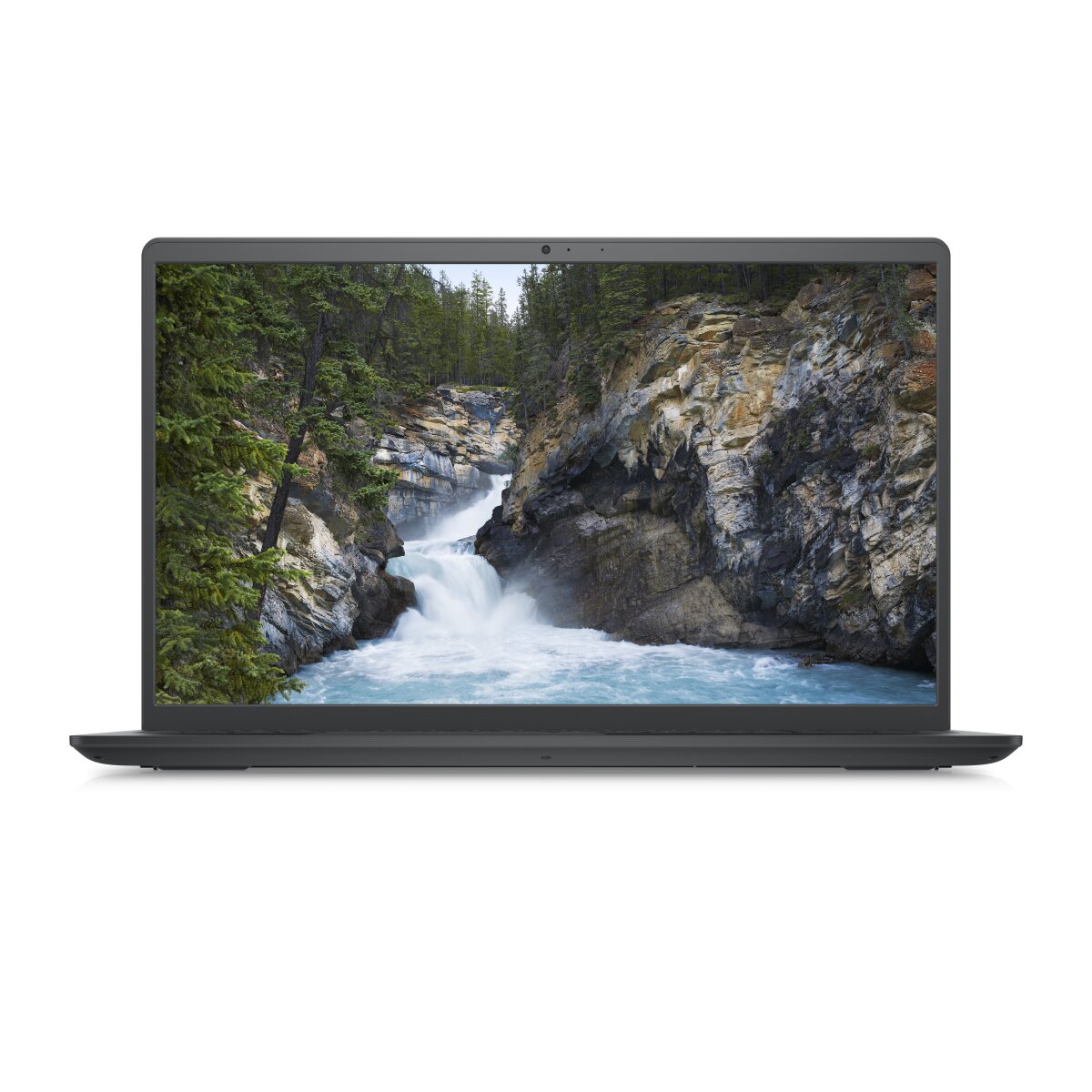

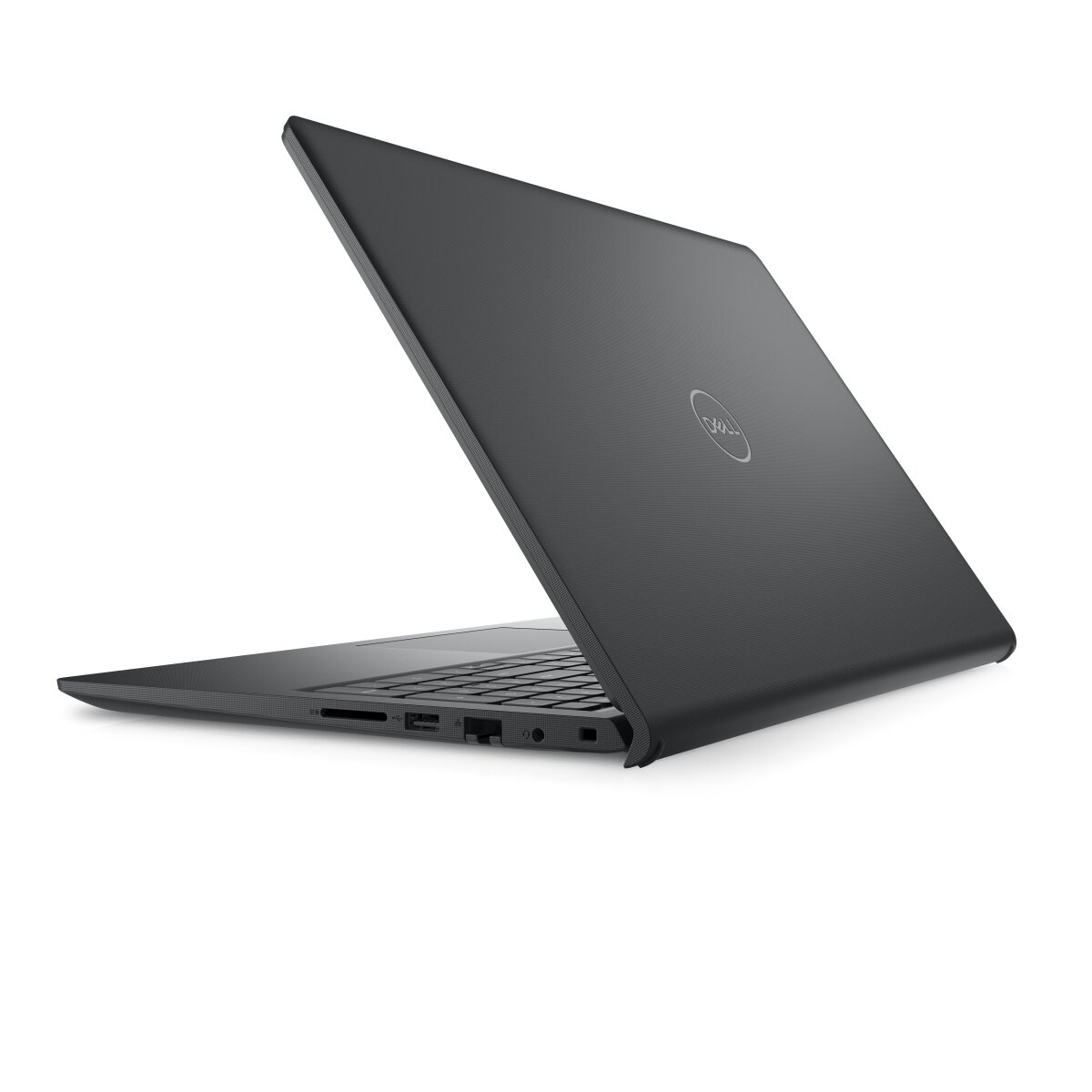

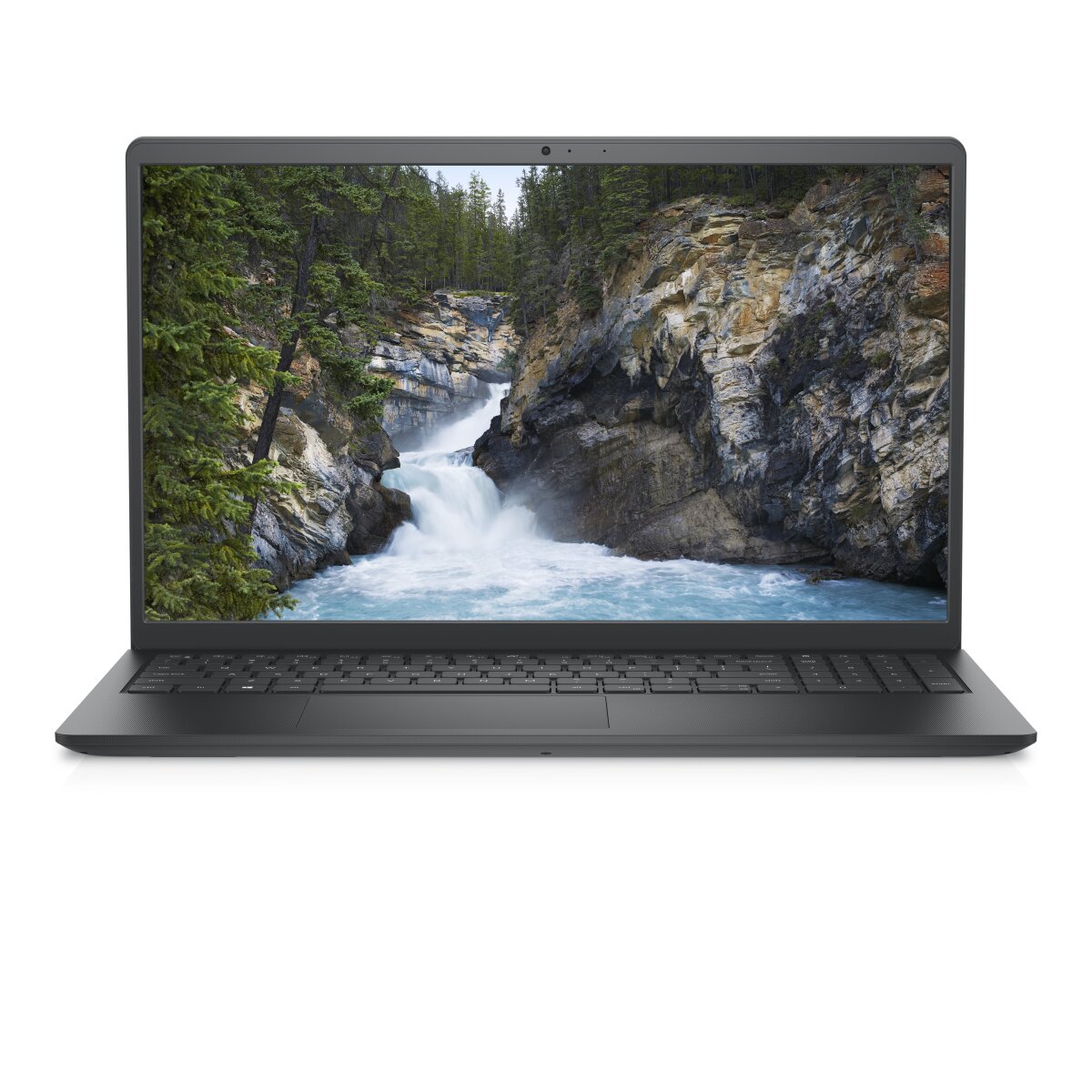

DELL Vostro 3535 RAM upgrade specifications
The Dell Vostro 3000 Series 3535 laptop contains two SO-DIMM memory slots supporting DDR4-SDRAM upgrade capacity. The maximum RAM upgrade specification for this model is 16 GB total memory at 3200 MHz frequency. Compatible memory modules must utilize the SO-DIMM form factor to ensure proper installation in the available slots. Current memory configuration can be expanded by installing additional DDR4-SDRAM modules into the empty slots or replacing existing memory to reach the maximum supported capacity specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 16 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 10 March 2023 |
Additional Notes
- The Dell Vostro 3535 accepts only DDR4 modules, which prevents installation of DDR3 or DDR5 memory regardless of physical compatibility attempts.
- The 16 GB ceiling limits the system to either a single 16 GB module or dual 8 GB modules, making 32 GB configurations impossible even with two slots available.
- The 3200 MHz specification represents the maximum supported frequency, meaning faster modules will operate at reduced speeds through automatic downclocking.
- Both slots require SO-DIMM form factor modules, which excludes standard desktop DIMM modules due to incompatible pin counts and physical dimensions.
- Populating both slots enables dual-channel operation, which doubles memory bandwidth compared to single-module configurations operating in single-channel mode.
- The memory controller enforces DDR4-3200 timing parameters, which may differ from XMP or JEDEC profiles programmed into aftermarket modules.
- Mixing modules with different speeds forces the system to operate all memory at the lowest common frequency among installed modules.
- The dual-slot configuration allows asymmetric capacity installations, though balanced capacities across both slots optimize dual-channel interleaving efficiency.
- Voltage requirements remain fixed at DDR4 standard specifications, preventing use of low-voltage DDR4L modules requiring different power delivery.
- RAM replacement typically preserves manufacturer warranty status, unlike modifications to soldered or storage components that may void coverage terms.
