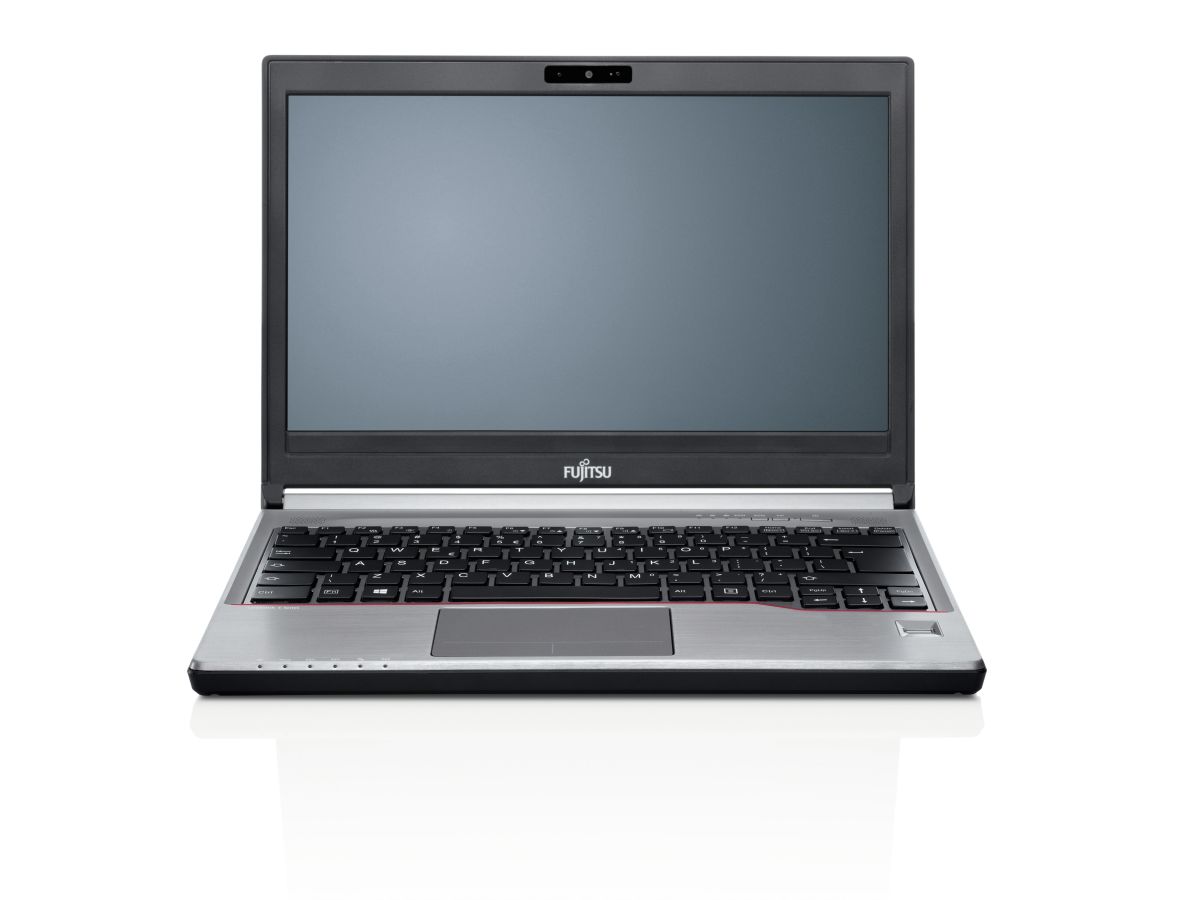

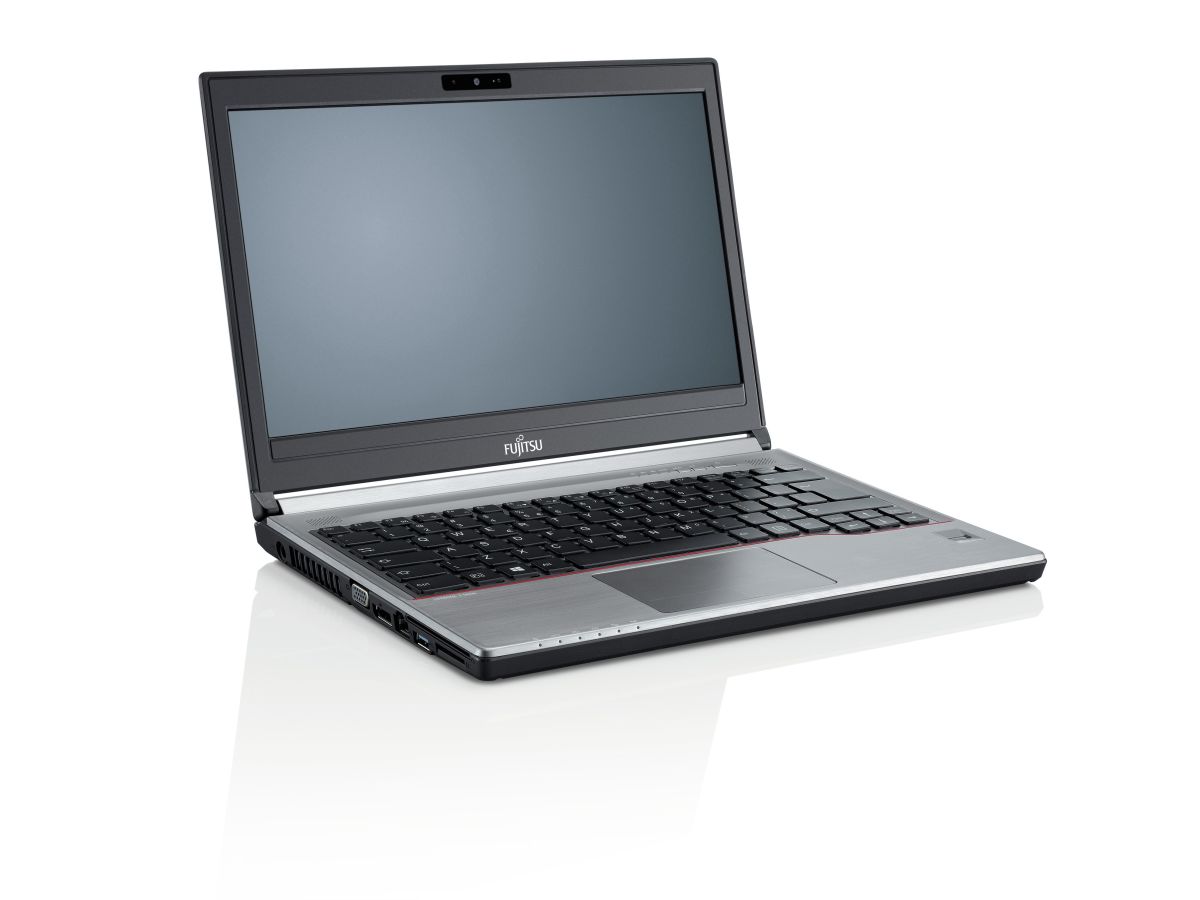

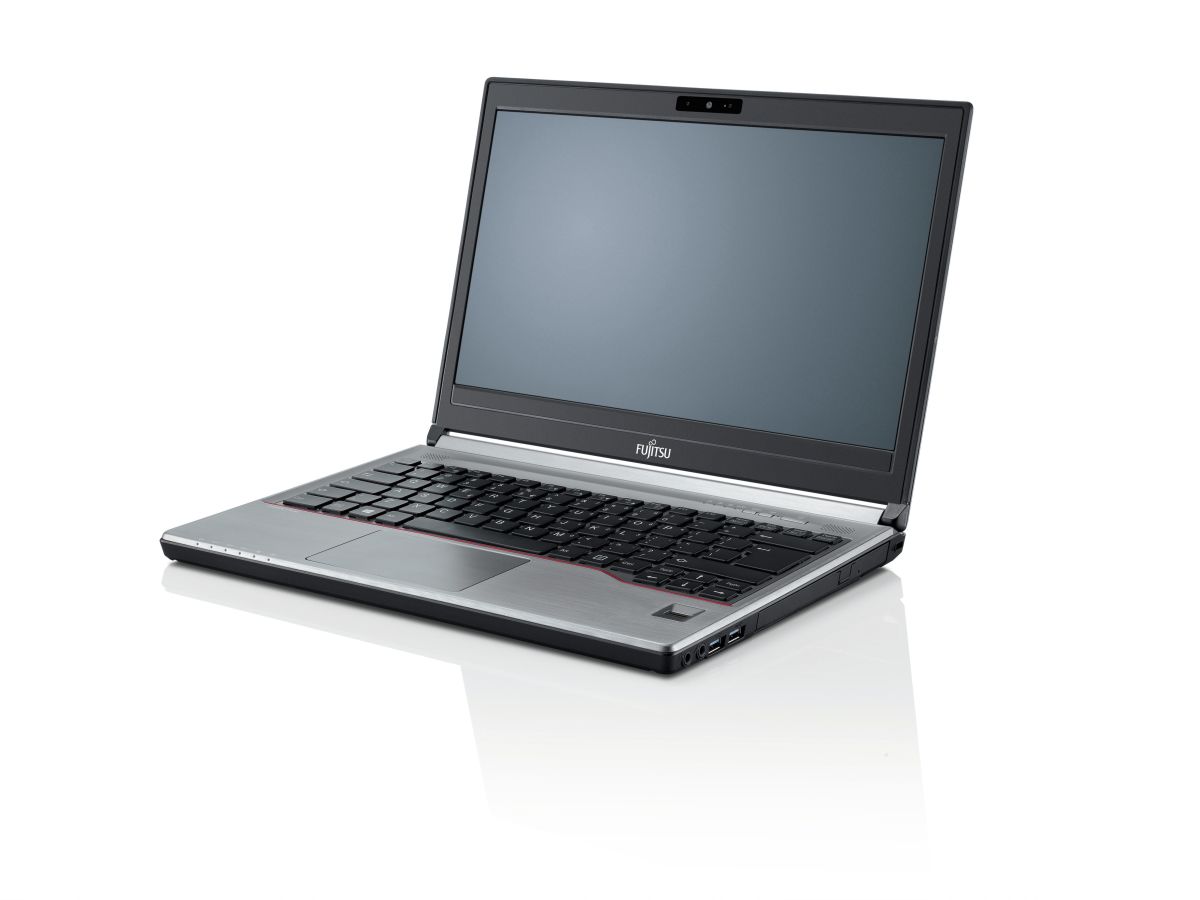

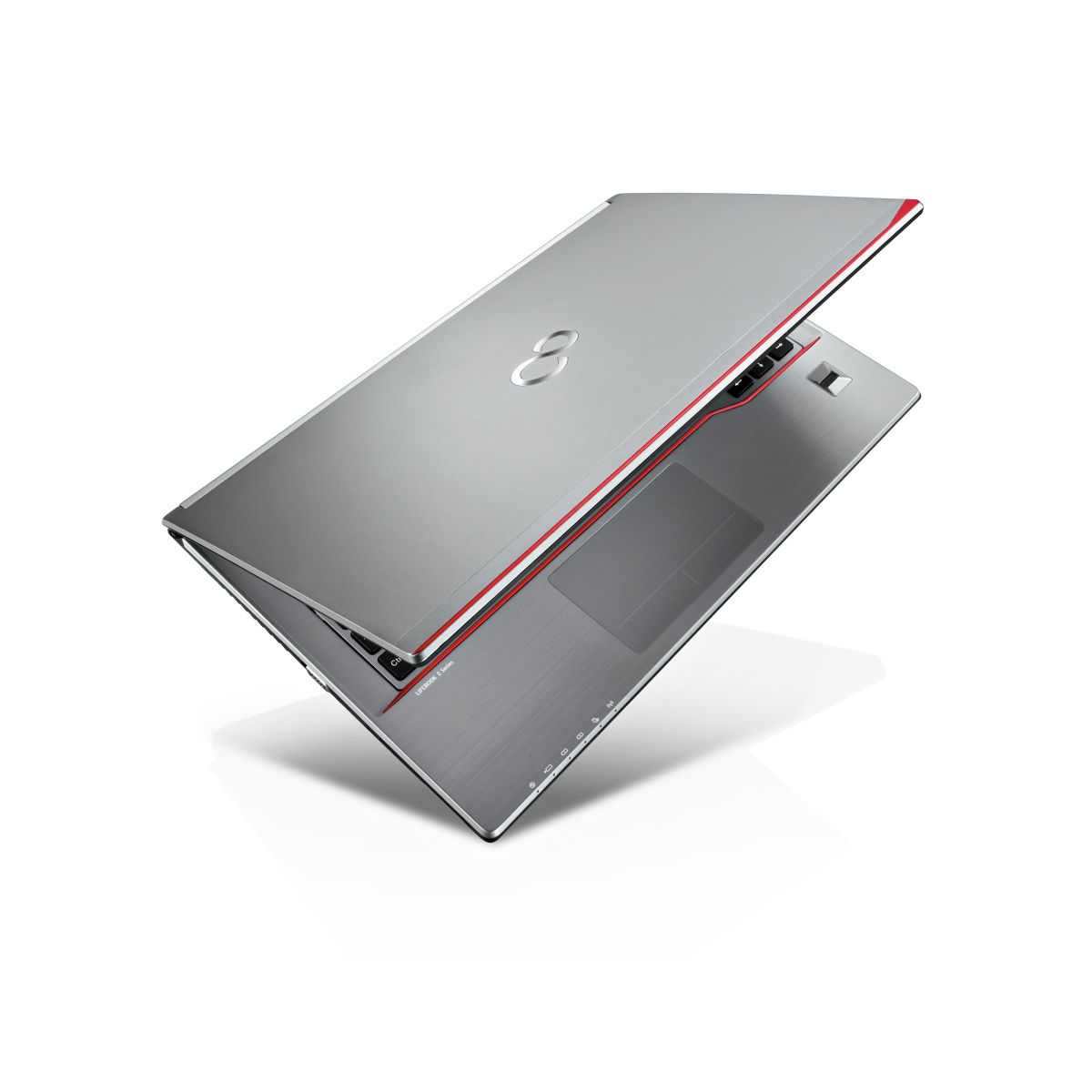

FUJITSU LIFEBOOK E746 RAM upgrade specifications

FUJITSU LIFEBOOK E746 laptop supports DDR4-SDRAM memory upgrades through two SO-DIMM slots. Maximum memory capacity reaches 32 GB total, with compatible modules operating at 2133 MHz frequency. Upgrade specifications enable expansion of the notebook's RAM configuration using standard SO-DIMM form factor modules. The E746 model accommodates memory enhancements for improved multitasking performance and system responsiveness through compatible DDR4 memory upgrades in the available slot configuration.

Additional Notes

• The 2 SO-DIMM slots limit total capacity to 32 GB maximum, requiring a 16 GB module per slot for full system capacity.
• DDR4-2133 represents the base JEDEC specification, preventing installation of faster DDR3 or DDR5 modules due to voltage and pin incompatibility.
• Higher frequency modules (2400 MHz, 2666 MHz, or beyond) will downclock to 2133 MHz, eliminating any performance benefit from premium-speed memory.
• The SO-DIMM form factor excludes standard desktop DIMM modules, which physically cannot fit the smaller 260-pin laptop socket.
• Single-channel configurations (1 module installed) will halve memory bandwidth compared to dual-channel operation with matched pairs.
• Mixing modules of different capacities or timings may force both modules to operate at the slower module's specifications.
• The 32 GB ceiling prevents future expansion beyond 2x16 GB, as no higher-capacity SO-DIMM modules can overcome the controller limitation.
• Non-ECC unbuffered modules are required for consumer-grade LIFEBOOK systems, as registered or ECC memory typically requires server-class chipsets.
• Operating at 1.2V DDR4 standard voltage, the system will reject 1.35V DDR3L modules despite similar physical dimensions.
• Memory-accessible slots typically require bottom panel removal, with potential warranty implications if manufacturer seals are broken during user installation.
• The 2133 MHz specification indicates a probable 6th or 7th generation Intel processor, which lacks native support for speeds above DDR4-2400 without overclocking.
• Asymmetric configurations (8 GB + 16 GB) will operate in flex mode, running dual-channel only for the matched 8 GB portion while the remaining 8 GB operates in single-channel.
