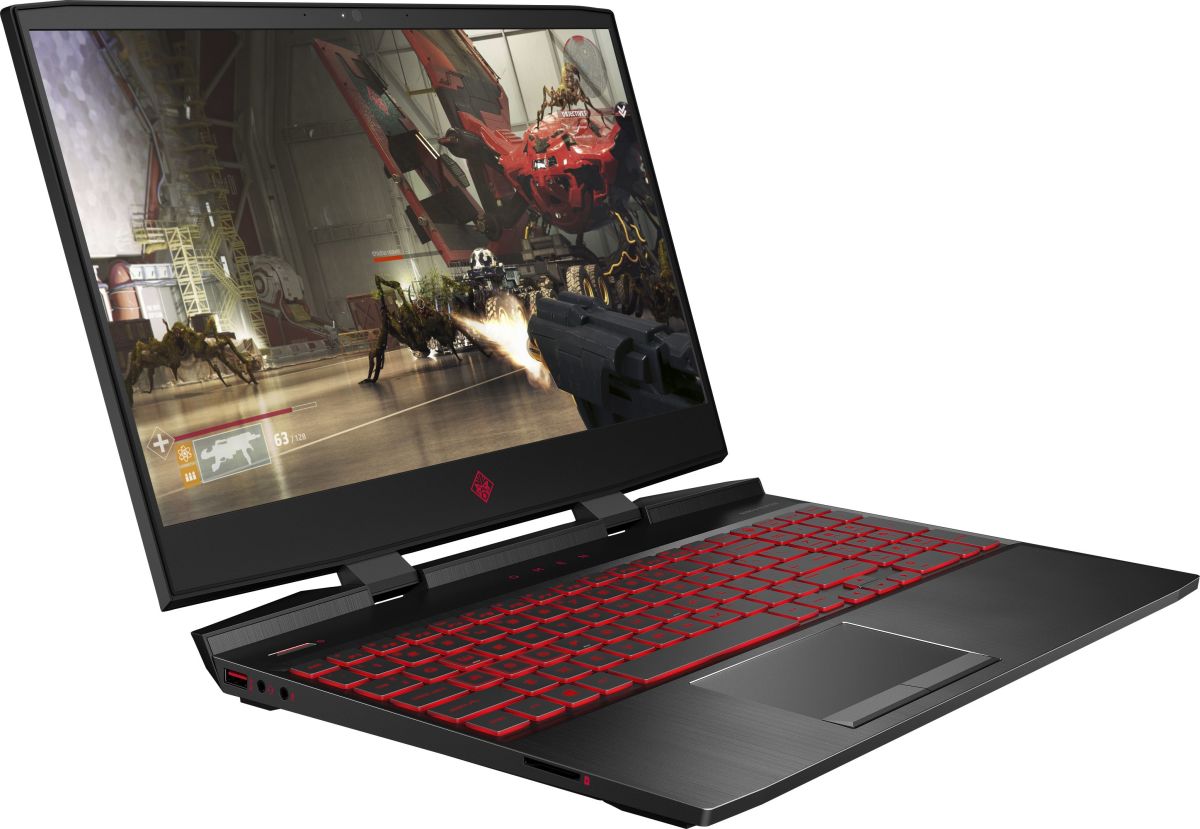

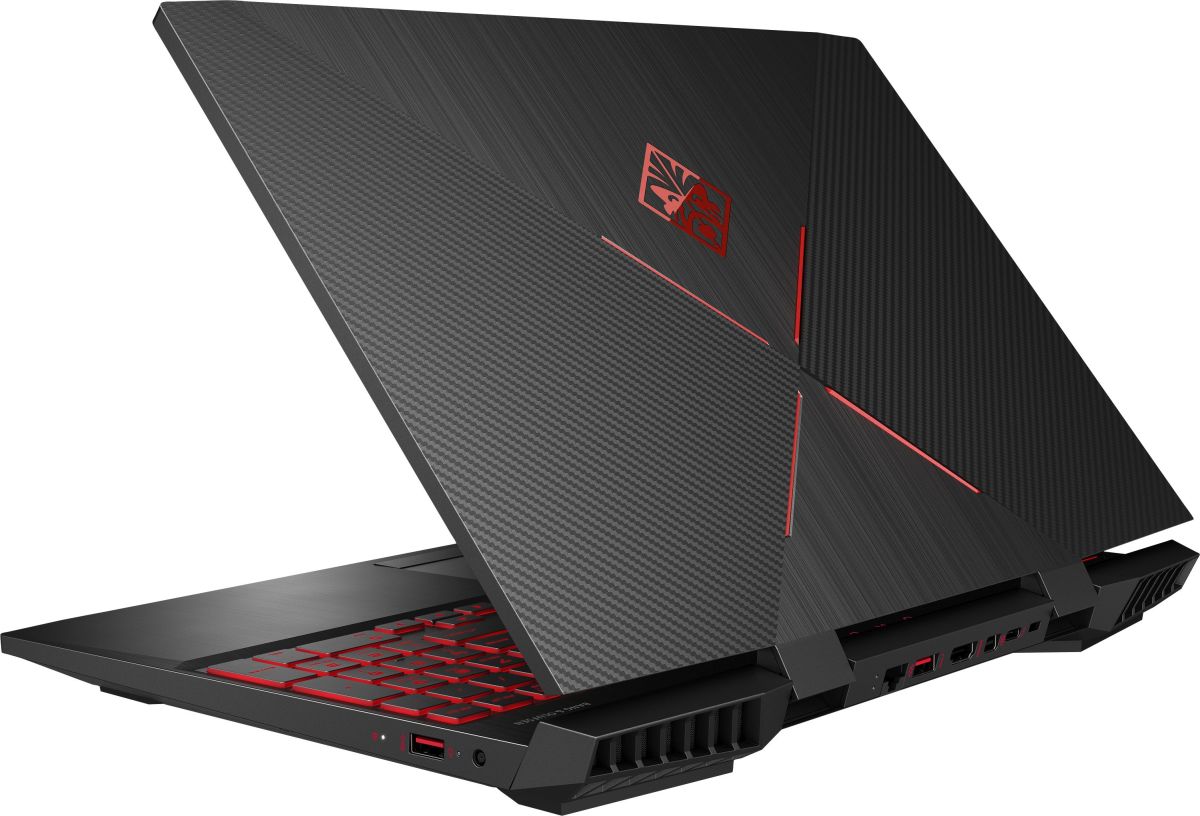

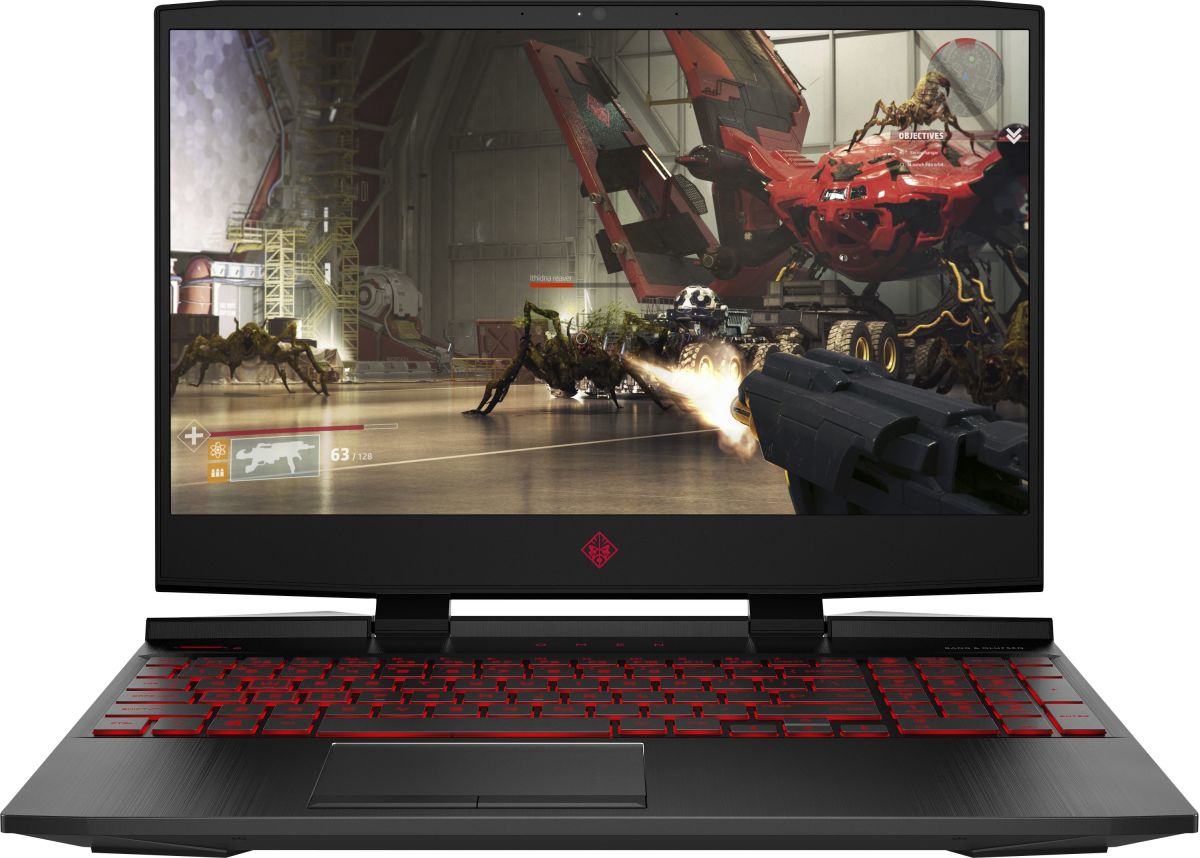

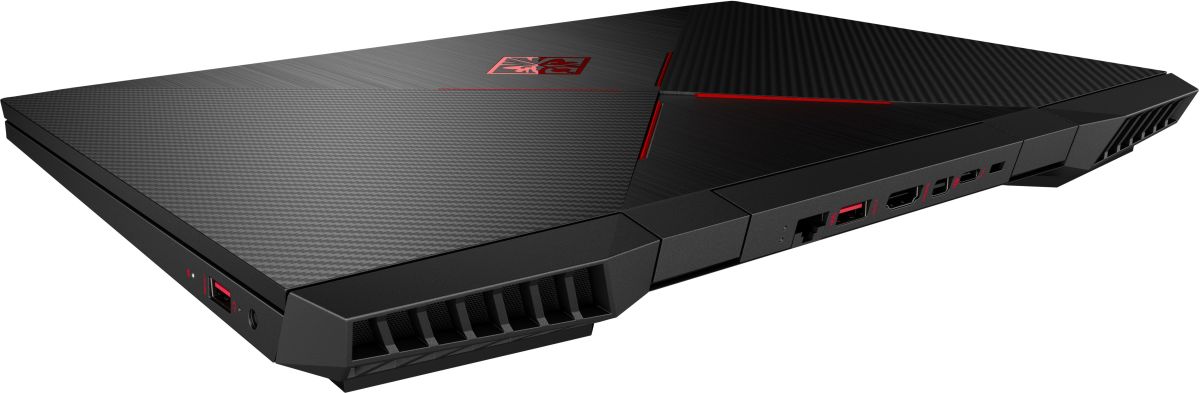

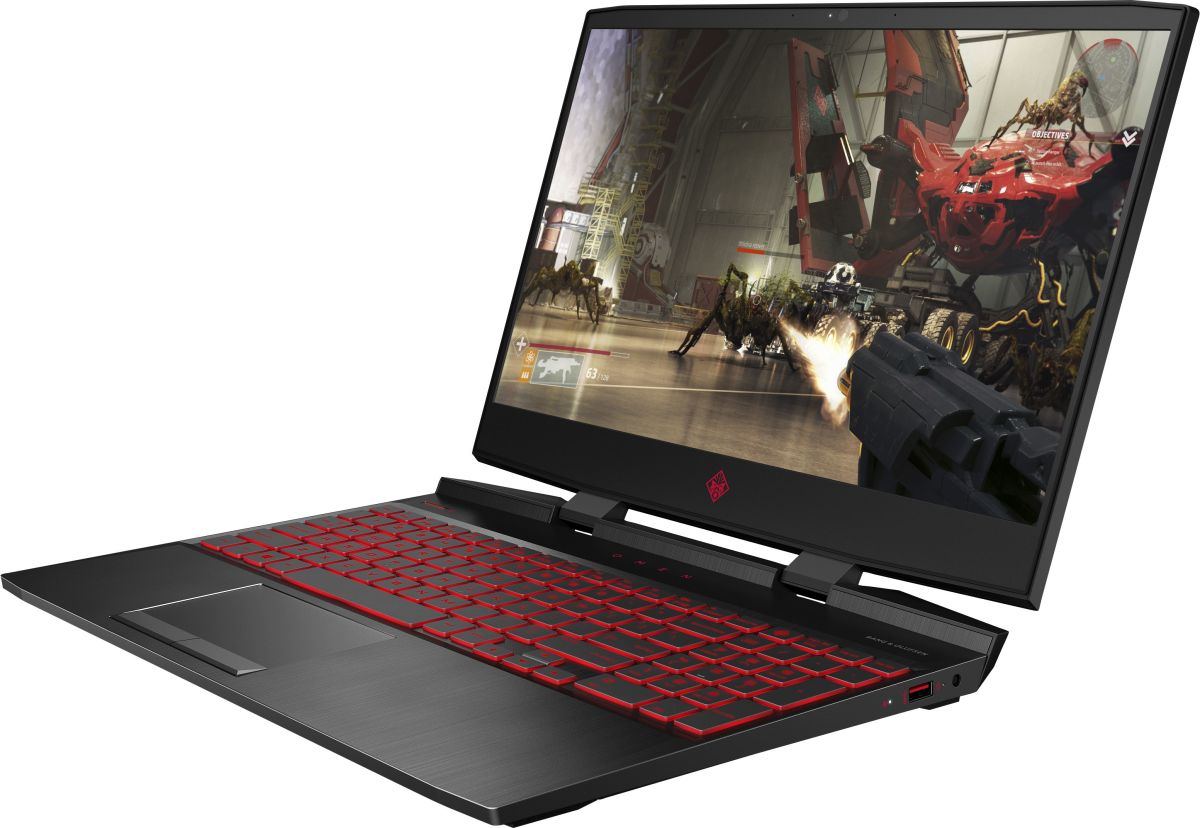

HP OMEN 15-dc0030ur RAM upgrade specifications
HP OMEN 15-dc0030ur laptop features two SO-DIMM memory slots supporting DDR4-SDRAM upgrade specifications. Maximum RAM capacity reaches 32 GB with DDR4-2666 MHz frequency compatibility. Current memory upgrade options allow installation of compatible SO-DIMM modules to expand system RAM up to the specified maximum capacity. Specifications indicate dual-slot configuration enabling memory expansion for enhanced performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 04 July 2018 |
Additional Notes
- DDR4-2666 specification indicates this system predates DDR4-3200 standardization, creating potential incompatibility with newer high-frequency modules unless BIOS explicitly supports XMP/DOCP profiles for higher speeds.
- 2x SO-DIMM architecture permits staged upgrades to 32 GB maximum without requiring simultaneous replacement of both modules, enabling cost-staged memory expansion from factory configuration.
- SO-DIMM form factor constrains upgrade sourcing to laptop-grade memory modules, eliminating desktop DDR4 inventory as compatible alternatives and typically introducing 15-25 percent cost premium versus desktop equivalents.
- Single-channel to dual-channel migration during partial upgrades can trigger 10-15 percent memory bandwidth variance depending on module population sequence, affecting sustained multi-threaded workload performance until full 32 GB dual-channel configuration is achieved.
- 32 GB ceiling on an OMEN 15 gaming platform suggests integrated graphics or mobile GPU architecture lacking dedicated VRAM pooling, making host RAM particularly critical for graphics workloads and creating sensitivity to memory speed degradation below 2666 MHz baseline.
- Voltage specifications for DDR4-2666 SO-DIMM modules typically standardize at 1.2 volts nominal, eliminating compatibility risk with higher-voltage overclocked modules if sourced modules carry standard JEDEC specifications rather than custom profiles.
- Two-slot limitation creates zero expansion headroom beyond 32 GB system maximum, requiring complete module replacement rather than additive upgrades if capacity ceiling expansion becomes necessary in future scenarios.
