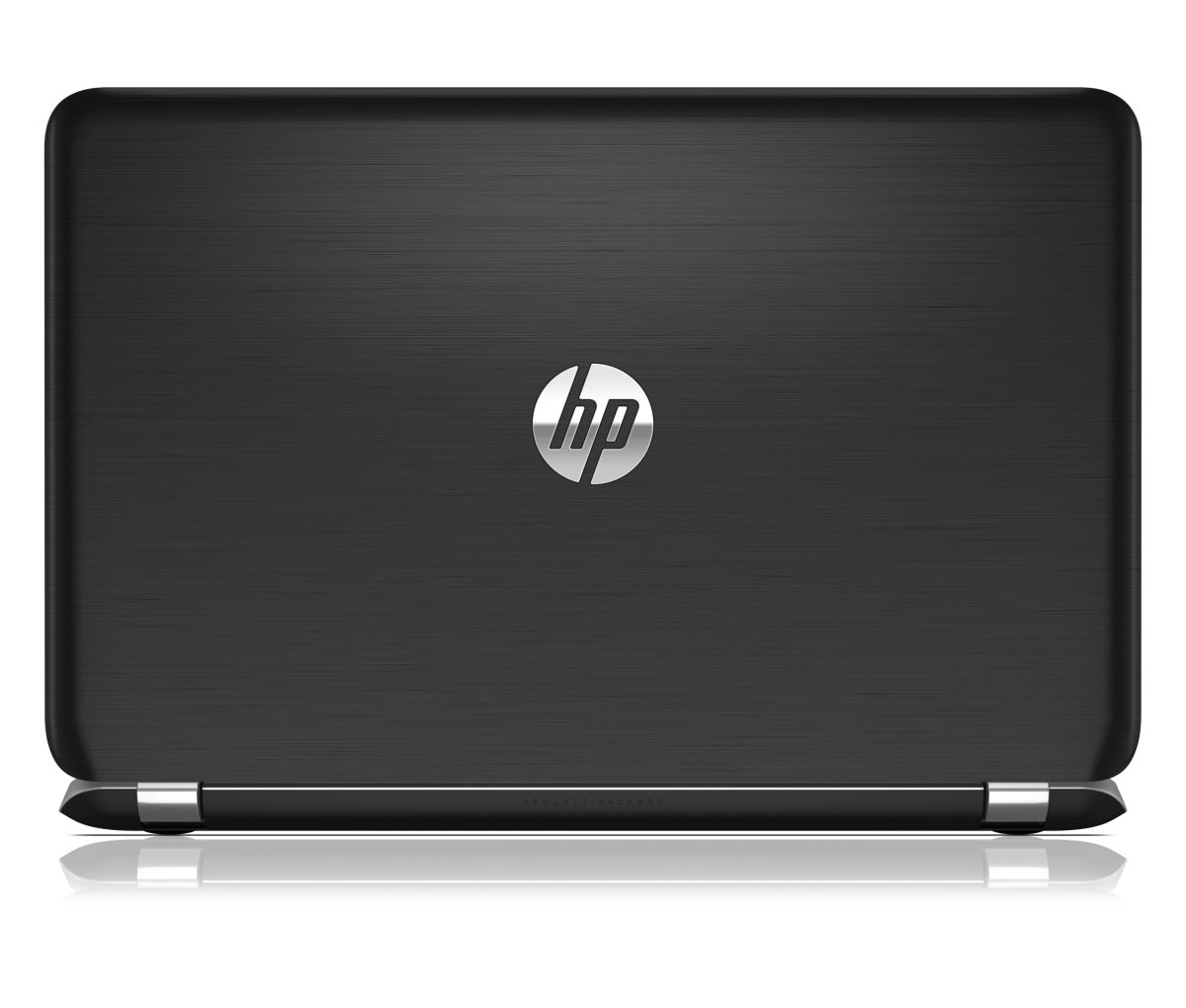

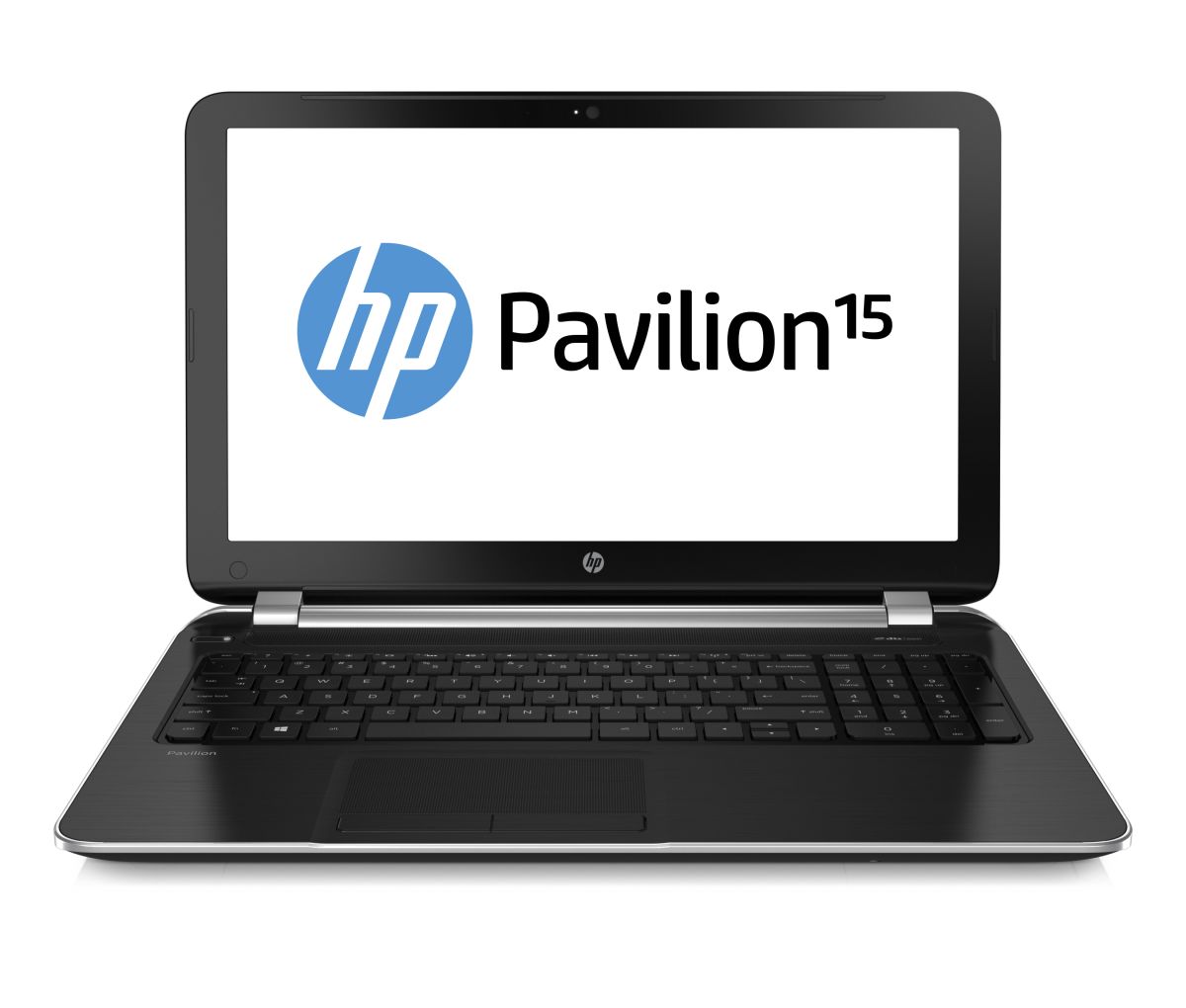

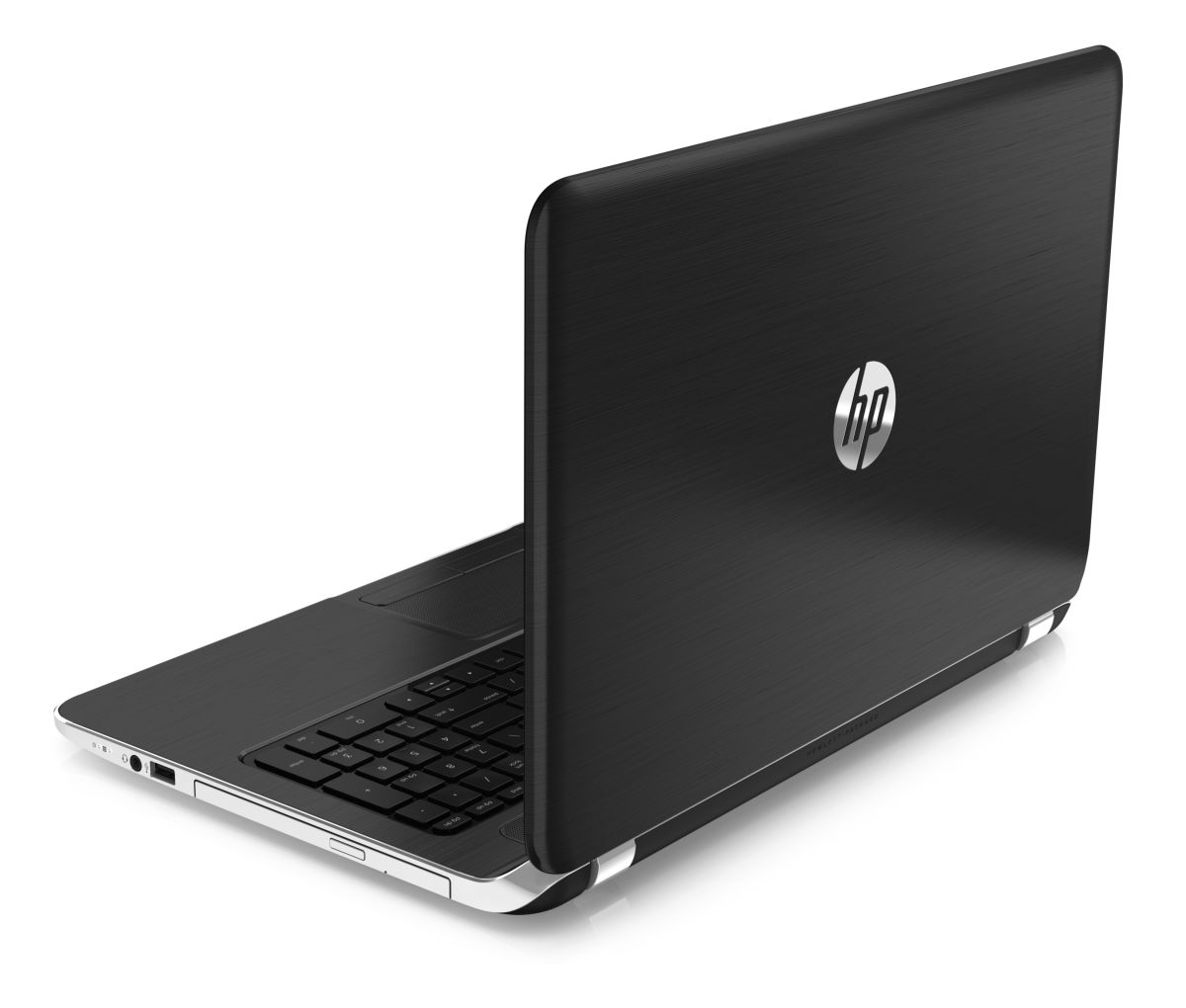

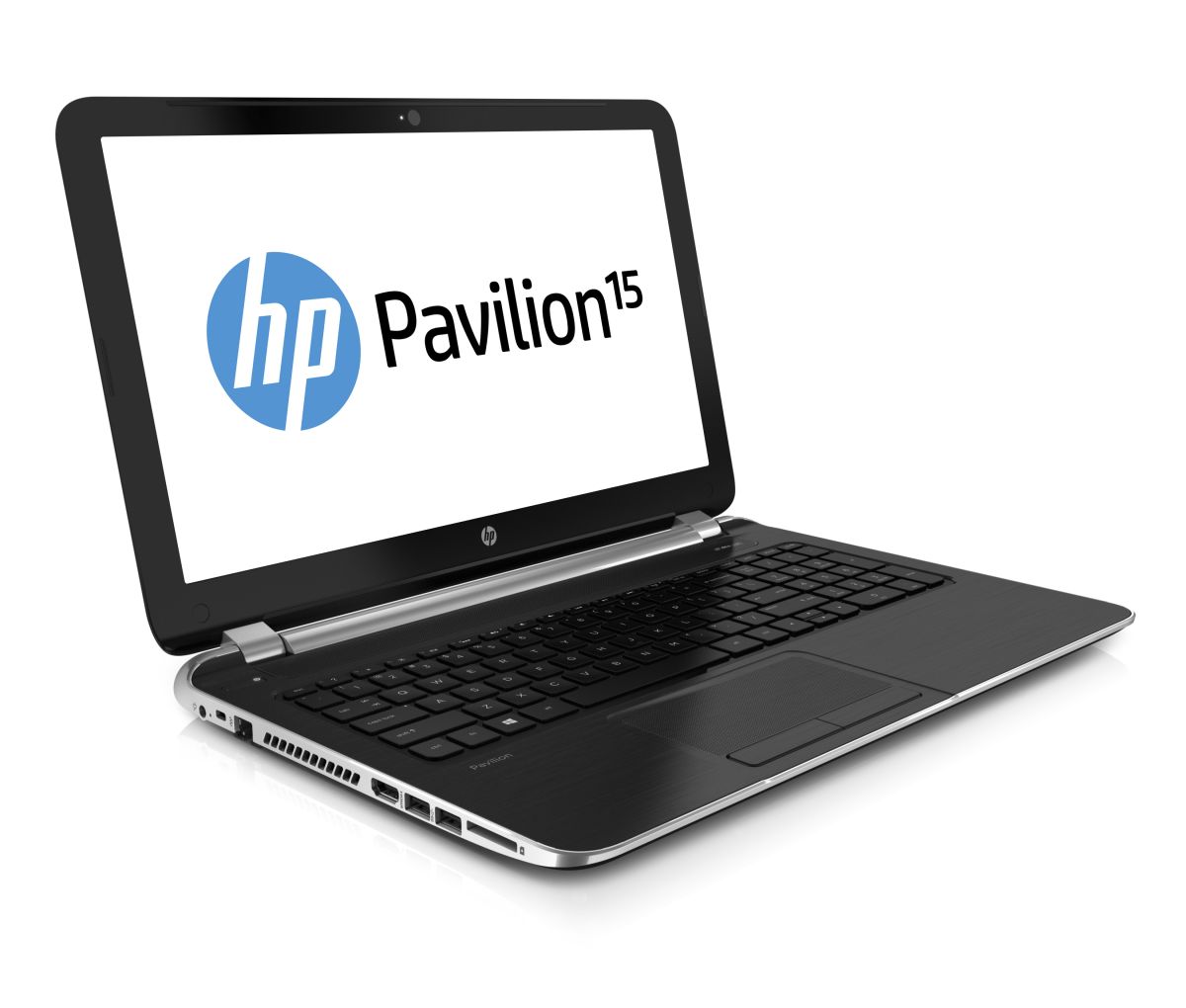

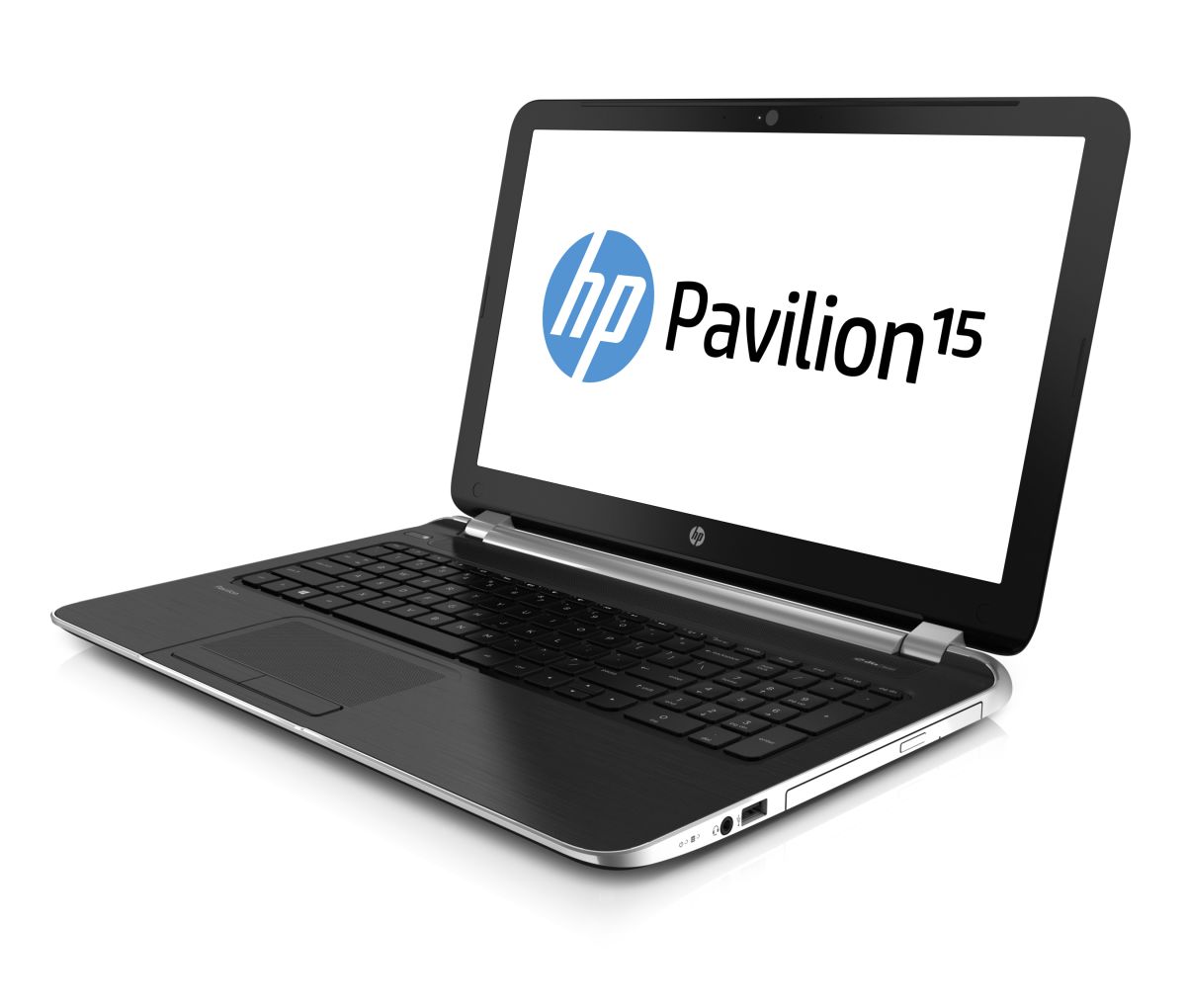

HP Pavilion 15-n230ez RAM upgrade specifications
The HP Pavilion 15-n230ez features DDR3L-SDRAM memory configuration with two SO-DIMM slots supporting maximum capacity of 8 GB total. Compatible RAM upgrades operate at 1600 MHz frequency. Specifications indicate the laptop accepts SO-DIMM form factor modules for memory expansion. Maximum supported memory capacity allows for configurations up to 8 GB when both slots are populated with compatible modules.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR3L-SDRAM |
| Frequency | 1600 MHz |
| Maximum RAM | 8 GB |
| Voltage | 1.35V (Low Voltage) |
| Number of pins | 204-pin |
| Interface | PC3L |
| PC Speed Rating | PC3L-1600 (PC3L-12800) |
| Bandwidth | 12.8 GB/s |
| Laptop Release date | 01 February 2014 |
Additional Notes
- The maximum supported capacity restricts the motherboard to 4 GB modules per slot, preventing the use of high density 8 GB or 16 GB sticks.
- Operating at 1.35 volts signifies that standard 1.5 volt DDR3 modules may cause boot failures or thermal instability in this HP Pavilion 15-n230ez system.
- The dual slot architecture enables synchronous memory access, which doubles the theoretical peak bandwidth compared to single channel configurations.
- Installing memory with frequencies higher than 1600 MHz will result in automatic downclocking to match the hardware controller limitations.
- Physical installation requires grounded handling of small form factor modules due to the lack of heat spreaders on standard SO-DIMM designs.
- Reaching the total capacity ceiling necessitates the removal of existing modules if both slots are currently occupied by lower density sticks.
- The internal hardware architecture limits future proofing for memory intensive workloads like modern virtualization or complex video editing.
