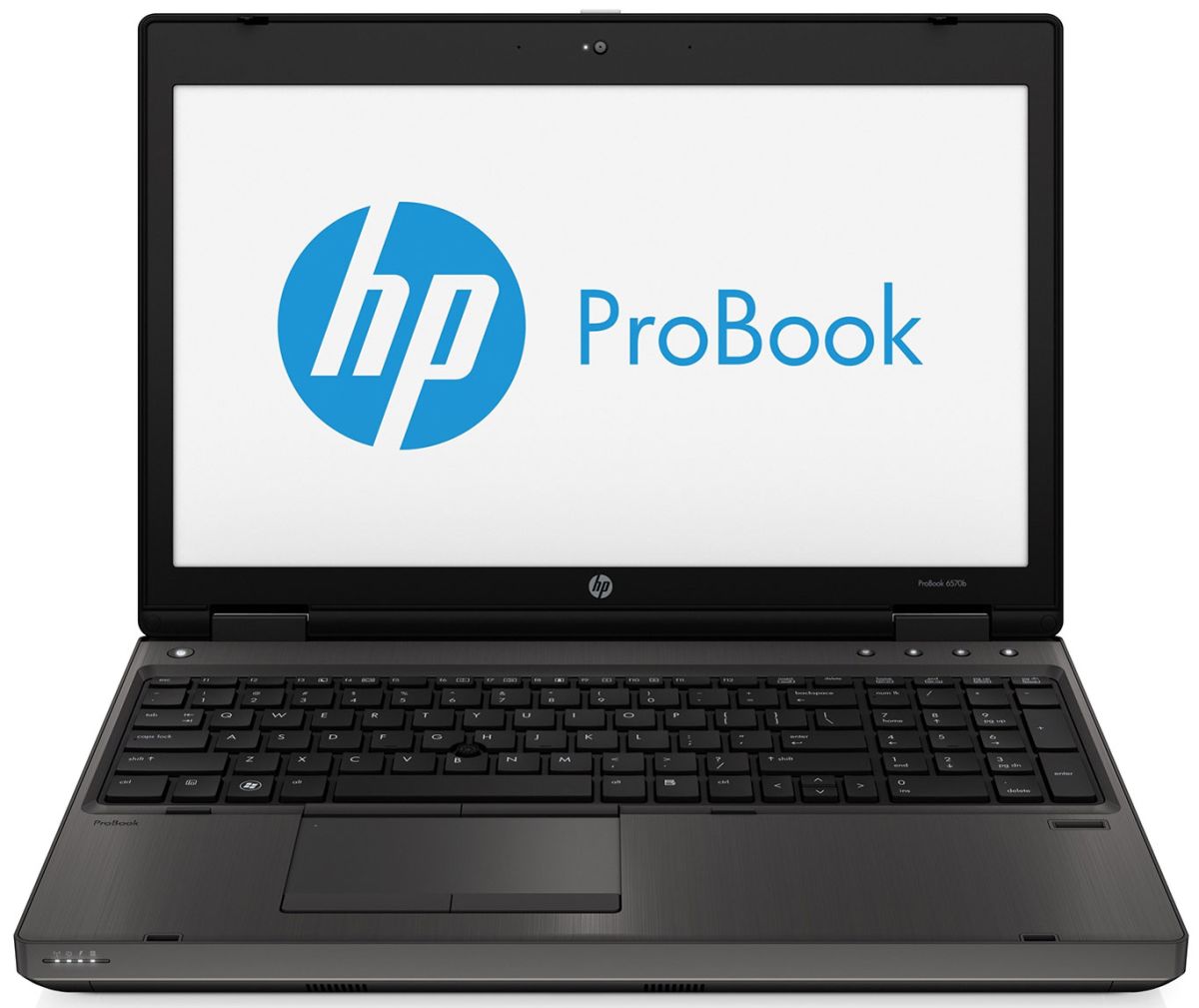

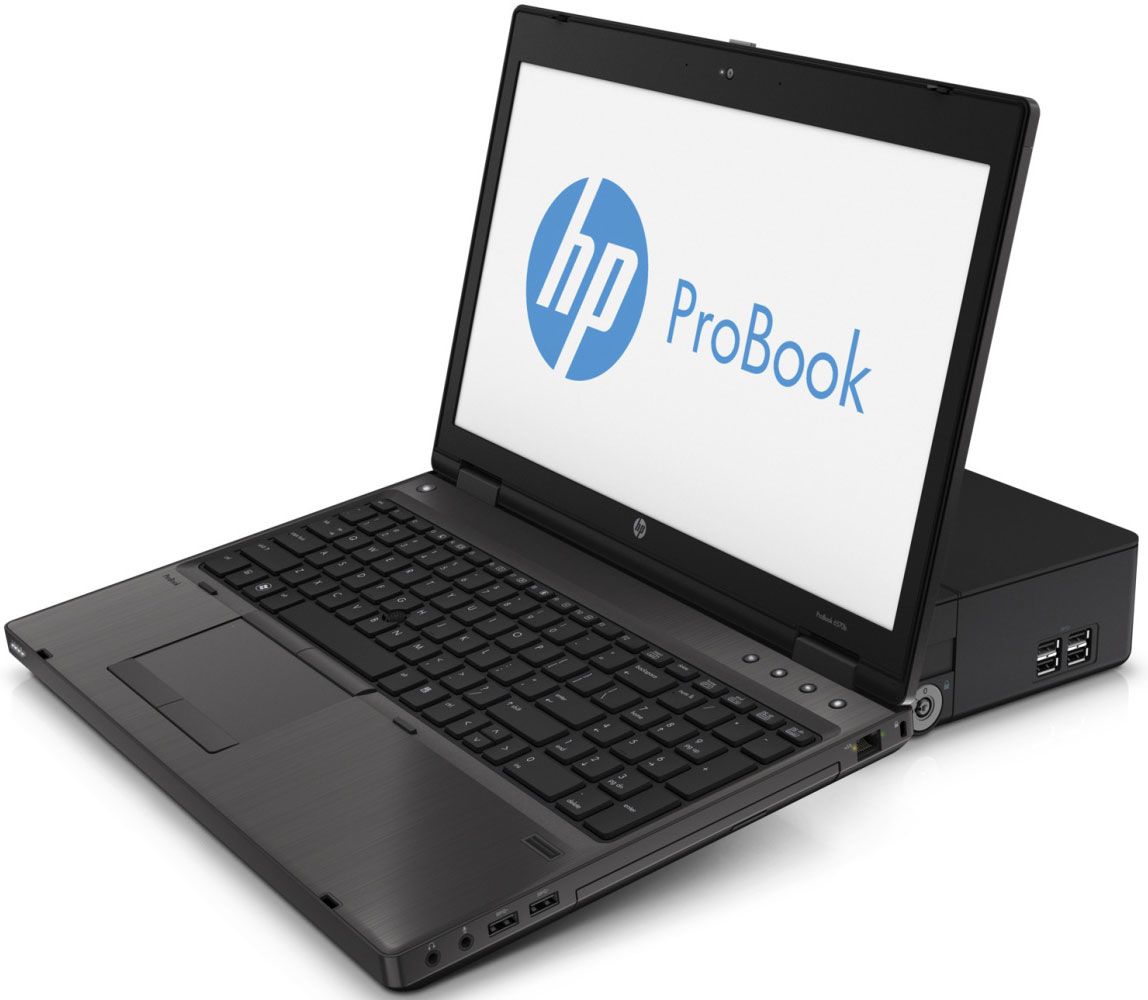

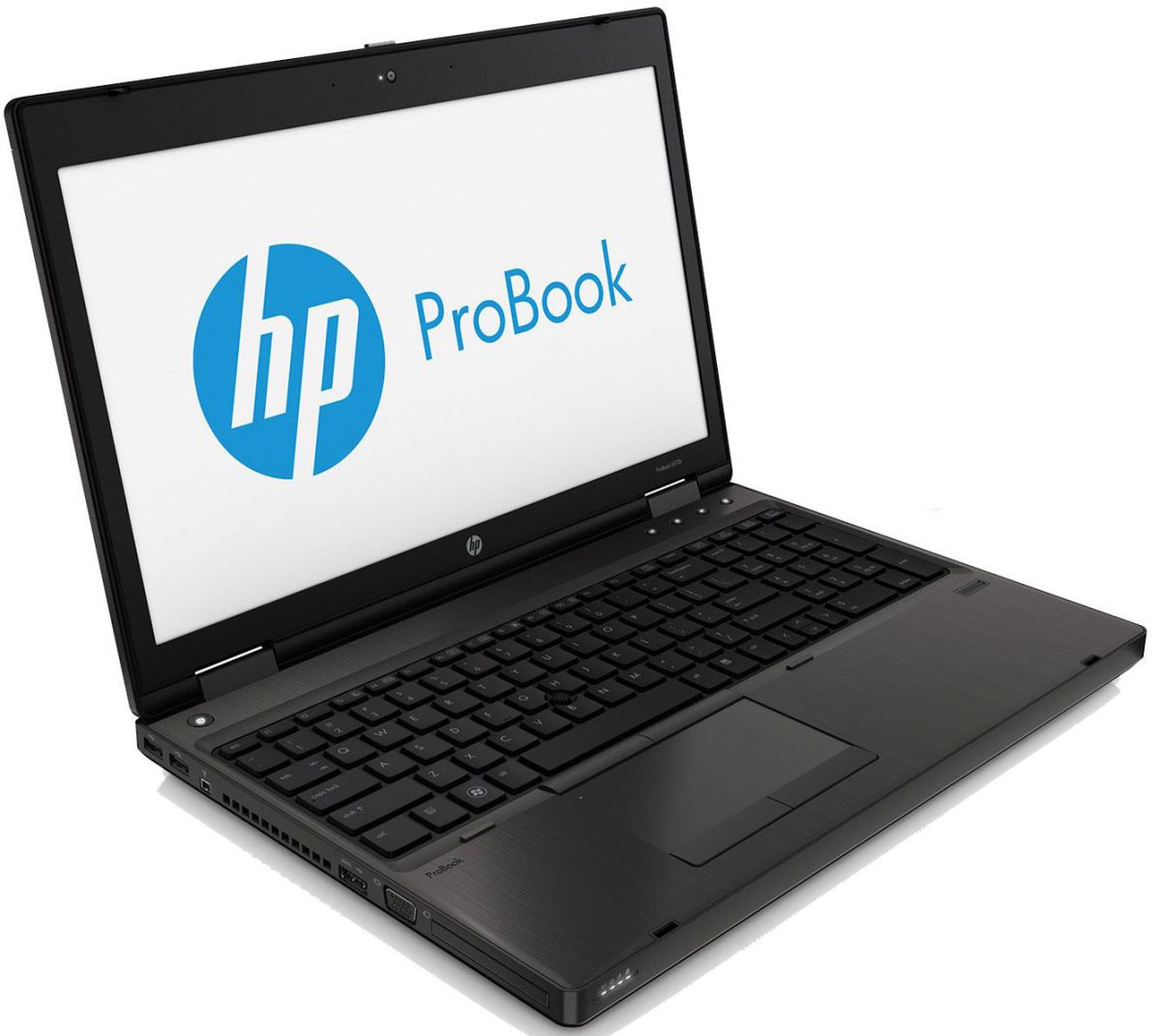

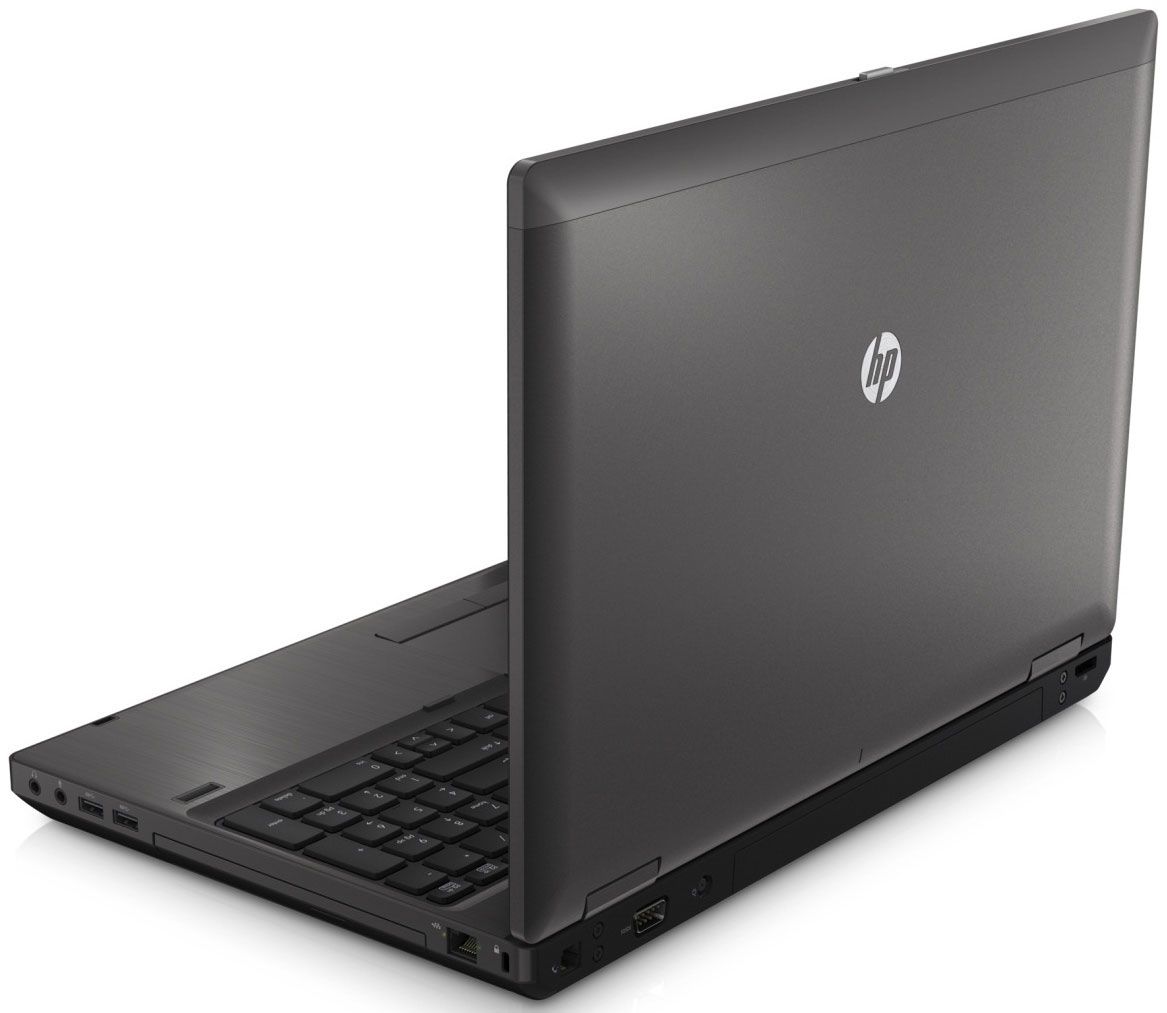

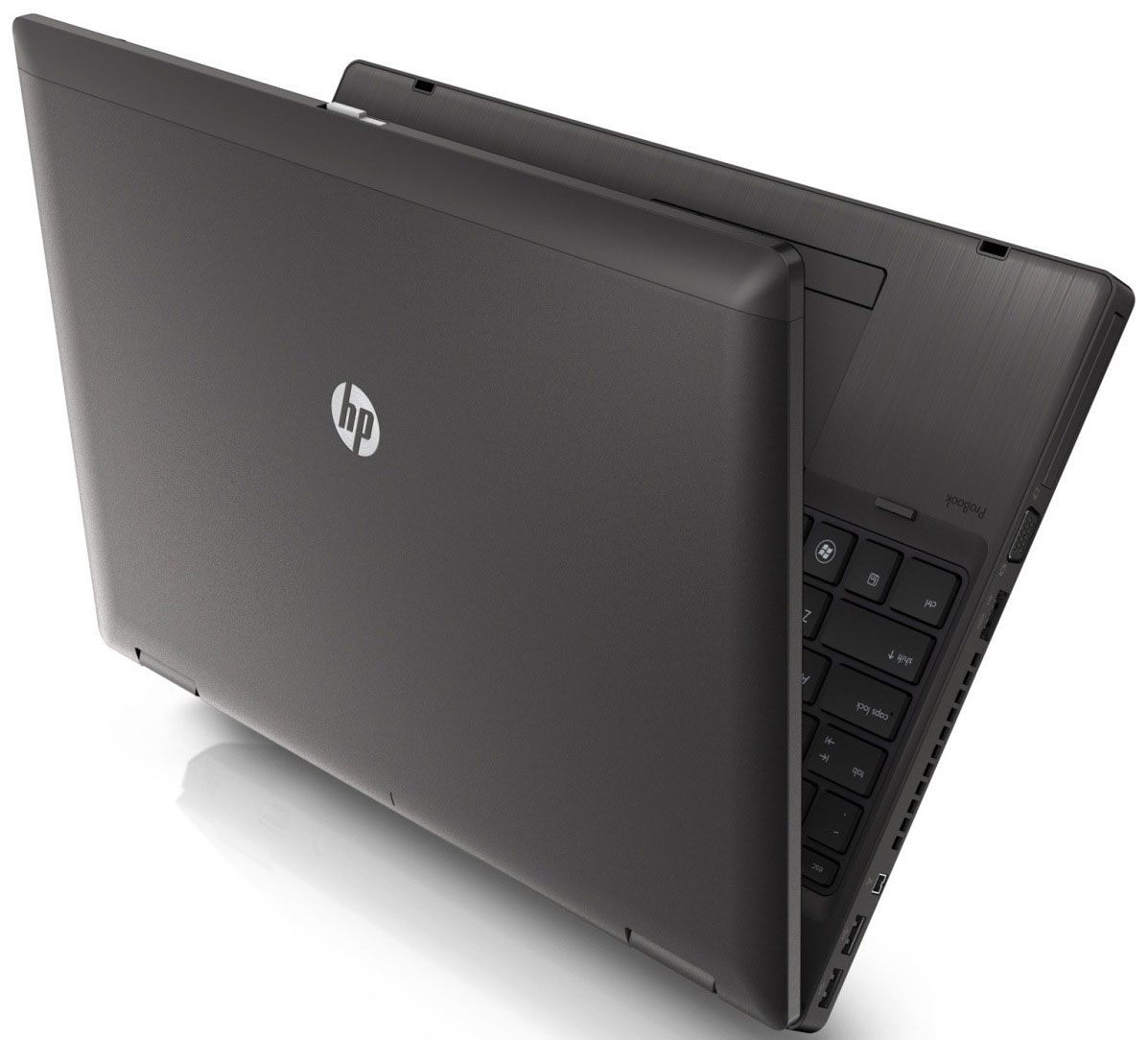

HP Probook 6570b RAM upgrade specifications
HP Probook 6000 series 6570b laptop supports memory upgrades utilizing DDR3-SDRAM technology. The system features two SO-DIMM slots for RAM installation, with maximum compatible capacity of 16 GB total memory. Upgrade specifications designate 1600 MHz frequency operation. Compatible RAM modules must match DDR3-SDRAM specifications and SO-DIMM form factor for proper functionality and system compatibility.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR3-SDRAM |
| Frequency | 1600 MHz |
| Maximum RAM | 16 GB |
| Voltage | 1.5V |
| Number of pins | 204-pin |
| Interface | PC3 |
| PC Speed Rating | PC3-1600 (PC3-12800) |
| Bandwidth | 12.8 GB/s |
| Laptop Release date | 01 February 2013 |
Additional Notes
- Dual channel architecture requires matching memory modules to reach peak theoretical bandwidth and reduce integrated graphics bottlenecks.
- The HP Probook 6570b motherboard architecture necessitates 204 pin modules as modern DDR4 or DDR5 sticks physically lack compatibility with these legacy slots.
- Operating 2 8 GB modules populates the entire available slot capacity and prevents further expansion without discarding existing hardware.
- The system chipset limits individual slot density to 8 GB and will fail to POST if 16 GB single sticks are installed.
- Energy efficiency is dictated by the specific voltage support of the memory controller which determines if 1.35V low voltage or 1.5V standard voltage hardware is required for stability.
- Accessing the internal DIMM sockets involves the removal of the bottom service panel which provides a direct path for maintenance without breaching keyboard seals.
- Latency timings should match the original factory specifications to avoid forced downclocking or system instability during high load scenarios.
