HP ZBook 17 G3 RAM upgrade specifications

HP 17 G3 HP 17 G3 HP 17 G3 HP 17 G3 HP 17 G3

HP ZBook 17 G3 laptop supports DDR4-SDRAM memory upgrades across 4 SO-DIMM slots. Maximum RAM capacity reaches 64 GB on compatible configurations. Upgrade specifications include DDR4 modules operating at 2133 MHz frequency. SO-DIMM form factor memory modules remain standard for RAM expansion on the ZBook 17 G3 series. Existing memory can be supplemented or replaced to reach maximum capacity specifications.

Memory Upgrade Specifications

SpecificationValue
Memory slots4x SO-DIMM
Form factorSO-DIMM
Memory typeDDR4-SDRAM
Frequency2133 MHz
Maximum RAM64 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-2133 (PC4-17064)
Bandwidth17.1 GB/s
Laptop Release date05 January 2018

Additional Notes

  • The HP ZBook 17 G3 workstation architecture limits memory speeds to DDR4-2133, meaning modules rated at higher frequencies like 2400 MHz or 2666 MHz will downclock to match the system bus specification.
  • Four SO-DIMM slots enable symmetric dual-channel configuration with matched pairs installed in corresponding channels, which maximizes memory bandwidth compared to asymmetric configurations.
  • The 64 GB ceiling translates to a maximum of 16 GB modules per slot, as 32 GB SO-DIMMs either did not exist or lack compatibility with this generation's chipset.
  • Mixing modules with different speeds across slots forces all installed RAM to operate at the frequency of the slowest module present.
  • ECC versus non-ECC compatibility depends on the specific processor installed, as mobile Xeon variants support error-correction while Core i-series processors in the same chassis do not.

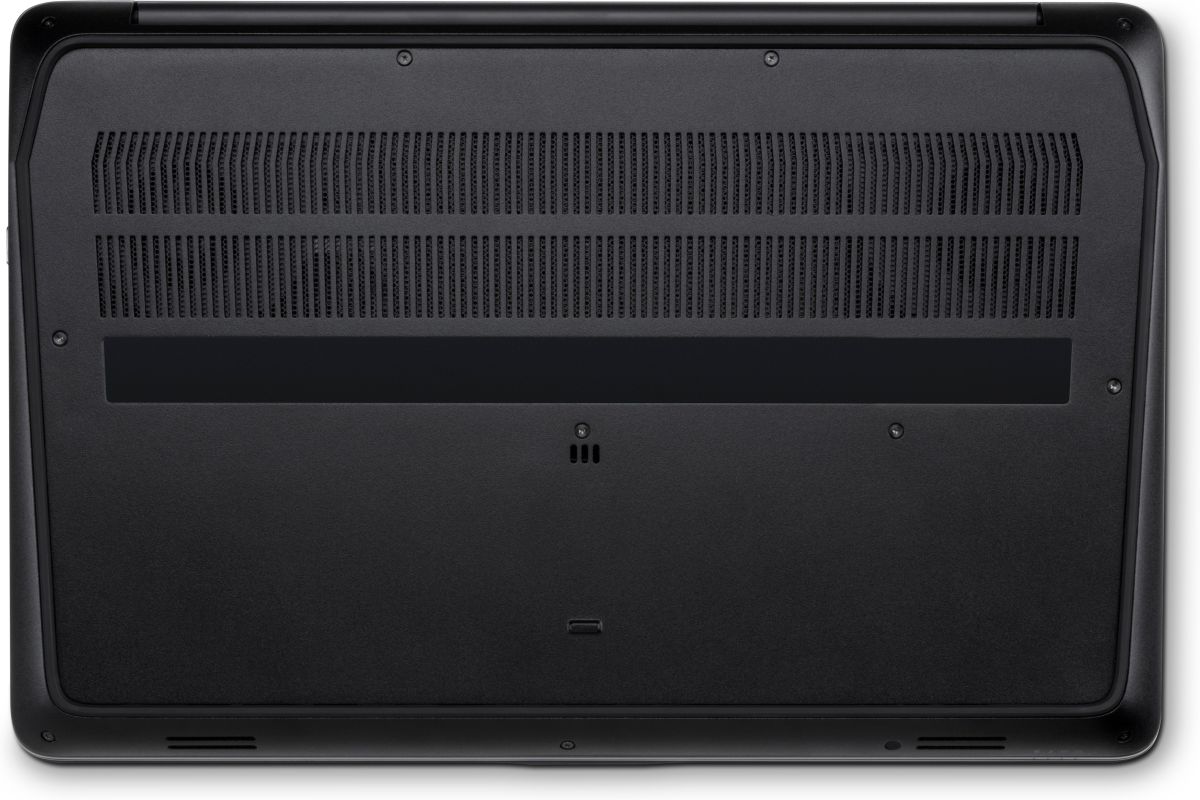

  • Accessing all four slots requires complete bottom panel removal rather than a simple access door, affecting ease of installation for users without technical experience.
  • Single-rank versus dual-rank module topology affects maximum capacity per slot on some mobile workstation chipsets, potentially requiring dual-rank 16 GB modules to reach the 64 GB limit.
  • Operating voltage is standardized at 1.2V for DDR4, eliminating the low-voltage variable that complicated DDR3 upgrades in earlier mobile workstation generations.
  • Warranty preservation requires manufacturer-approved modules or those matching JEDEC specifications, as non-standard thermal profiles can trigger vendor service denials.
  • The SO-DIMM form factor physically prohibits installation of desktop DIMM modules despite identical DDR4-2133 electrical specifications.
