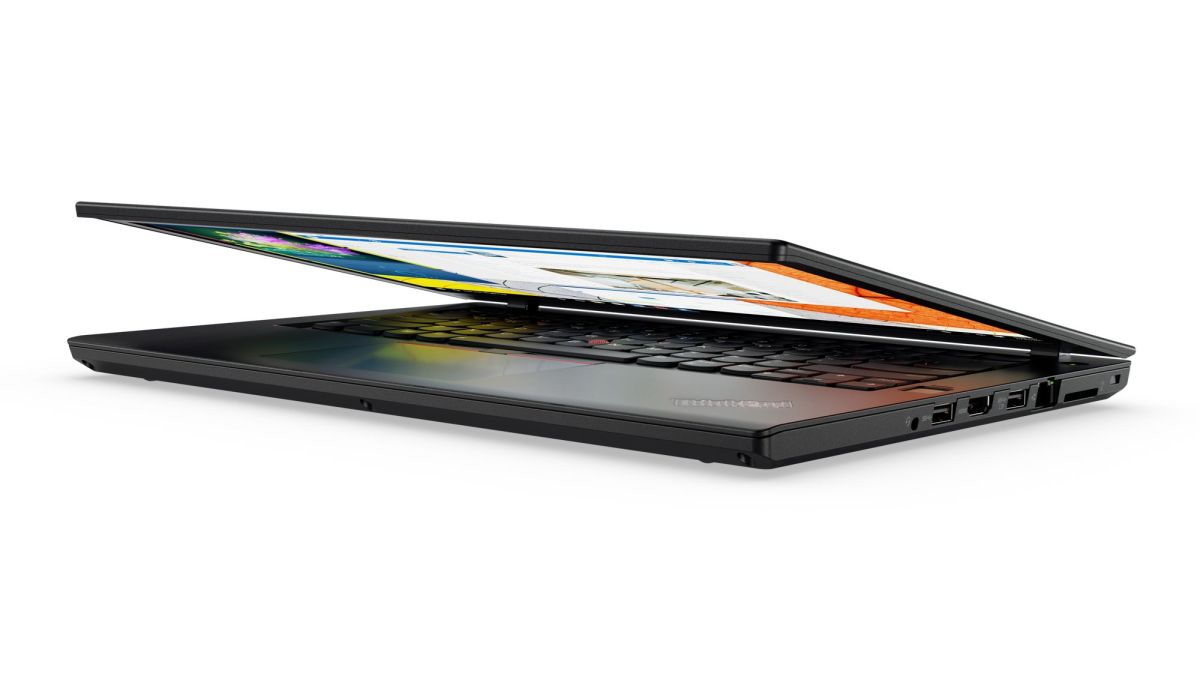

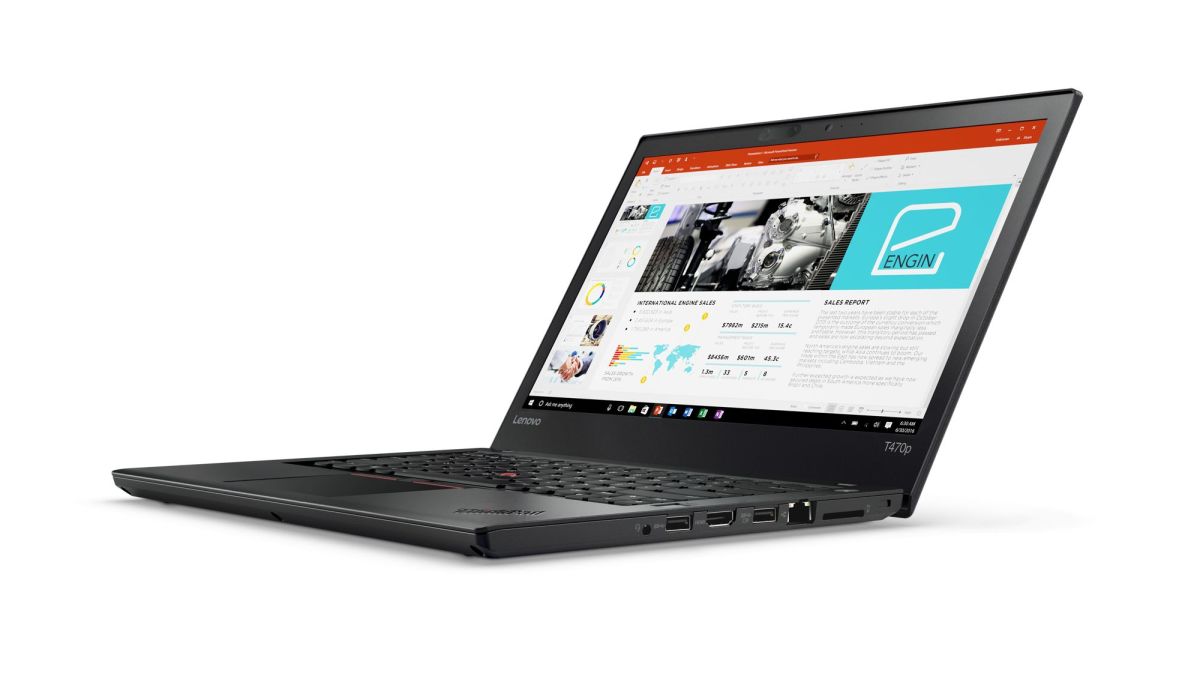

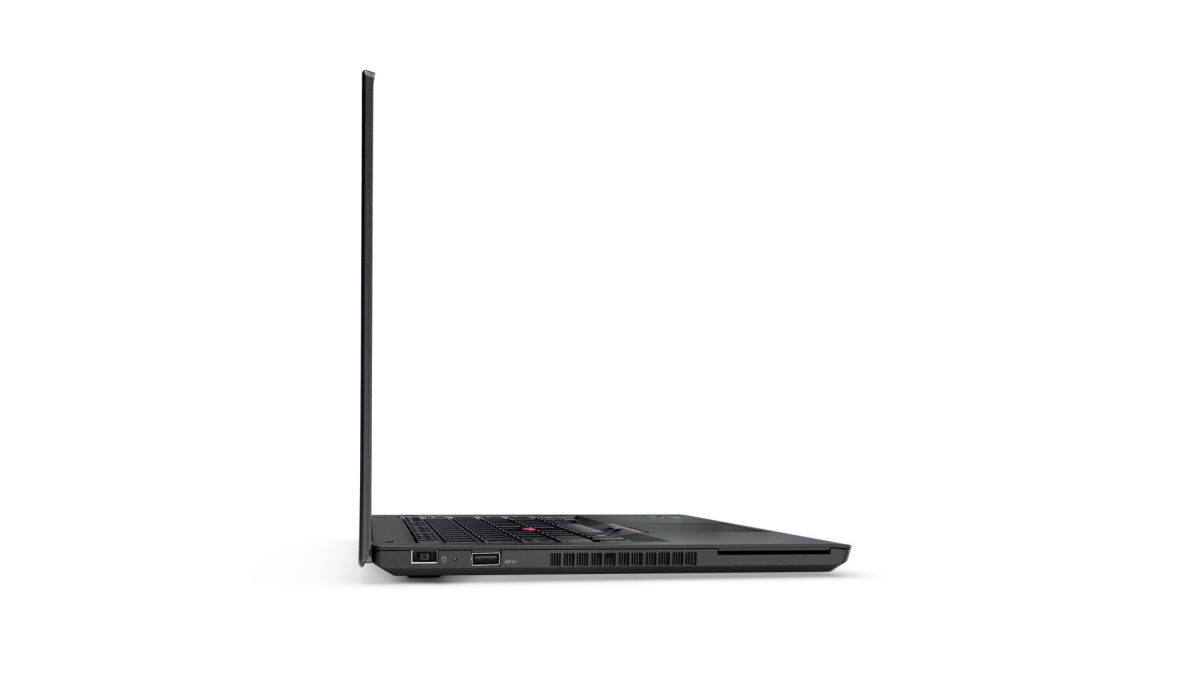

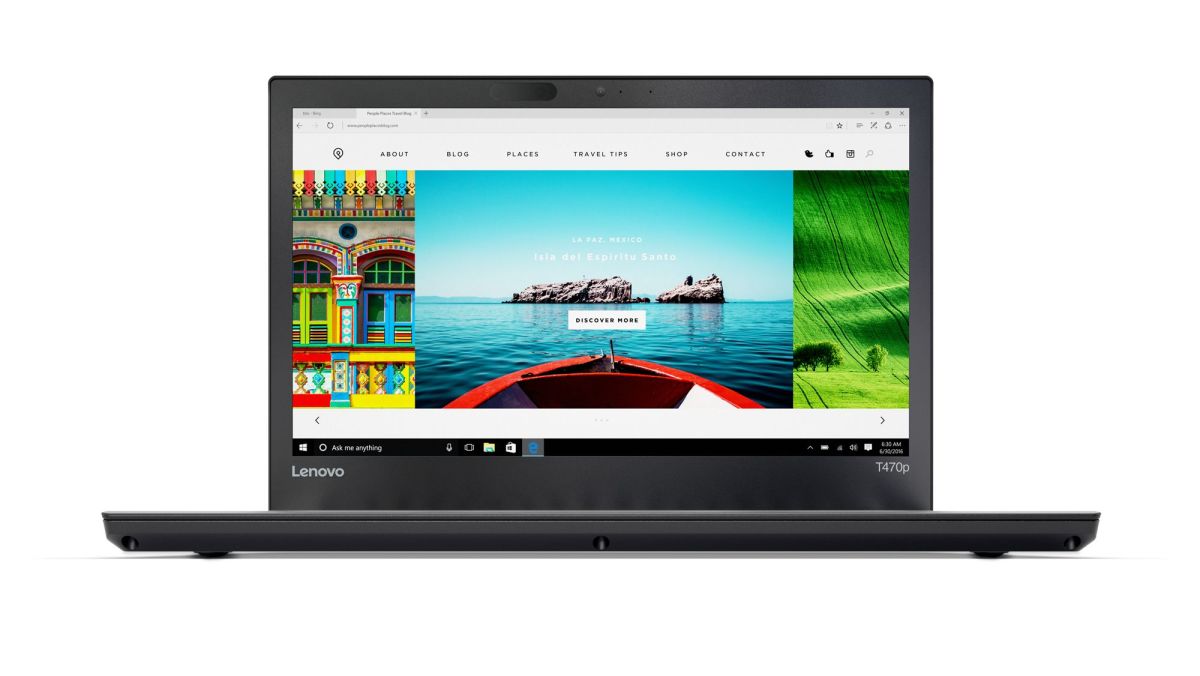

LENOVO ThinkPad T470p RAM upgrade specifications
The Lenovo ThinkPad T470p supports DDR4-SDRAM memory upgrades through two SO-DIMM slots. Maximum RAM capacity reaches 32 GB with compatible modules operating at 2400 MHz frequency. Upgrade specifications indicate SO-DIMM form factor compatibility for memory expansion on T470p models. Dual memory slots enable configuration flexibility for enhanced system performance through RAM capacity increases.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 22 July 2017 |
Additional Notes
- The 2x SO-DIMM slot configuration permits symmetric dual-channel operation only when both slots contain matching capacity modules, which optimizes memory bandwidth utilization for CPU-intensive workloads compared to single-slot population.
- DDR4-2400 specifications indicate the system cannot leverage higher-frequency DDR4 modules (2666, 2933, 2400, 3200 MHz variants) without automatic downclocking to 2400 MHz, rendering premium memory purchases incompatible at rated speeds.
- The 32 GB maximum capacity ceiling means single 16 GB module upgrades create addressable asymmetry; reaching the 32 GB limit requires paired 16 GB modules, not mixed configurations.
- SO-DIMM form factor requires sourcing laptop-specific memory rather than standard desktop DIMM modules, restricting supplier options and potentially increasing per-gigabyte costs relative to consumer-grade alternatives.
- DDR4 chemistry on the T470p generation predates DDR5 transition; this platform cannot accommodate DDR5 memory regardless of form factor or future module availability, establishing a permanent technology ceiling.
- Upgrading beyond factory configuration requires manual slot access, typically necessitating bottom-panel removal and potential invalidation of tamper seals if warranty coverage remains active through Lenovo service channels.
- The 2400 MHz specification reflects JEDEC standards compliance circa 2016-2017; OEM-selected modules from that era may differ from current retail stock in voltage tolerances or timing profiles, requiring verification against Lenovo's approved components list for warranty protection.
