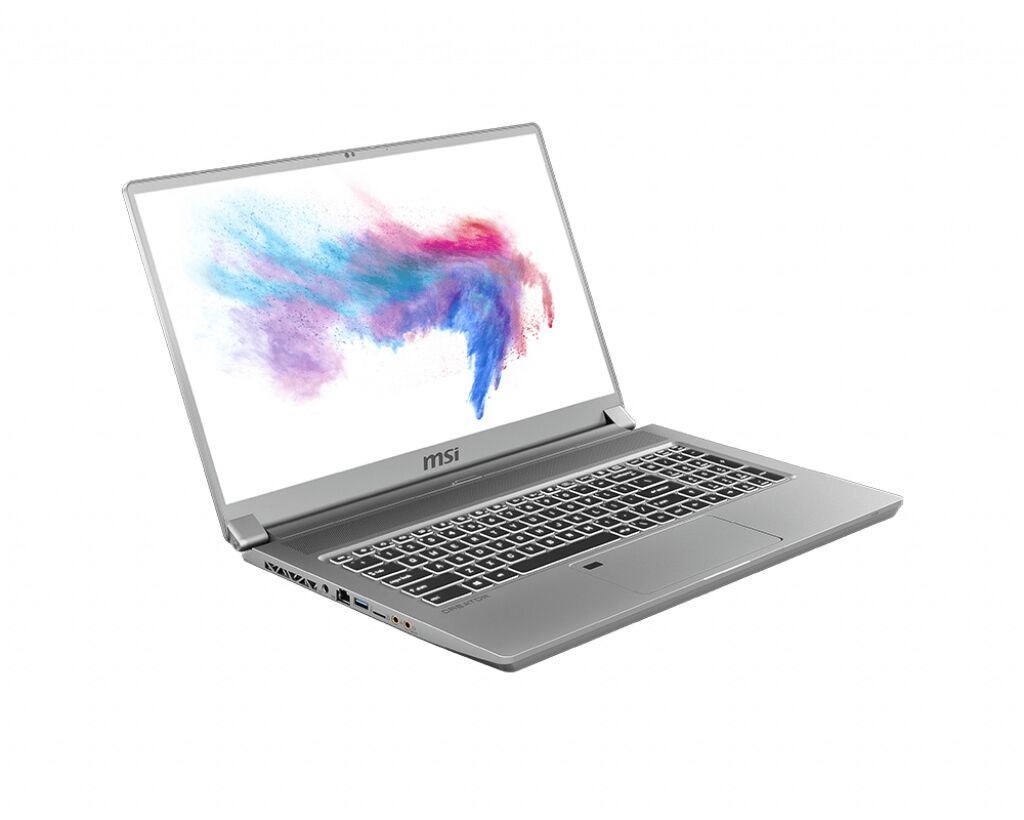

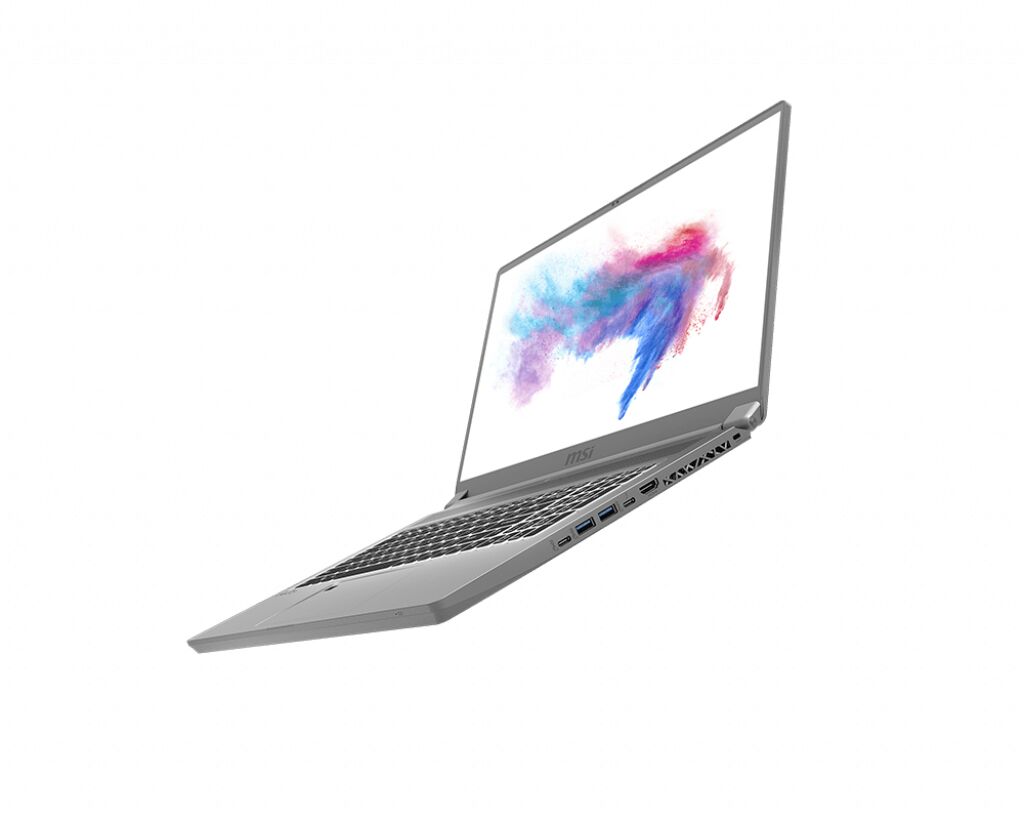

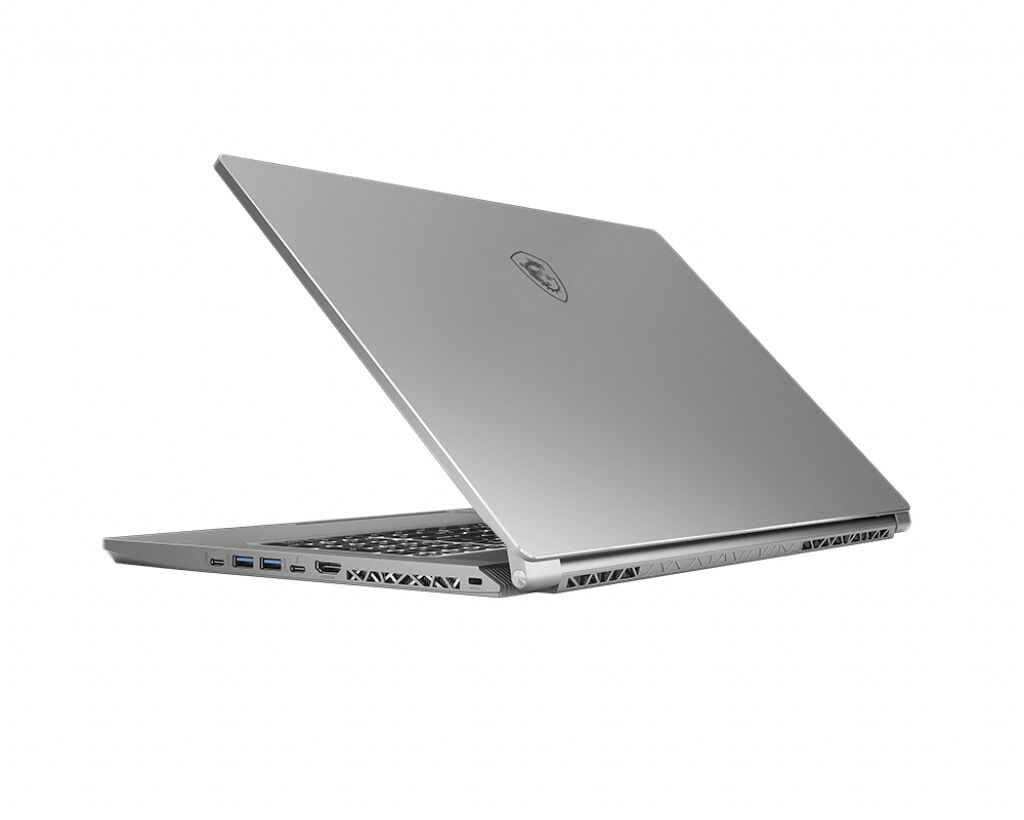

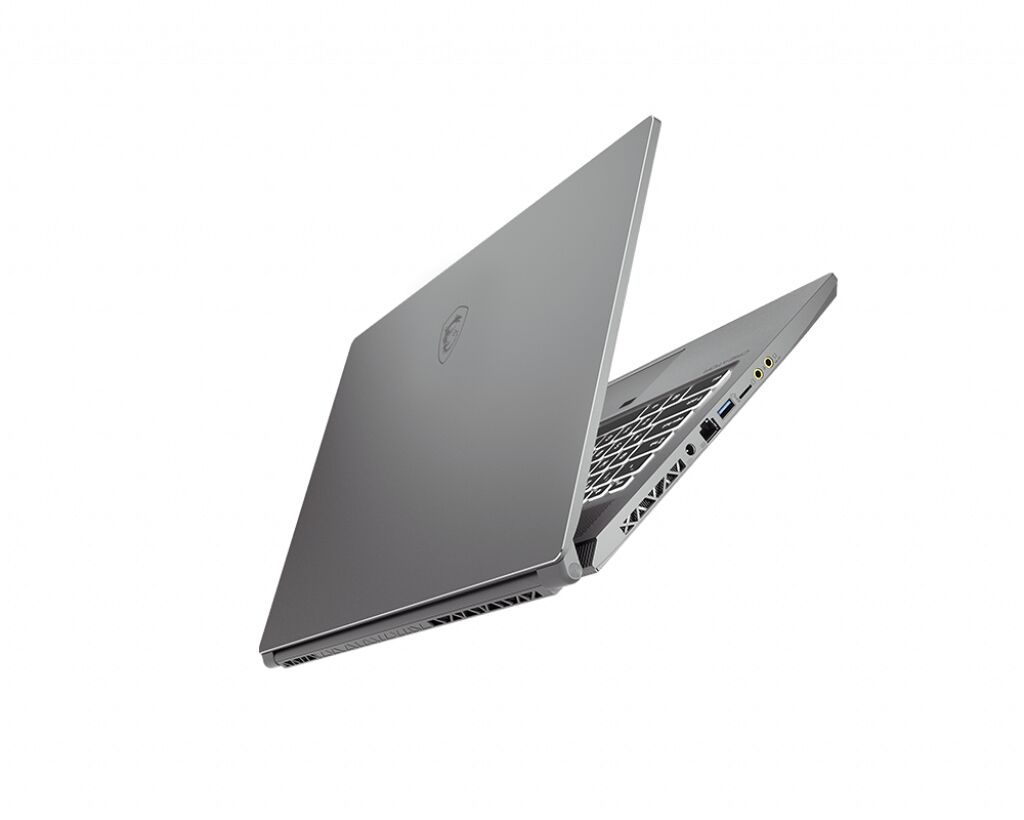

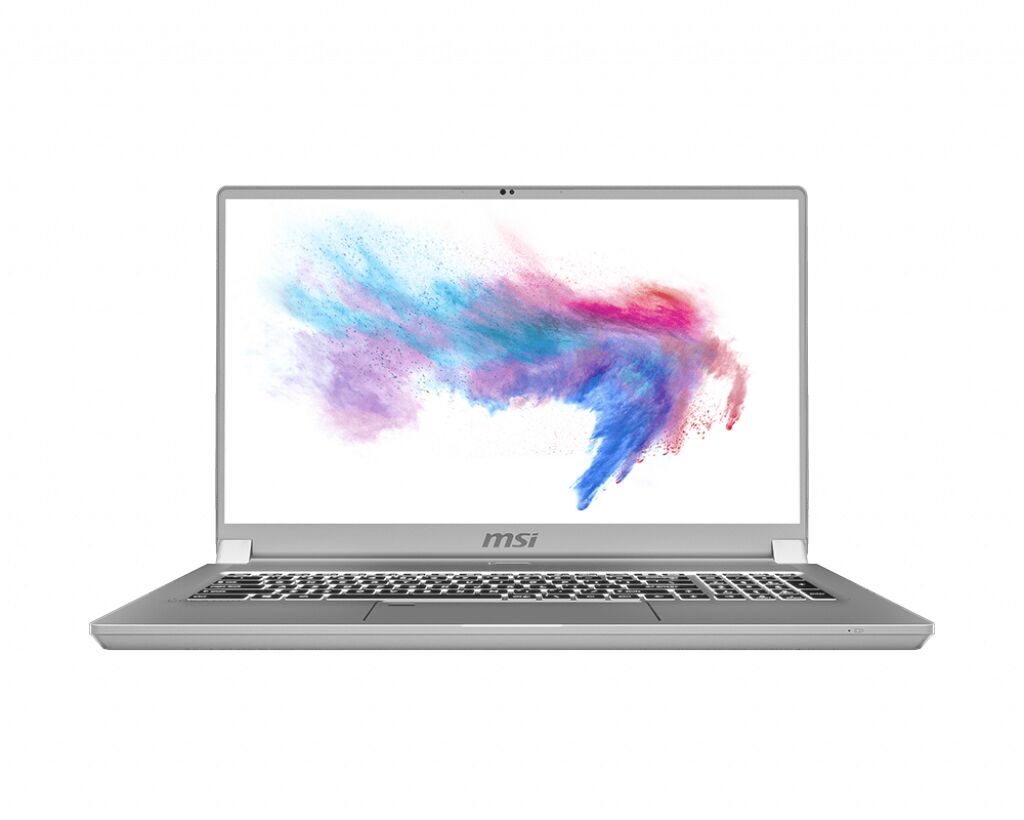

MSI Creator A10SE-063FR RAM upgrade specifications

The MSI Creator 17 A10SE-063FR laptop features DDR4-SDRAM memory upgrade capabilities with two SO-DIMM slots supporting maximum RAM capacity of 64 GB. The memory specifications include DDR4-SDRAM operating at 2666 MHz frequency. Compatible memory upgrades utilize SO-DIMM form factor modules. The upgrade slots accommodate standard DDR4 specifications, enabling users to expand memory from factory configurations up to the maximum 64 GB total capacity through compatible DDR4-SDRAM modules.

Additional Notes

• The 2666 MHz frequency specification represents the standard JEDEC speed for this DDR4 generation, meaning the memory controller operates at a fixed rate rather than supporting overclocking profiles like XMP or DOCP found in desktop systems.
• The 64 GB maximum capacity constraint in this MSI Creator A10SE-063FR requires 2 modules of 32 GB each to reach the ceiling, which limits future expandability since both SO-DIMM slots must be occupied from the outset.
• DDR4-2666 modules running at CL19 timings will introduce approximately 14.3 nanoseconds of latency, while CL17 variants reduce this to 12.8 nanoseconds, creating measurable differences in memory-intensive creative workloads like video rendering or 3D modeling.
• Mixing modules with different densities or ranks may force the memory controller to operate in single-channel mode or reduce effective bandwidth, particularly when pairing single-rank and dual-rank SO-DIMMs.
• The SO-DIMM form factor physically measures 67.6 mm in length compared to standard DIMM's 133.35 mm, which prevents desktop memory modules from fitting regardless of matching DDR4 specifications.
• Installing non-standard voltage modules rated at 1.35V instead of the DDR4 standard 1.2V may trigger thermal throttling in confined laptop chassis or void manufacturer coverage under specific warranty terms.
• The dual-channel architecture requires symmetrical population across both slots to achieve the full 42.6 GB/s theoretical bandwidth, as asymmetric configurations default to the lower capacity's channel width.
• ECC SO-DIMM modules, despite sharing the DDR4-2666 specification, will not function in this consumer-grade memory controller that lacks error-correction circuitry.
• The memory controller's 2666 MHz ceiling means installing faster DDR4-3200 modules will result in automatic downclocking to 2666 MHz, though this may still provide secondary benefits through tighter available timings at the reduced frequency.
