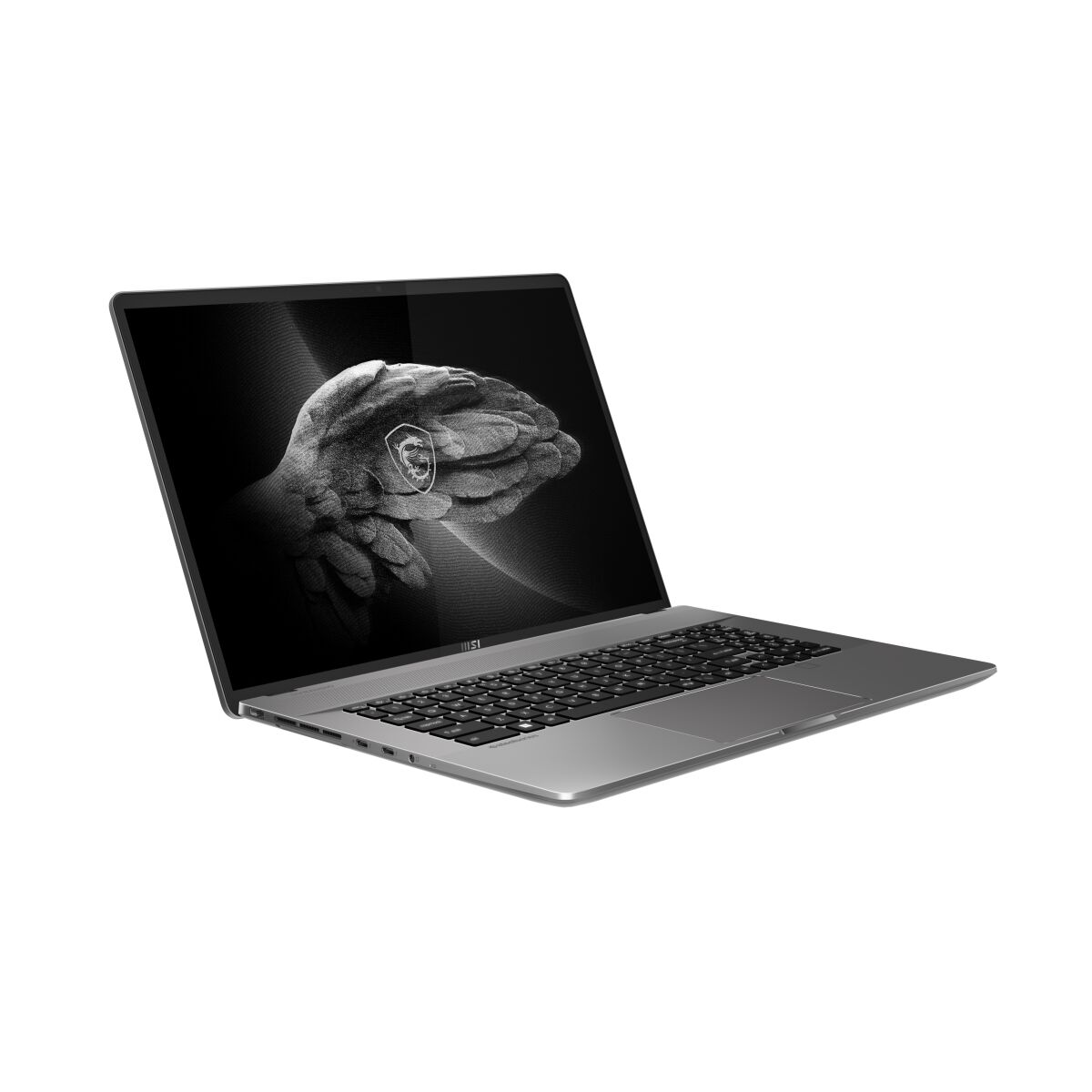

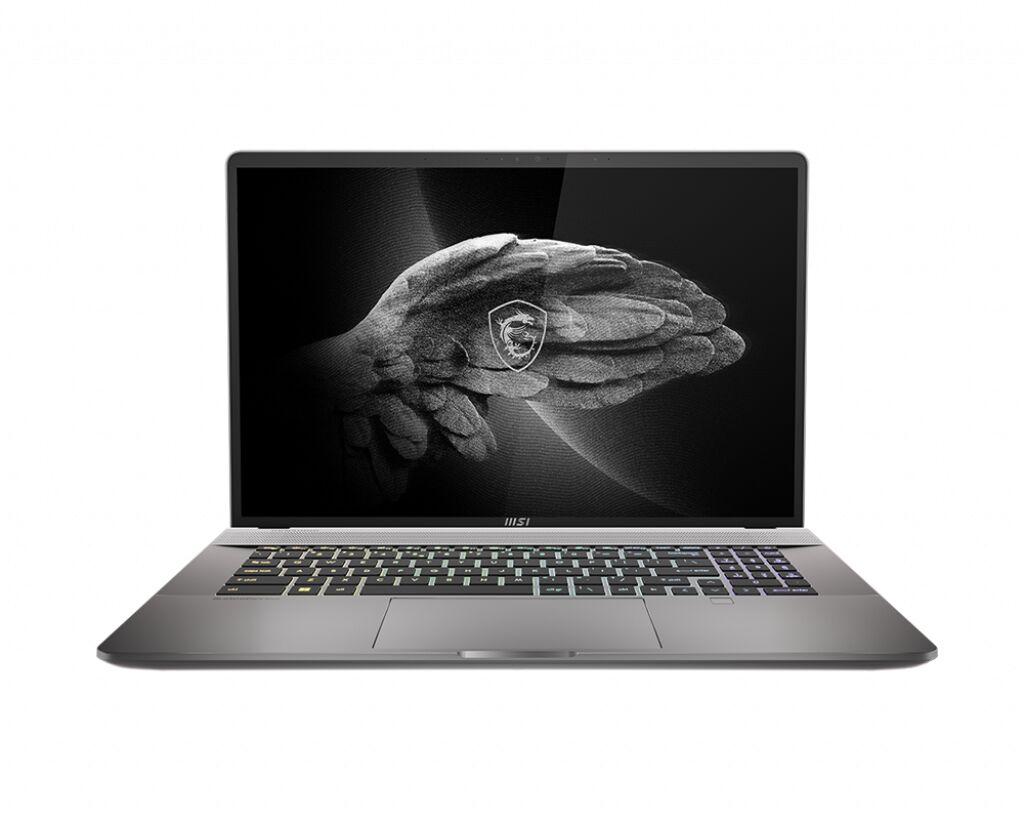

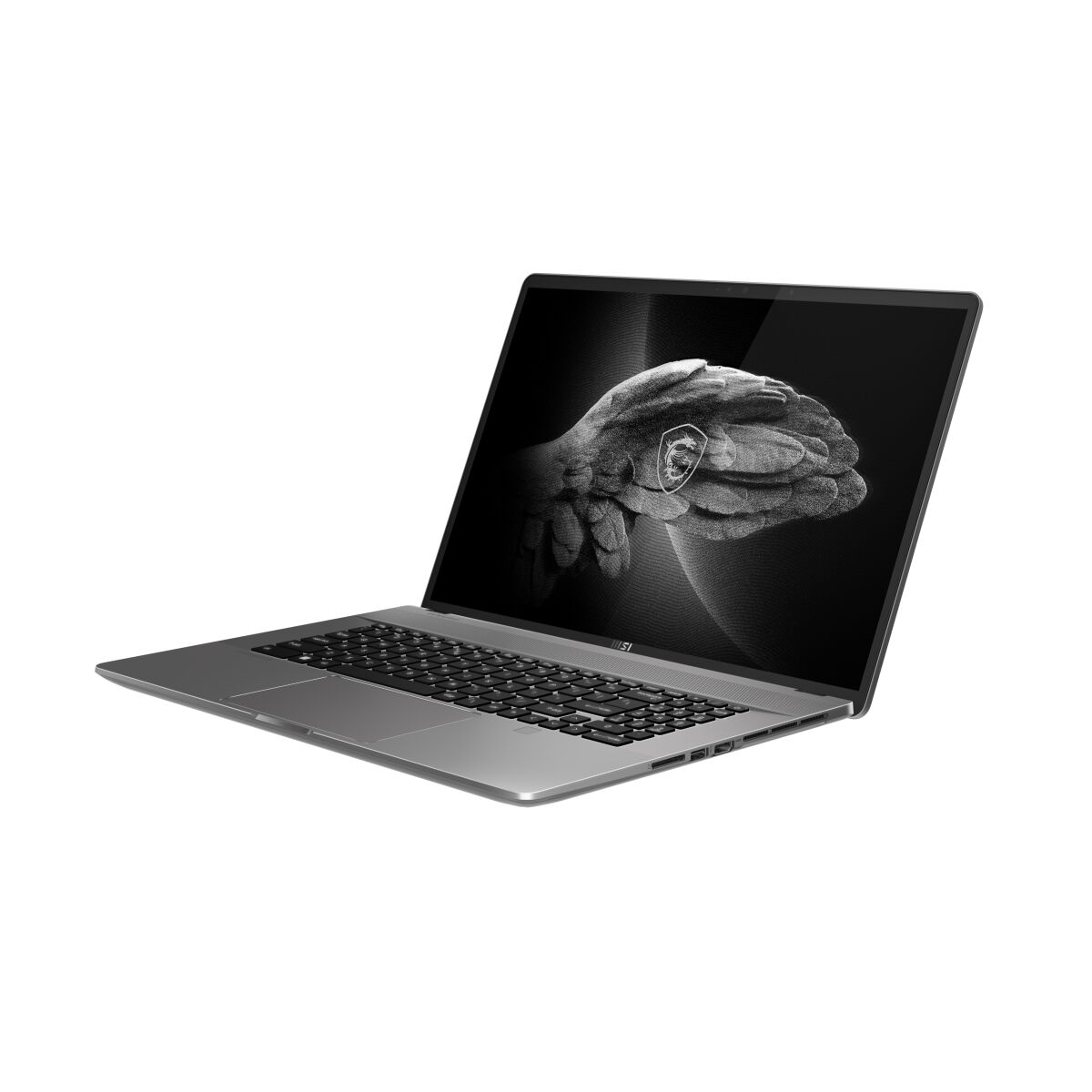

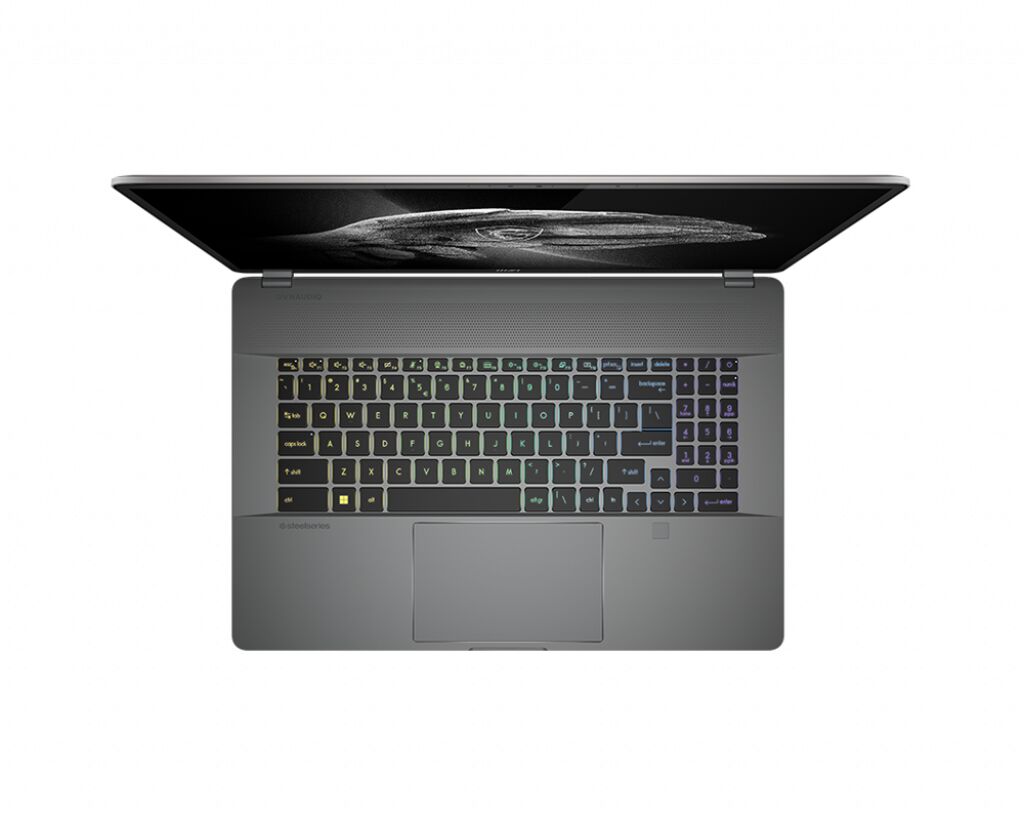

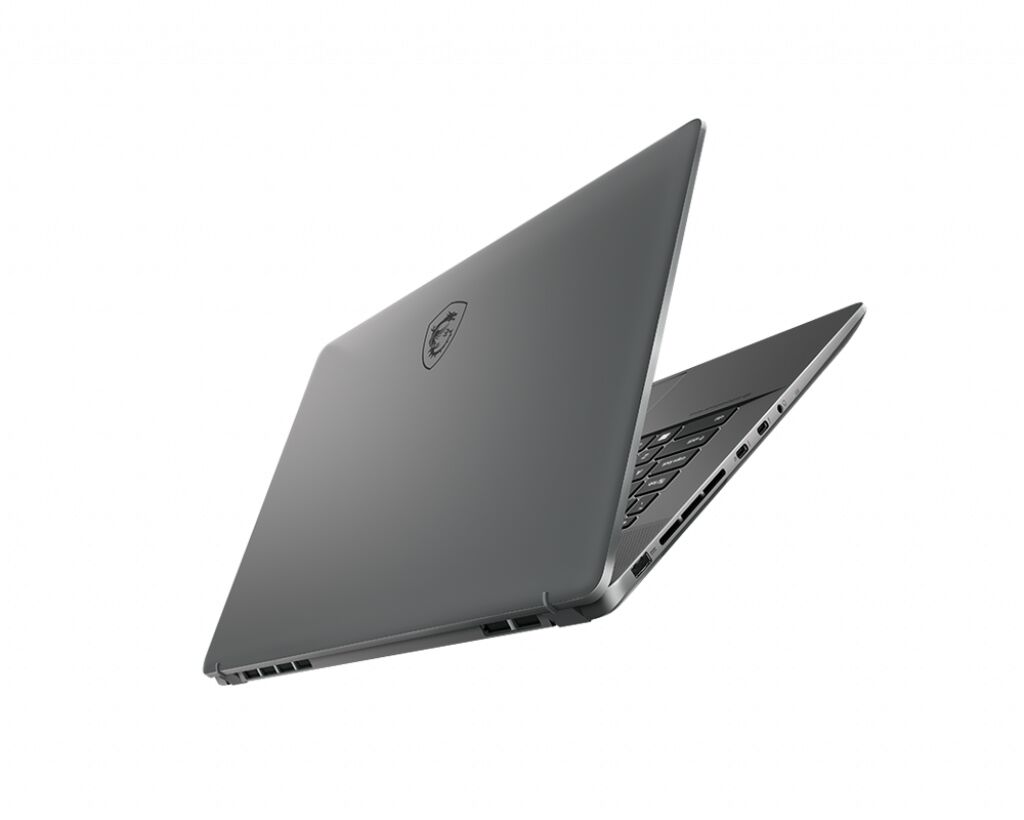

MSI Creator Z17 A12UHT-012FR RAM upgrade specifications
MSI Creator Z17 A12UHT-012FR laptop features two SO-DIMM memory slots supporting DDR5-SDRAM upgrades at 4800 MHz frequency. Maximum memory capacity reaches 128 GB total. Compatible upgrade modules utilize SO-DIMM form factor specifications. Memory expansion allows users to increase RAM capacity beyond factory configuration. DDR5 technology specifications define compatible upgrade components for the Z17 series model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 128 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 31 December 2021 |
Additional Notes
- The dual slot configuration requires removing pre-installed modules to reach the maximum 128 GB capacity because no empty slots remain for expansion.
- High density 64 GB modules are necessary for achieving the peak memory limit due to the physical constraint of only 2 SO-DIMM sockets.
- Utilizing identical pairs of memory sticks is required to maintain dual-channel bandwidth and prevent performance degradation in memory-intensive rendering tasks.
- Integrating memory with higher rated speeds will result in downclocking to the system bus limit of 4800 MHz defined by the MSI Creator Z17 A12UHT-012FR architecture.
- Accessing the motherboard for installation involves removing the bottom chassis panel which may necessitate piercing a factory seal depending on regional warranty policies.
- DDR5 architecture introduces on-die ECC and improved power management compared to previous generations but remains physically incompatible with DDR4 slots.
- Thermal overhead increases when operating with maxed-out RAM configurations during sustained workloads because of the heat generated by high-capacity chips in a slim chassis.
