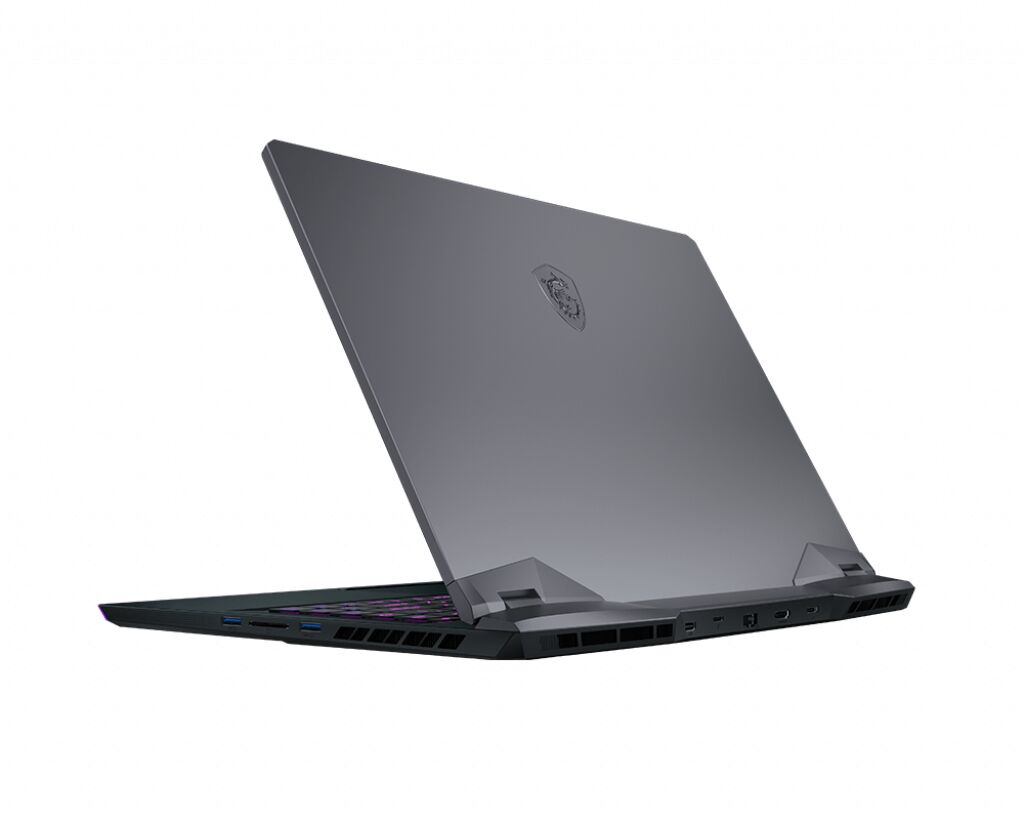

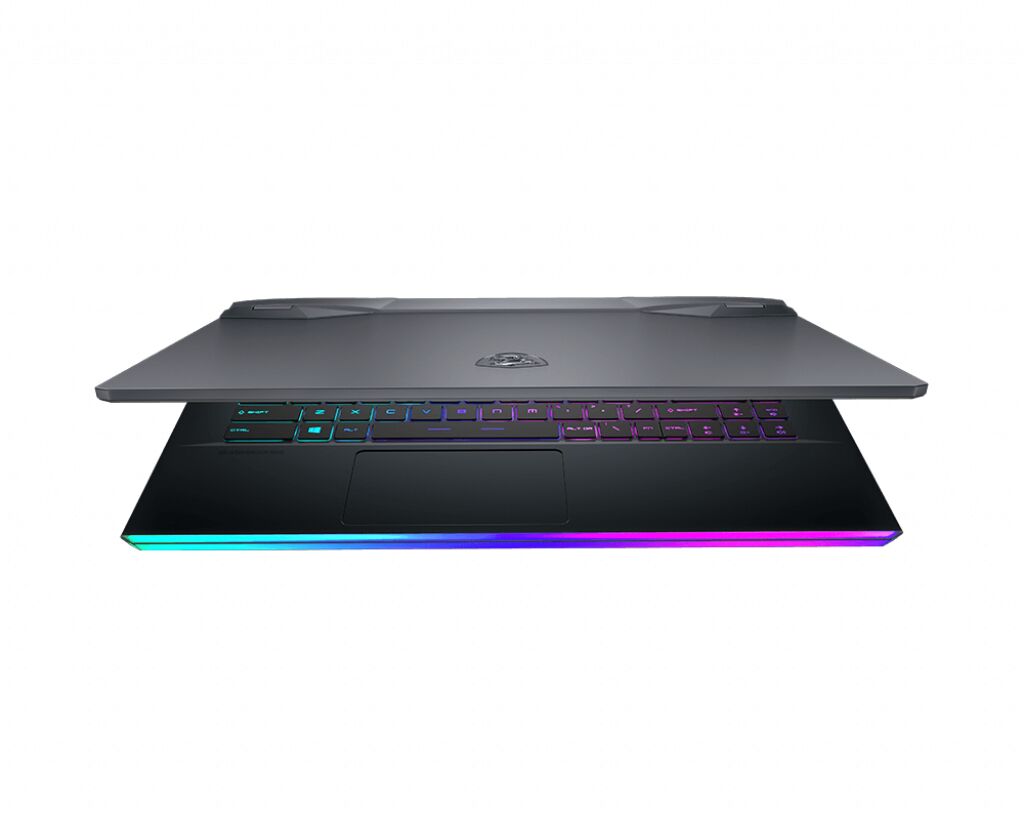

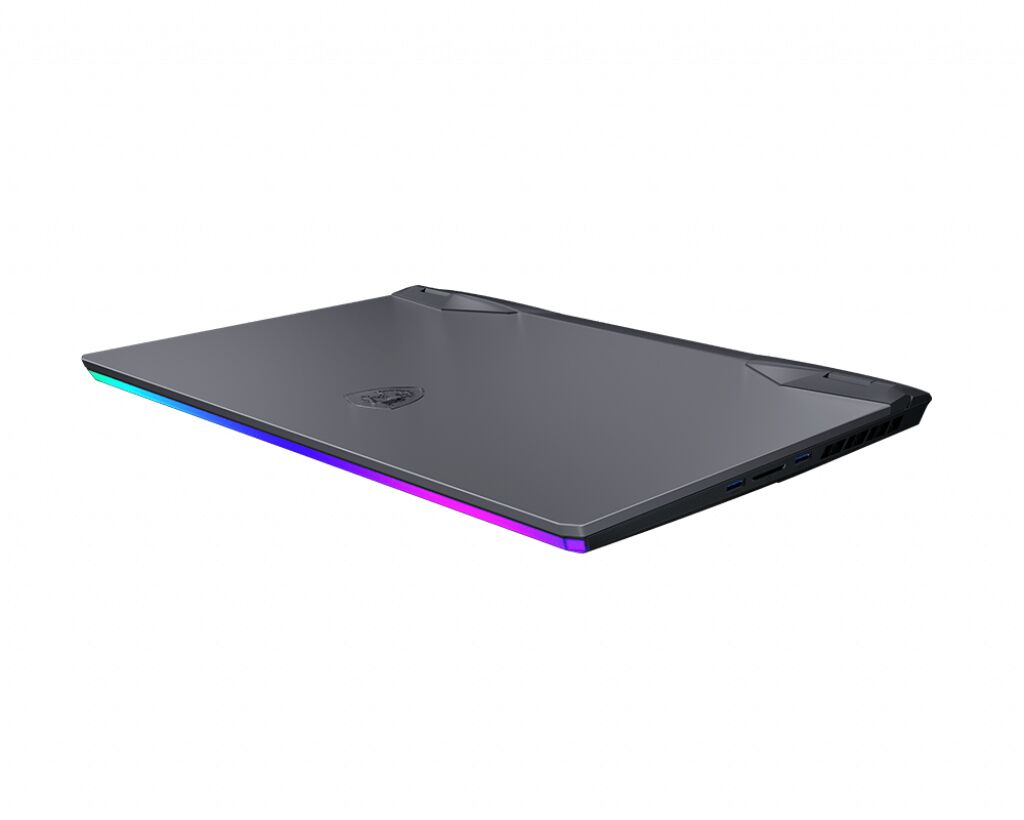

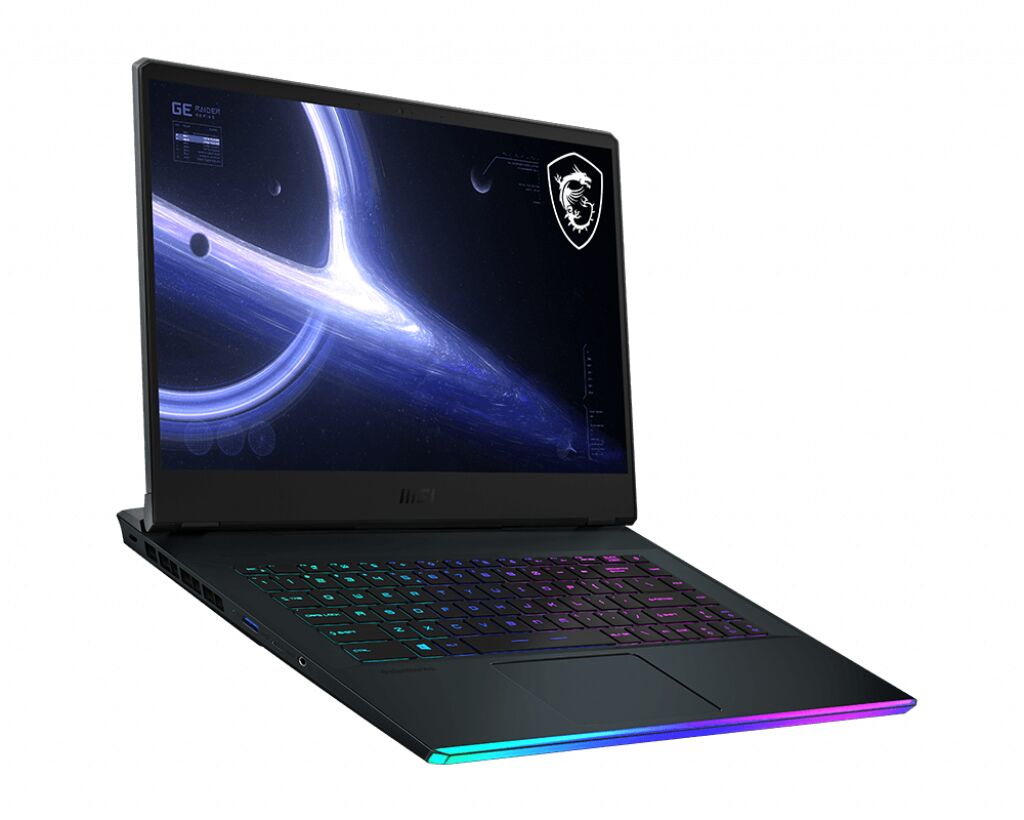

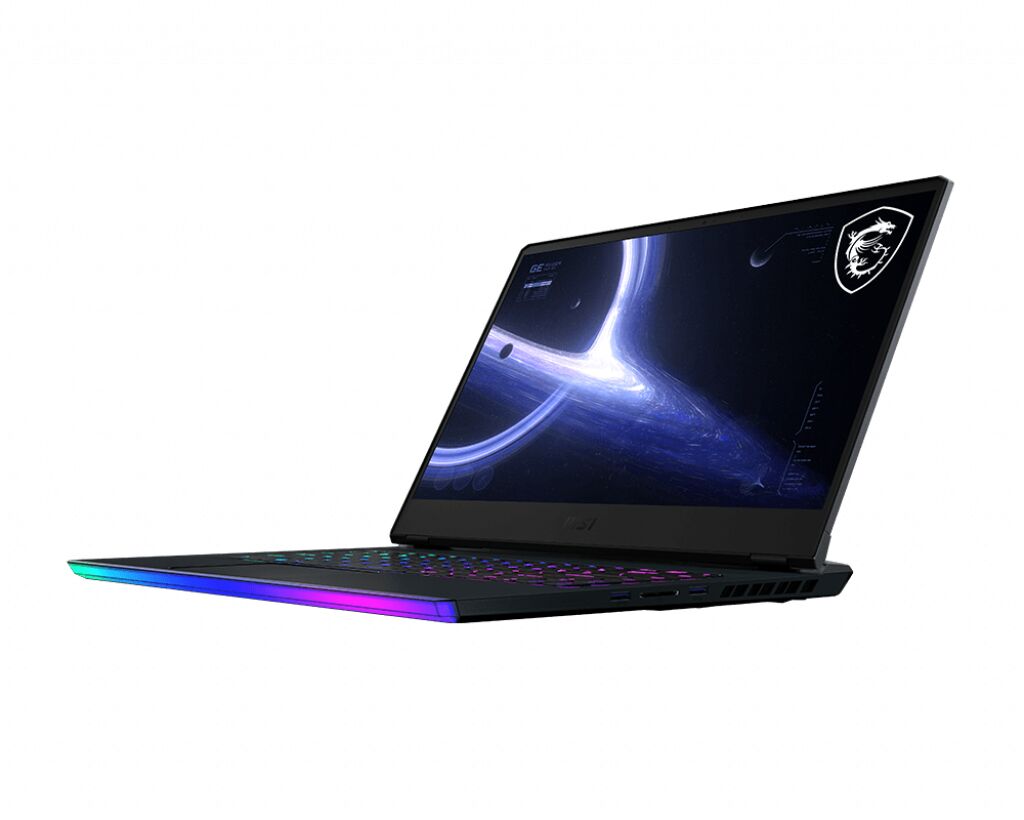

MSI Gaming GE66 Raider 11UG RAM upgrade specifications

MSI GE66 Raider 11UG gaming laptop supports DDR4-SDRAM memory upgrades through 2x SO-DIMM slots. The system accommodates a maximum RAM capacity of 64 GB total, with compatible modules operating at 3200 MHz frequency. Memory upgrade specifications for the GE series model 11UG utilize SO-DIMM form factor architecture, enabling expansion beyond factory-installed memory configurations. Compatible DDR4-SDRAM upgrades are available to enhance multitasking performance and system responsiveness for the GE66 Raider 11UG platform.

Additional Notes

• The MSI GE66 Raider 11UG relies on SO-DIMM modules rather than standard DIMM, limiting upgrade sources to laptop-specific memory vendors.
• Both memory channels must be populated with identical capacity and speed modules to enable dual-channel mode and prevent halving the memory bandwidth.
• Installing a single module will force the system into single-channel operation, cutting theoretical memory throughput from 51.2 GB/s to 25.6 GB/s.
• The 64 GB ceiling requires 2 modules of 32 GB each, as no higher-density SO-DIMM standard exists for DDR4 technology.
• Modules rated below 3200 MHz will underclock the entire memory subsystem to the speed of the slowest installed stick.
• Access to the SO-DIMM slots typically requires removing the bottom panel, which may void certain regional warranty provisions if security seals are broken.
• Mixing modules from different manufacturers can cause POST failures or stability issues due to varying chip densities and timing profiles, even at identical rated speeds.
• The 3200 MHz specification corresponds to JEDEC standard DDR4-3200 or PC4-25600, which must match exactly on replacement module labels to ensure compatibility.
• Non-ECC unbuffered memory is required, as SO-DIMM form factor and consumer chipset architecture do not support error-correction or registered modules.
• Operating voltage must remain at the DDR4 standard of 1.2V, as gaming laptops lack BIOS voltage controls and cannot compensate for high-performance modules requiring 1.35V or above.
• Heat dissipation from upgraded modules can elevate internal chassis temperatures by 3 to 5 degrees Celsius, potentially triggering earlier thermal throttling during sustained workloads.
• The physical SO-DIMM length of 67.6 mm is non-negotiable, as longer or shorter form factors will either fail to seat in the retention clips or make insufficient contact with the slot.
