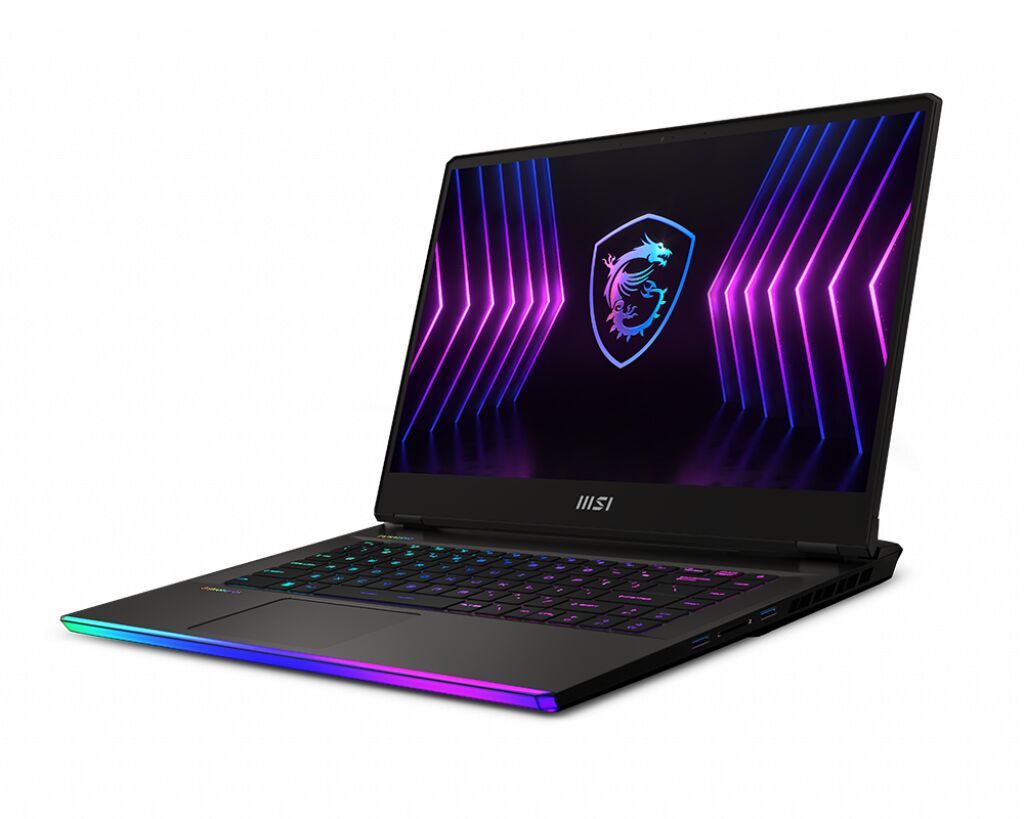

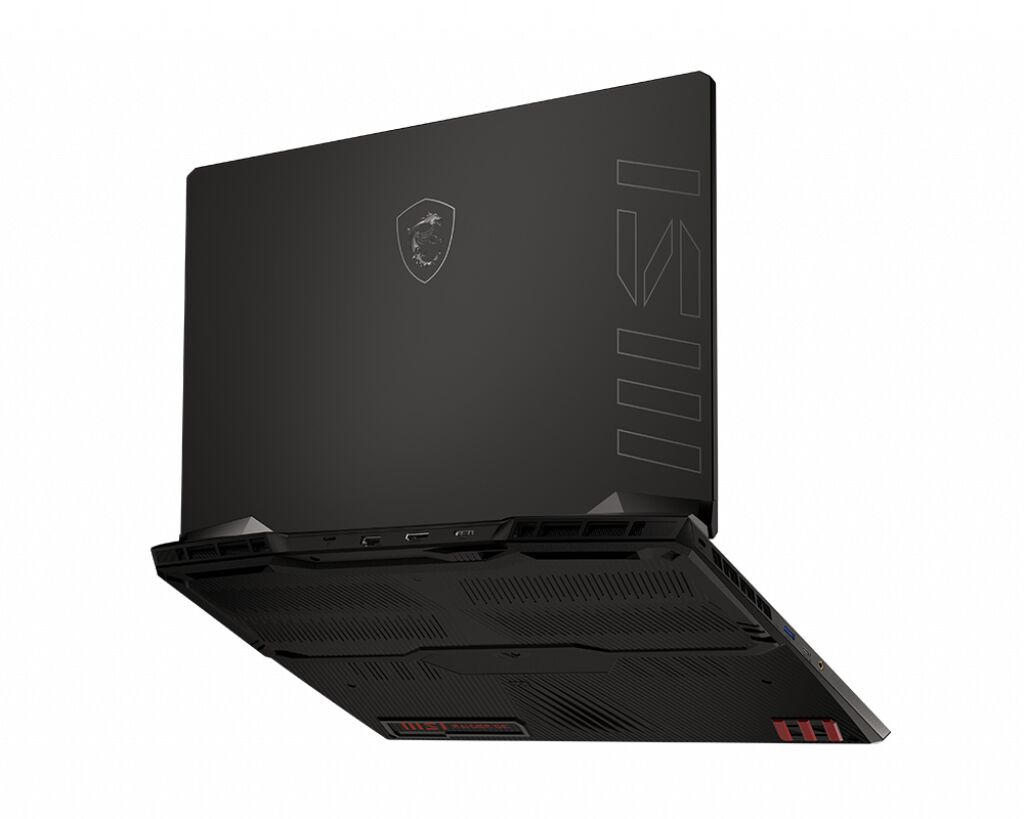

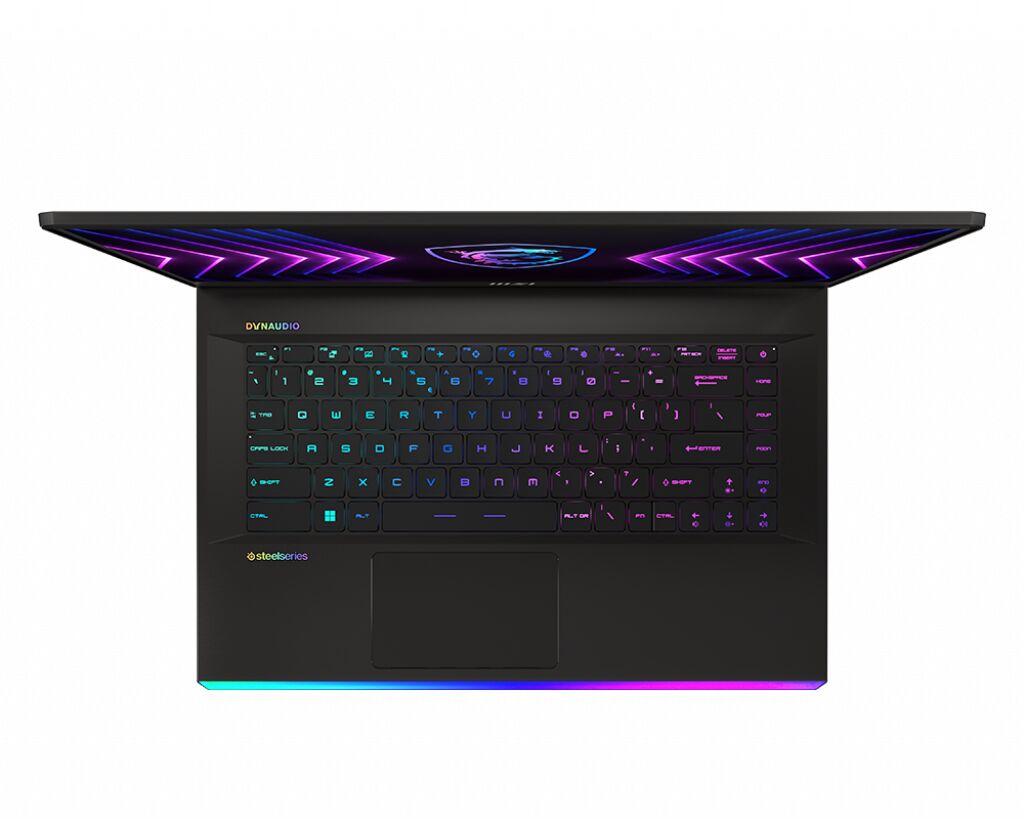

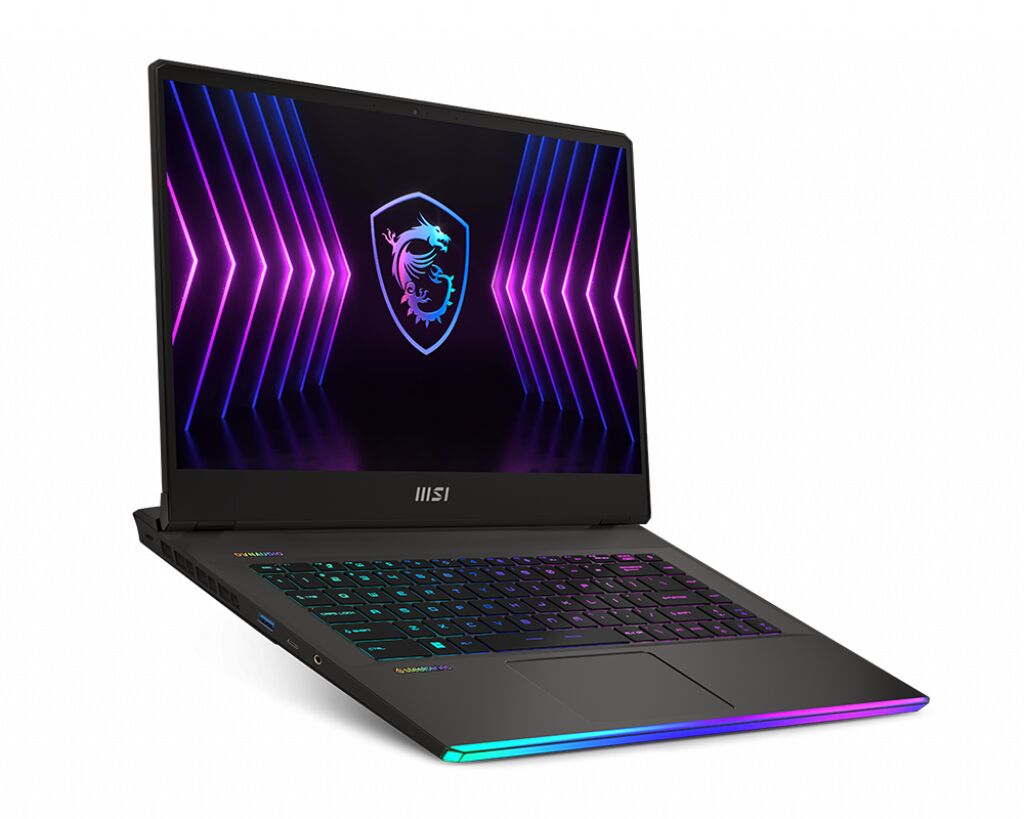

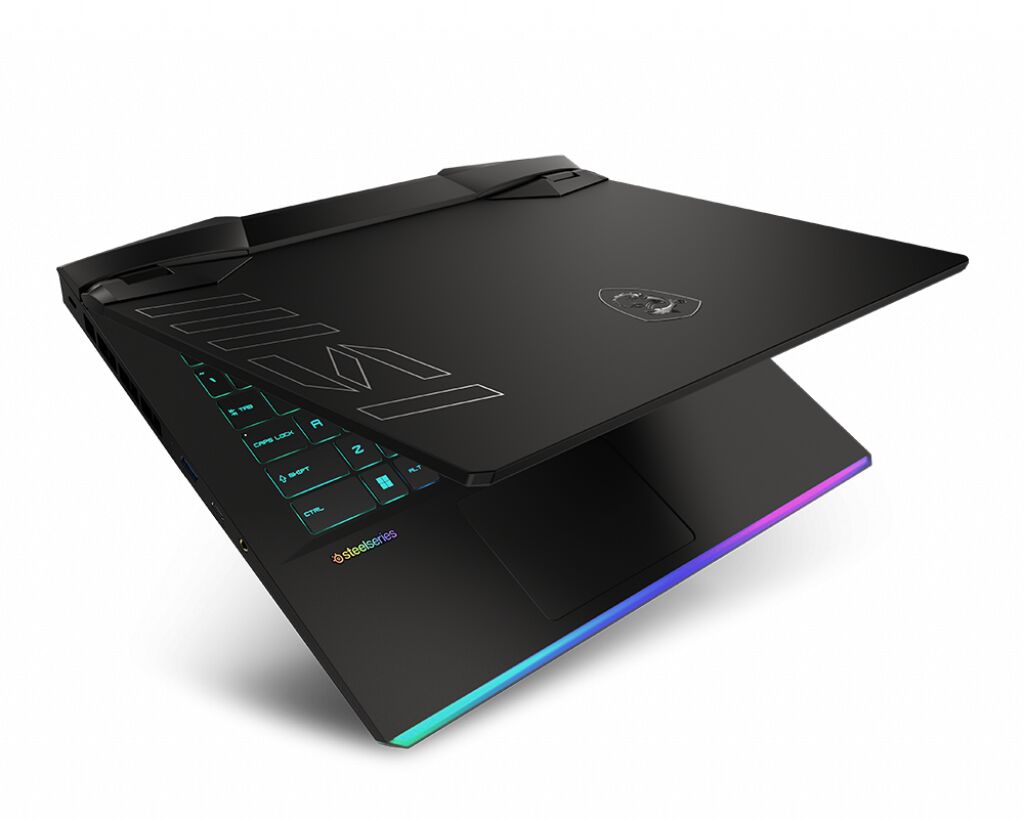

MSI Gaming GE67HX 12UHS-030ES RAM upgrade specifications
The MSI GE67HX 12UHS-030ES gaming laptop features DDR5-SDRAM memory architecture with two SO-DIMM slots for RAM upgrade capacity. Maximum memory supported reaches 64 GB, with compatible modules operating at 4800 MHz frequency. The specifications allow for memory expansion in the GE series gaming family, enabling users to upgrade from factory-configured capacity to the maximum DDR5 specifications supported by the GE67HX 12UHS-030ES platform.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 22 June 2022 |
Additional Notes
- Dual channel architecture requires matching module capacities and timings across both SO-DIMM slots to achieve full memory bandwidth efficiency.
- The MSI GE67HX 12UHS-030ES requires low voltage DDR5 modules specifically designed for mobile chipsets to maintain thermal stability within the chassis.
- Installing 32 GB modules in each slot occupies all available physical interfaces and prohibits any future capacity expansion without replacing existing hardware.
- Using memory modules with higher rated frequencies than 4800 MHz will result in automatic downclocking to the system bus limit designated by the processor architecture.
- Accessing the memory banks necessitates the removal of the bottom base cover which likely exposes internal components protected by factory anti-tamper seals.
- Non-ECC unbuffered memory is required as the motherboard firmware lack support for error-correcting industrial grade RAM modules.
- The physical height of the SO-DIMM modules must adhere to standard profile limits to avoid contact with the internal cooling pipes or heat spreaders located above the slots.
