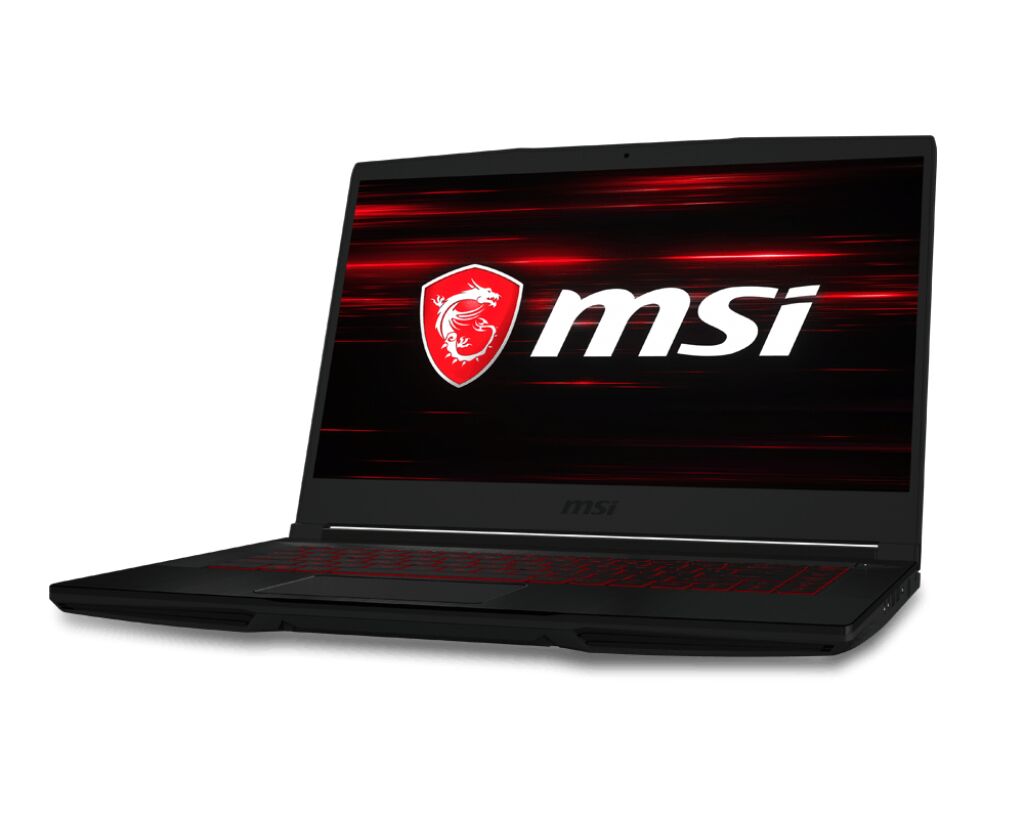

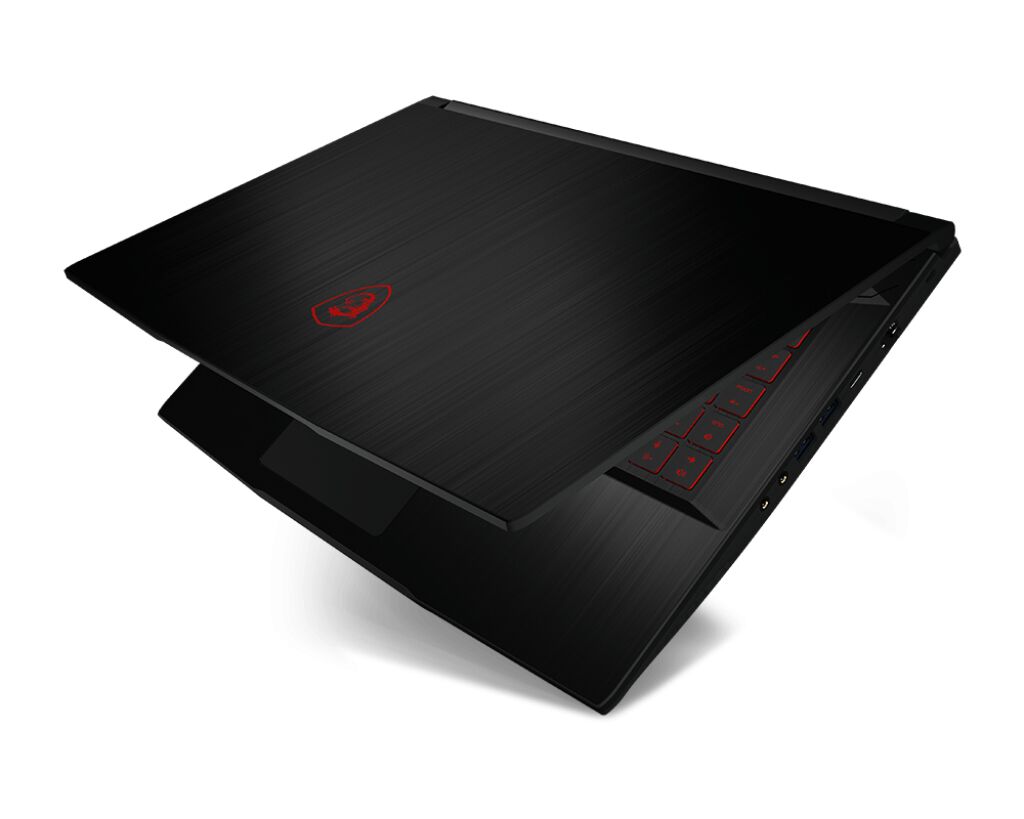

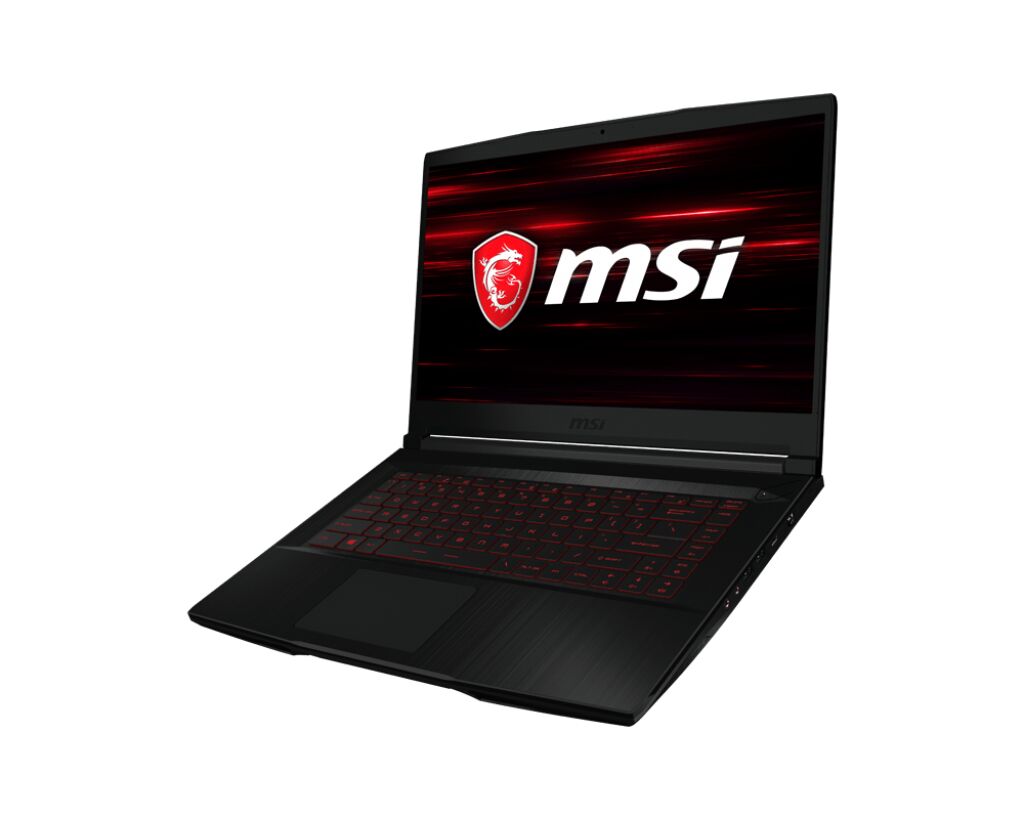

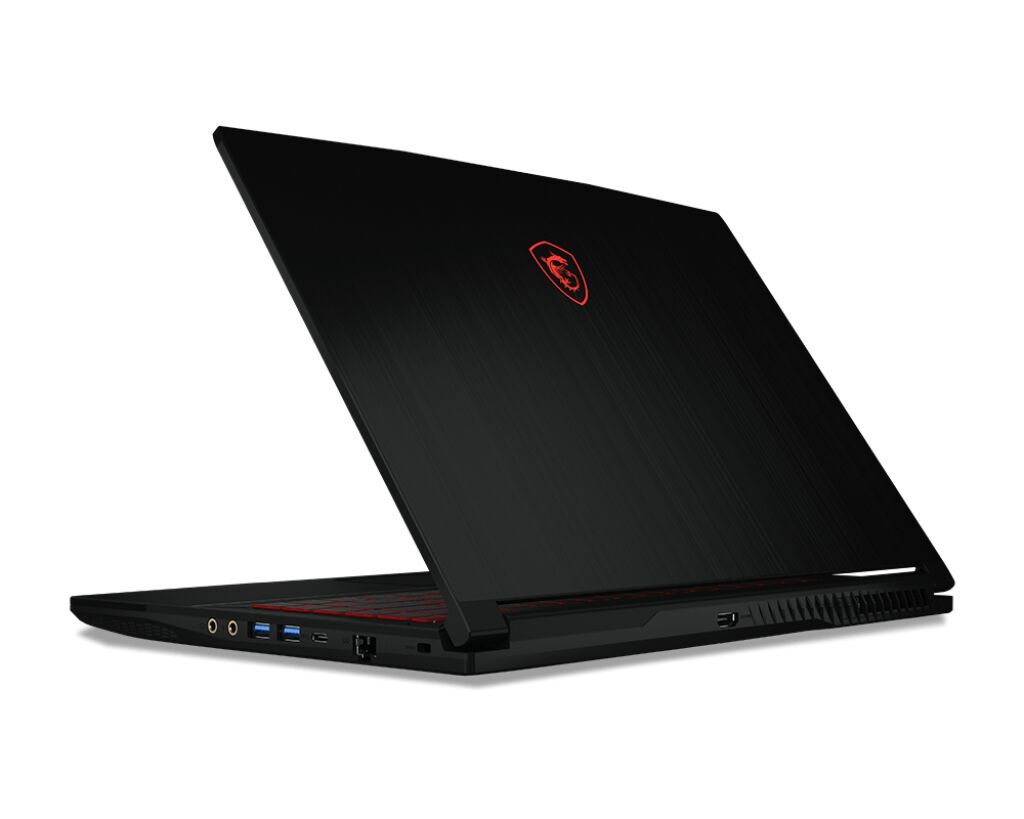

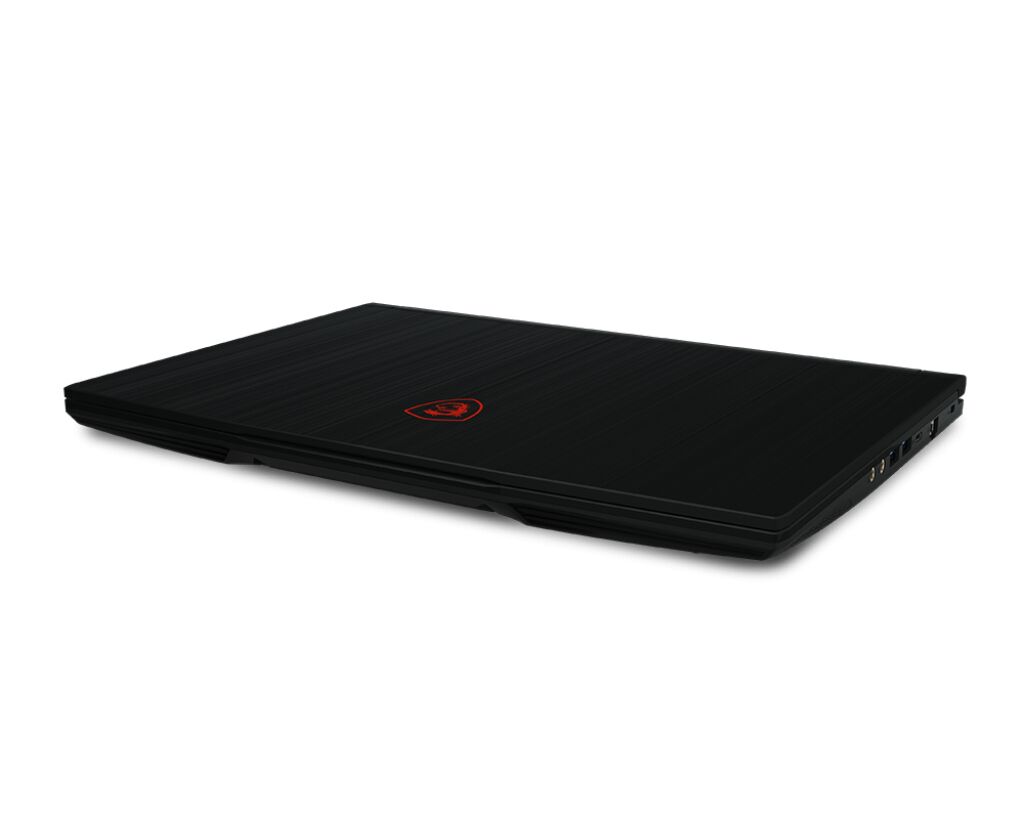

MSI Gaming GF63 8RC-264 RAM upgrade specifications

The MSI GF63 8RC-264 Gaming laptop features DDR4-SDRAM memory upgrade specifications with two SO-DIMM slots supporting a maximum RAM capacity of 32 GB. The compatible memory modules operate at 2400 MHz frequency. Upgrade options for this GF series model accommodate standard SO-DIMM form factor memory, allowing users to expand the laptop's RAM capacity by replacing or supplementing existing memory modules. Total maximum supported memory configuration reaches 32 GB across the available slots.

Additional Notes

• The 2400 MHz frequency limitation stems from the Coffee Lake chipset architecture, preventing any performance gains from installing faster 2666 MHz or 3200 MHz modules despite their backward compatibility.
• The MSI GF63 8RC-264 dual-channel configuration requires matched memory pairs in both slots to avoid reverting to single-channel mode, which would halve the available memory bandwidth to approximately 19 GB/s.
• Installing a single 32 GB module while leaving one slot empty would create an asymmetric configuration, forcing the system into flex mode or single-channel operation with measurable impact on integrated graphics performance.
• The SO-DIMM 260-pin form factor excludes all standard desktop DIMM modules, requiring laptop-specific memory despite identical DDR4 specifications.
• Mixing modules with different CAS latencies or timings may force both modules to operate at the slower timing profile, potentially degrading performance compared to matched pairs.
• The chipset enforces a 16 GB per-slot ceiling, making any single module exceeding this capacity incompatible regardless of total system support for 32 GB.
• Non-standard voltage modules rated at 1.35V or higher may fail POST or cause thermal throttling in the confined laptop chassis designed for standard 1.2V DDR4 operation.
• Accessing the memory compartment typically requires complete bottom panel removal rather than a dedicated service door, increasing the complexity of user-performed upgrades.
• Third-party RAM installation does not void the manufacturer warranty under Magnuson-Moss provisions, though damage caused during installation remains the user's responsibility.
• ECC or registered memory modules will be rejected by the consumer-grade HM370 chipset despite sharing the DDR4 interface standard.
