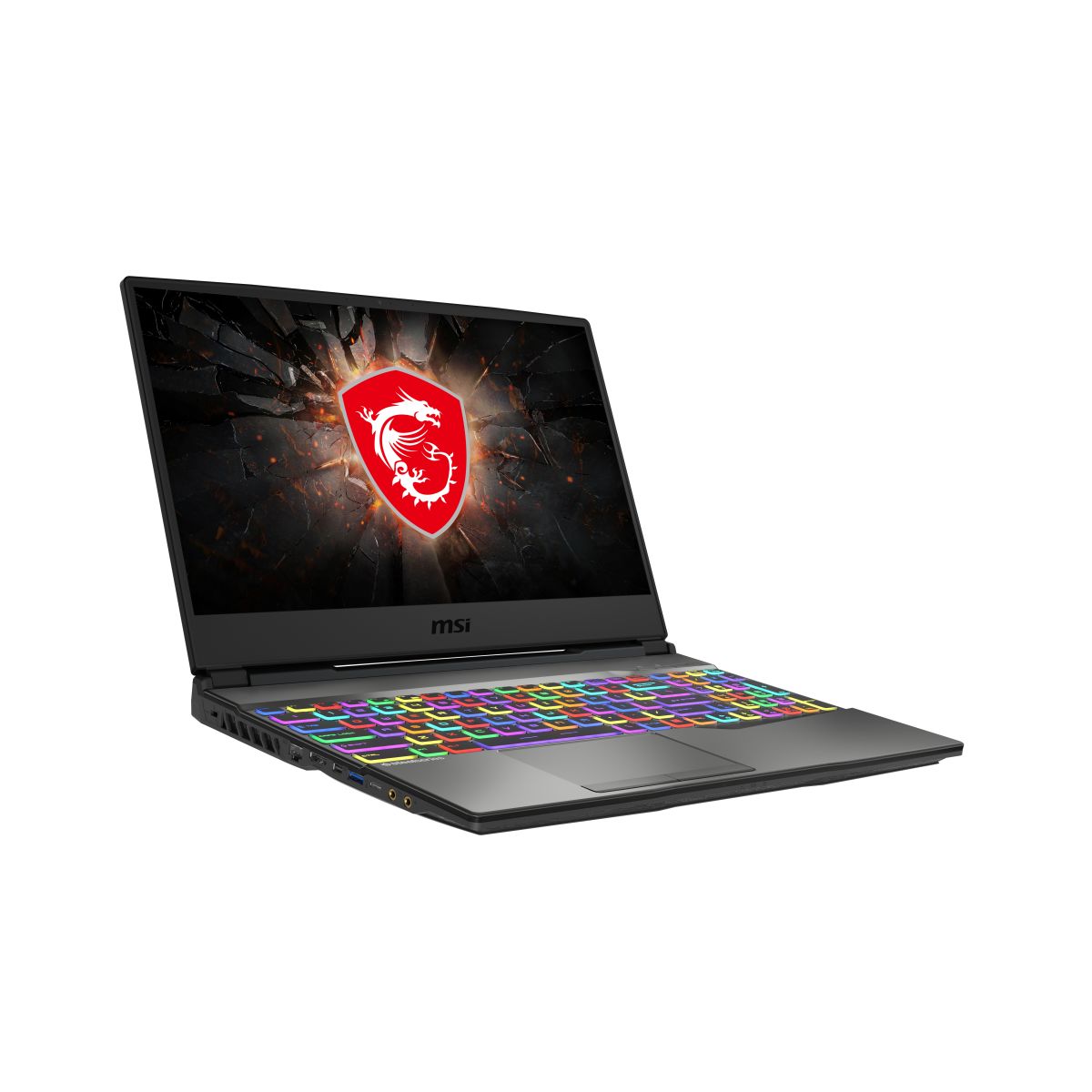

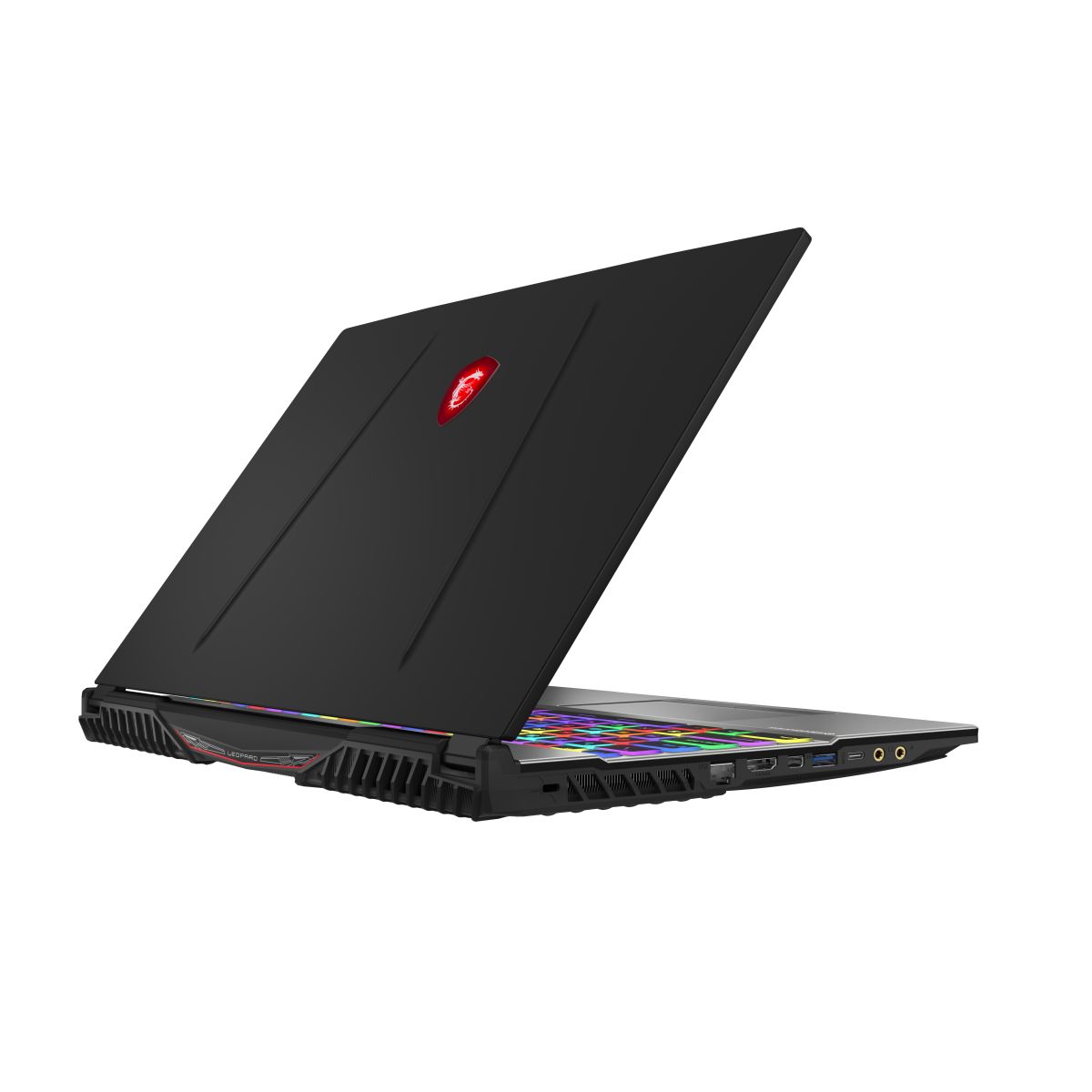

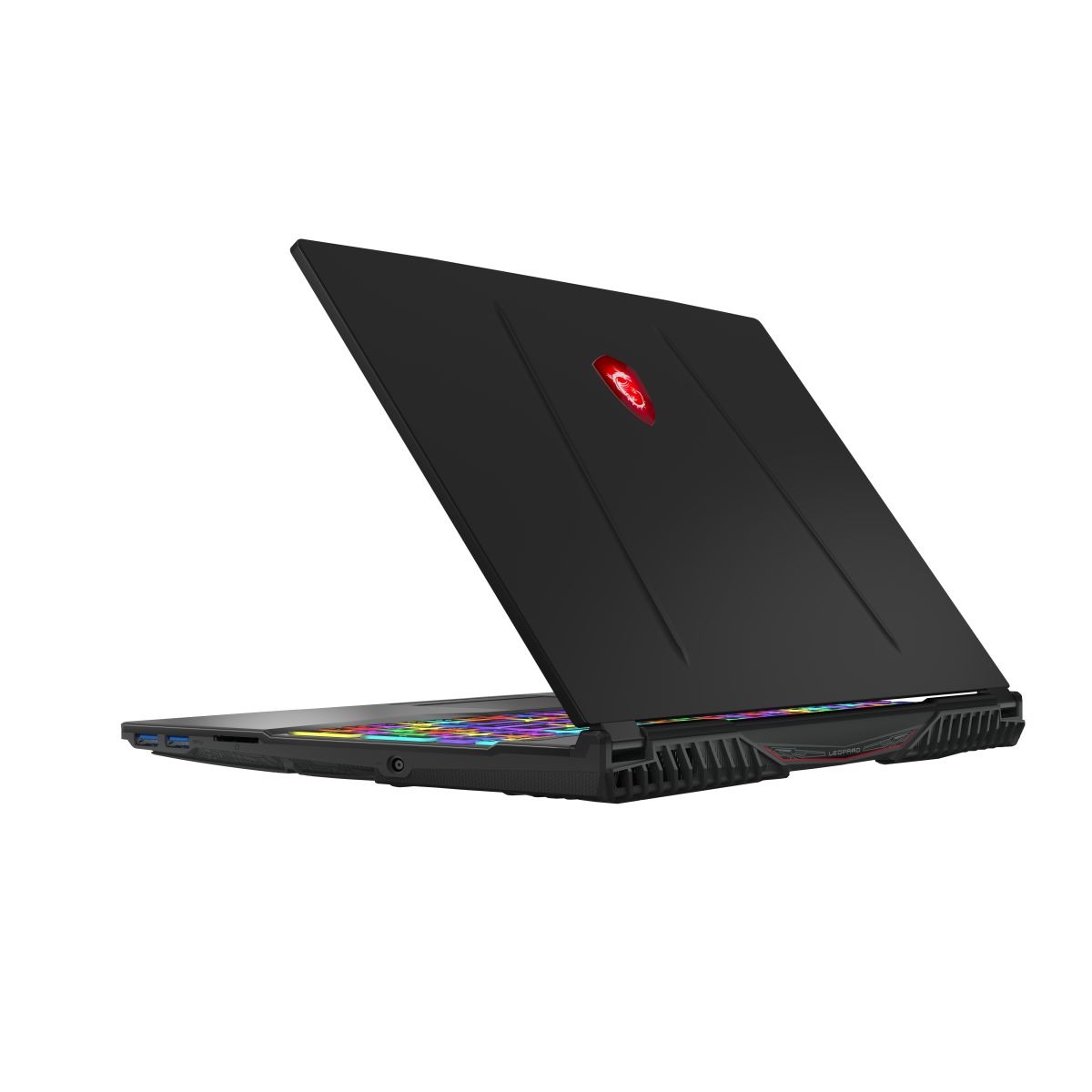

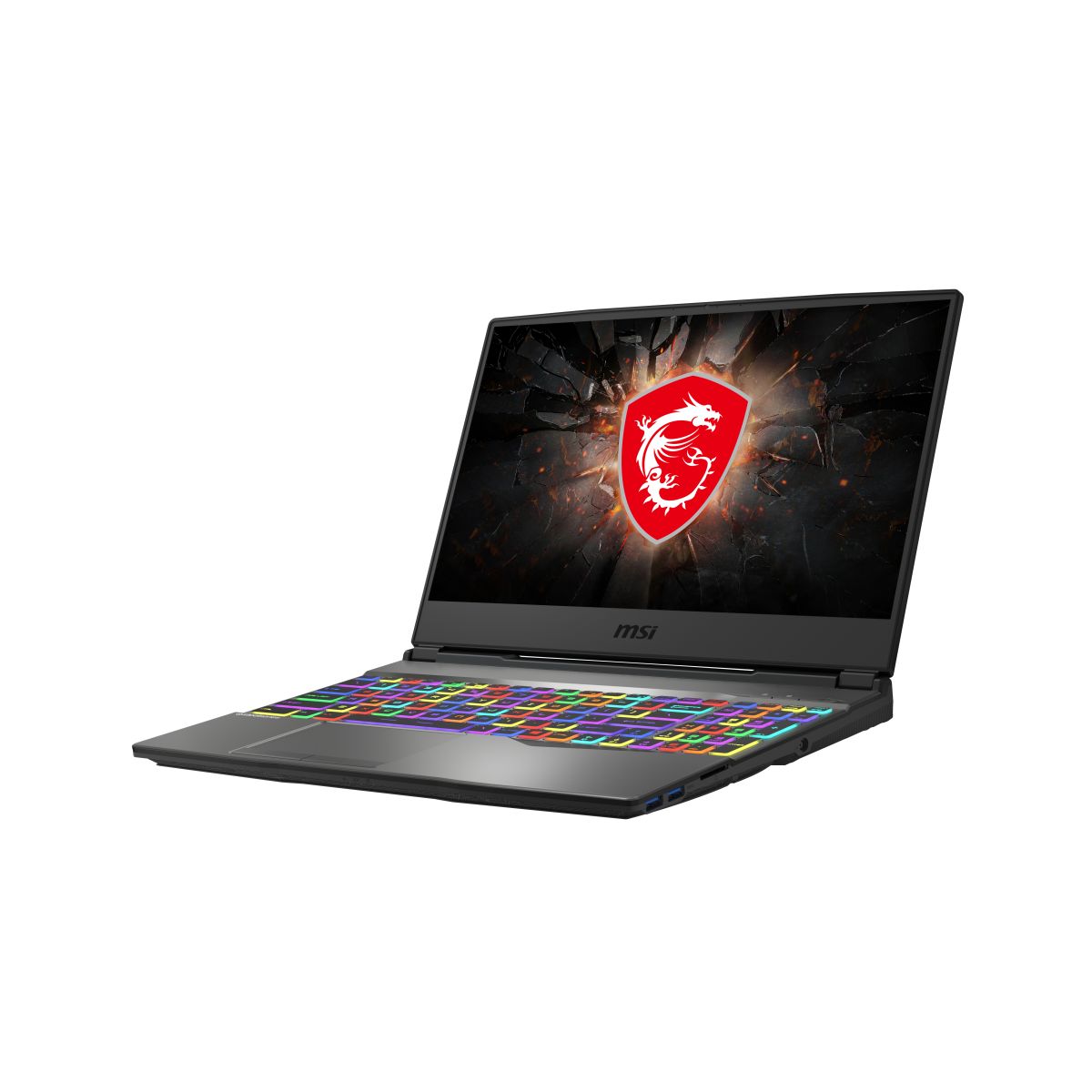

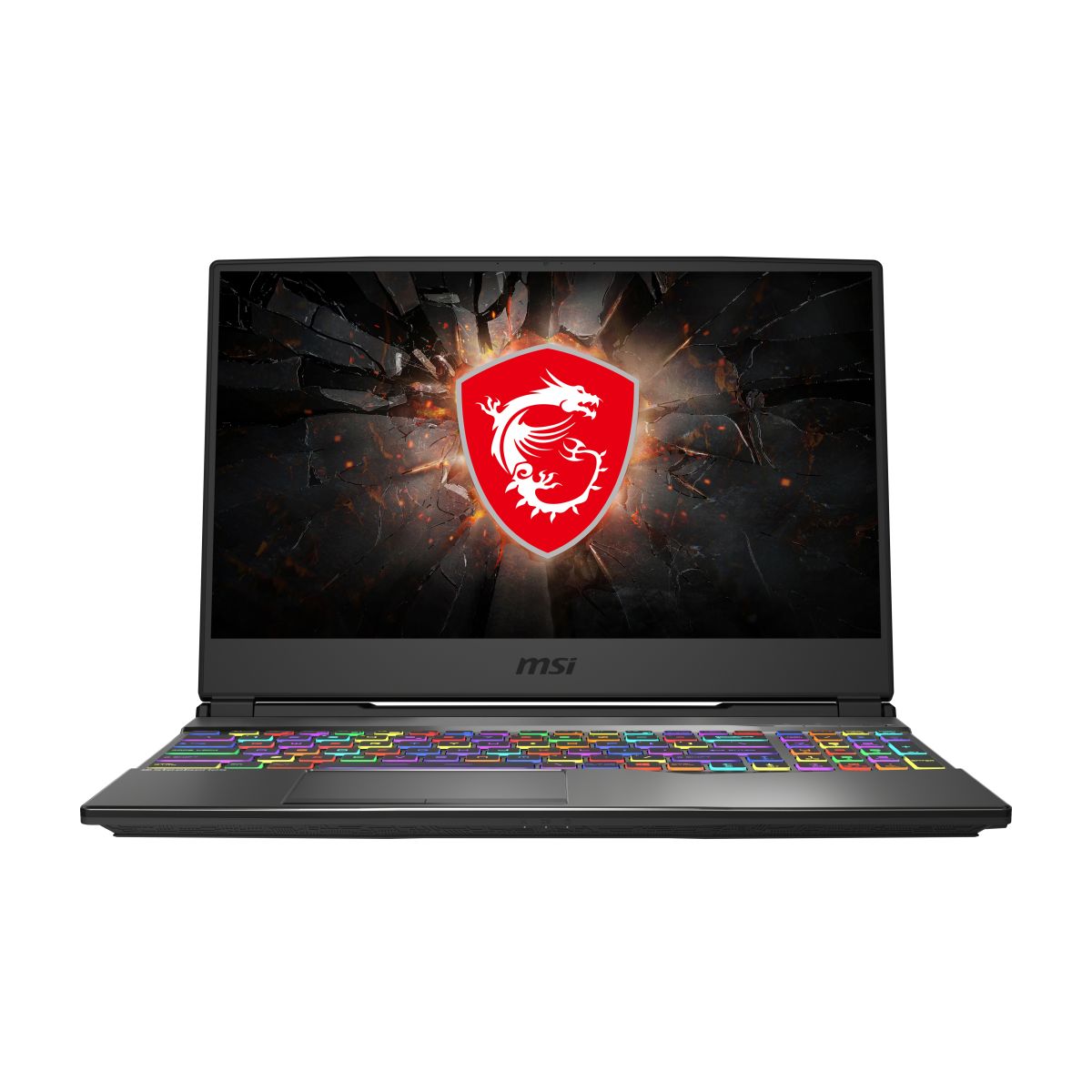

MSI Gaming GP65 10SFK-047 Leopard RAM upgrade specifications

The MSI GP65 10SFK-047 Leopard gaming laptop features DDR4-SDRAM memory specifications compatible with upgrade configurations. The system supports 2 SO-DIMM slots for memory expansion, with maximum RAM capacity of 64 GB. Memory operates at 2666 MHz frequency. Upgrade specifications indicate compatible DDR4-SDRAM modules in SO-DIMM form factor. The MSI Gaming GP series accommodates dual memory slots, enabling users to expand total system memory capacity up to the 64 GB maximum threshold through compatible RAM upgrades.

Additional Notes

• The MSI GP65 10SFK-047 Leopard supports dual-channel memory architecture through its 2 SO-DIMM slots, enabling up to double the bandwidth compared to single-channel configurations when matched modules are installed.
• The 2666 MHz frequency operates at PC4-21300 standard, delivering a theoretical maximum bandwidth of 21.3 GB/s per channel or 42.6 GB/s in dual-channel mode.
• Higher frequency modules such as 3200 MHz or 2933 MHz will function but downclock to 2666 MHz due to chipset or processor limitations, offering no performance advantage over native-speed modules.
• The 64 GB maximum capacity requires two 32 GB SO-DIMM modules, which must support dual-rank configuration as single-rank 32 GB SO-DIMMs are incompatible with most consumer platforms.
• Mixing different capacity modules between slots maintains functionality but may disable dual-channel mode for the non-matched portion, reducing memory bandwidth efficiency.
• Non-ECC unbuffered memory is required, as SO-DIMM form factor in consumer laptops does not support ECC or registered modules.
• Operating voltage must be standard 1.2V for DDR4, as low-voltage or overclocking variants may cause stability issues or prevent POST.
• Upgrading requires bottom panel removal to access the memory compartment, which typically does not void manufacturer warranty when performed without damage to seals or components.
• Module height restrictions apply despite SO-DIMM standardization, as modules exceeding approximately 30mm may conflict with keyboard assemblies or chassis components.
• CAS latency variations between CL19 and CL22 at 2666 MHz result in minimal real-world performance differences, typically under 2-3% in latency-sensitive applications.
