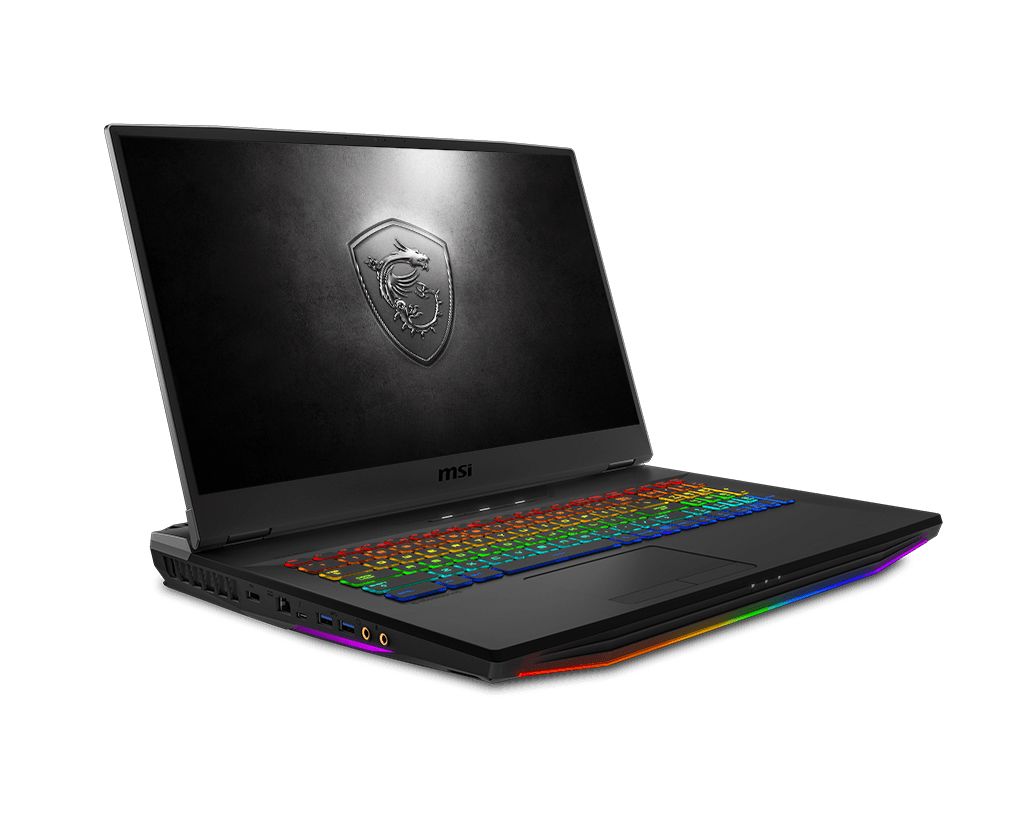

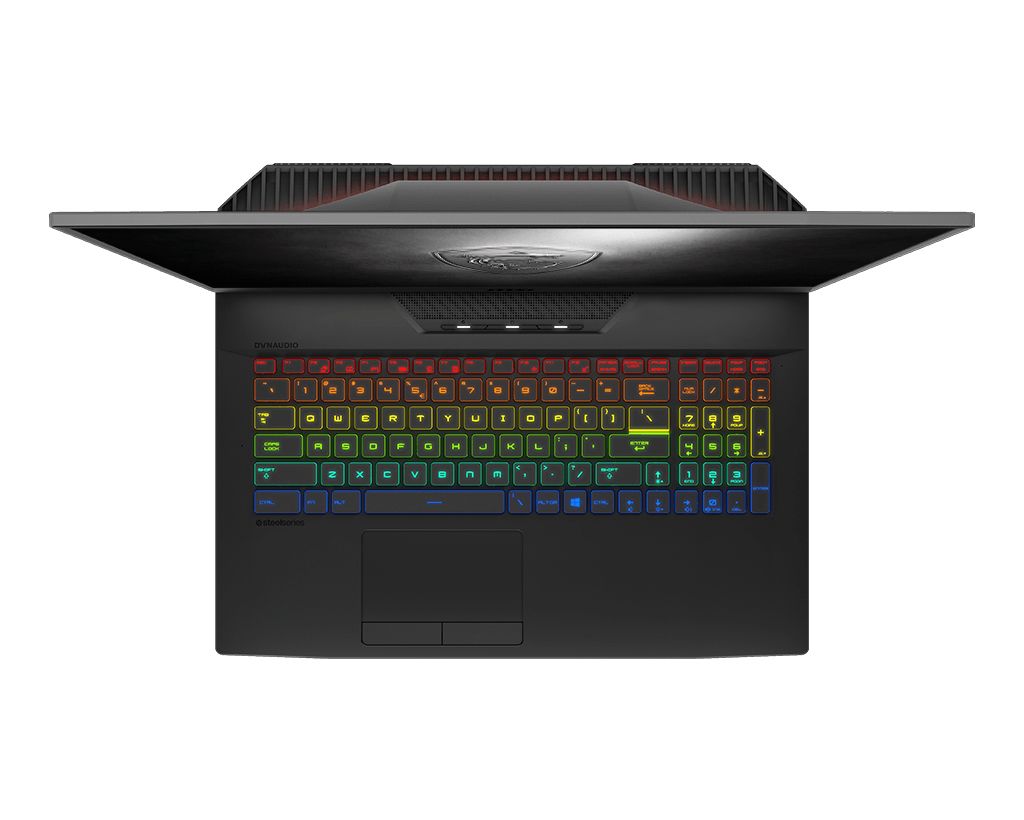

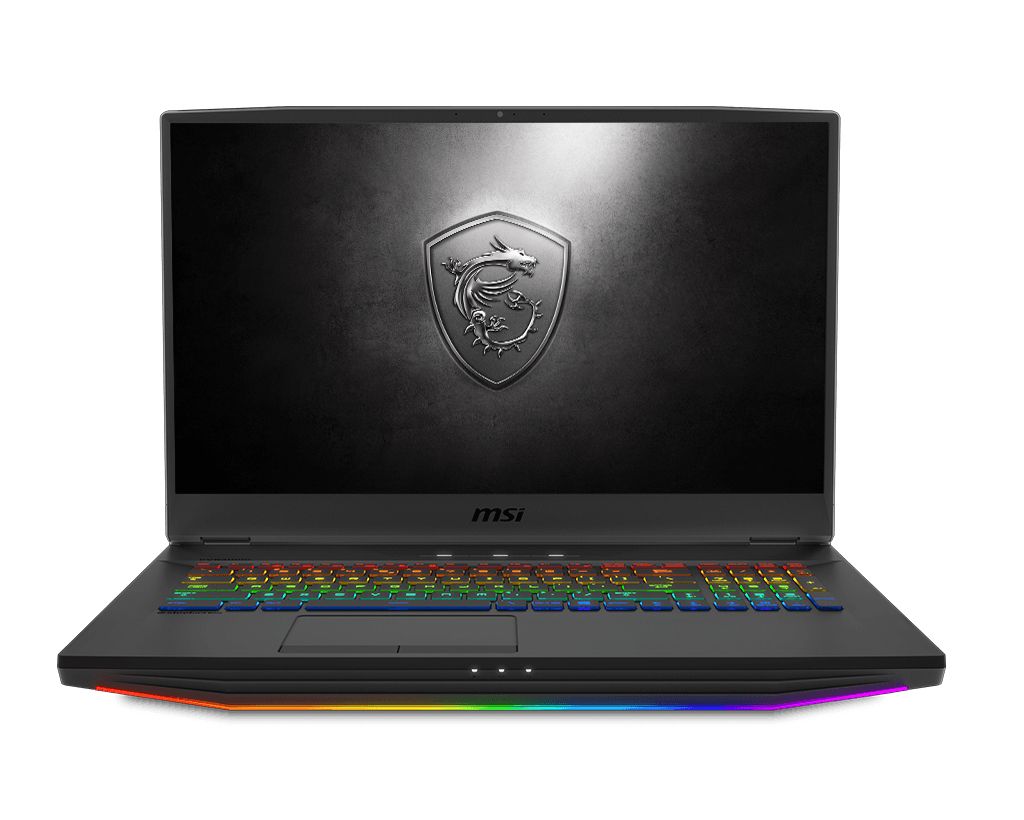

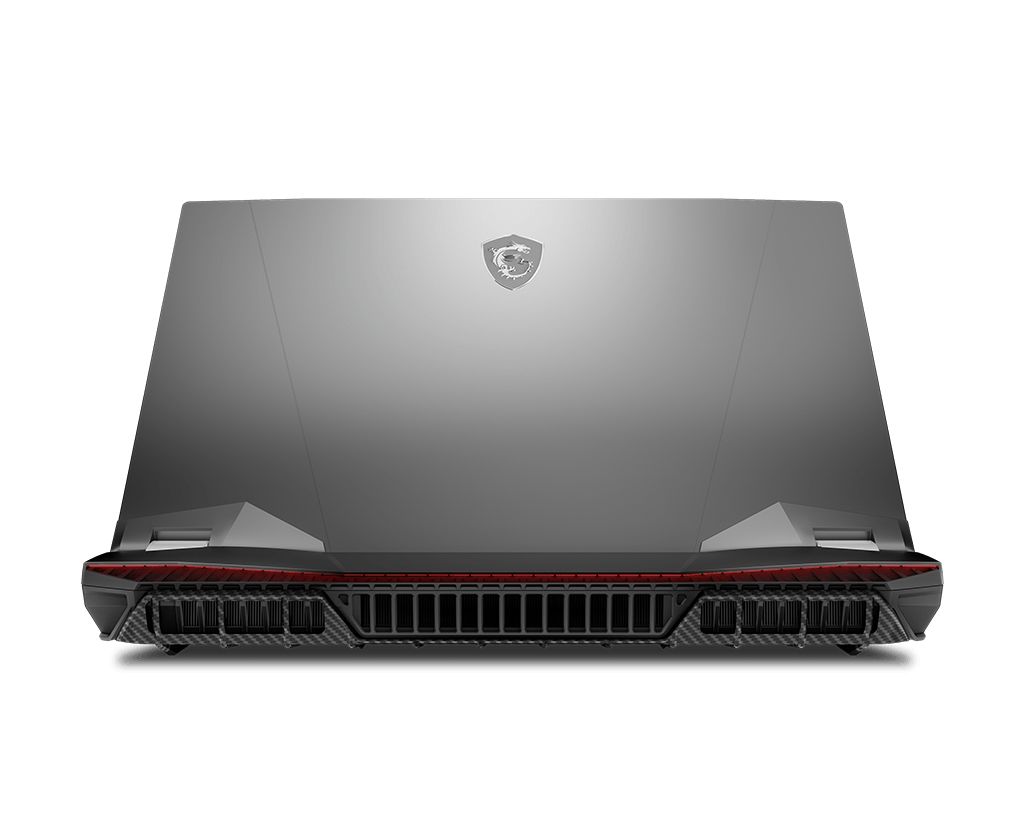

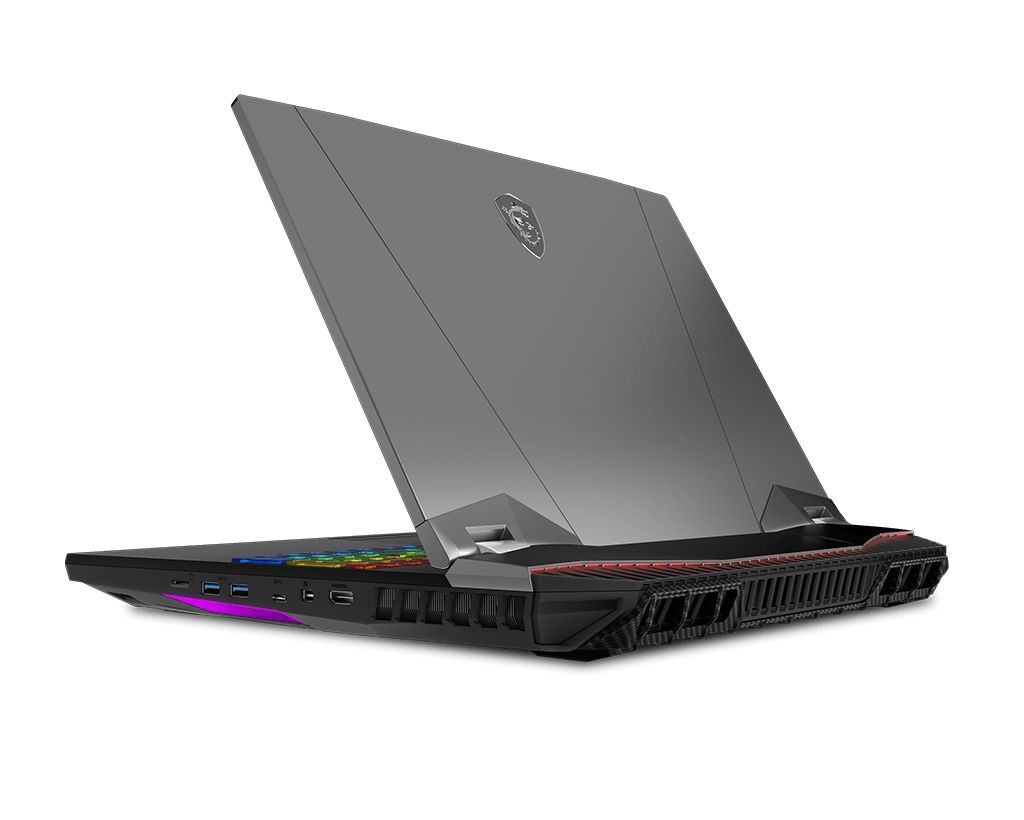

MSI Gaming GT76 9SG-206CA Titan DT RAM upgrade specifications

MSI GT76 9SG-206CA Titan DT MSI GT76 9SG-206CA Titan DT MSI GT76 9SG-206CA Titan DT MSI GT76 9SG-206CA Titan DT MSI GT76 9SG-206CA Titan DT

MSI GT76 9SG-206CA Titan DT Gaming series laptop supports DDR4-SDRAM memory upgrades. The system features 4 SO-DIMM slots with maximum capacity of 128 GB total RAM. Compatible memory operates at 2666 MHz frequency. SO-DIMM form factor specifications enable modular memory expansion for enhanced multitasking and performance capabilities on this gaming platform.

Memory Upgrade Specifications

SpecificationValue
Memory slots4x SO-DIMM
Form factorSO-DIMM
Memory typeDDR4-SDRAM
Frequency2666 MHz
Maximum RAM128 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-2666 (PC4-21328)
Bandwidth21.3 GB/s
Laptop Release date06 November 2019

Additional Notes

  • The MSI GT76 9SG-206CA Titan DT accommodates SO-DIMM modules exclusively, which are laptop-specific form factors incompatible with standard desktop DDR4 DIMMs. Replacement memory must match this constraint or installation will not be physically possible.
  • 4 memory slots enable symmetric dual-channel or quad-channel configurations depending on module population, but asymmetrical population (e.g., 2 populated, 2 empty) may trigger suboptimal single-channel fallback on one pair, reducing bandwidth efficiency by approximately 50 percent on affected channels.
  • The 2666 MHz baseline frequency indicates a 9th-generation Intel or Ryzen platform with DDR4-2666 native support. Memory modules rated above 2666 MHz (such as DDR4-3000 or DDR4-3200) will downclock to 2666 MHz when installed, negating performance gains from higher-speed variants while increasing component cost unnecessarily.
  • 128 GB maximum capacity represents a 32 GB per SO-DIMM ceiling, which was uncommon in 2019 timeframes when this model released. Verification that the BIOS version supports 32 GB modules is required before purchasing high-density replacements, as earlier firmware revisions may recognize only 16 GB or 8 GB per slot.
  • Upgrading beyond the original configuration voids warranty coverage on RAM-related failures in most manufacturer policies unless performed by authorized service centers. Self-installation requires retention of original memory modules and documentation to maintain eligibility for future claims.
  • Thermal considerations within the system's chassis may restrict upgrade timing to cooler ambient conditions, as 4 populated SO-DIMM slots generate cumulative heat in a confined space. Operational stability should be verified under sustained load following installation.
