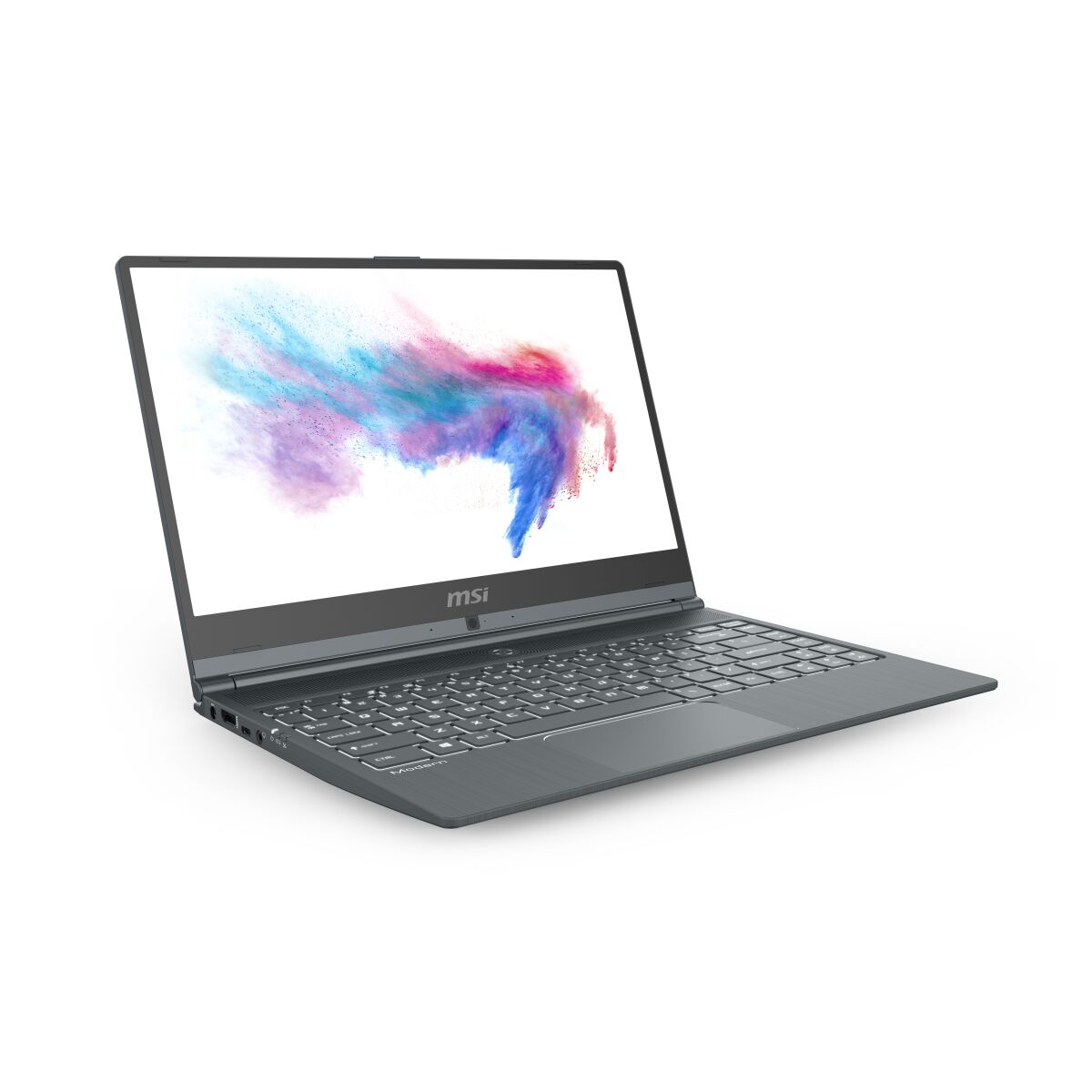

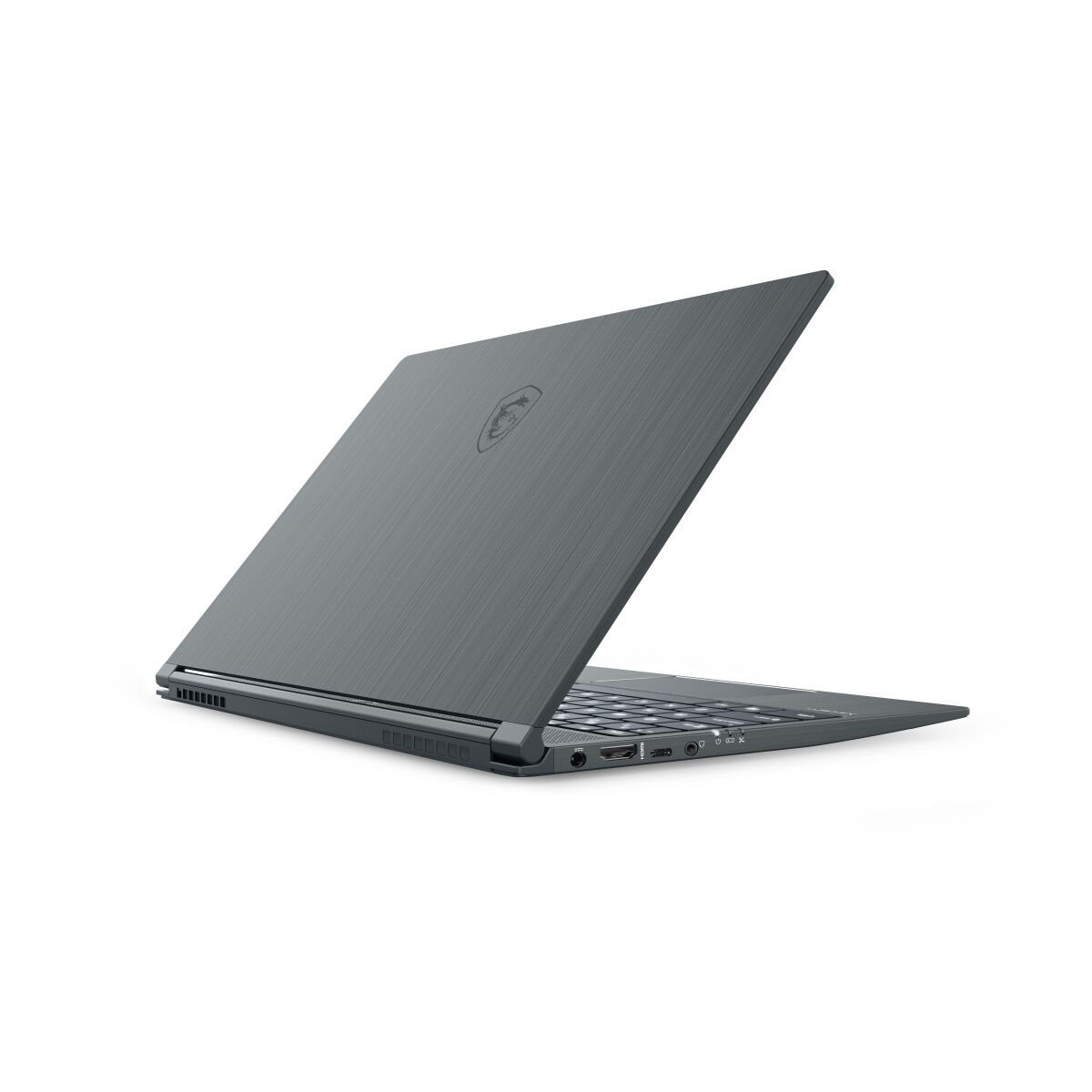

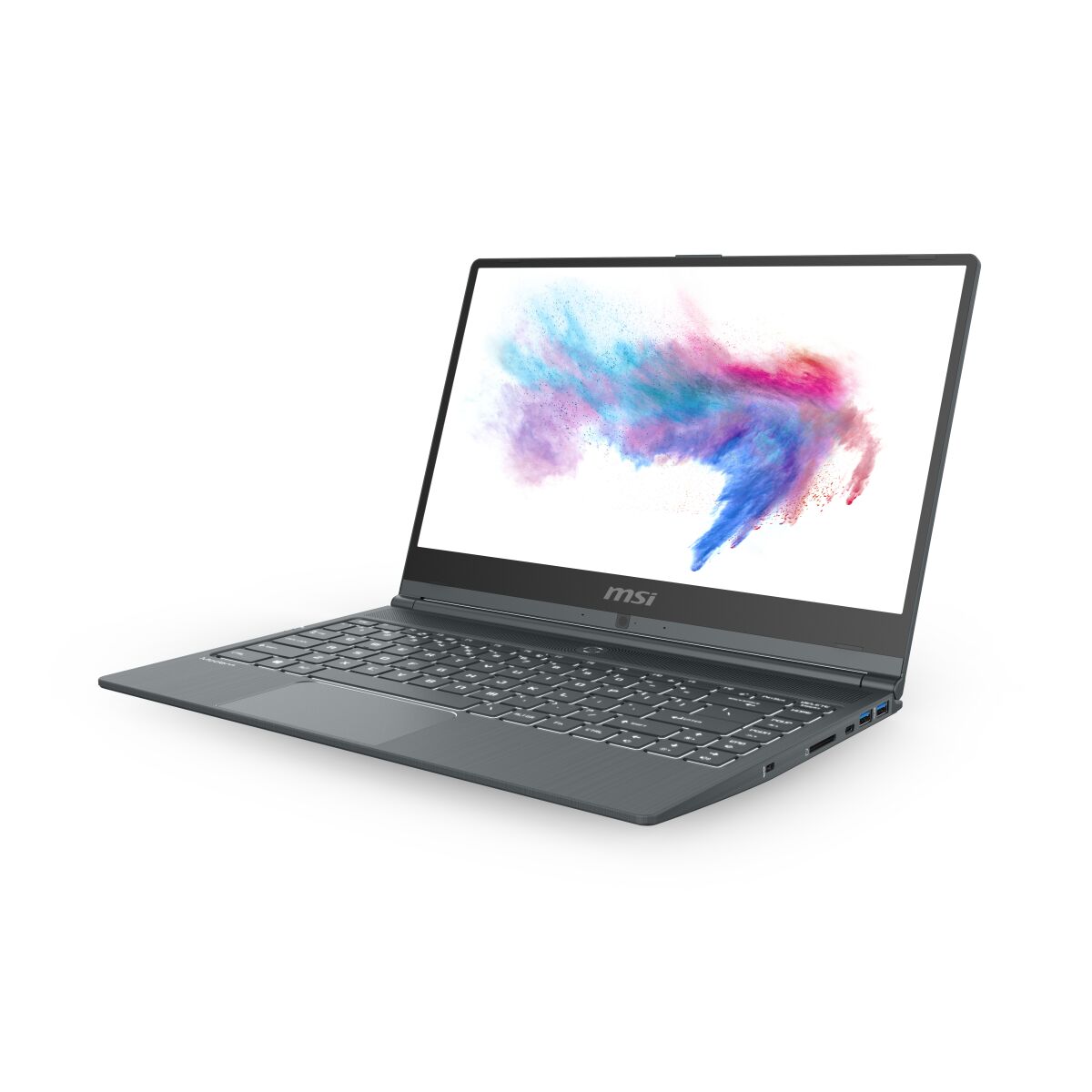

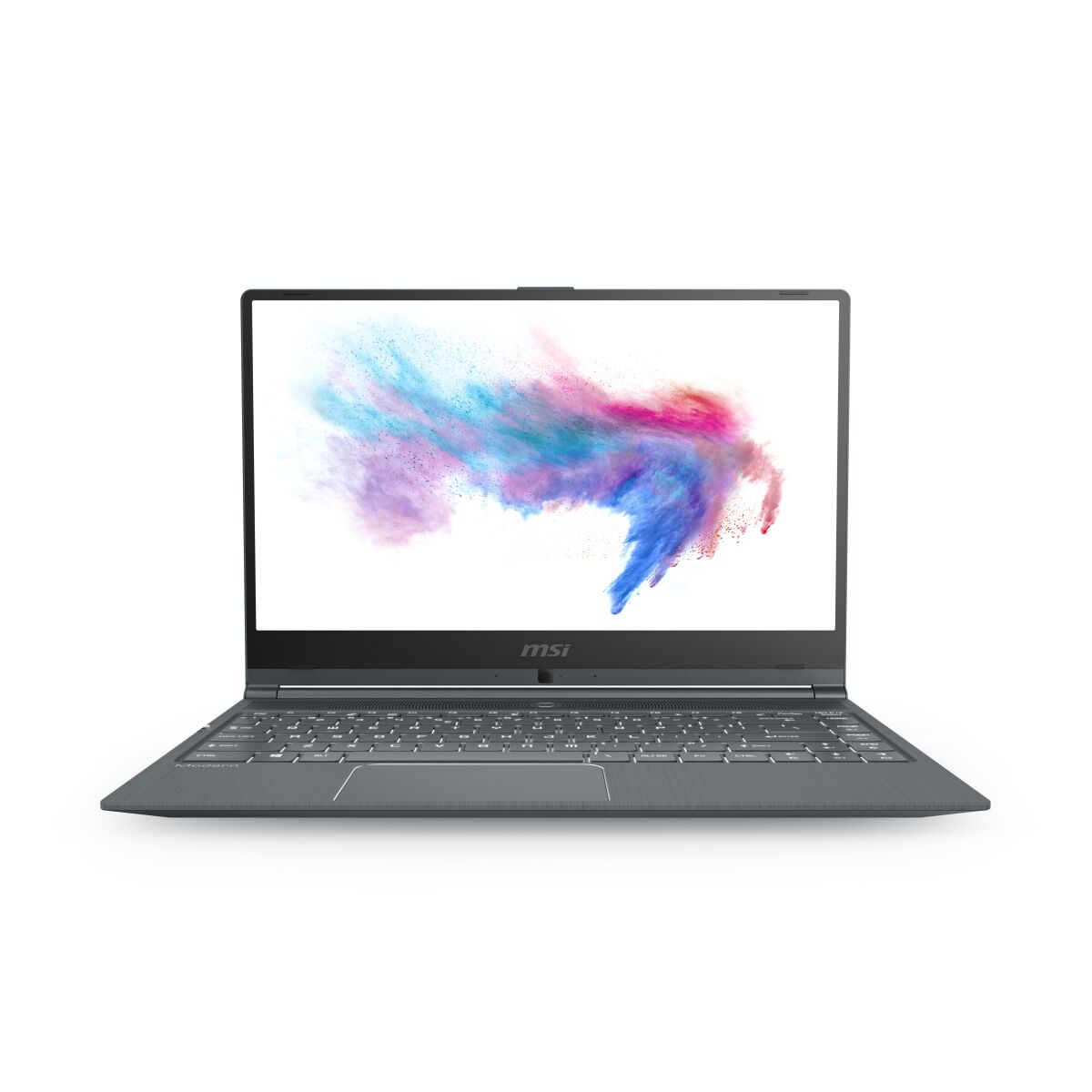

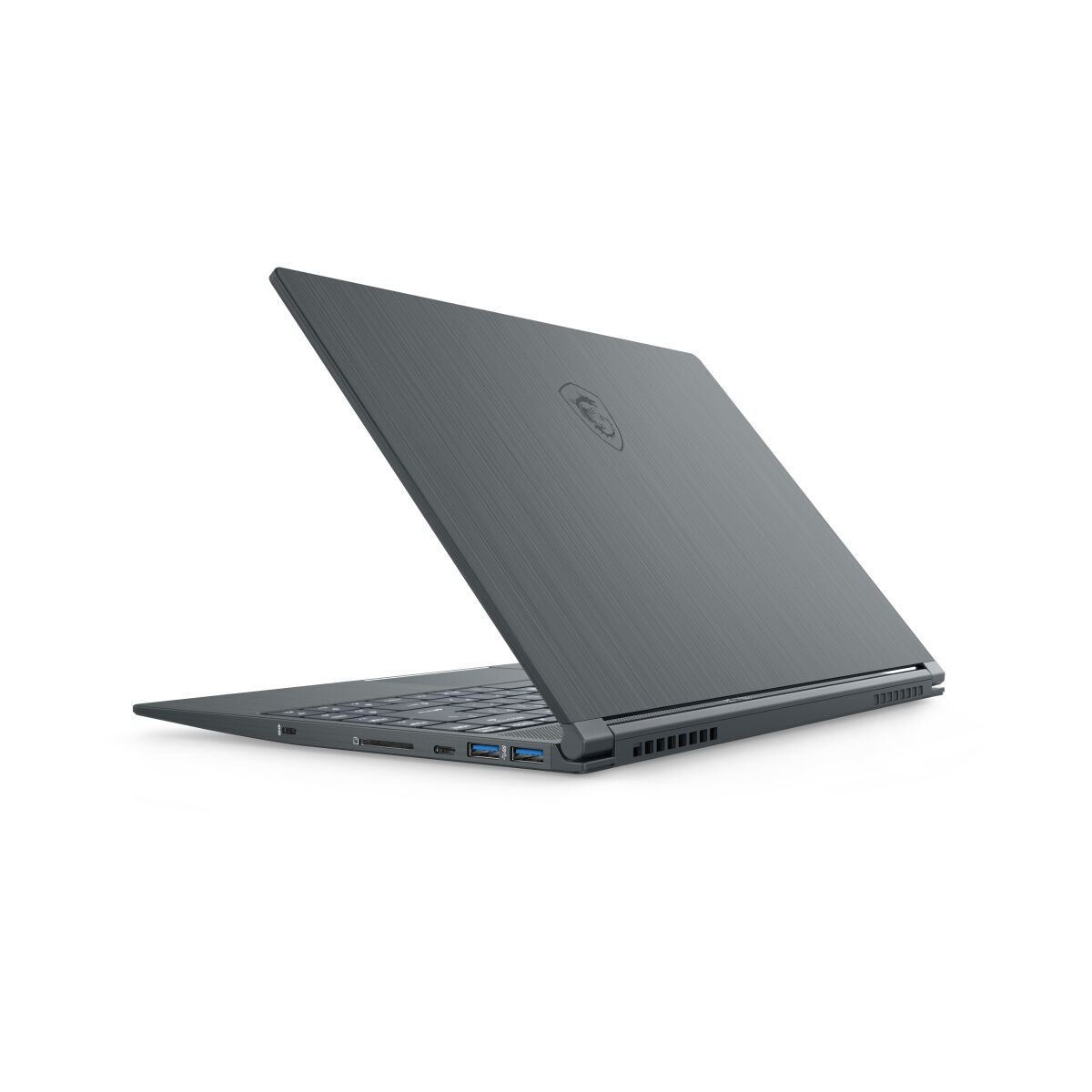

MSI Modern 14 A10RAS-1031 RAM upgrade specifications
MSI Modern 14 A10RAS-1031 laptop memory upgrade specifications include DDR4-SDRAM compatible RAM modules. The system features 1 SO-DIMM slot supporting a maximum RAM capacity of 32 GB. Memory modules operate at 2666 MHz frequency. Upgrade options require DDR4-SDRAM SO-DIMM form factor modules compatible with this specific MSI 14 series model. Current specifications define maximum expandable memory and slot availability for RAM expansion.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 15 May 2020 |
Additional Notes
- The single slot architectural design of the MSI 14 A10RAS-1031 necessitates a complete module replacement rather than an addition for memory expansions.
- The absence of a secondary slot creates a permanent single channel memory configuration which limits total potential bandwidth for integrated graphics processing.
- Upward compatibility with higher frequency modules like 3200 MHz is possible but the system bus will downclock the hardware to the native motherboard ceiling of 2666 MHz.
- Reaching the 32 GB threshold requires a high density single rank or dual rank module which can increase latency compared to smaller capacity sticks.
- Physical installation requires the removal of the entire bottom chassis panel which may involve piercing factory seal stickers in certain regional markets.
- Non volatile storage performance remains unaffected by memory upgrades but multitasking overhead is strictly tethered to the single populated SO DIMM interface.
