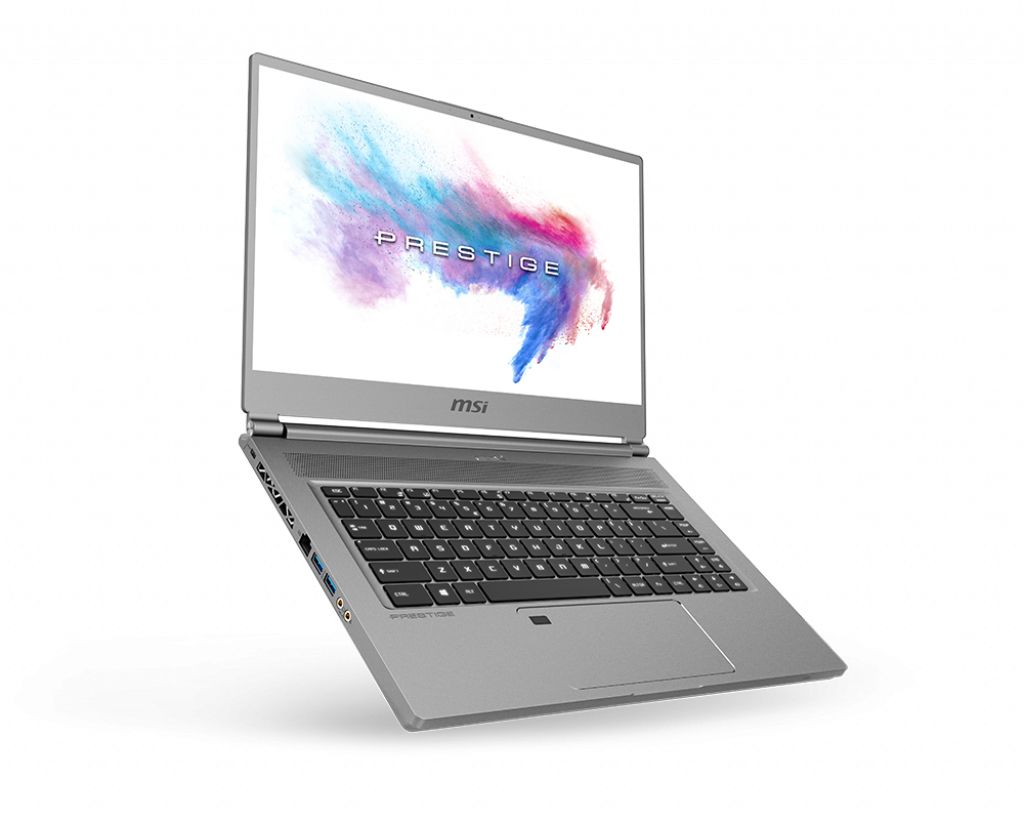

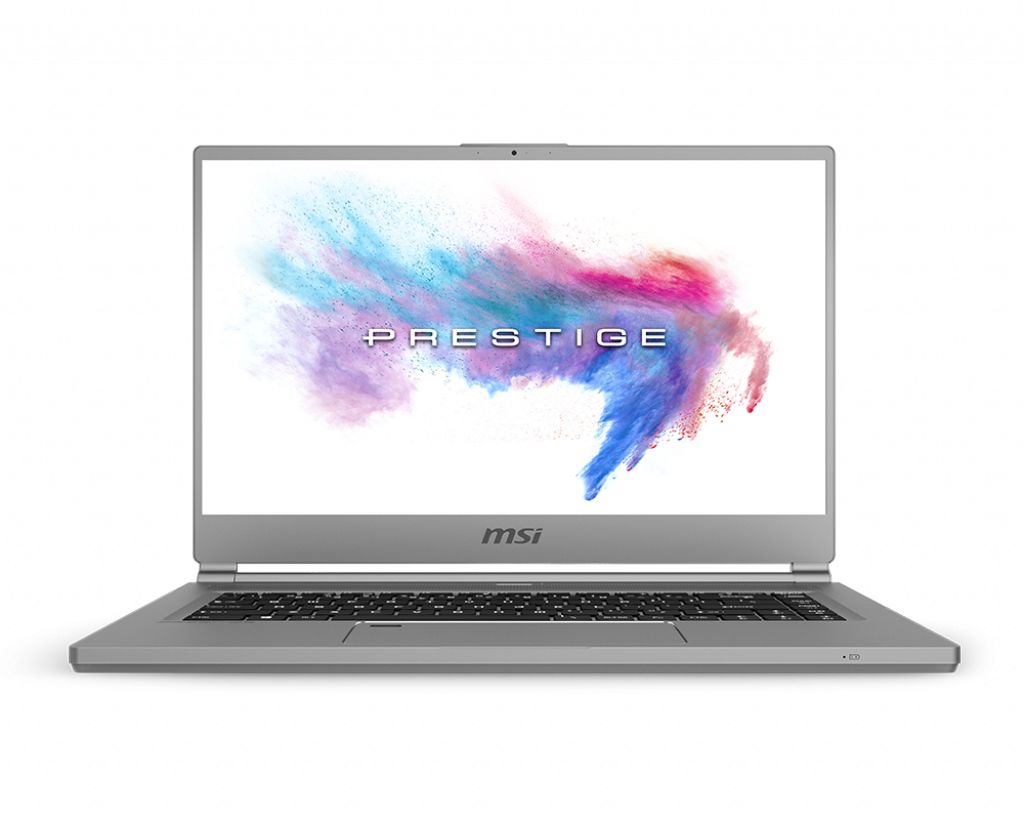

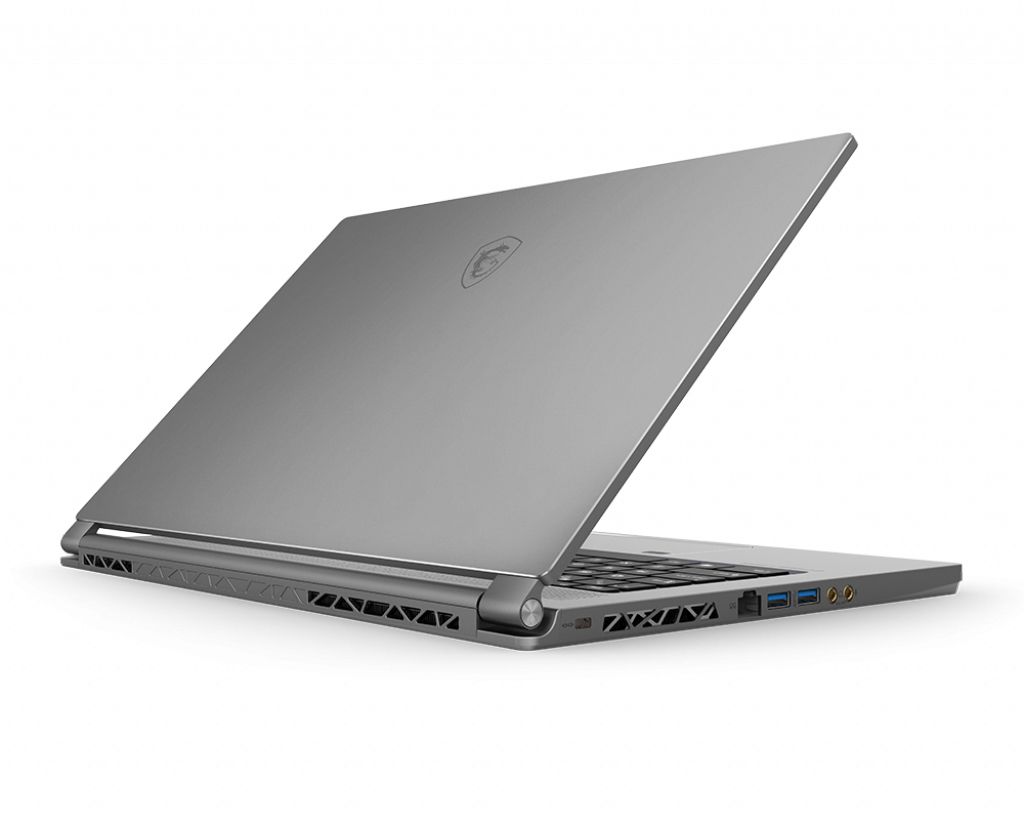

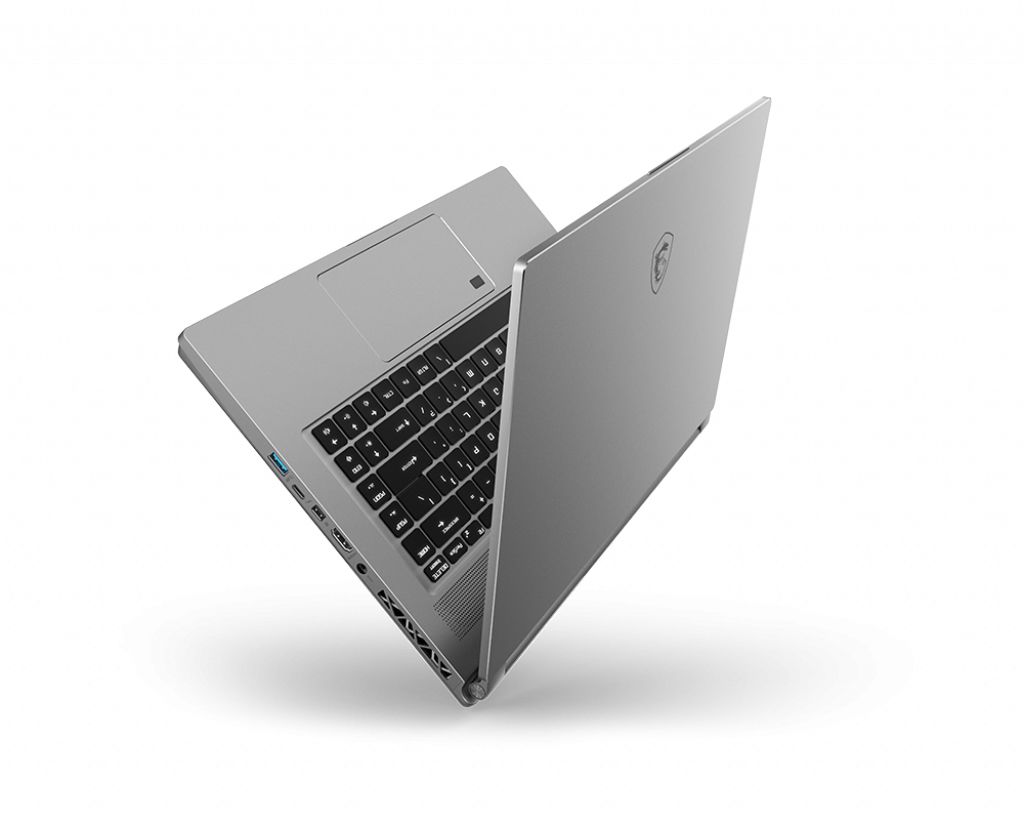

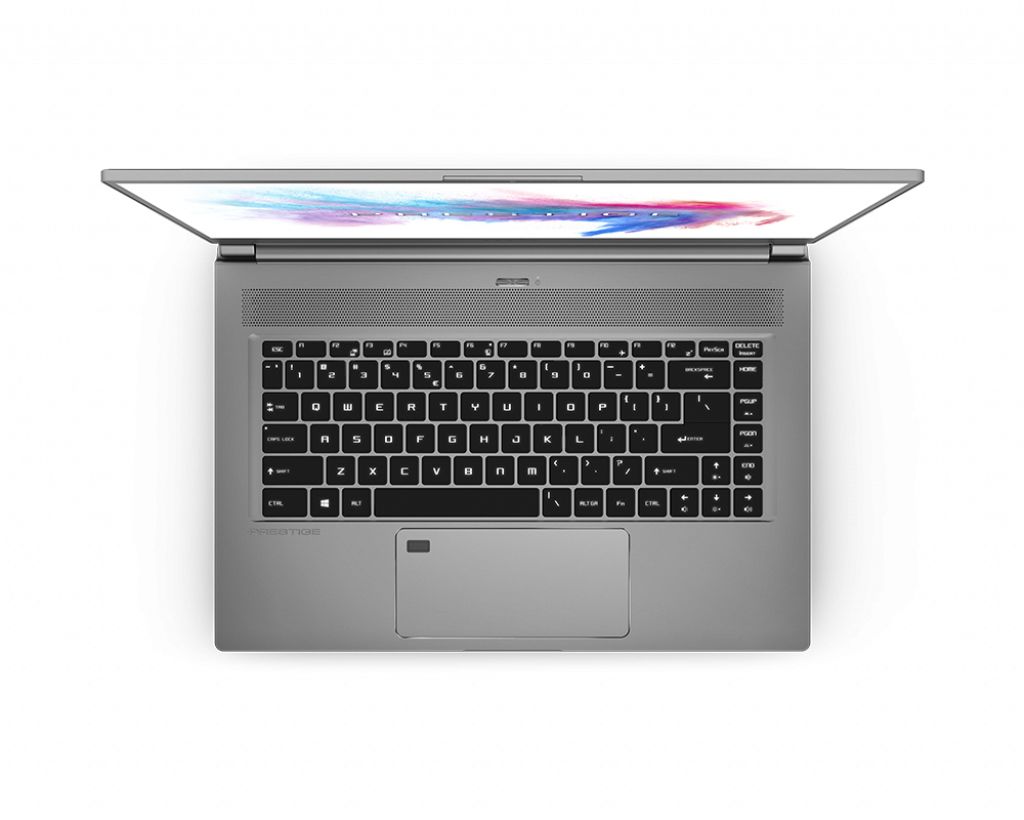

MSI Prestige P65 9SF-646RU Creator RAM upgrade specifications
MSI Prestige P series P65 9SF-646RU Creator laptop memory upgrade specifications include two SO-DIMM slots supporting DDR4-SDRAM memory modules. Maximum RAM capacity reaches 64 GB total. Compatible memory operates at 2666 MHz frequency. Upgrade options accommodate standard SO-DIMM form factor modules. Specifications enable memory expansion from factory configuration to maximum supported capacity through slot-based installation.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 16 August 2019 |
Additional Notes
- The MSI Prestige P65 9SF-646RU Creator supports maximum 64 GB total capacity across 2 SO-DIMM slots, meaning each module can accommodate up to 32 GB individually without slot limitations.
- DDR4-2666 MHz specification indicates the memory bus operates at this frequency ceiling; modules rated above 2666 MHz will downclock to this speed, resulting in no performance gain from premium-tier RAM despite higher cost.
- Dual SO-DIMM architecture creates a single-channel bottleneck if only one slot is populated; dual-channel mode activates only when both slots contain memory modules, necessary for optimal bandwidth utilization in content creation workflows.
- SO-DIMM form factor constrains upgrade sourcing to laptop-specific modules; desktop DDR4 UDIMM sticks are physically incompatible and cannot be force-fitted without damaging the motherboard connector.
- The 2666 MHz frequency standard for this generation predates faster JEDEC profiles (3200 MHz emerged in later mobile chipsets); substituting higher-frequency modules requires manual BIOS timing adjustments to guarantee stability, voiding warranty protection on some platforms.
- Upgrading from factory configuration to 64 GB maximum requires removing original memory modules; this procedure voids warranties on some manufacturers unless performed by authorized service centers, contingent on regional policy.
- Memory speed does not scale linearly with creative application performance; 9th-generation mobile processors paired with 2666 MHz DDR4 exhibit minimal latency reduction compared to 3200 MHz in video editing or 3D rendering tasks due to processor cache hierarchy dominance.
