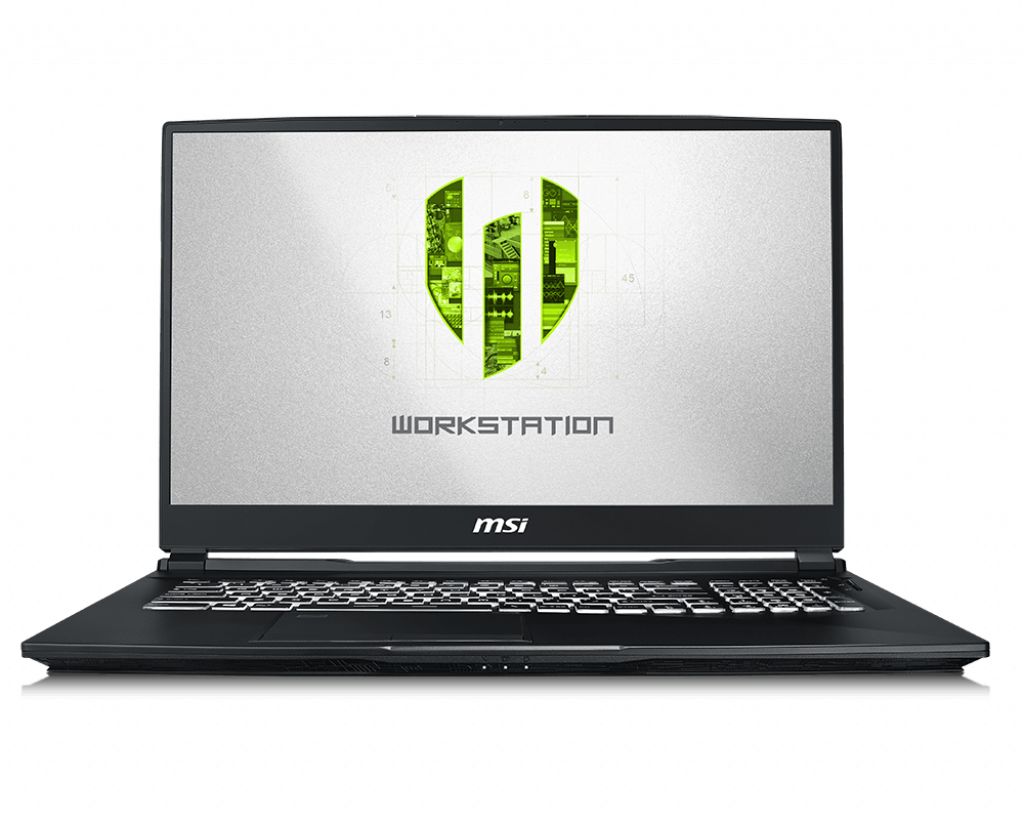

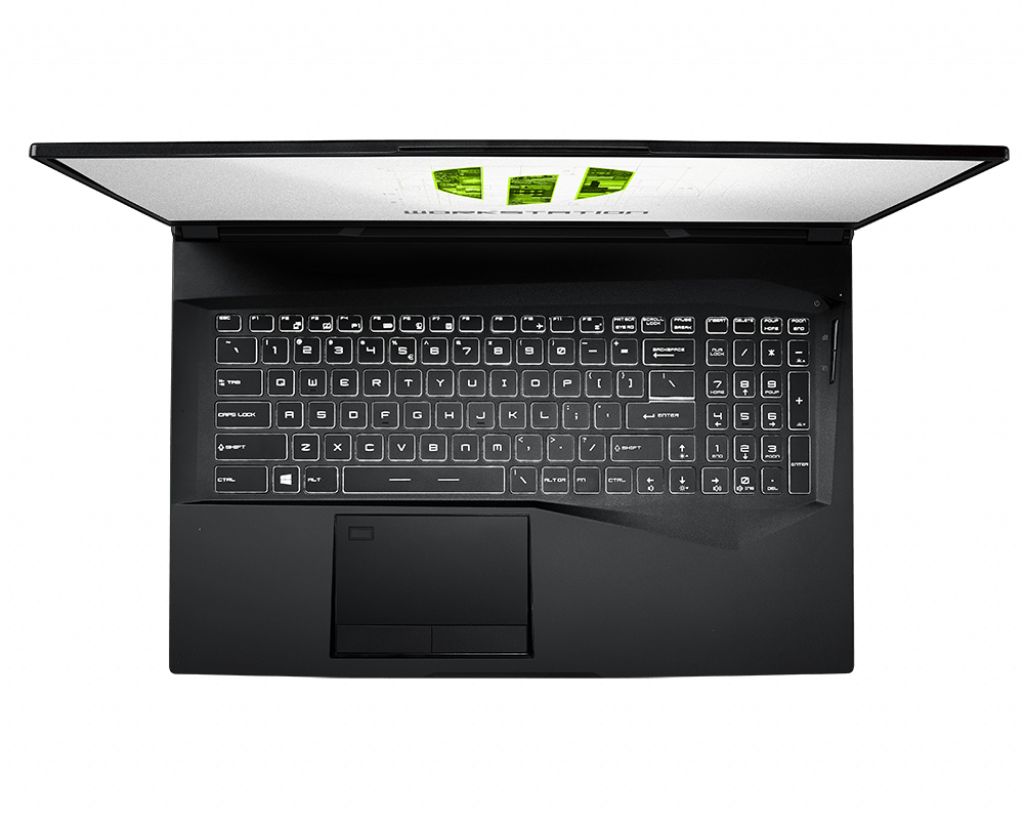

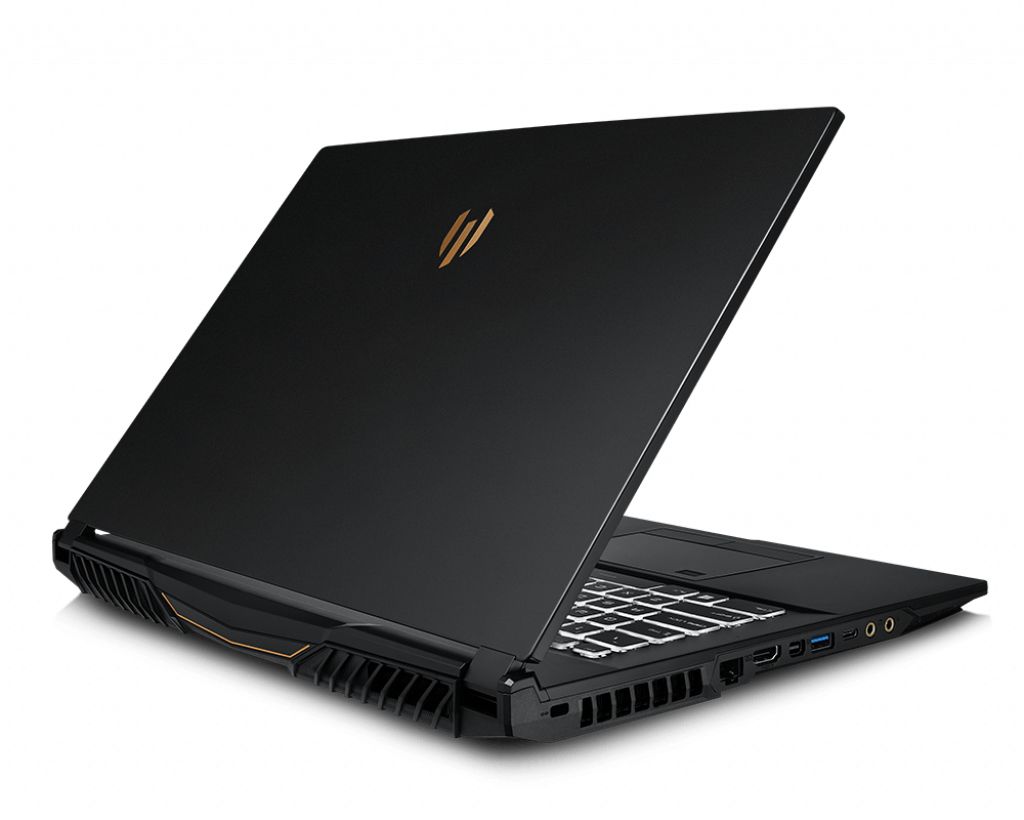

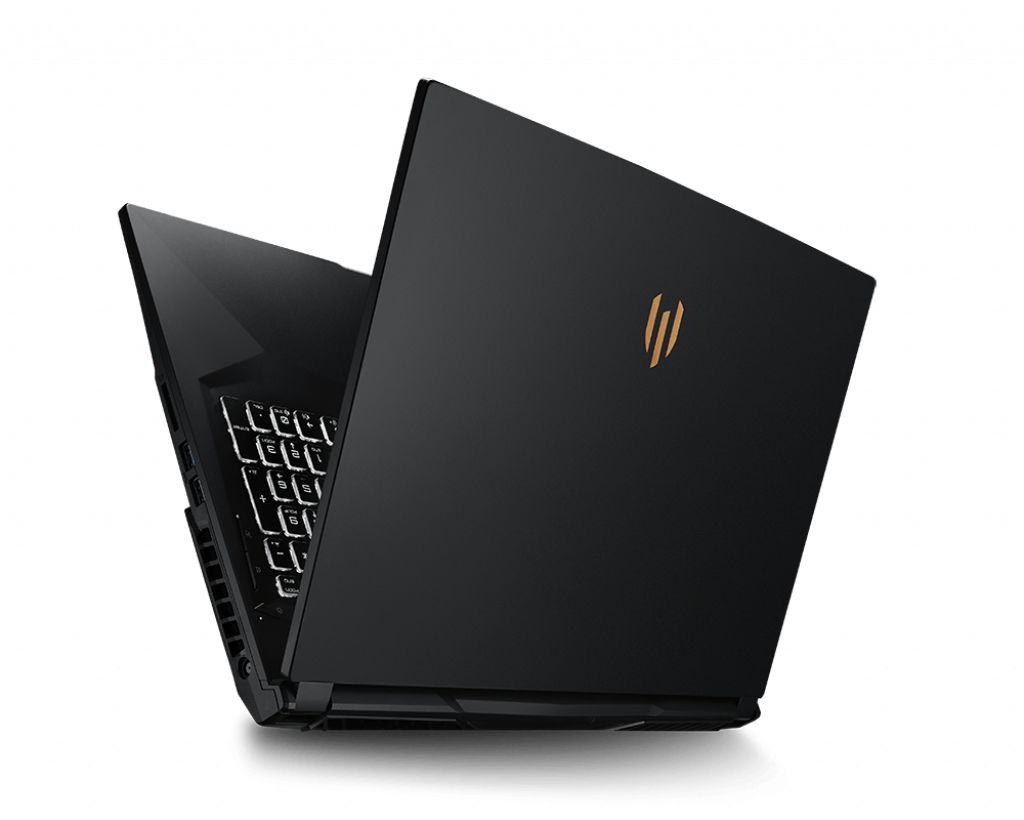

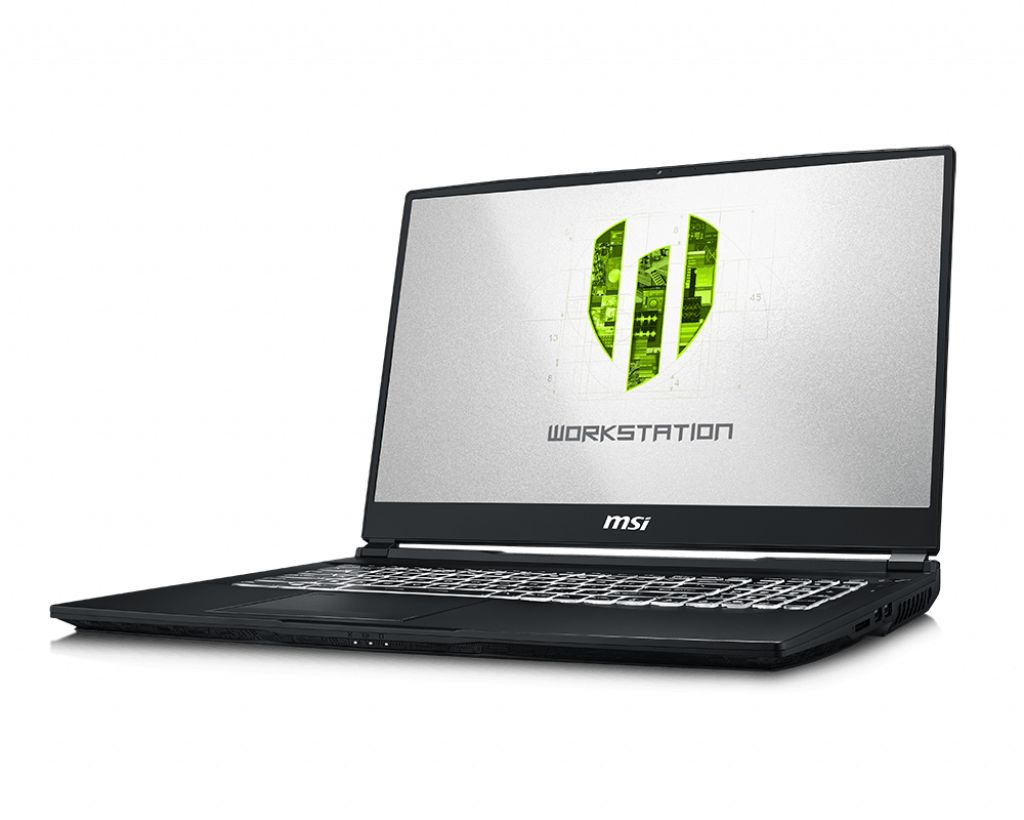

MSI Workstation WE75 9TJ-003 RAM upgrade specifications
MSI WE75 9TJ-003 workstation memory upgrade specifications indicate DDR4-SDRAM compatible modules operating at 2400 MHz. The laptop contains two SO-DIMM slots supporting maximum RAM capacity of 64 GB total. Upgrade specifications require DDR4 SO-DIMM format memory modules. Compatible memory configurations range from single-module installations to dual-module configurations filling both available slots for maximum supported capacity.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 23 May 2019 |
Additional Notes
- The MSI WE75 9TJ-003 workstation supports DDR4 memory at 2400 MHz, which represents a generation behind current DDR4 standards. Aftermarket modules rated for 3200 MHz or higher will operate at reduced 2400 MHz speeds due to BIOS limitations, resulting in no performance gain from premium-speed modules.
- SO-DIMM form factor restricts upgrade options to laptop-class memory modules only. Desktop DDR4 UDIMM modules cannot be physically installed regardless of frequency or capacity matching.
- The 2-slot configuration with 64 GB maximum capacity allows only symmetrical configurations: 2x32 GB modules for full capacity utilization. Asymmetrical pairing (such as 16 GB plus 32 GB) will disable dual-channel operation on at least one module, reducing bandwidth efficiency by approximately 50 percent.
- Original equipment modules at 2400 MHz operate at factory specifications; third-party replacements must be validated against the workstation's SPD (Serial Presence Detect) settings. Modules exceeding the BIOS frequency ceiling may require manual voltage adjustment or exhibit intermittent compatibility failures.
- Installation of memory beyond the factory configuration may affect manufacturer warranty coverage for unrelated hardware components. Verification with MSI support prior to upgrade is recommended for systems under active service agreements.
- The single-channel memory bus on entry-level workstations becomes a computational bottleneck when processing large datasets. Upgrading to 64 GB total capacity provides headroom for multi-threaded workloads but does not improve memory access latency compared to smaller configurations.
