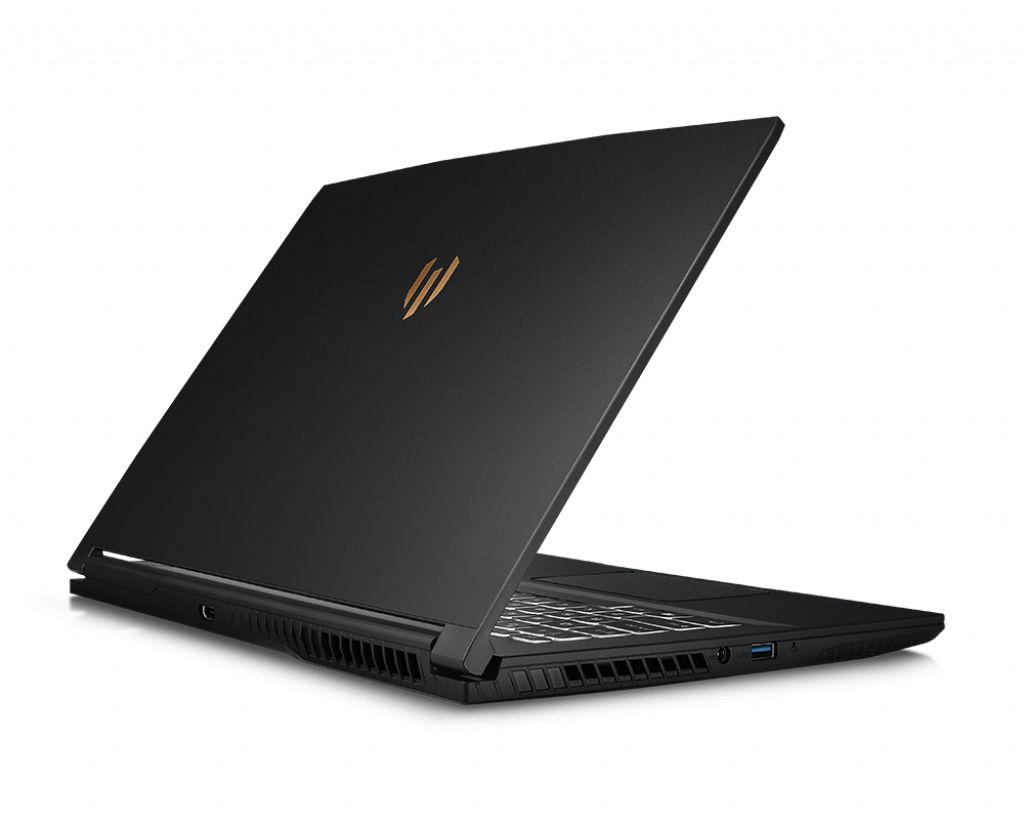

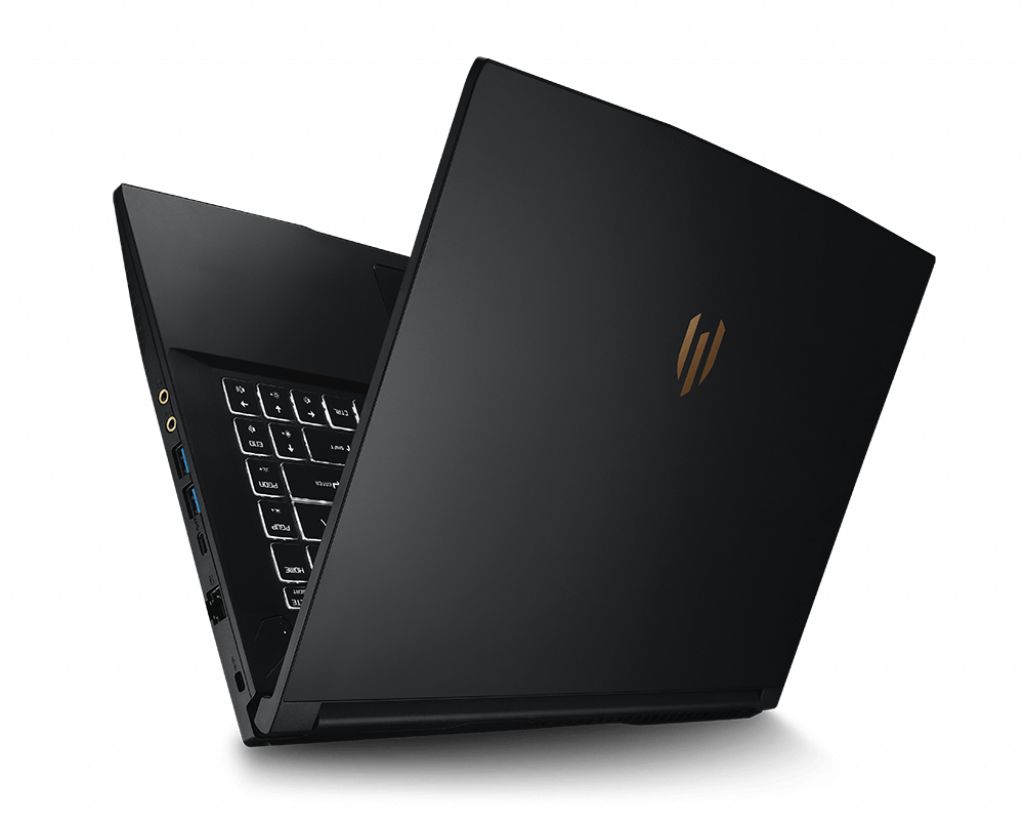

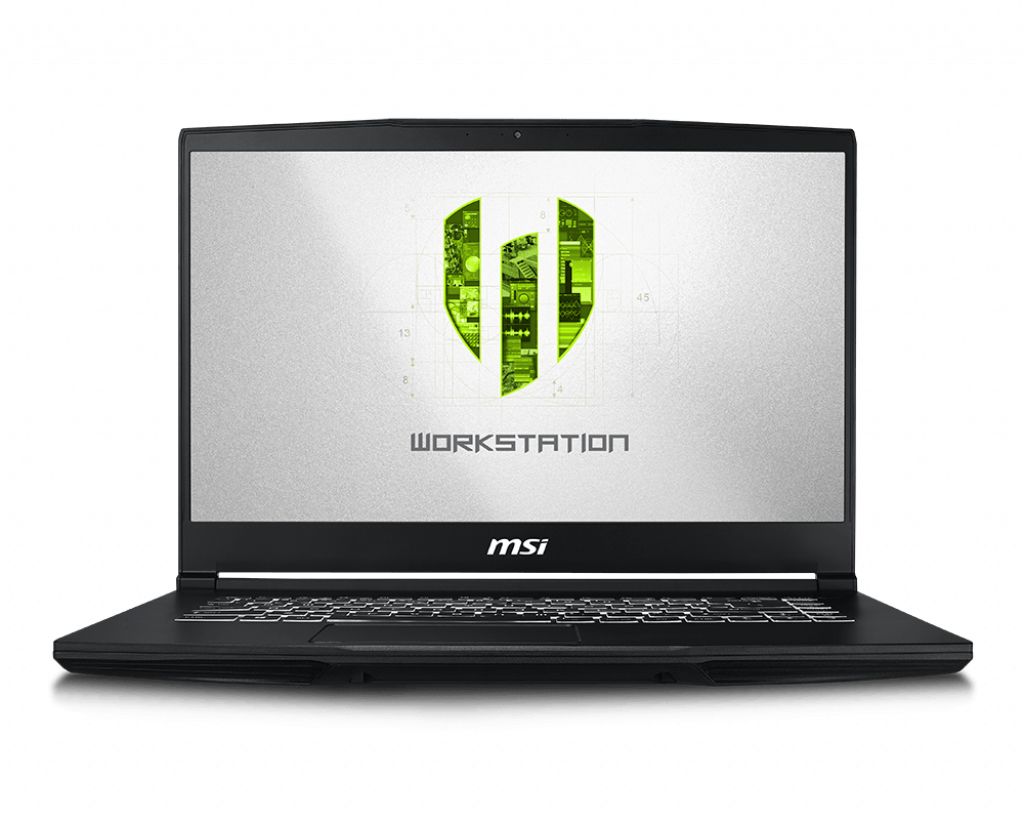

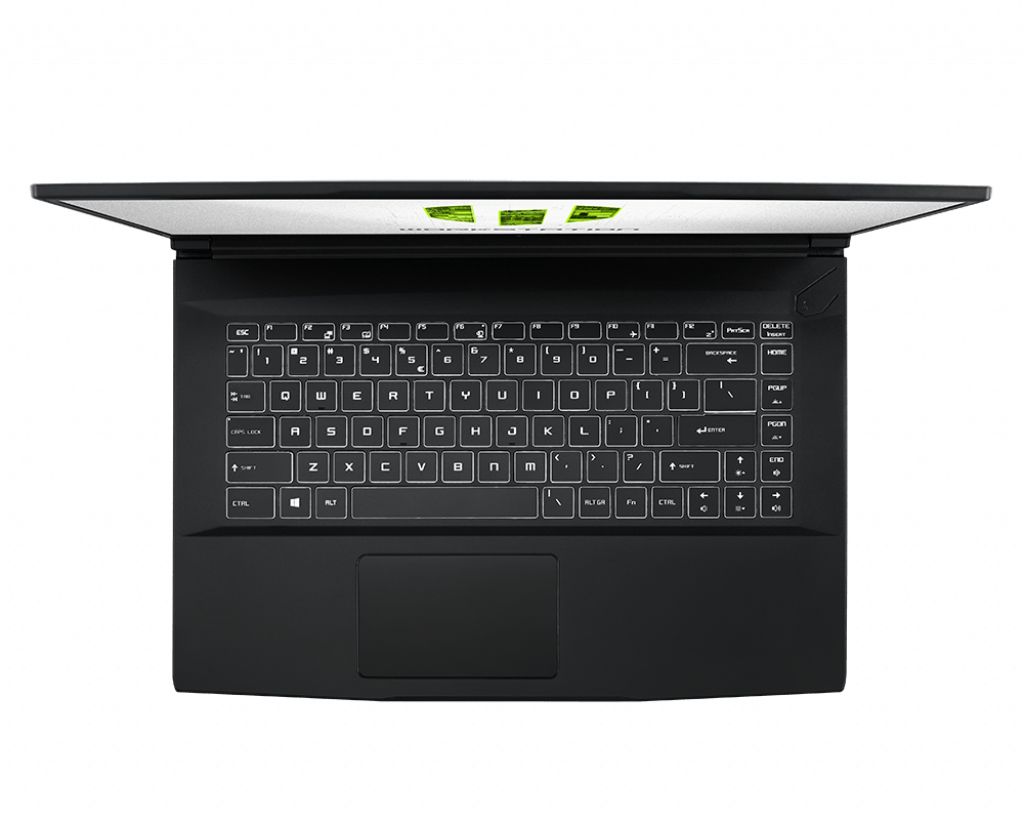

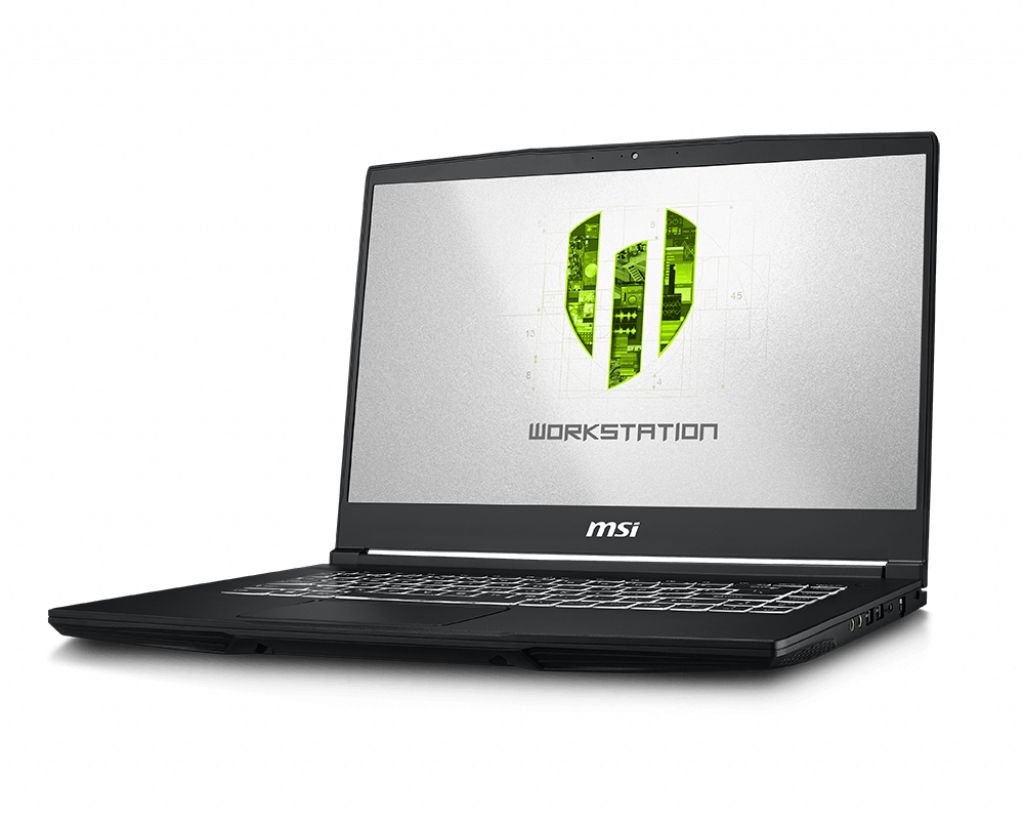

MSI Workstation WP65 9TH-412FR RAM upgrade specifications

MSI WP65 9TH-412FR workstation features DDR4-SDRAM memory upgrades supported by two SO-DIMM slots. Compatible RAM specifications include DDR4 memory operating at 2666 MHz frequency. Maximum RAM capacity reaches 64 GB total for the series. Memory upgrade specifications accommodate SO-DIMM form factor modules. Specifications enable memory expansion options for enhanced performance in workstation applications.

Additional Notes

• The MSI WP65 9TH-412FR supports a theoretical maximum capacity of 64 GB across its dual-channel configuration, though successful POST requires both modules to operate at identical speeds and preferably from the same manufacturing batch to avoid training errors during boot.
• DDR4-2666 represents the JEDEC-standardized speed ceiling for this platform, meaning any modules rated at 3200 MHz or higher will automatically downclock to 2666 MHz through SPD profile selection, eliminating any performance benefit from premium-binned chips.
• The SO-DIMM form factor physically precludes standard desktop DIMM installation regardless of electrical compatibility, requiring mobile-specific modules with the 260-pin connector configuration rather than the desktop 288-pin variant.
• Warranty preservation typically requires non-destructive access through dedicated service panels rather than full chassis disassembly, though specific screw seal integrity depends on regional warranty enforcement policies.
• Single-rank versus dual-rank module architecture impacts total available memory channels, with dual-rank configurations potentially offering 5 to 15 percent bandwidth improvements in workloads sensitive to interleaved memory access patterns.
• Operating voltage must remain within the DDR4 standard 1.2V specification, as SO-DIMM slots lack the power delivery headroom for enthusiast-grade 1.35V or 1.4V modules commonly marketed for overclocking on desktop platforms.
• Mixing module capacities between slots remains electrically functional but forfeits dual-channel symmetry benefits, forcing asymmetric memory mapping where only the matched capacity portion operates in interleaved mode while excess capacity reverts to single-channel access.
• ECC unbuffered SO-DIMM compatibility depends entirely on chipset feature enablement rather than physical slot design, though workstation-class branding suggests possible support pending BIOS microcode verification.
• The 2666 MHz frequency implies DDR4-21300 bandwidth specification, delivering a theoretical 21.3 GB/s per channel or 42.6 GB/s aggregate in properly configured dual-channel mode with matched modules.
