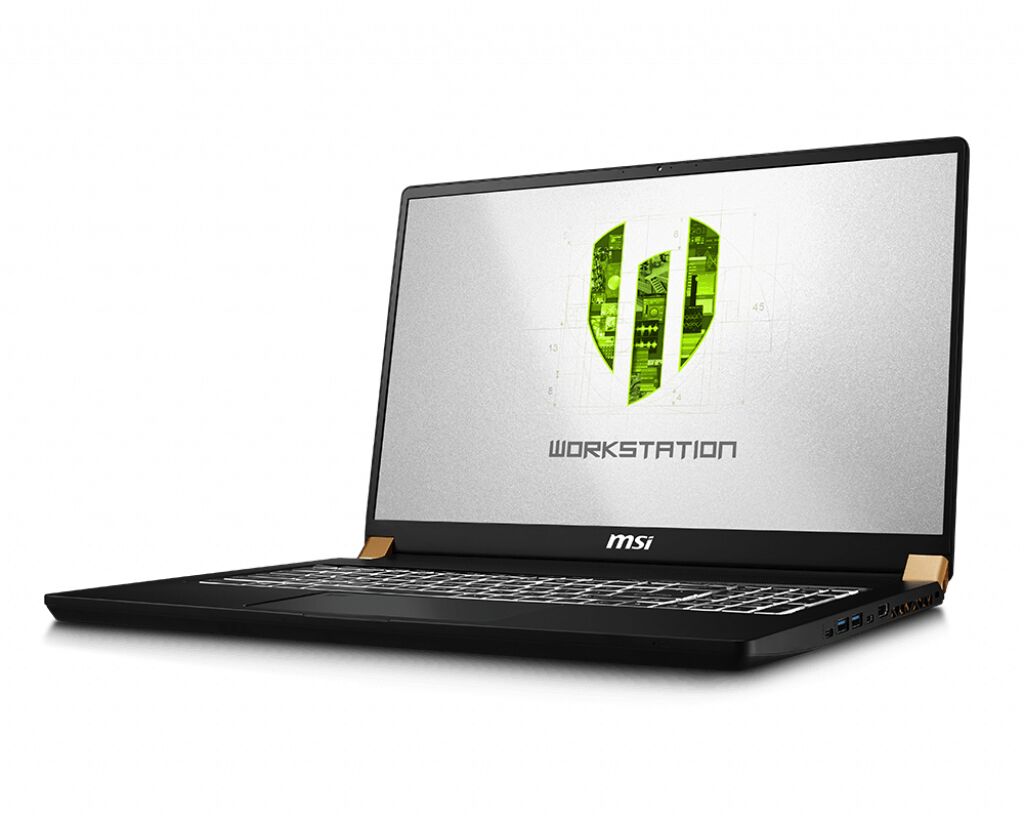

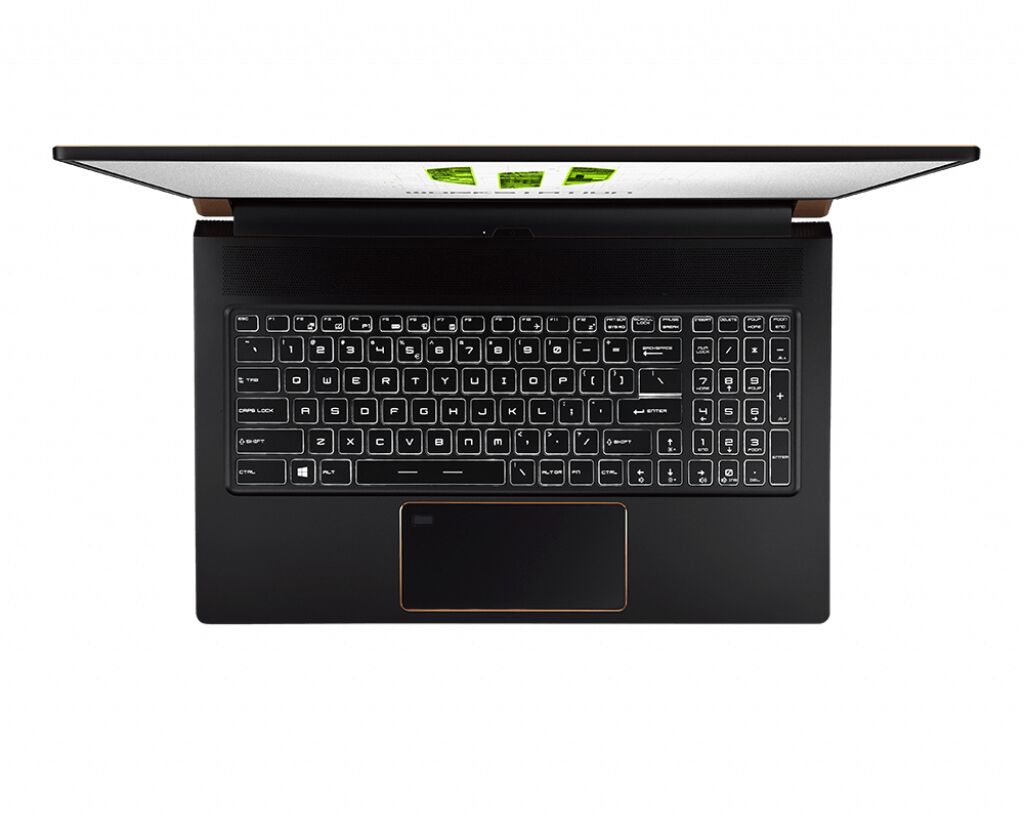

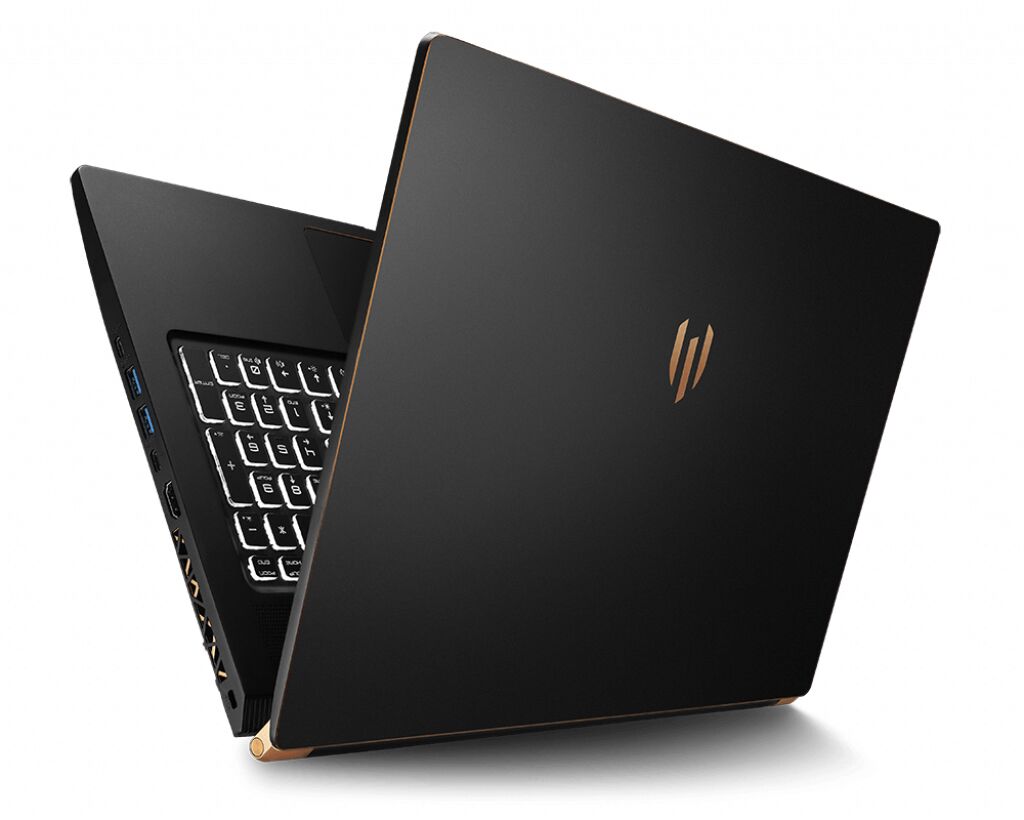

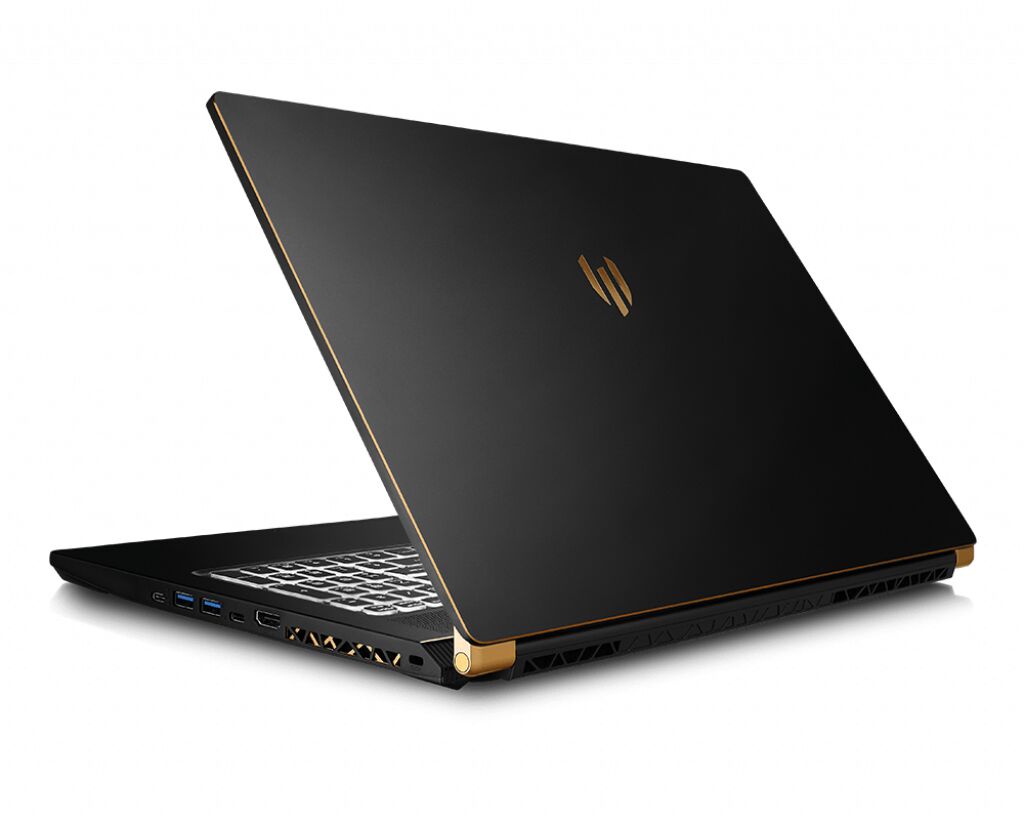

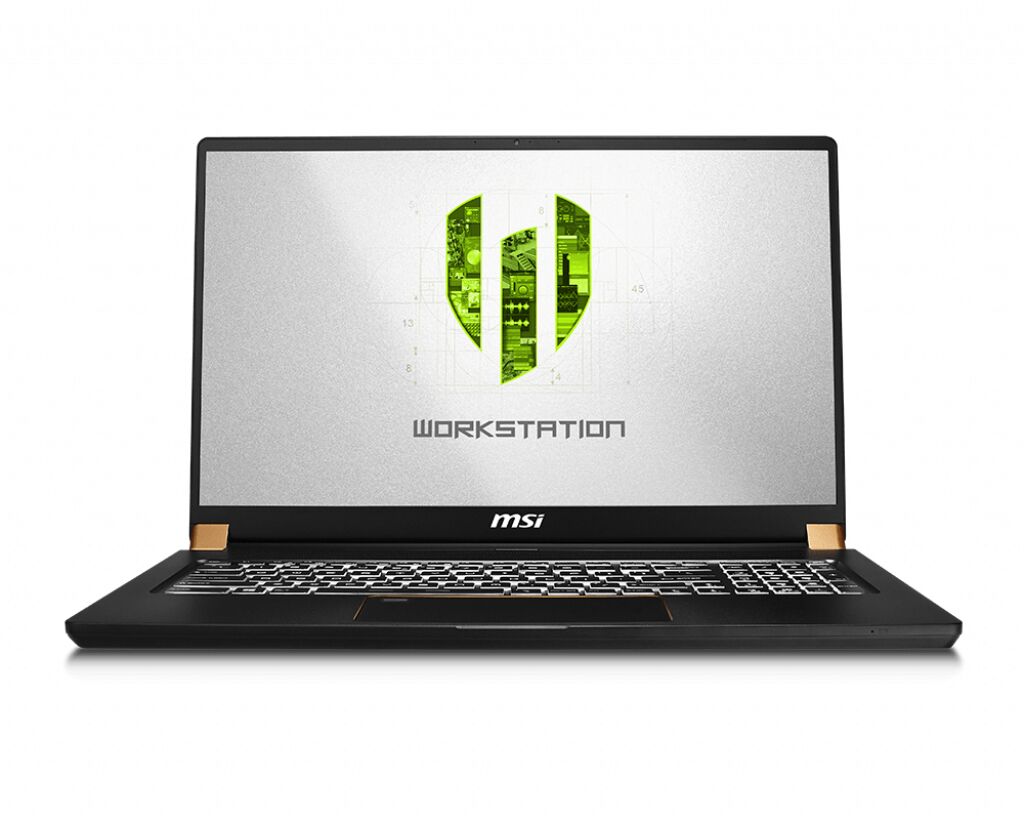

MSI Workstation WS75 9TL-655CA RAM upgrade specifications

MSI WS75 9TL-655CA workstation features DDR4-SDRAM memory upgrade capacity with two SO-DIMM slots supporting maximum RAM of 64 GB. Compatible memory modules operate at 2666 MHz frequency. Specifications indicate SO-DIMM form factor compatibility for memory expansion in MSI WS75 series workstations, enabling significant capacity upgrades from baseline configurations.

Additional Notes

• The 2 SO-DIMM configuration requires both slots to be populated with identical capacity modules to reach the 64 GB ceiling, necessitating a matched pair of 32 GB sticks.
• DDR4-2666 operates at PC4-21300 bandwidth, delivering 21.3 GB/s per channel, which establishes the maximum data transfer rate between installed modules and the processor.
• Higher frequency modules rated at 2933 MHz or 3200 MHz will automatically downclock to 2666 MHz when installed, as the system enforces this speed ceiling regardless of module specifications.
• SO-DIMM physical dimensions measure 67.6 mm in length compared to standard DIMM's 133.35 mm, making desktop memory modules mechanically incompatible despite identical DDR4 technology.
• Accessing internal memory slots on the MSI WS75 9TL-655CA typically requires bottom panel removal, which may involve displacing thermal shields or battery connectors depending on the specific chassis revision.
• Dual-channel operation depends on symmetrical population, where mismatched capacities between slots force the system into single-channel mode, effectively halving memory bandwidth to 10.65 GB/s.
• Mixing memory ranks (single-rank with dual-rank modules) can trigger stability issues or force the memory controller to apply conservative timing parameters that reduce effective performance.
• Non-ECC unbuffered modules remain the only compatible type for this platform, as registered or error-correcting memory requires server-grade chipset features absent from mobile workstation architectures.
• Operating voltage must stay within the DDR4 standard of 1.2V, as modules requiring 1.35V or higher (often marketed for overclocking) may either fail to initialize or trigger thermal protection mechanisms in confined laptop chassis.
• Warranty preservation typically allows user-accessible memory upgrades without seal violation, though verifying manufacturer policies specific to this workstation series prevents accidental coverage termination.
