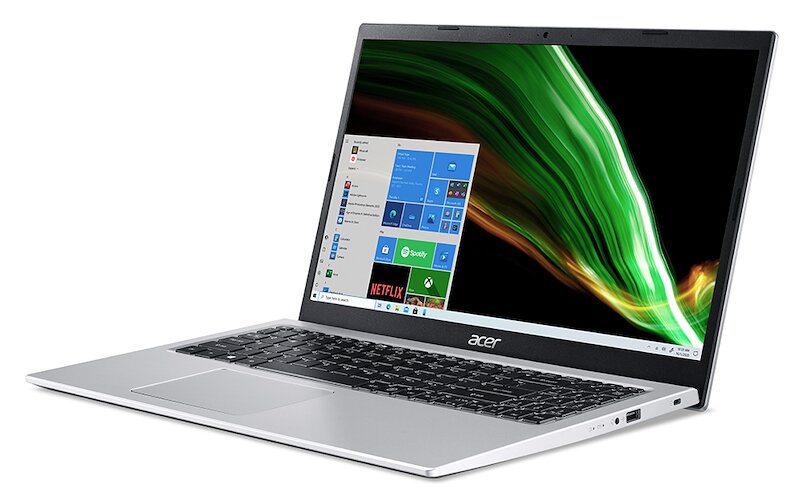

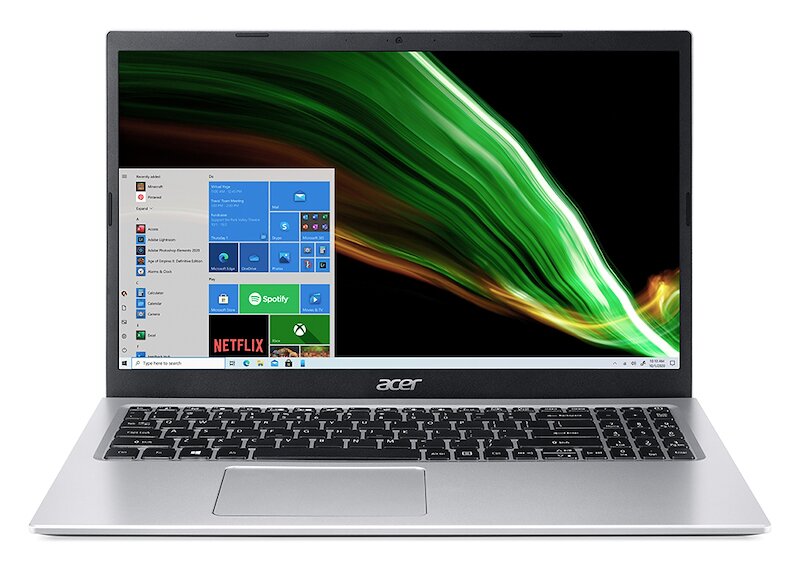

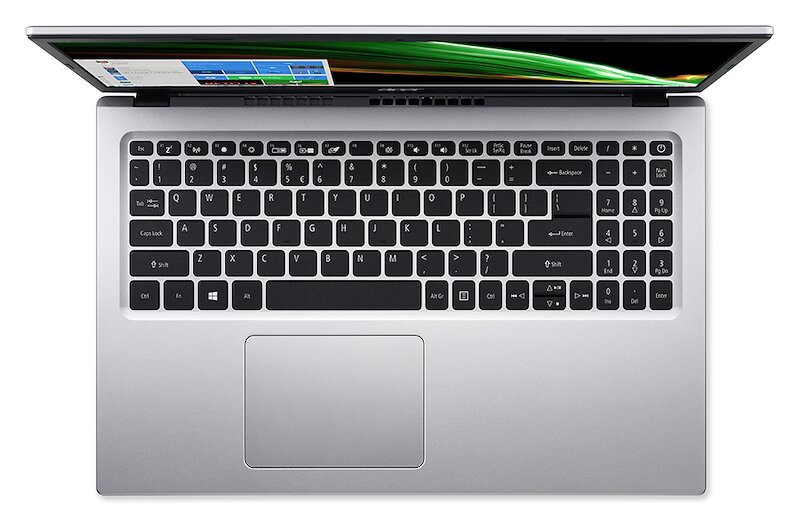

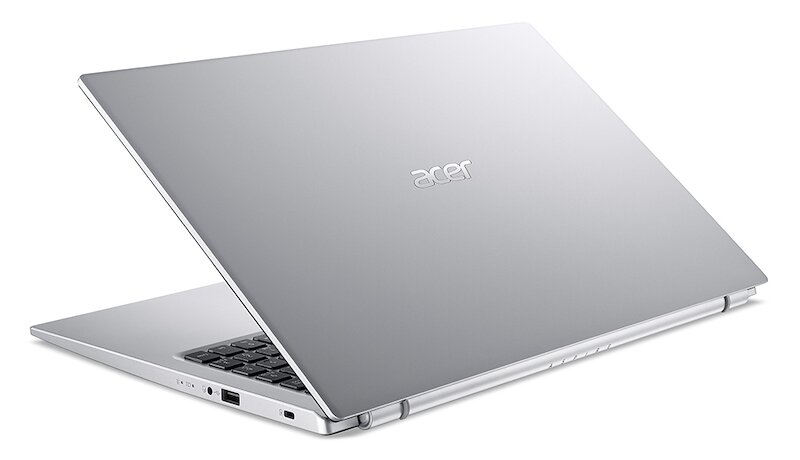

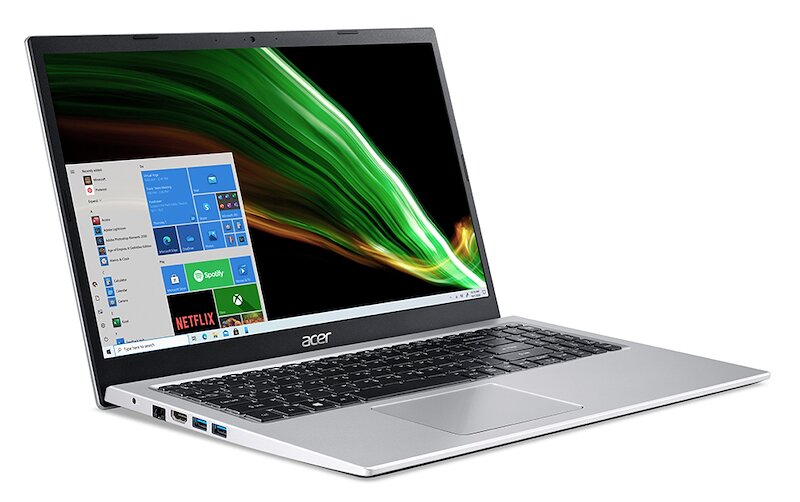

ACER Aspire A315-58-35GS RAM upgrade specifications
ACER Aspire 3 A315-58-35GS laptop RAM upgrade specifications include one SO-DIMM memory slot supporting DDR4-SDRAM modules. Maximum memory capacity reaches 16 GB with operation frequency of 2133 MHz. Compatible RAM upgrades utilize SO-DIMM form factor, enabling memory expansion from factory configuration. Specifications define upgrade compatibility and maximum supported RAM capacity for the A315-58-35GS model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2133 MHz |
| Maximum RAM | 16 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2133 (PC4-17064) |
| Bandwidth | 17.1 GB/s |
| Laptop Release date | 18 August 2021 |
Additional Notes
- The presence of only 1 SO DIMM slot in the ACER Aspire A315-58-35GS necessitates the total replacement of the existing module to reach higher capacities rather than adding a second stick.
- The 2133 MHz base frequency effectively caps memory throughput regardless of the installation of high performance modules rated for faster speeds.
- Utilizing a single channel configuration results in lower memory bandwidth compared to dual channel systems which impacts integrated graphics performance and multitasking efficiency.
- Upgrading beyond the 16 GB threshold risks system instability or a failure to post as the motherboard firmware remains limited to that specific ceiling.
- Compatibility relies on the 260 pin physical interface of the DDR4 standard which prevents the installation of older DDR3 or newer DDR5 components.
- Low voltage 1.2V modules are required for standard operation to ensure thermal stability within the compact internal chassis during sustained workloads.
