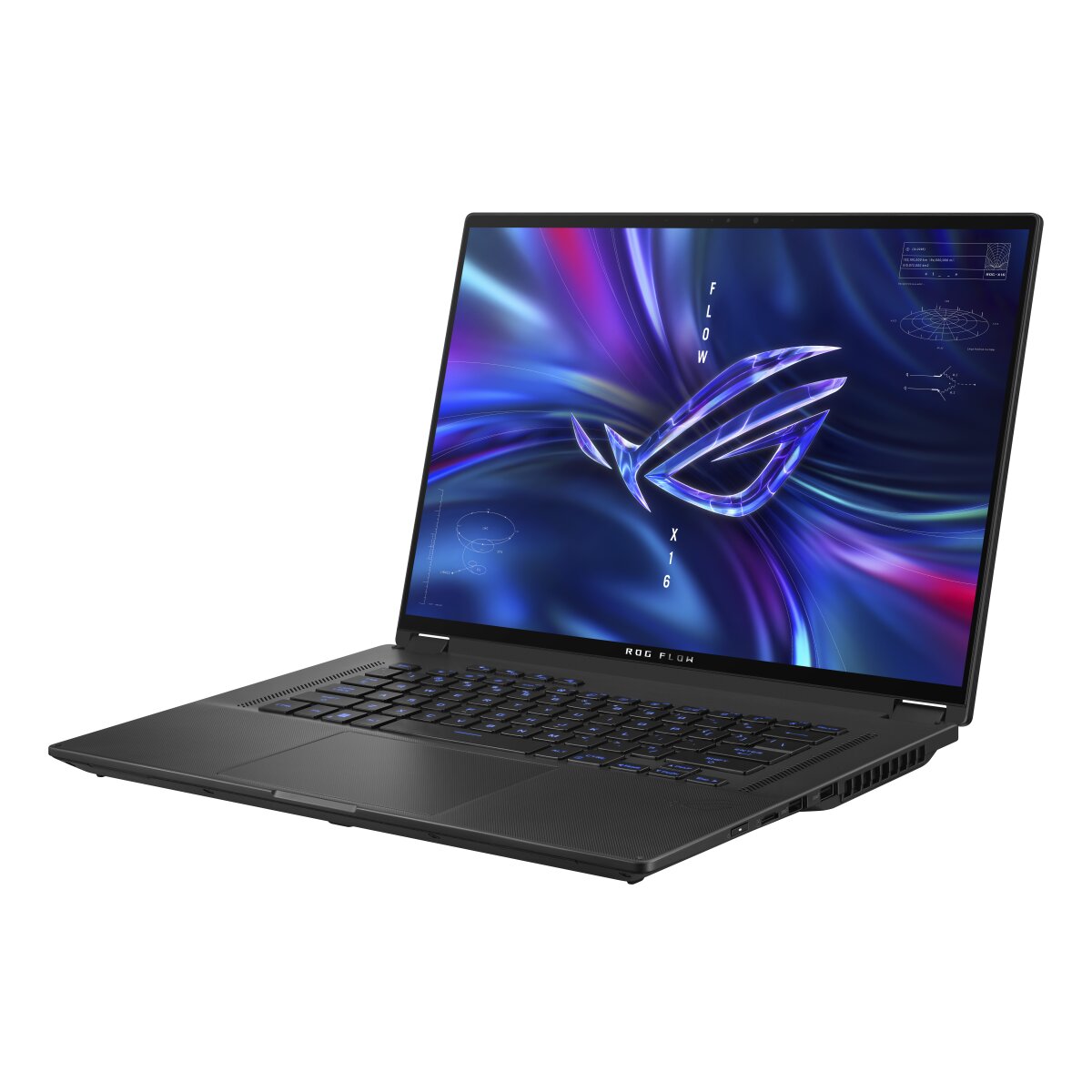

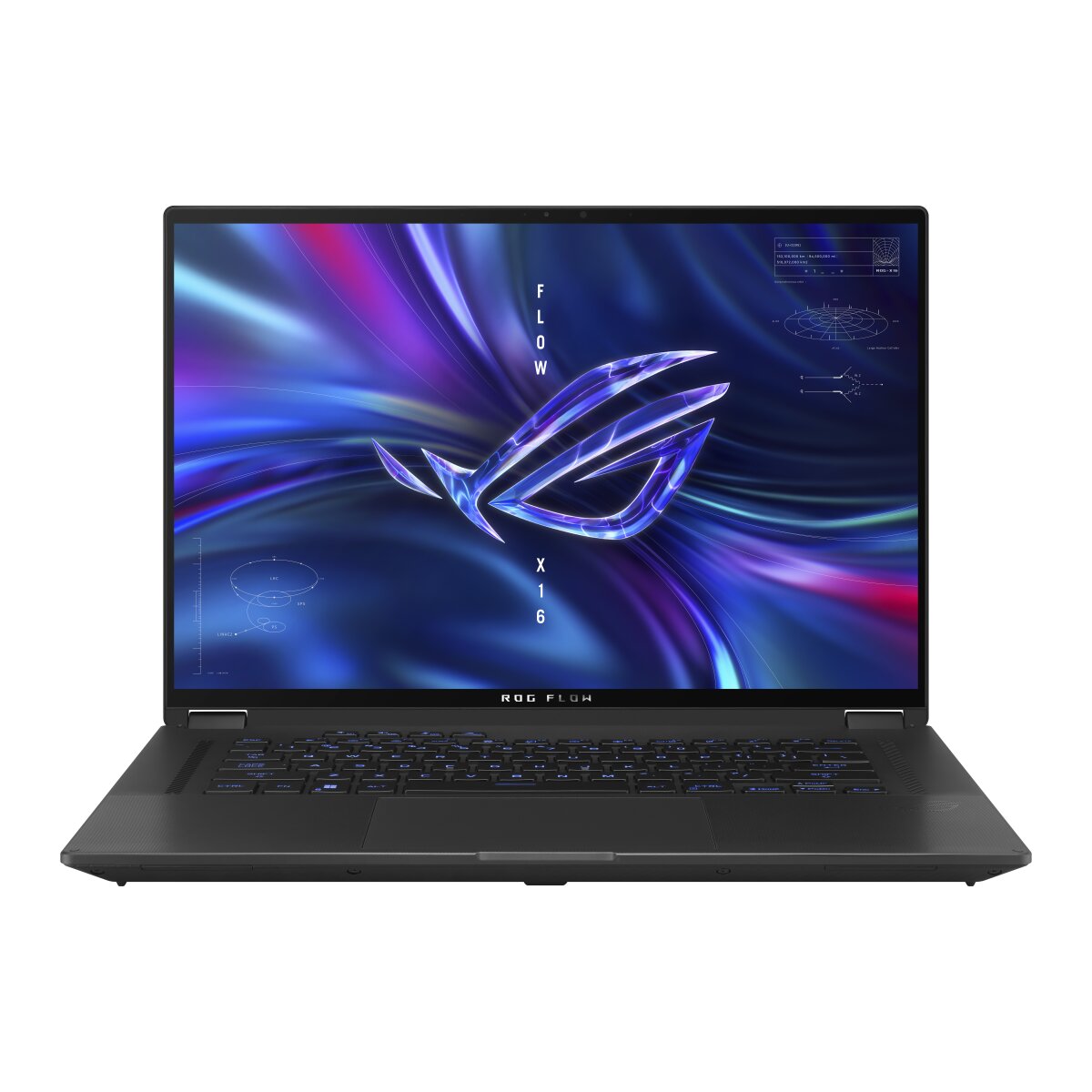

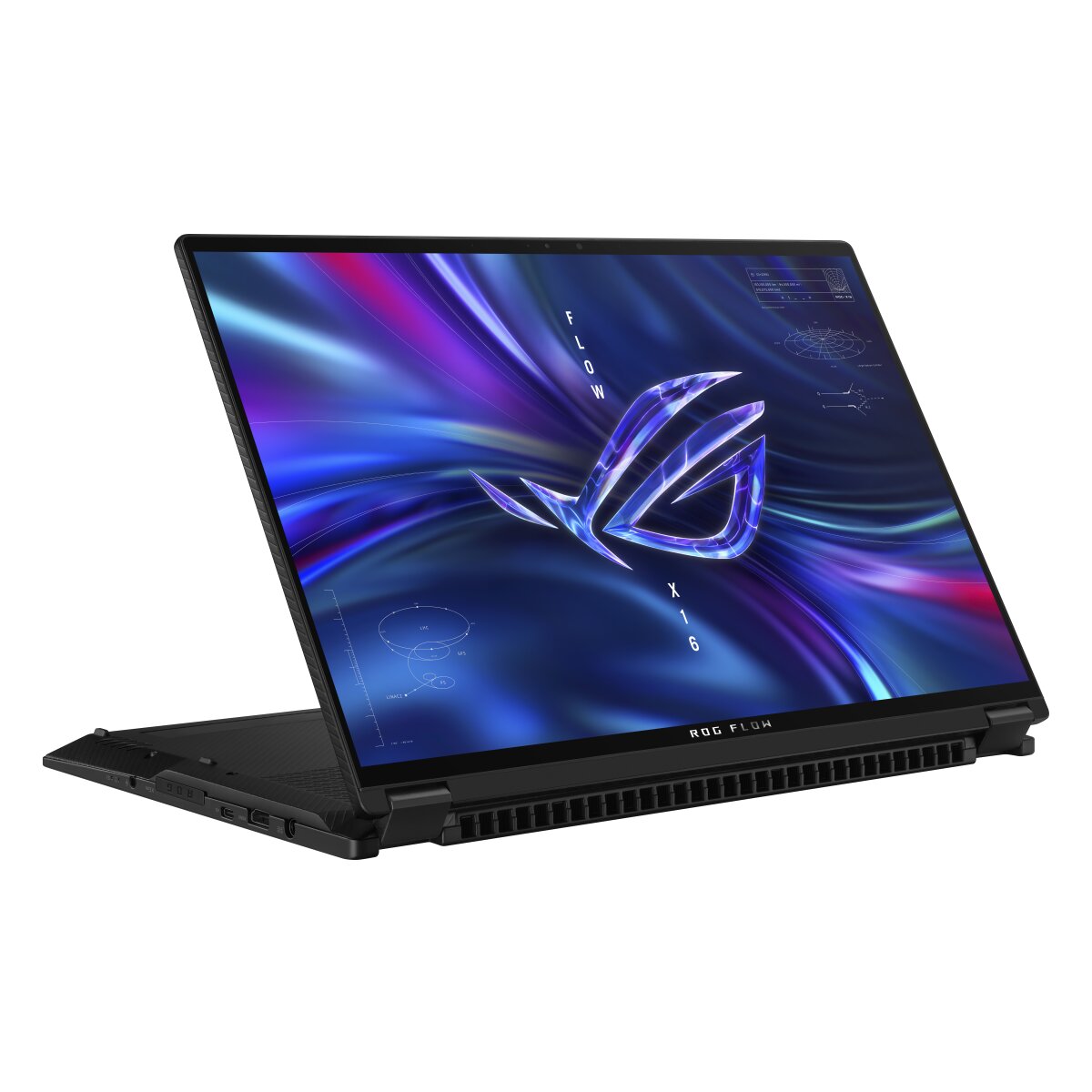

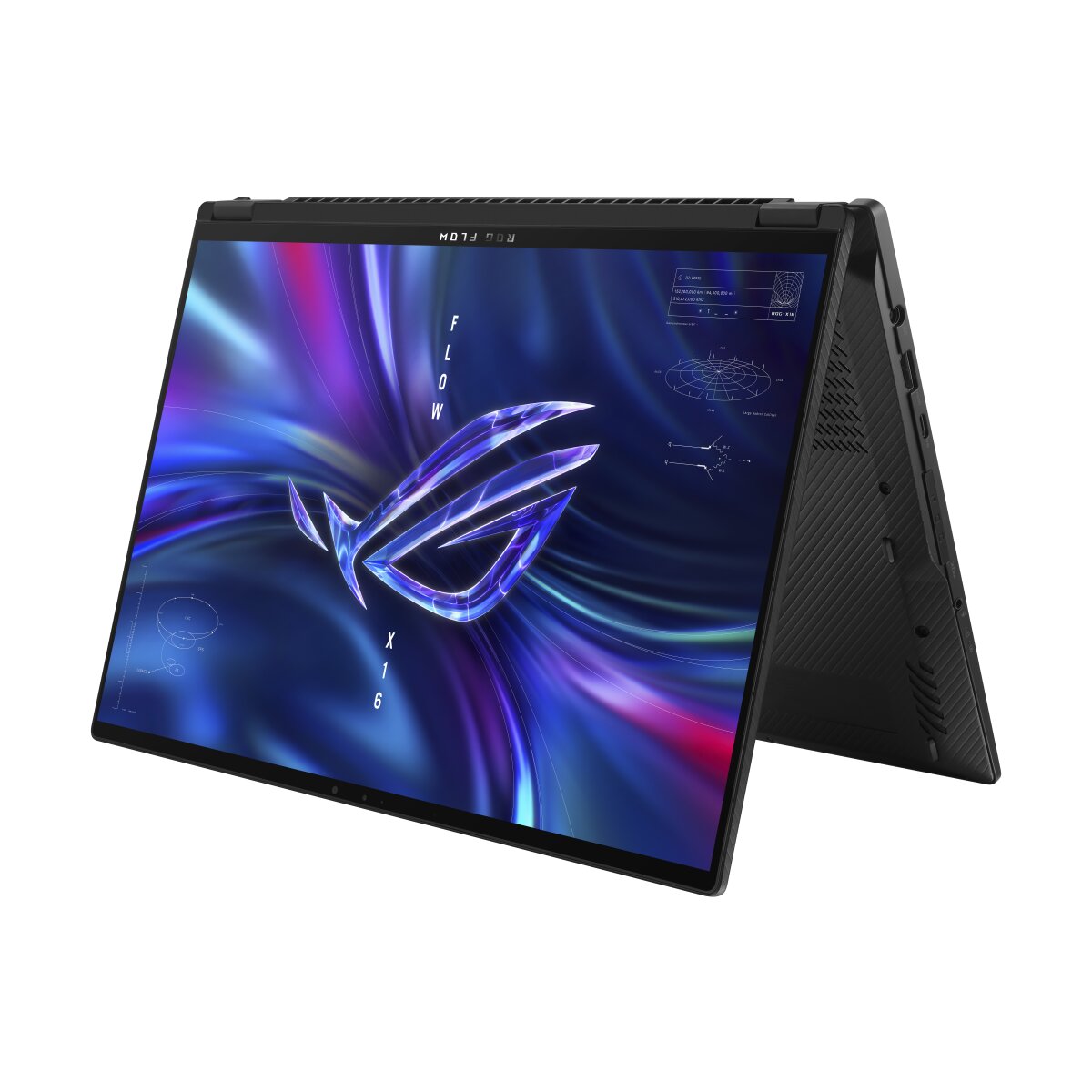

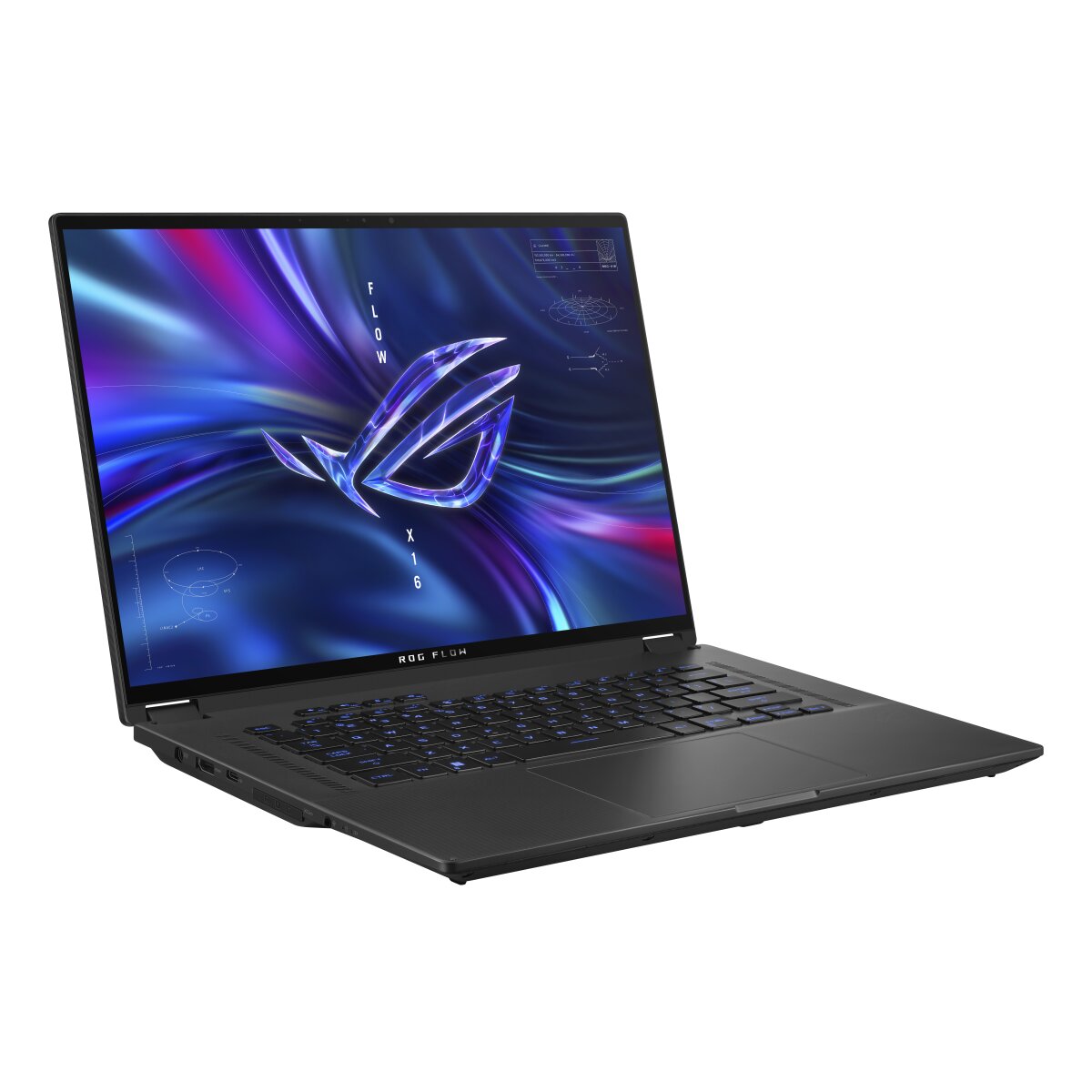

ASUS ROG GV601RM-M5023W RAM upgrade specifications
ASUS ROG Flow X16 GV601RM-M5023W laptop supports DDR5-SDRAM memory upgrades with 2x SO-DIMM slots. Maximum compatible memory capacity reaches 64 GB total. Memory operates at 4800 MHz frequency. Upgrade specifications designate SO-DIMM form factor for all compatible RAM modules. The GV601RM-M5023W accommodates high-performance DDR5 memory configurations for enhanced multitasking and gaming performance.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 16 July 2022 |
Additional Notes
- The presence of 2 physical SO-DIMM slots implies that existing factory modules must be removed and replaced to reach the maximum 64 GB capacity as no memory is soldered to the mainboard.
- The ASUS ROG GV601RM-M5023W utilizes a dual channel architecture which requires matching module pairs to optimize memory bandwidth and reduce system latency during high load tasks.
- Utilizing DDR5 technology at 4800 MHz necessitates higher voltage efficiency but also requires specific modules designed for lower power consumption compared to older standards.
- Upgrading to the 64 GB ceiling provides sufficient overhead for professional virtualization and high resolution 4K video editing without triggering page file swapping on the storage drive.
- Physical installation involves standard non soldered sockets which allows for hardware maintenance and component swaps without voiding the manufacturer warranty provided no physical damage occurs to the surrounding circuitry.
- Mixing modules with different timings or ranks across the 2 slots will force the system to default to the slowest common denominator potentially degrading performance below the rated speed.
