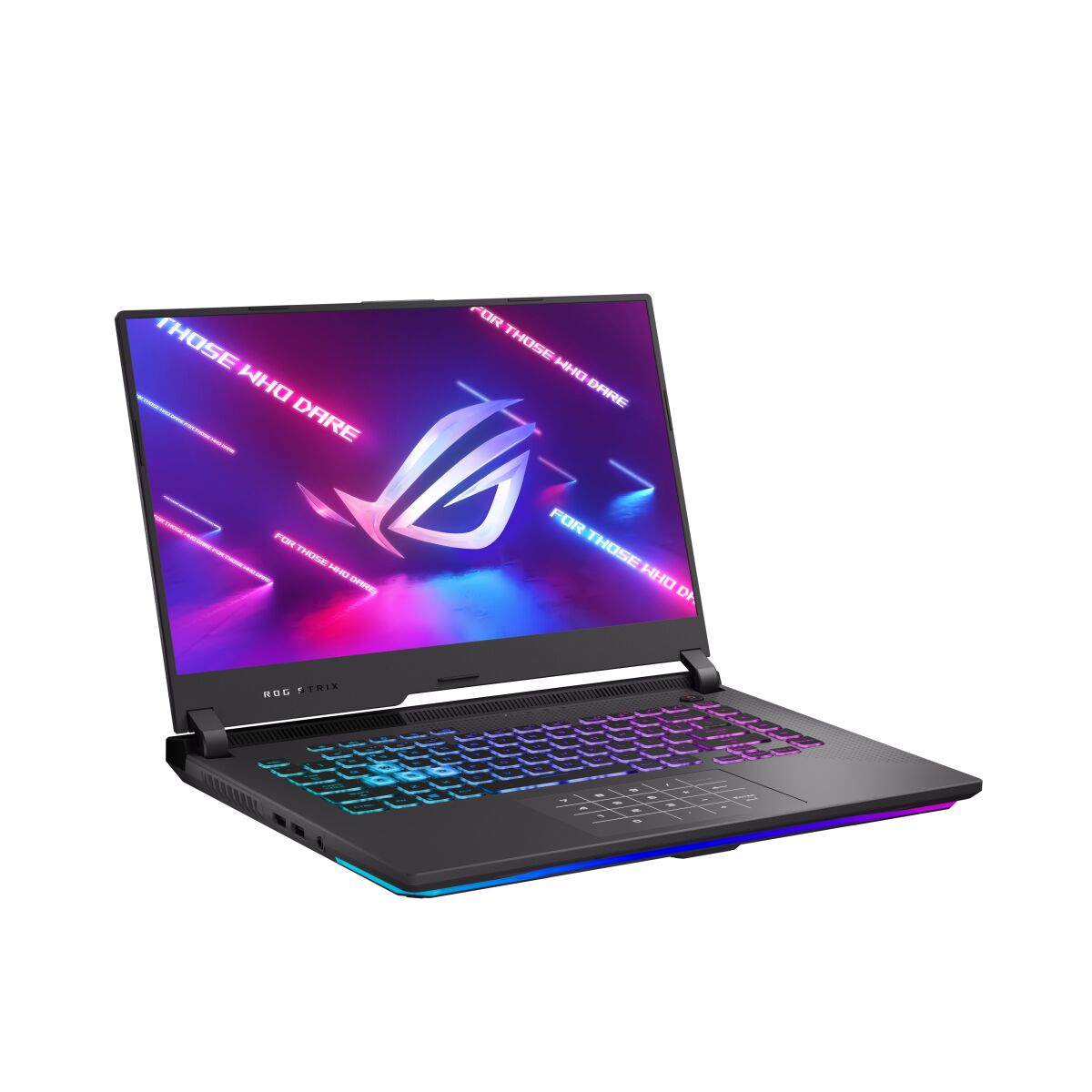

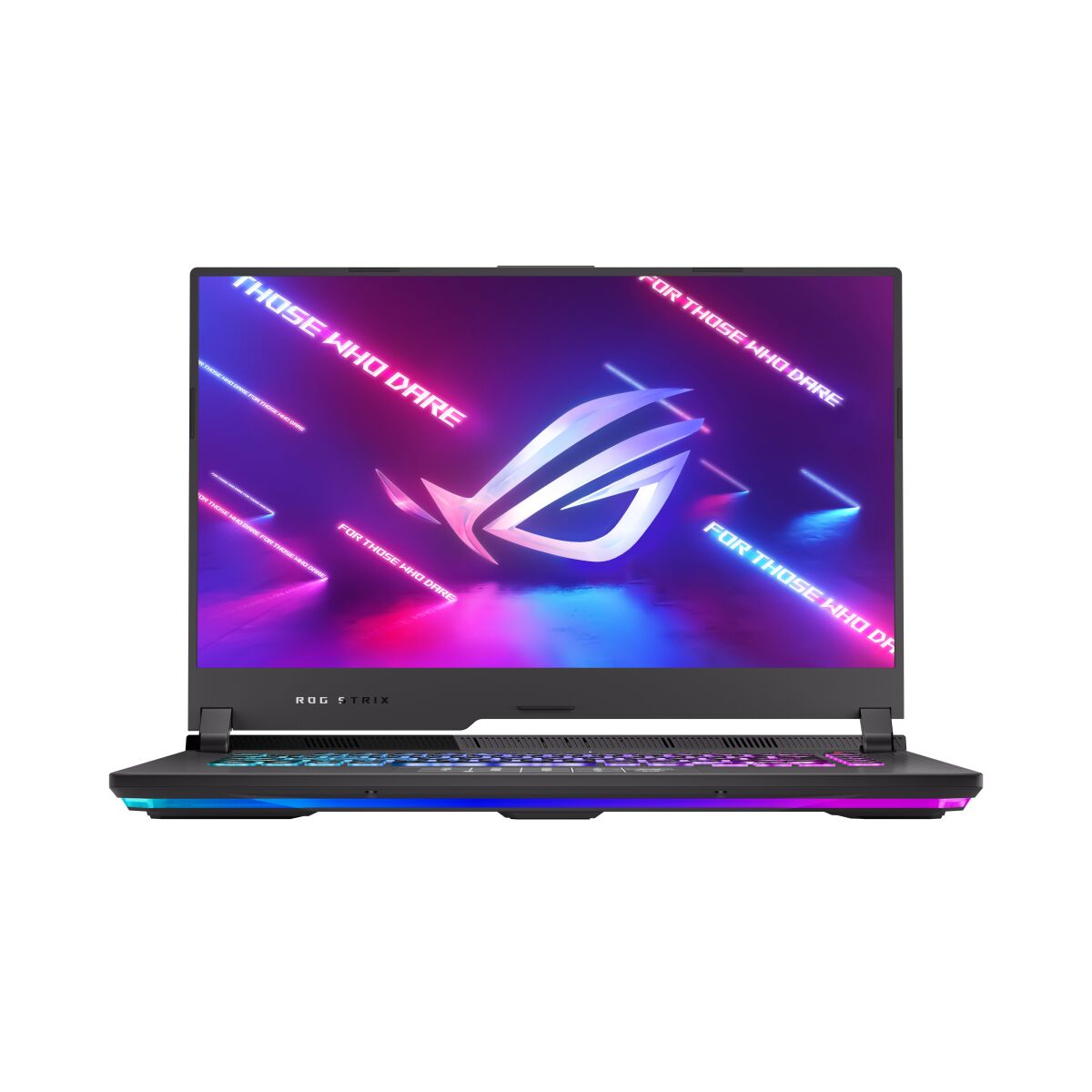

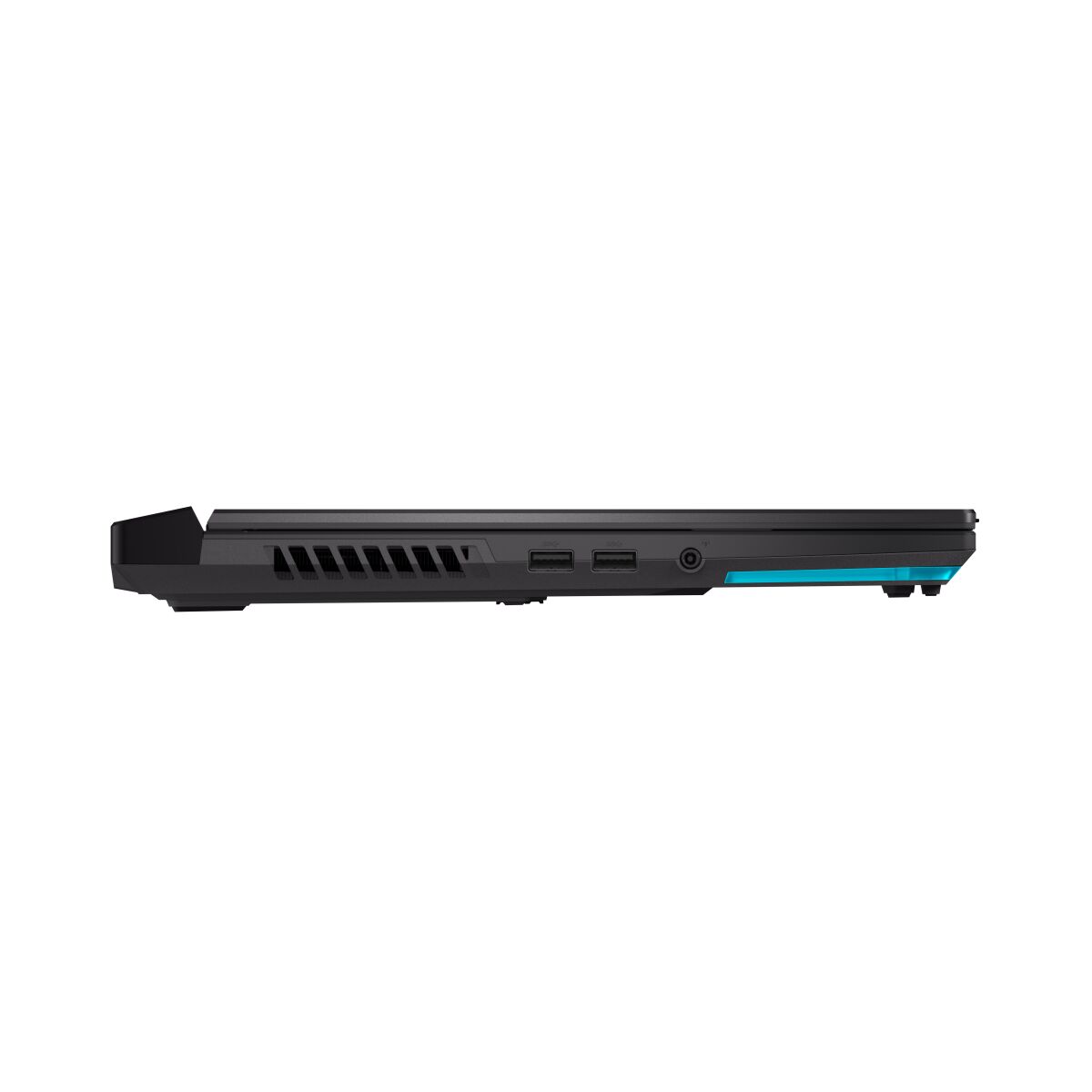

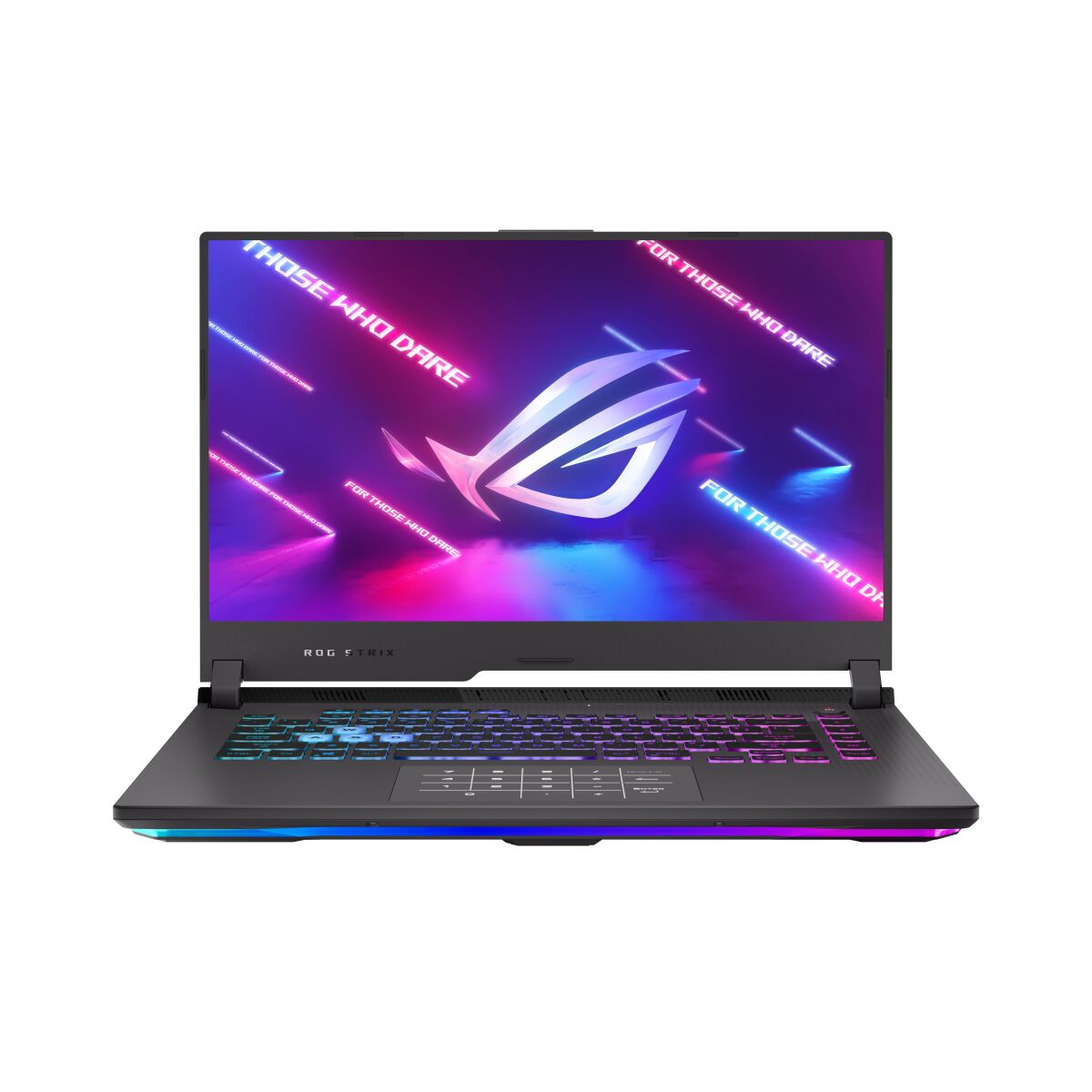

ASUS ROG G513IM-HN119W-BE RAM upgrade specifications
ASUS ROG Strix G15 model G513IM-HN119W-BE features two SO-DIMM slots supporting DDR4-SDRAM memory upgrades. Maximum RAM capacity reaches 32 GB total. Compatible memory specifications include DDR4 operating at 3200 MHz frequency. Upgrade specifications indicate dual memory slot configuration enabling modular memory expansion for enhanced system performance.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 10 January 2022 |
Additional Notes
- The dual slot configuration requires utilizing both 16 GB modules to reach the maximum supported capacity while enabling dual channel memory bandwidth.
- Installing memory with frequencies exceeding 3200 MHz will result in automatic downclocking to the system bus limit, preventing any performance gains from higher rated kits.
- Memory expansion on the ASUS ROG G513IM-HN119W-BE necessitates a total replacement of existing modules since the architecture lacks permanently soldered onboard chips.
- The 32 GB firmware limit indicates that 32 GB single sticks will likely fail to initialize or lead to system instability if used in a single slot.
- Optimal latency depends on sourcing 1.2V JEDEC compliant modules because the hardware often lacks BIOS support for XMP or manual voltage adjustments.
- Physical installation requires standard small outline dual in line memory modules, as full sized desktop components are electrically and dimensionally incompatible.
