ASUS ROG G513QR-HF010T RAM upgrade specifications

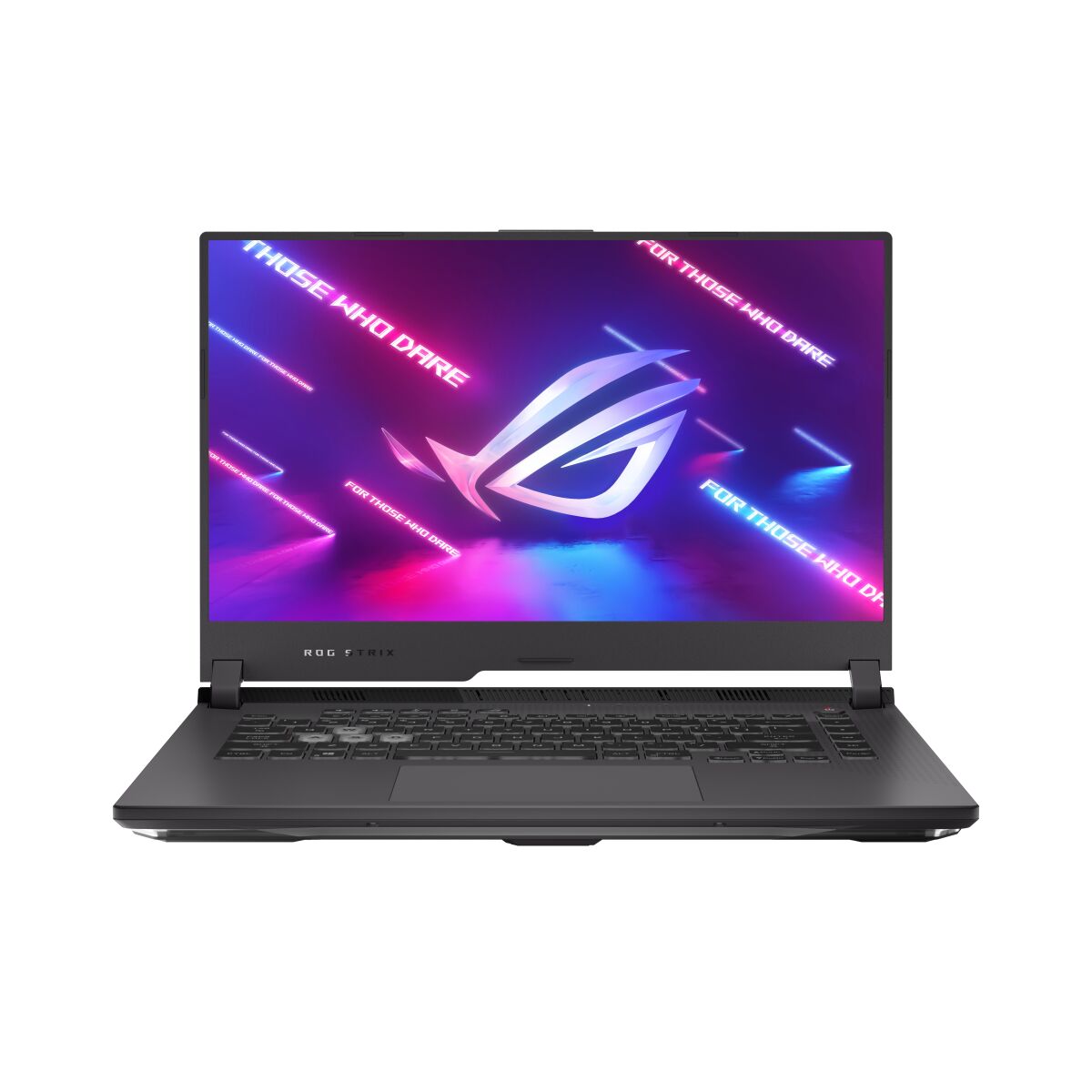

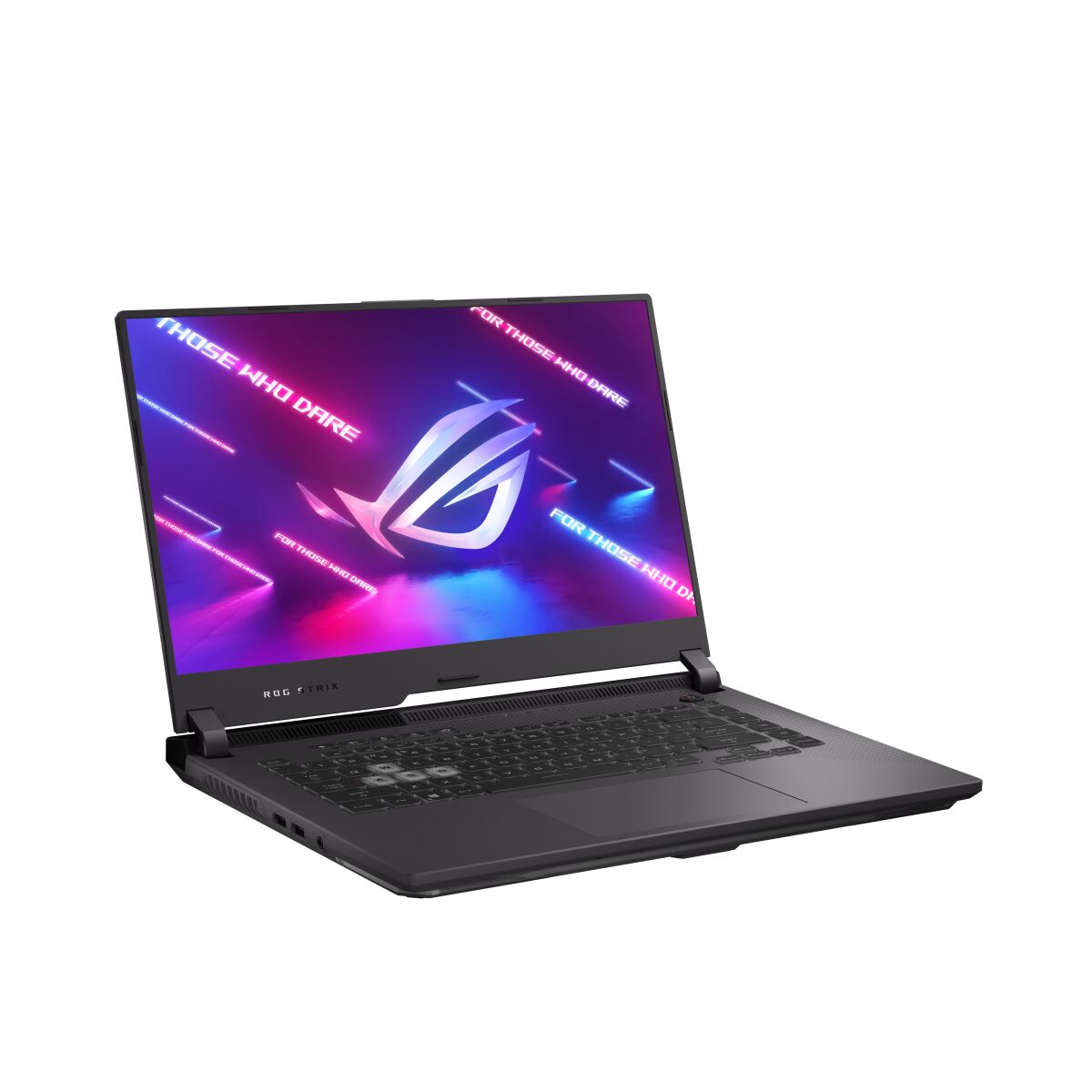

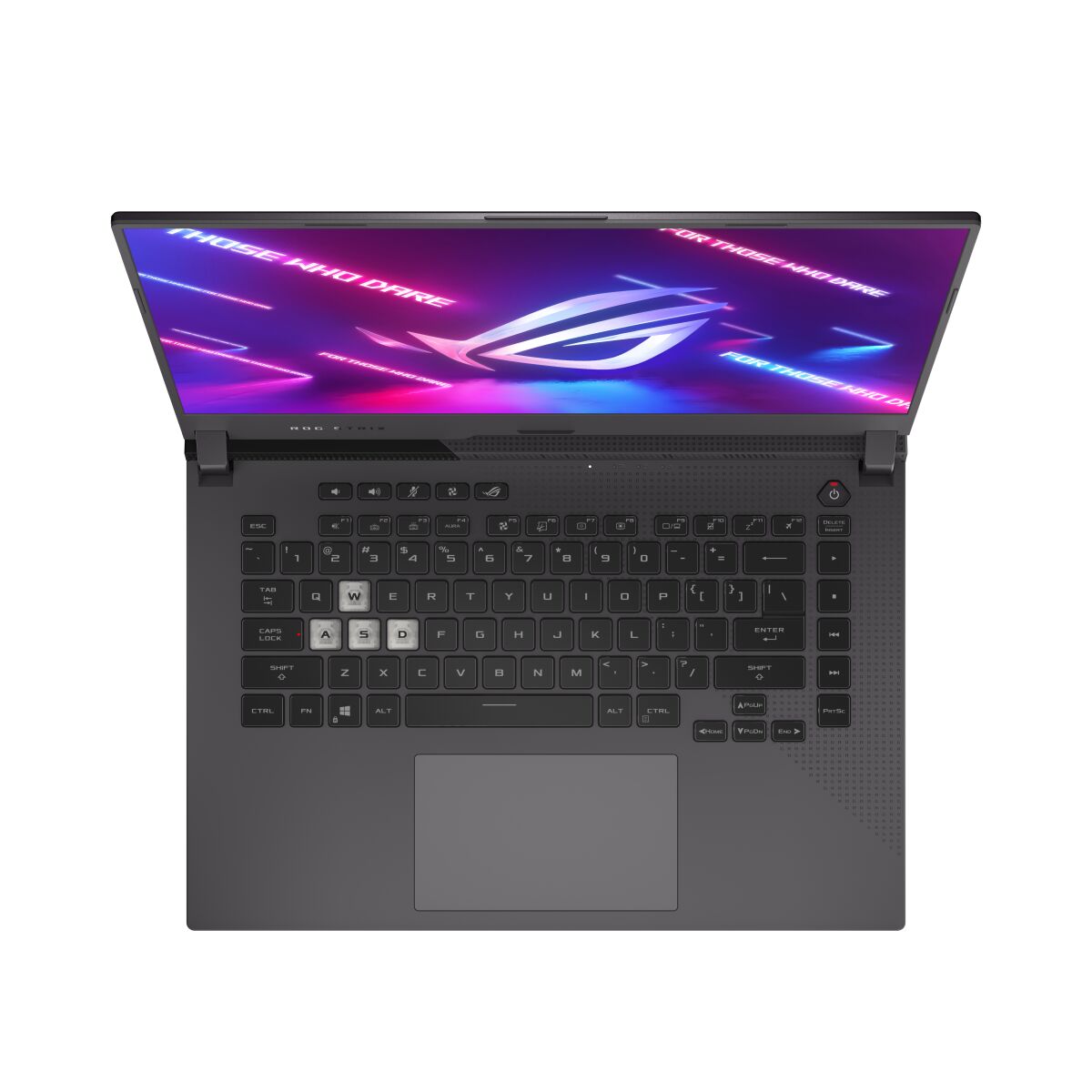

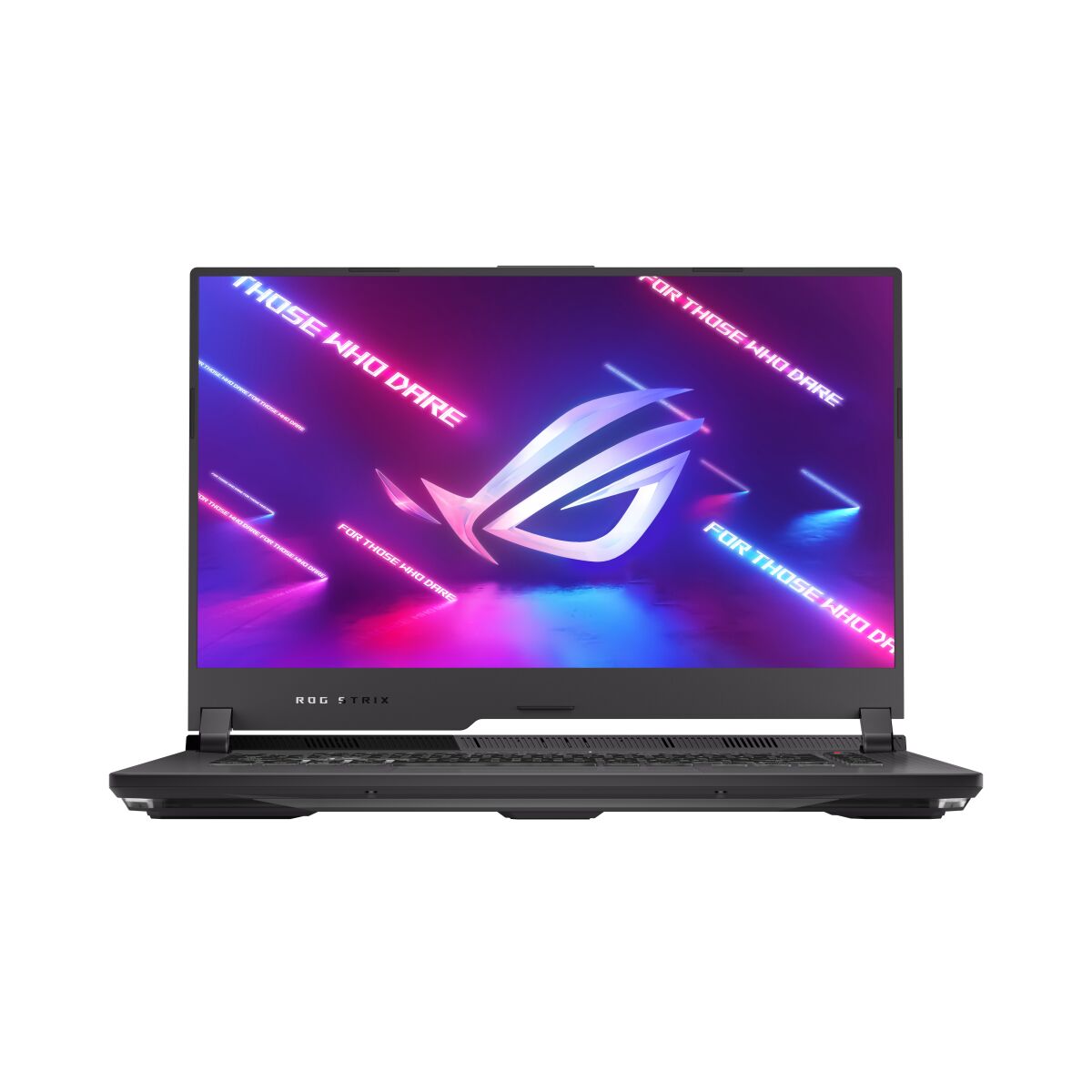

The ASUS ROG Strix G15 G513QR-HF010T features DDR4-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting maximum capacity of 32 GB total RAM. Compatible memory modules operate at 3200 MHz frequency using SO-DIMM form factor. Specifications indicate this gaming laptop accommodates memory upgrades through dual slots, enabling users to expand installed memory capacity up to the maximum 32 GB threshold for enhanced multitasking and performance capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 28 November 2020 |
Additional Notes
- The dual slot configuration requires a matching pair of 16 GB modules to reach the maximum supported capacity while maintaining dual channel bandwidth.
- The ASUS ROG G513QR-HF010T utilizes a non-soldered memory architecture which permits the replacement of both factory modules to reduce latency through aftermarket kits.
- Memory modules exceeding the 3200 MHz frequency will be capped by the integrated memory controller of the processor, resulting in a downclock to the rated speed.
- Upgrade procedures involving the removal of the bottom chassis panel require careful handling of the internal ribbon cables that connect the light bar circuitry to the motherboard.
- Utilizing single rank modules instead of dual rank variants in both slots may lead to slight performance variations in high frame rate gaming scenarios due to memory bank interleaving differences.
- System stability is contingent on selecting 1.2V modules as higher voltage XMP profiles are typically not supported by the BIOS firmware.
