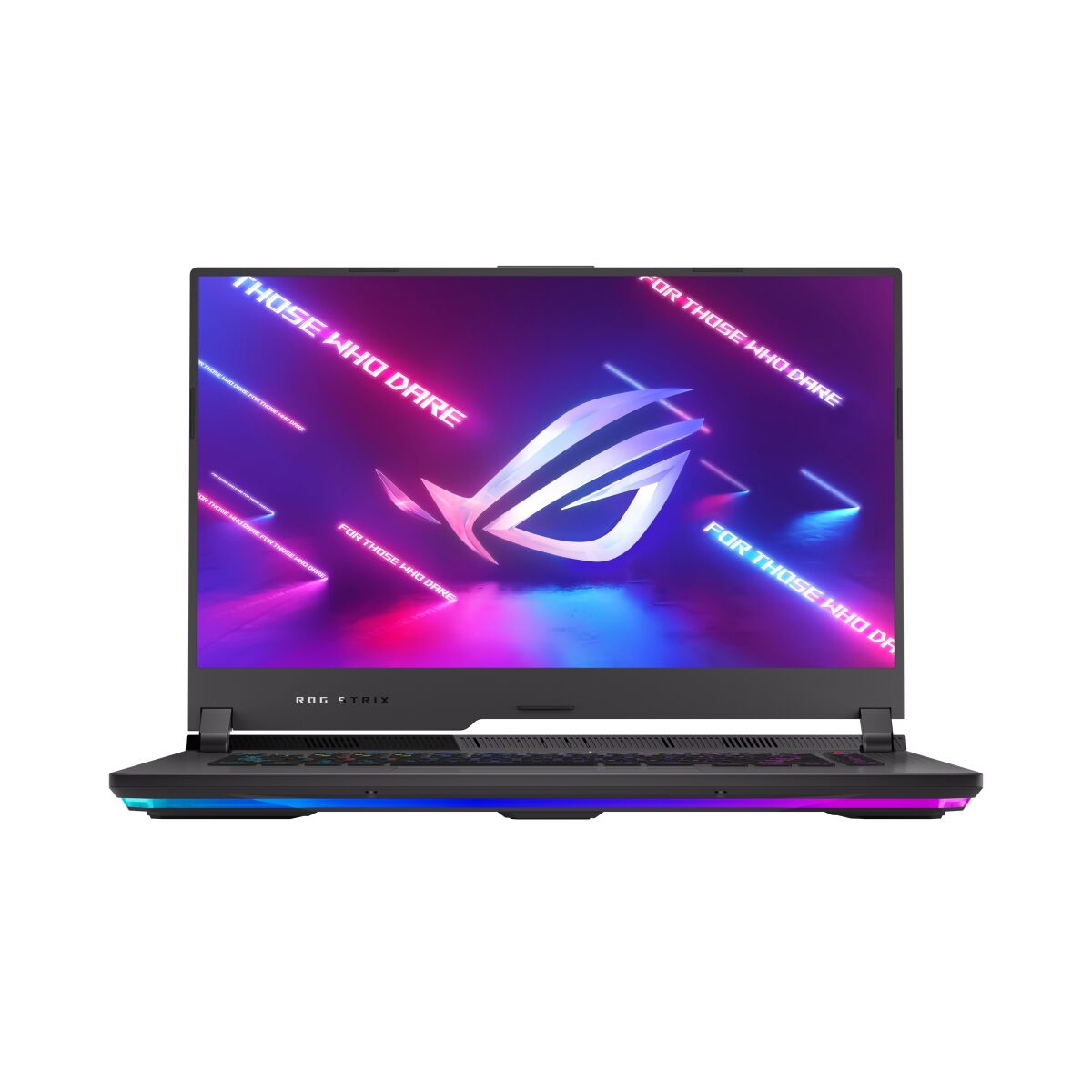

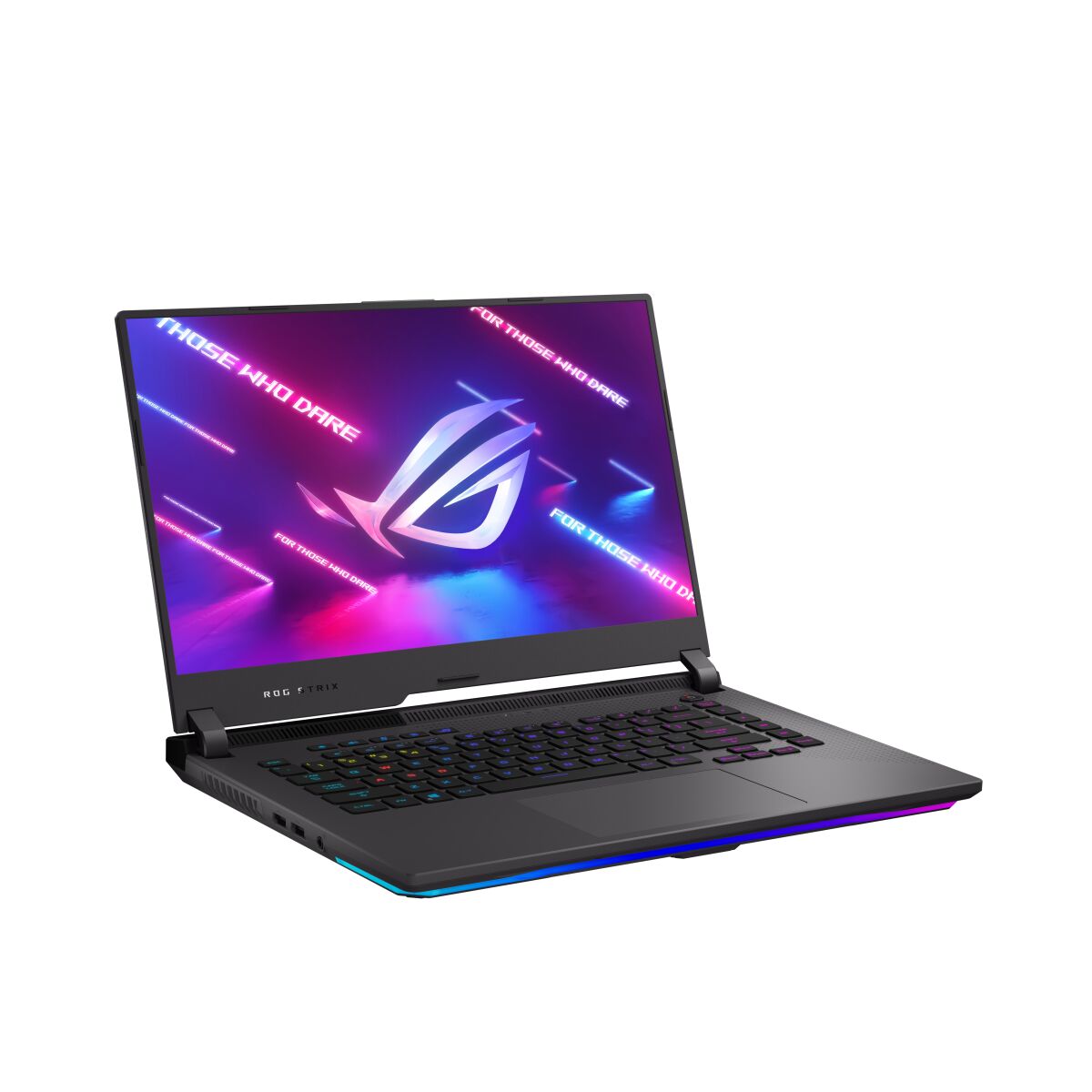

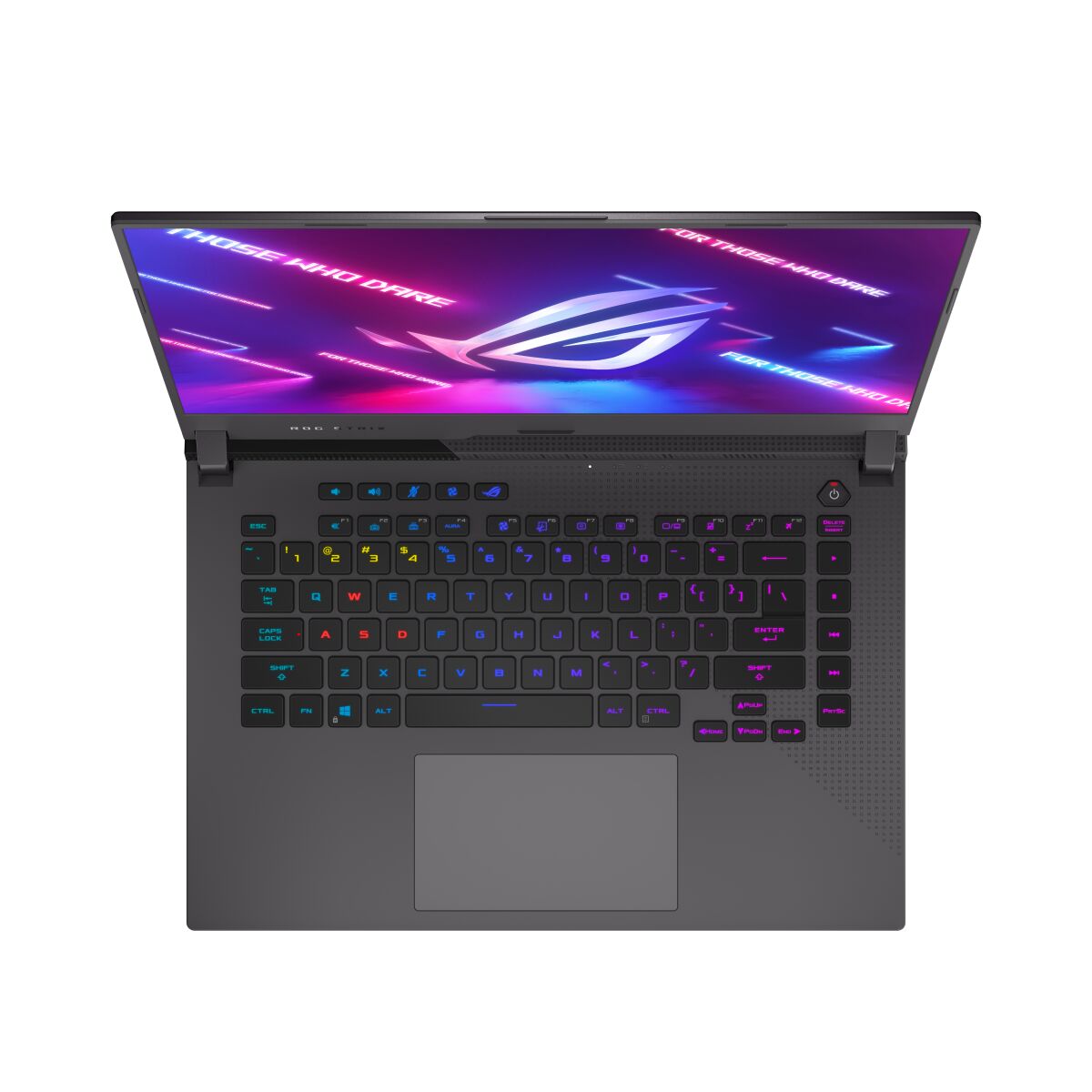

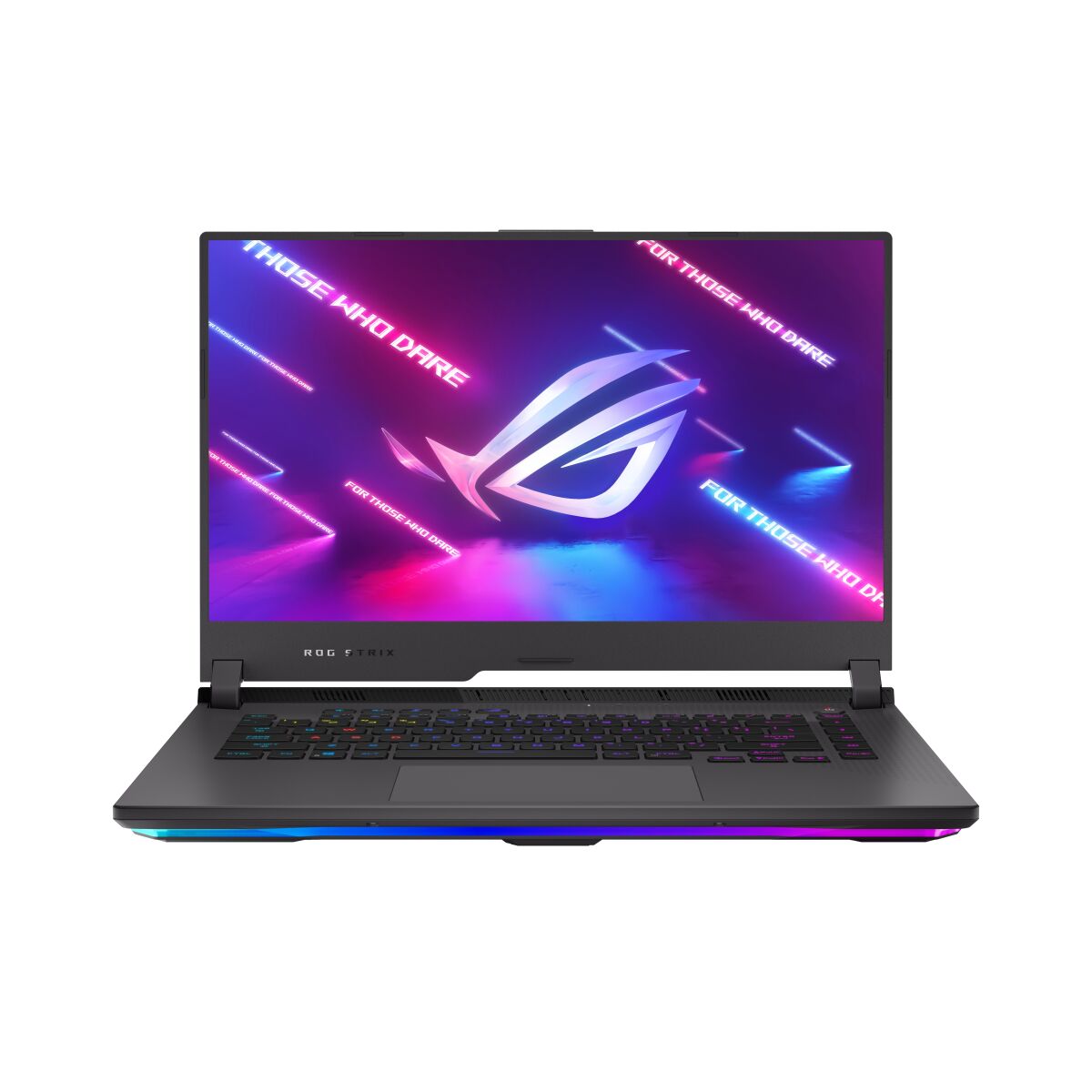

ASUS ROG G513QR-HF010T-BE RAM upgrade specifications
ASUS ROG Strix G15 model G513QR-HF010T-BE features DDR4-SDRAM memory upgrade capacity. The laptop contains 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB total. Memory specifications include DDR4 modules operating at 3200 MHz frequency. Compatible upgrades must utilize SO-DIMM form factor DDR4-SDRAM modules. Specifications define upgrade slots and maximum memory capacity for the ASUS G513QR-HF010T-BE gaming laptop configuration.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 19 December 2020 |
Additional Notes
- Dual channel mode requires identical module capacities across both slots to ensure peak memory bandwidth for the Ryzen processor within the ASUS ROG G513QR-HF010T-BE.
- The motherboard firmware enforces a hard ceiling on total addressable memory preventing the use of 32 GB modules to reach higher densities.
- Integrated graphics share the system memory pool which reduces the net available RAM for background operating system processes and applications.
- Replacing factory modules involves navigating a bottom panel connected to RGB lighting ribbons which necessitates cautious removal to avoid tearing internal data cables.
- Utilizing modules with higher rated speeds results in automatic downclocking to 3200 MHz as the chipset does not support XMP overlocking profiles.
- Standard 1.2V DDR4 modules are required to maintain electrical compatibility with the pre-existing voltage regulators.
- Total memory capacity is split between 2 physical slots meaning an upgrade to the maximum 32 GB requires the removal of any existing lower capacity sticks.
