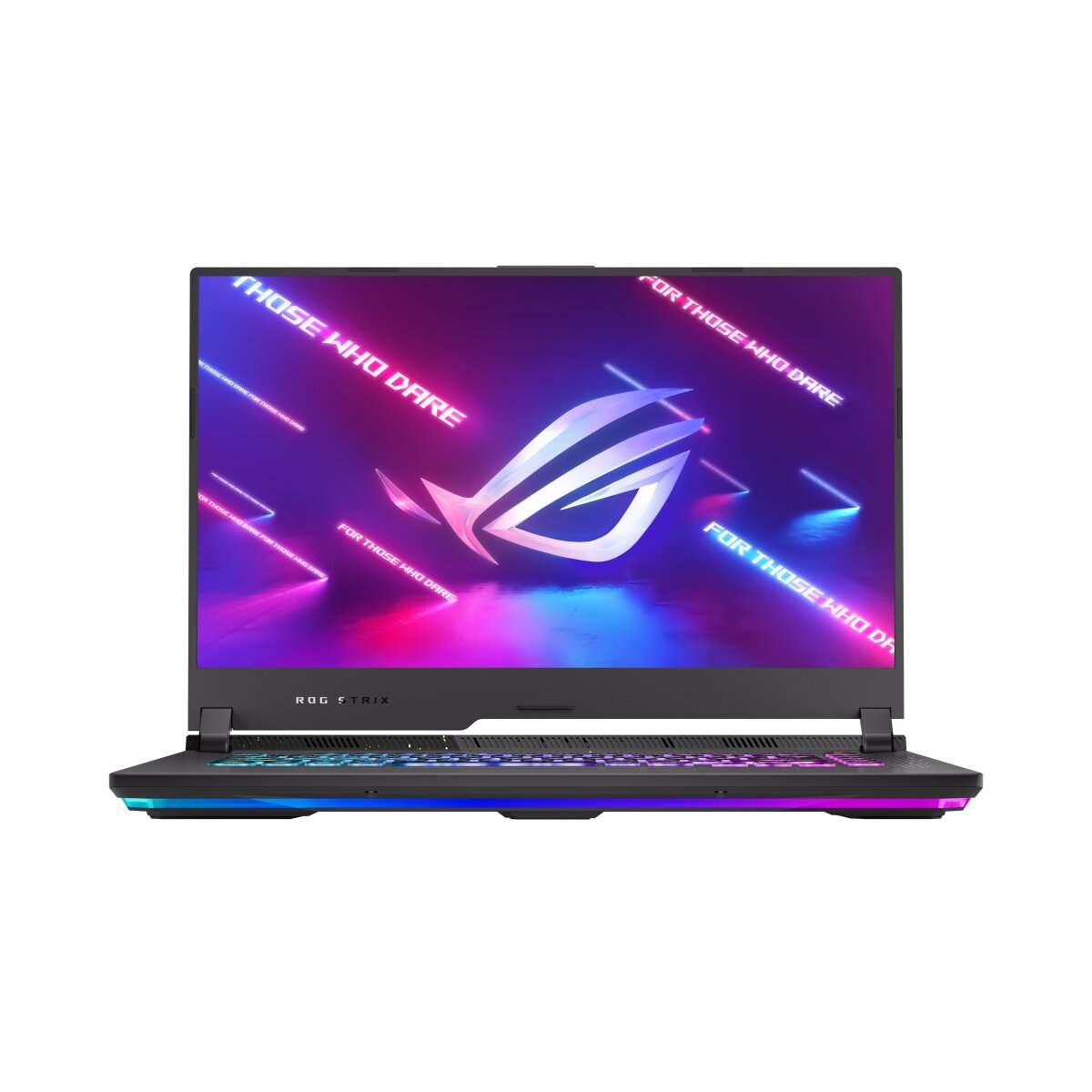

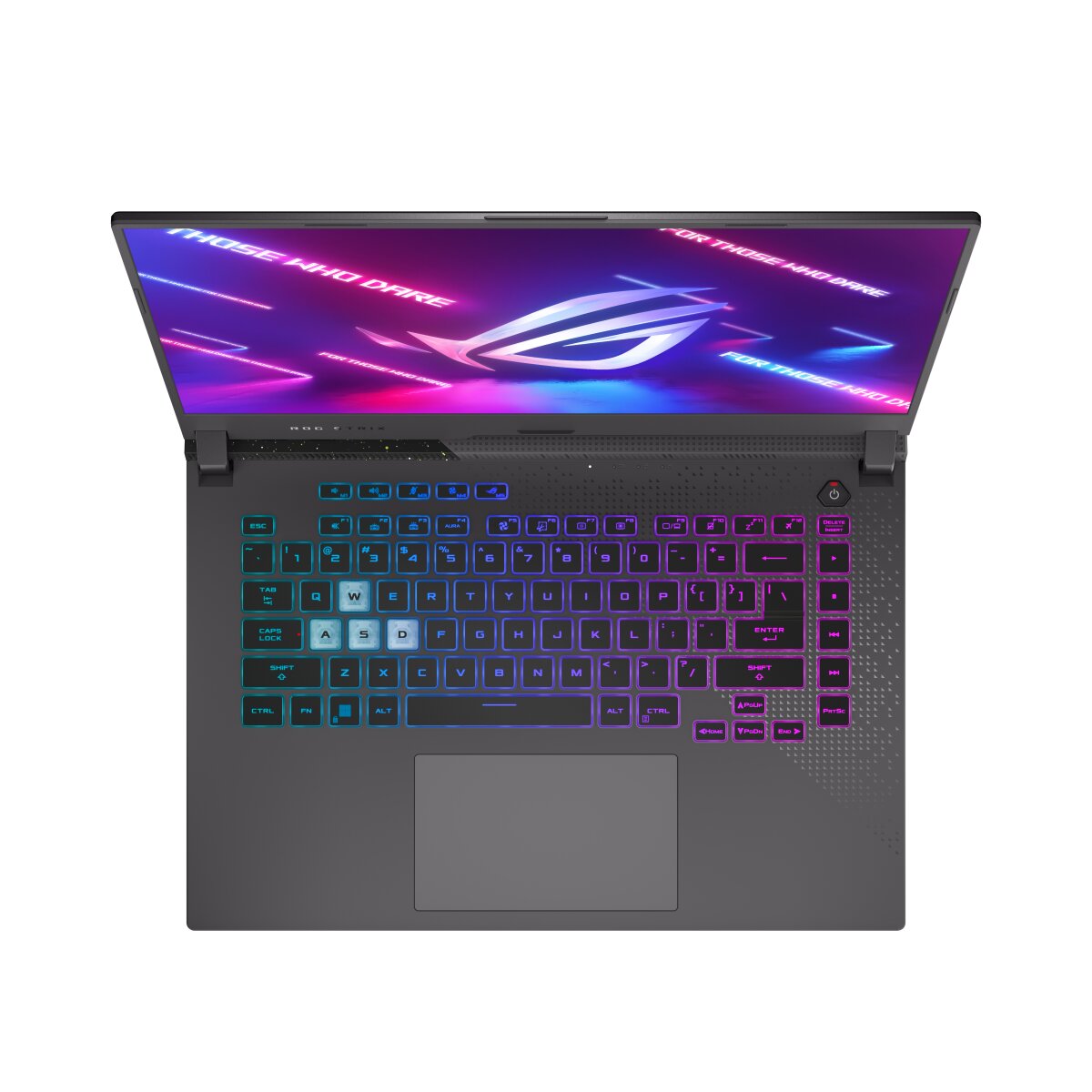

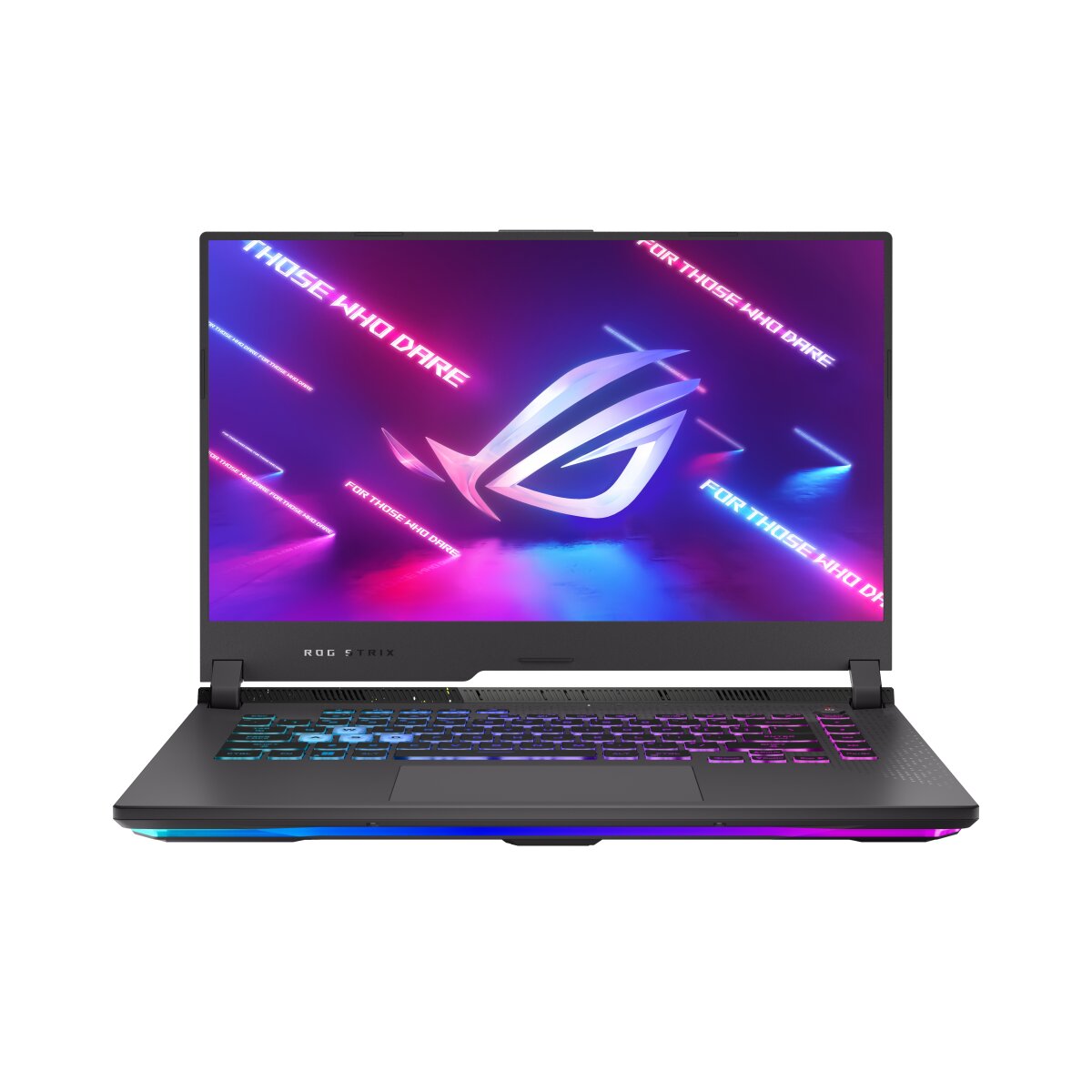

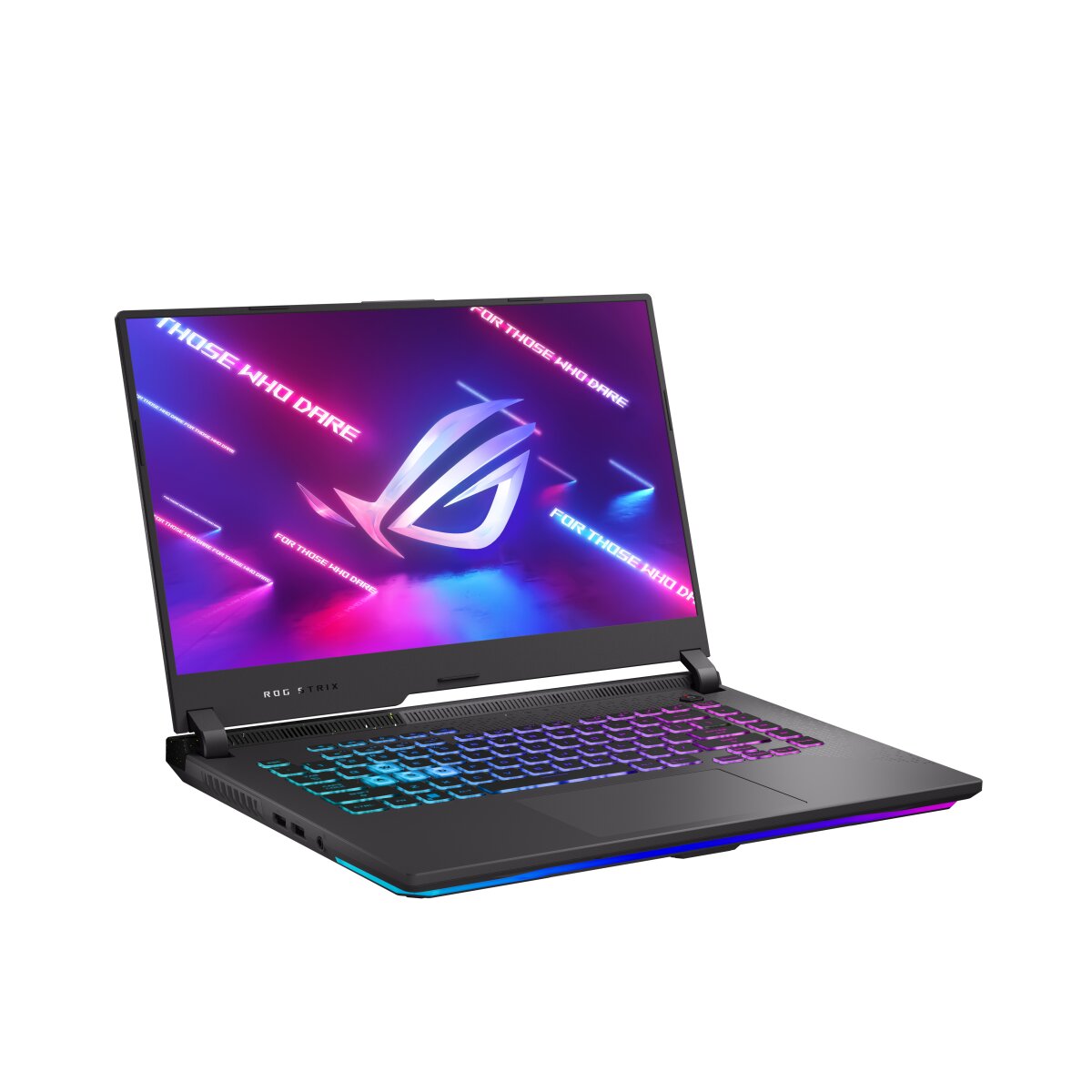

ASUS ROG G513RC-HN194 RAM upgrade specifications
ASUS ROG Strix G15 G513RC-HN194 laptop features DDR5-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 4800 MHz frequency. Upgrade slots accommodate standard SO-DIMM form factor memory modules. Specifications indicate dual-channel memory configuration enabling enhanced performance capabilities for gaming and professional applications on this gaming laptop platform.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 25 March 2023 |
Additional Notes
- The dual channel configuration requirement necessitates installing identical modules in both slots to achieve maximum memory bandwidth for the AMD Ryzen processor.
- The 32 GB ceiling indicates a firmware level limitation on the motherboard density support rather than a physical slot restriction.
- Utilizing DDR5 4800 MHz modules in the ASUS ROG G513RC-HN194 ensures compatibility with the integrated power management chips located directly on the memory sticks.
- Thermal management constraints within the chassis dictate using standard height SO-DIMM modules to prevent interference with the heat pipe assembly.
- Upgrading memory requires the removal of the bottom panel and careful disconnection of the internal battery to prevent short circuits on the motherboard circuitry.
- Total system latency remains dependent on the CL timing values of the selected modules since the BIOS typically lacks manual timing adjustment features.
- Replacing factory memory with higher capacity sticks necessitates ensuring the new hardware operates at 1.1V to maintain power efficiency and hardware stability.
