ASUS ROG G614FR-S5132-GAMING RAM upgrade specifications

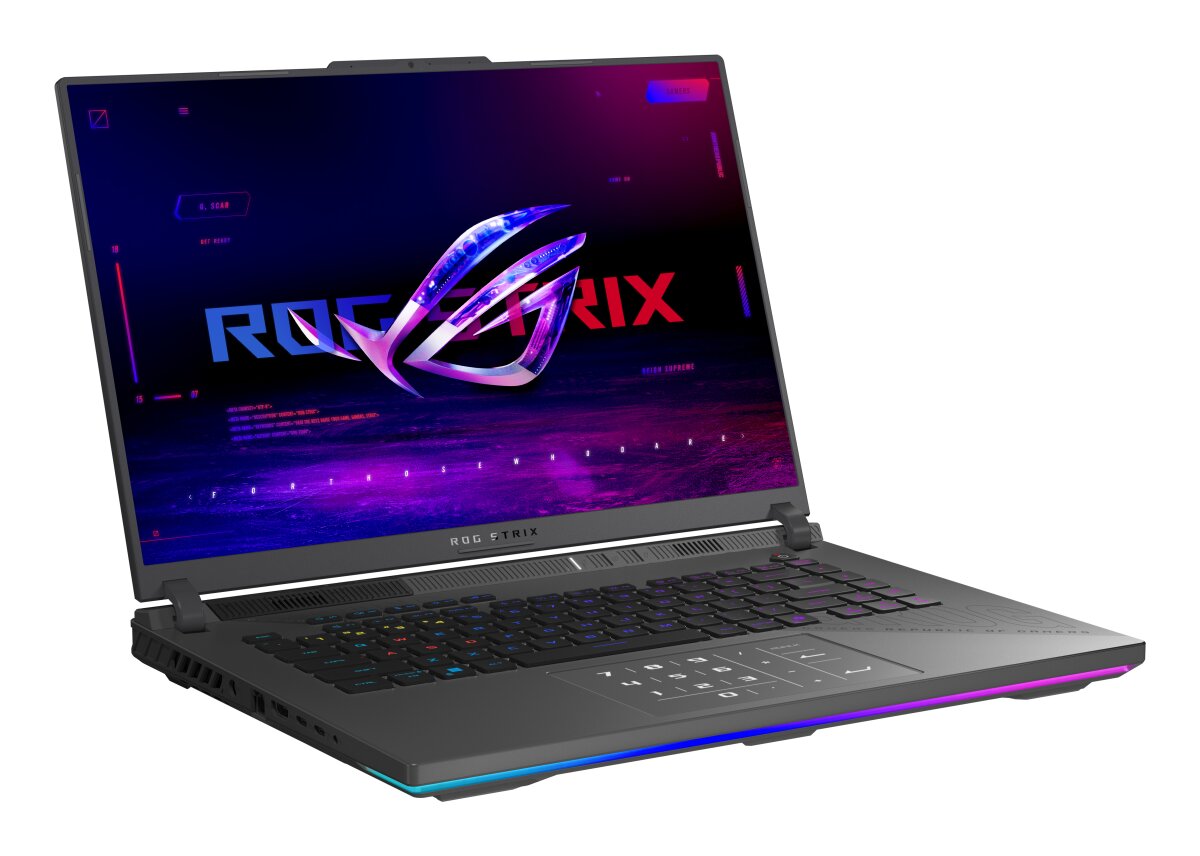

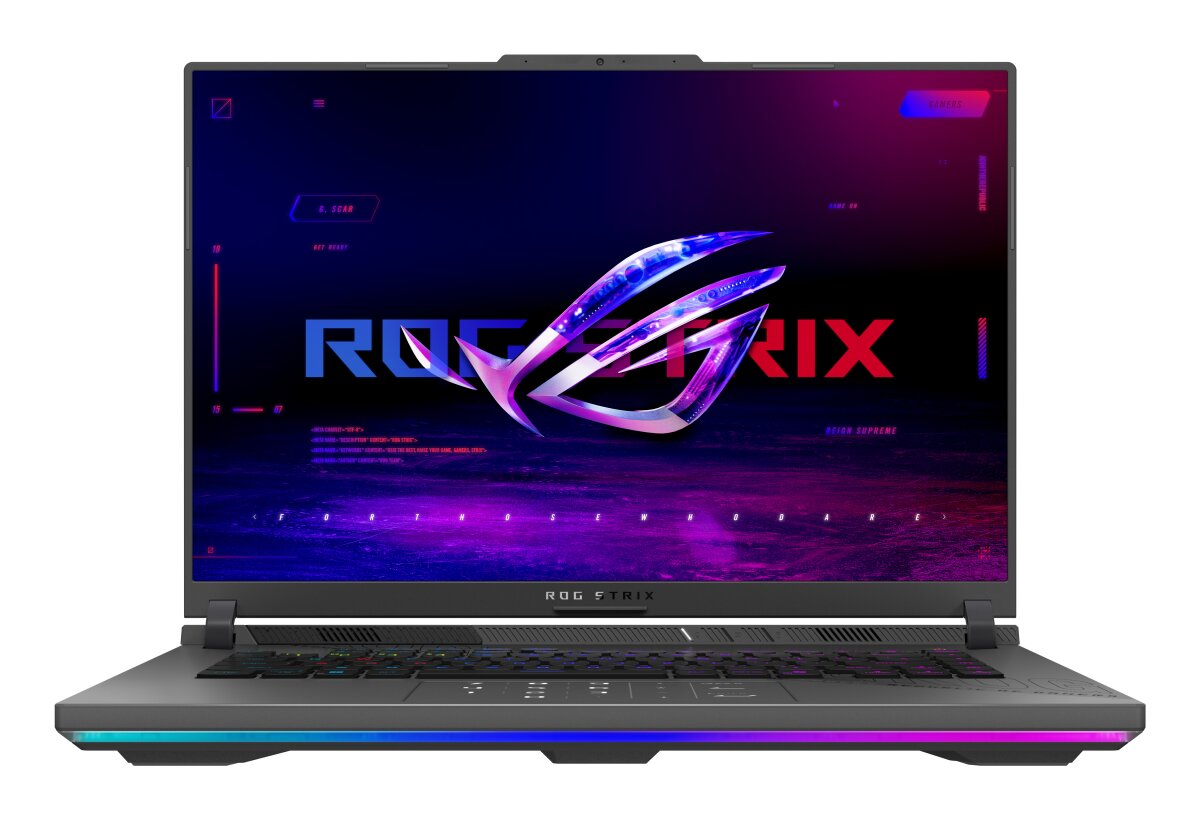

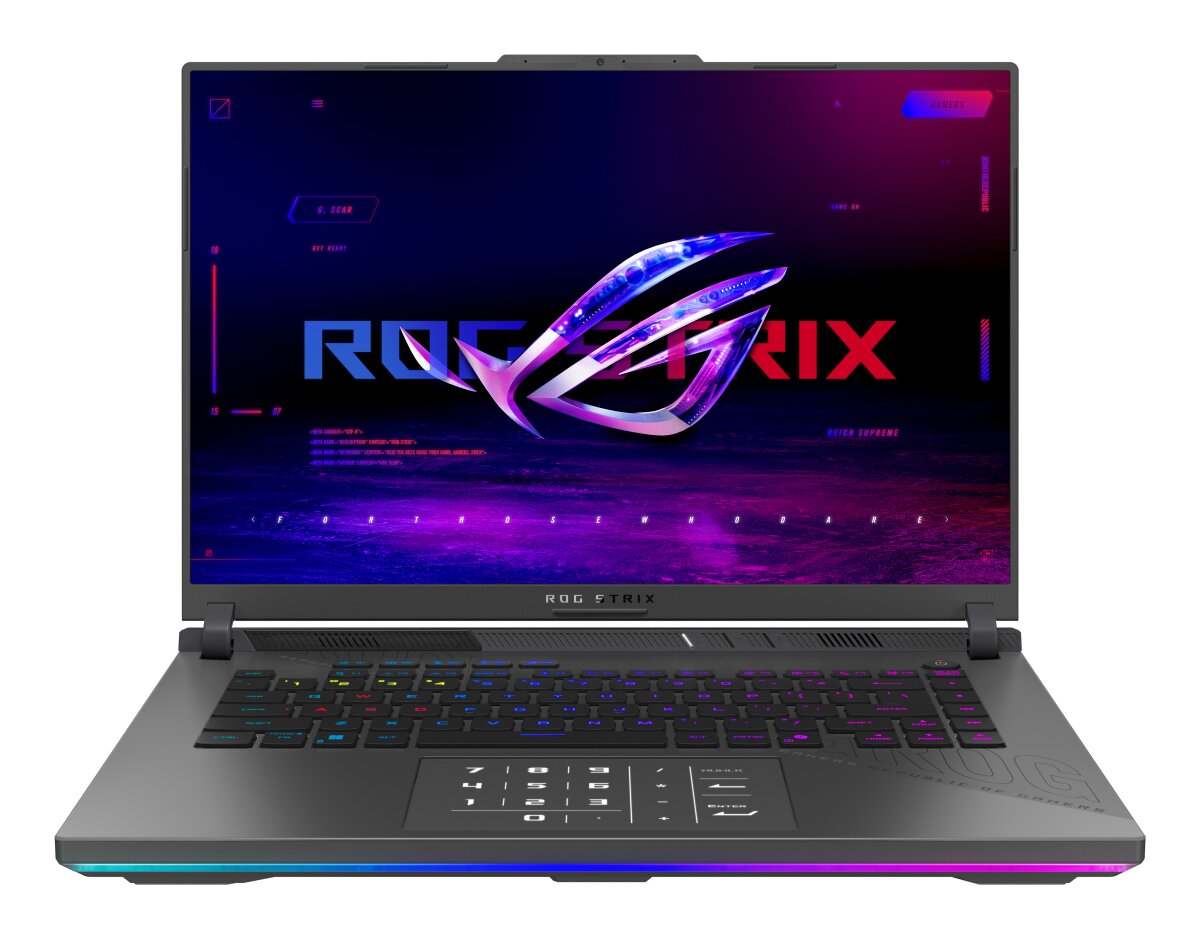

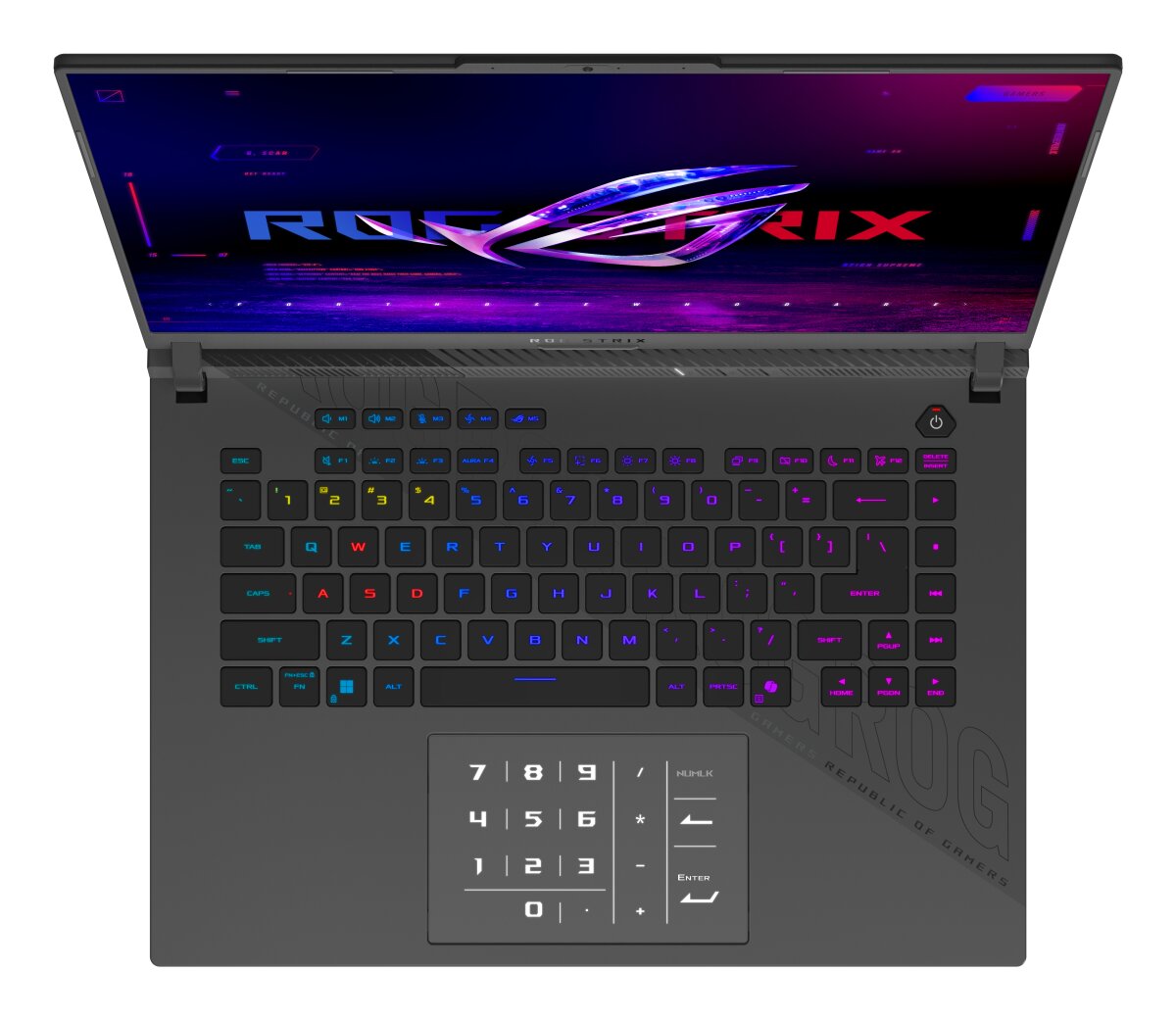

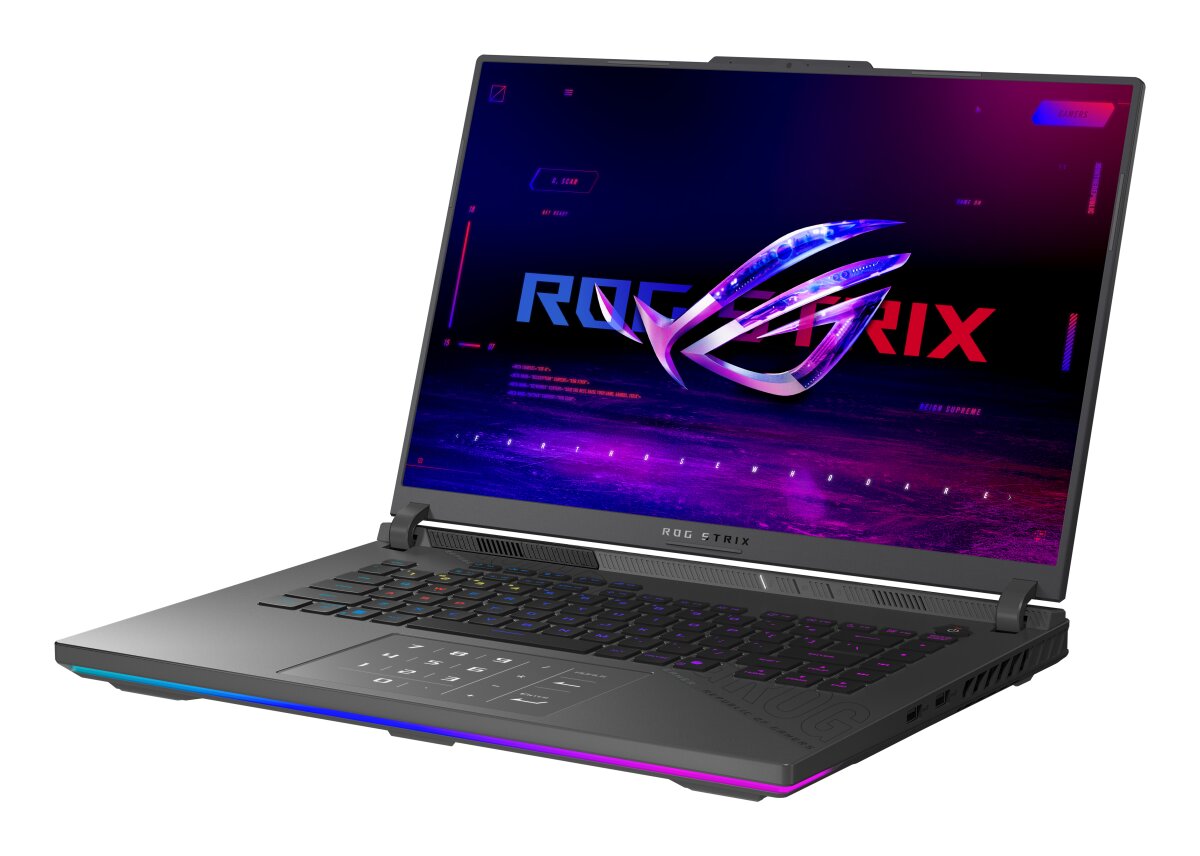

ASUS ROG Strix G16 model G614FR-S5132-GAMING supports DDR5-SDRAM memory upgrade with 2x SO-DIMM slots. Maximum RAM capacity reaches 32 GB total. Compatible memory specifications include DDR5-5600 MHz frequency standard. Upgrade options utilize SO-DIMM form factor modules. Current and maximum memory specifications provide expandable storage for gaming and professional applications on this ROG Strix G16 gaming laptop.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 5600 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-5600 (PC5-44800) |
| Bandwidth | 44.8 GB/s |
Additional Notes
- The 2 SO-DIMM slot configuration in the ASUS ROG G614FR-S5132-GAMING creates a single-channel memory architecture when populated with 1 module, resulting in reduced bandwidth availability compared to dual-channel operation. Dual-channel activation requires filling both slots simultaneously.
- DDR5-5600 MHz memory operates at JEDEC standard frequencies, which means all compatible DDR5 SO-DIMM modules will function without requiring manual BIOS overclocking or stability compromises, though higher-frequency variants will downclock to this specification.
- The 32 GB maximum capacity ceiling represents a hard constraint imposed by firmware addressing limits on the platform. Attempting to install modules exceeding this total will result in unrecognized or non-functional memory, regardless of module quality or specifications.
- SO-DIMM form factor memory occupies approximately 67 mm in length, requiring vertical clearance consideration during installation. Tall heatspreaders on premium modules may contact internal components or cooling solutions positioned above the SO-DIMM slots, limiting compatible models to low-profile variants in some configurations.
- Memory bandwidth saturation risk exists in gaming workloads when a single SO-DIMM operates in single-channel mode, potentially causing frame rate degradation in CPU-bound scenarios despite adequate memory capacity. Upgrade strategy should prioritize 2x16 GB paired configurations over 1x32 GB single-module expansion.
- DDR5 SO-DIMM modules compatible with this platform feature different voltage specifications (standard JEDEC 1.25V versus overclocked variants at 1.40V or higher). Only JEDEC-compliant modules carry manufacturer warranty protection; non-standard voltage operation may void coverage.
