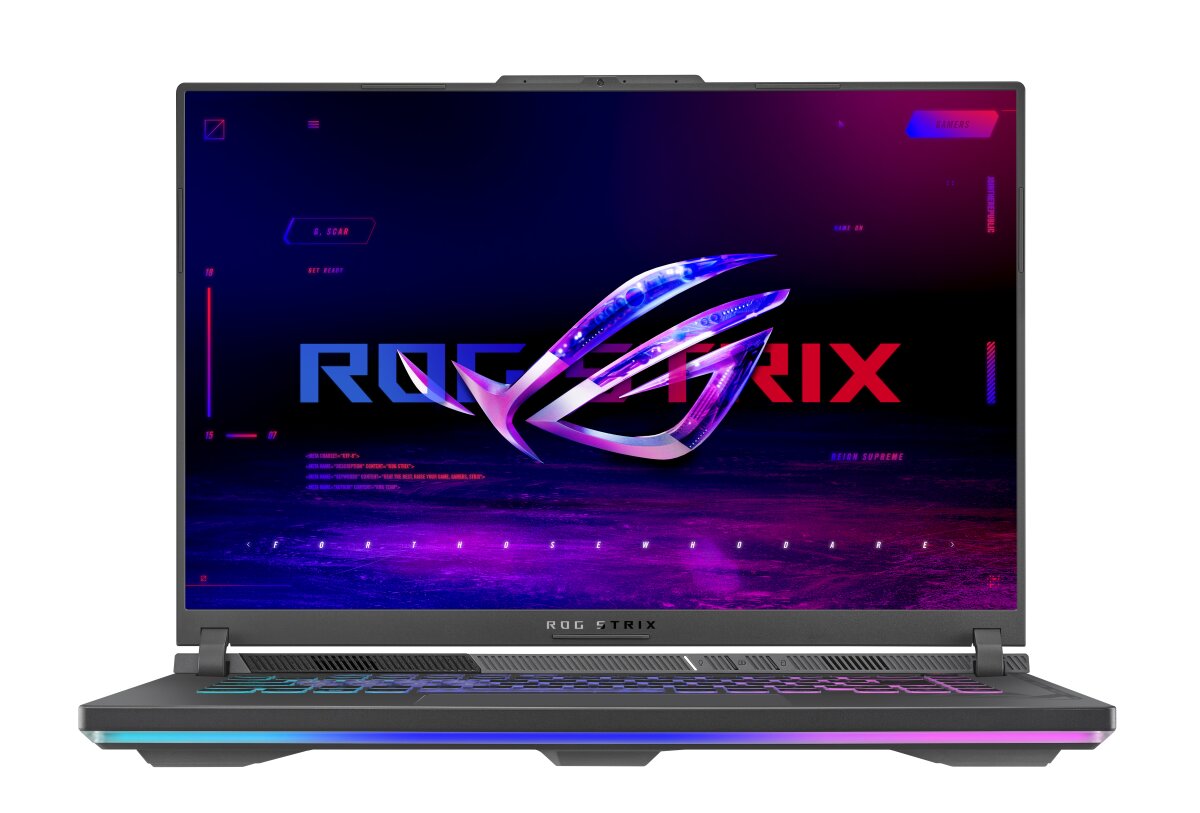

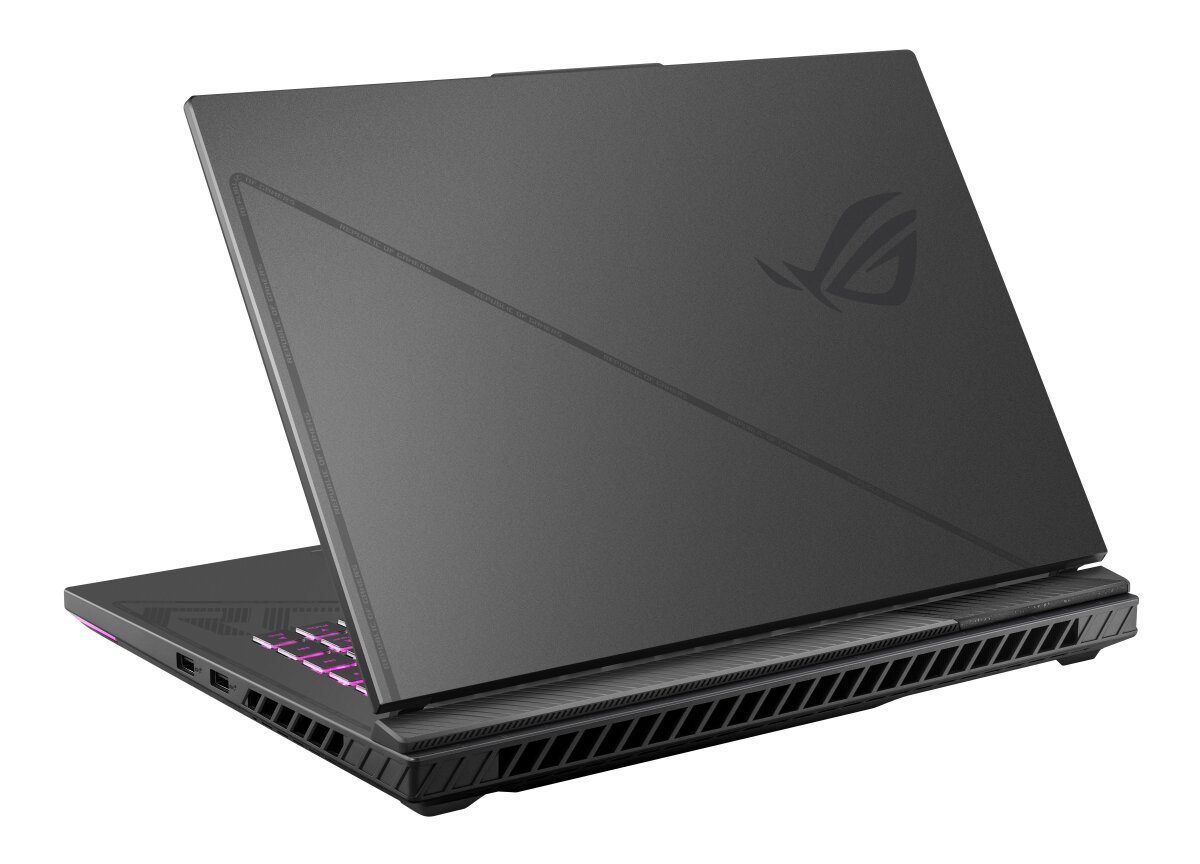

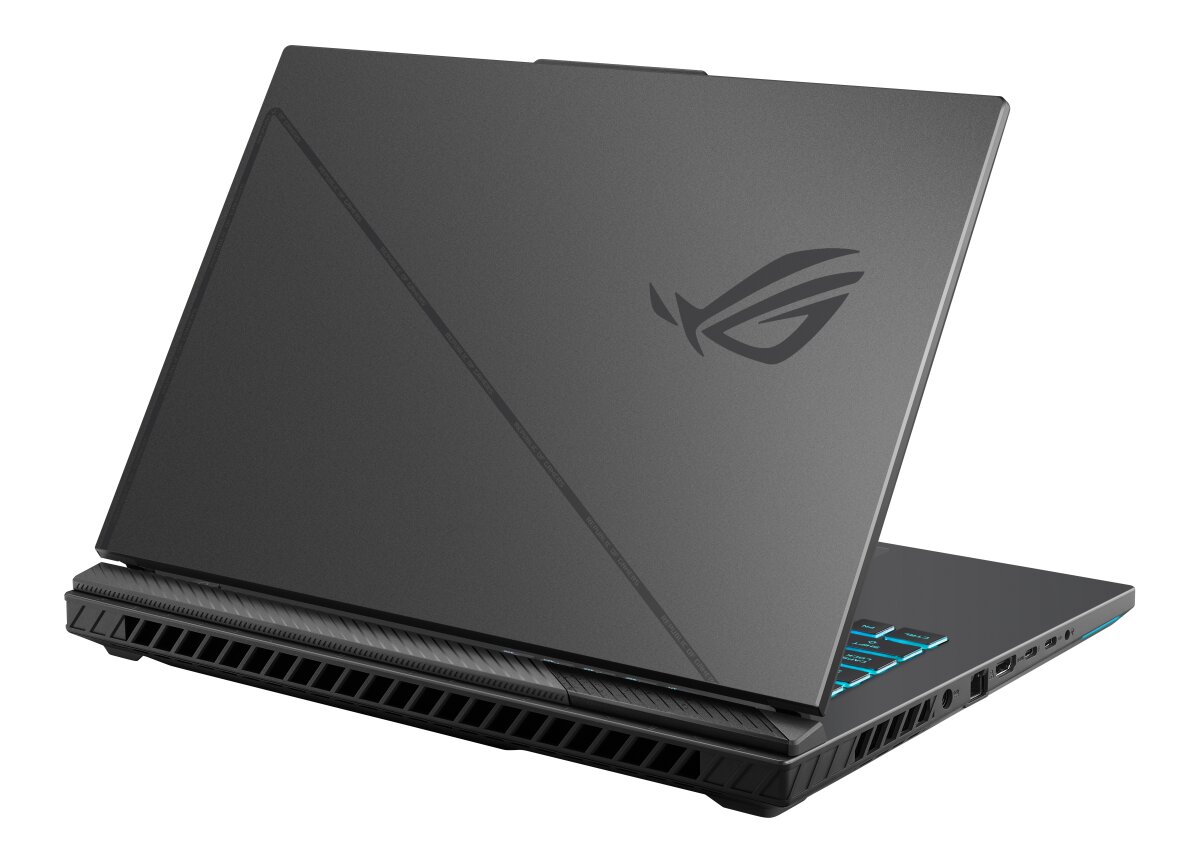

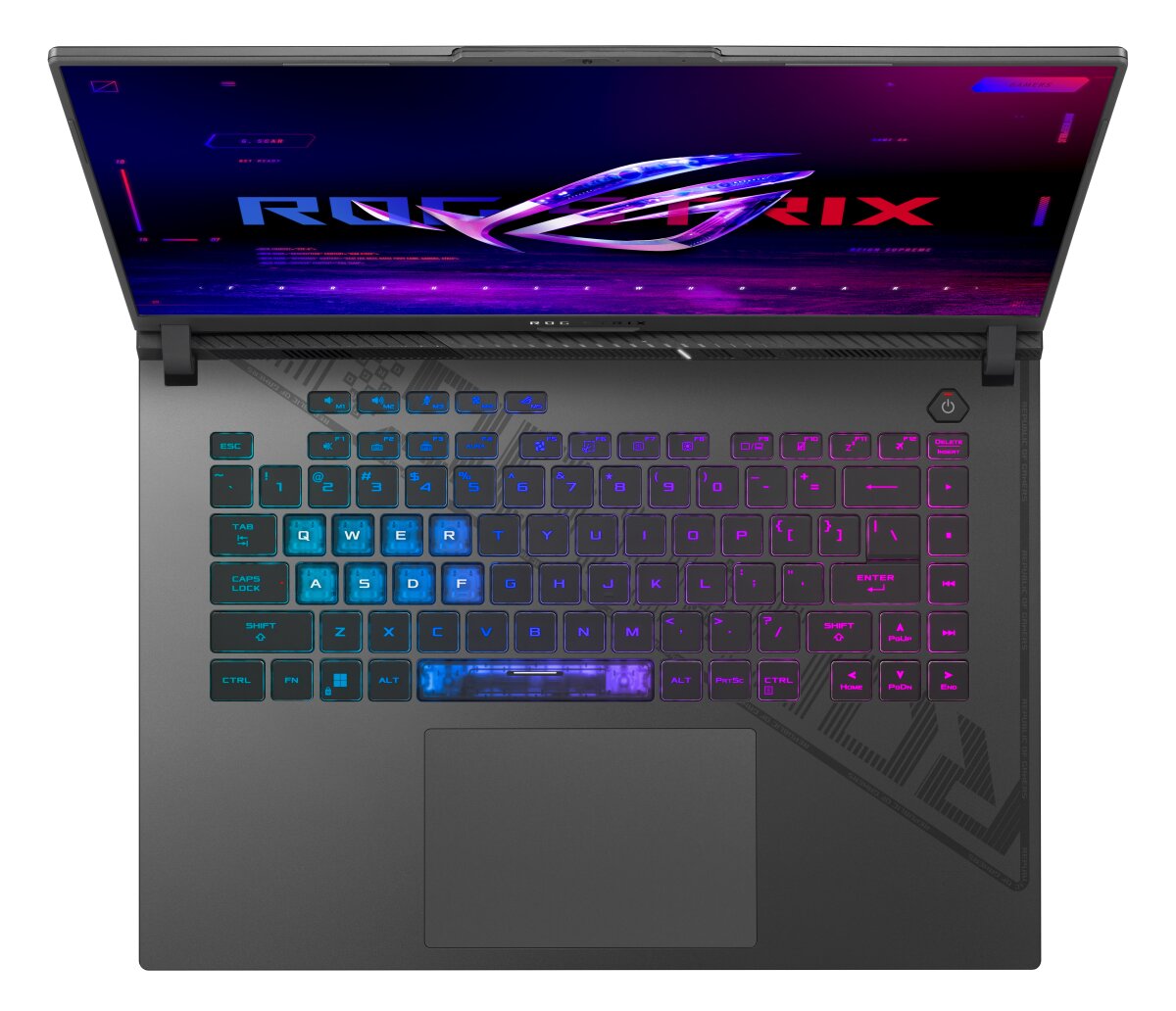

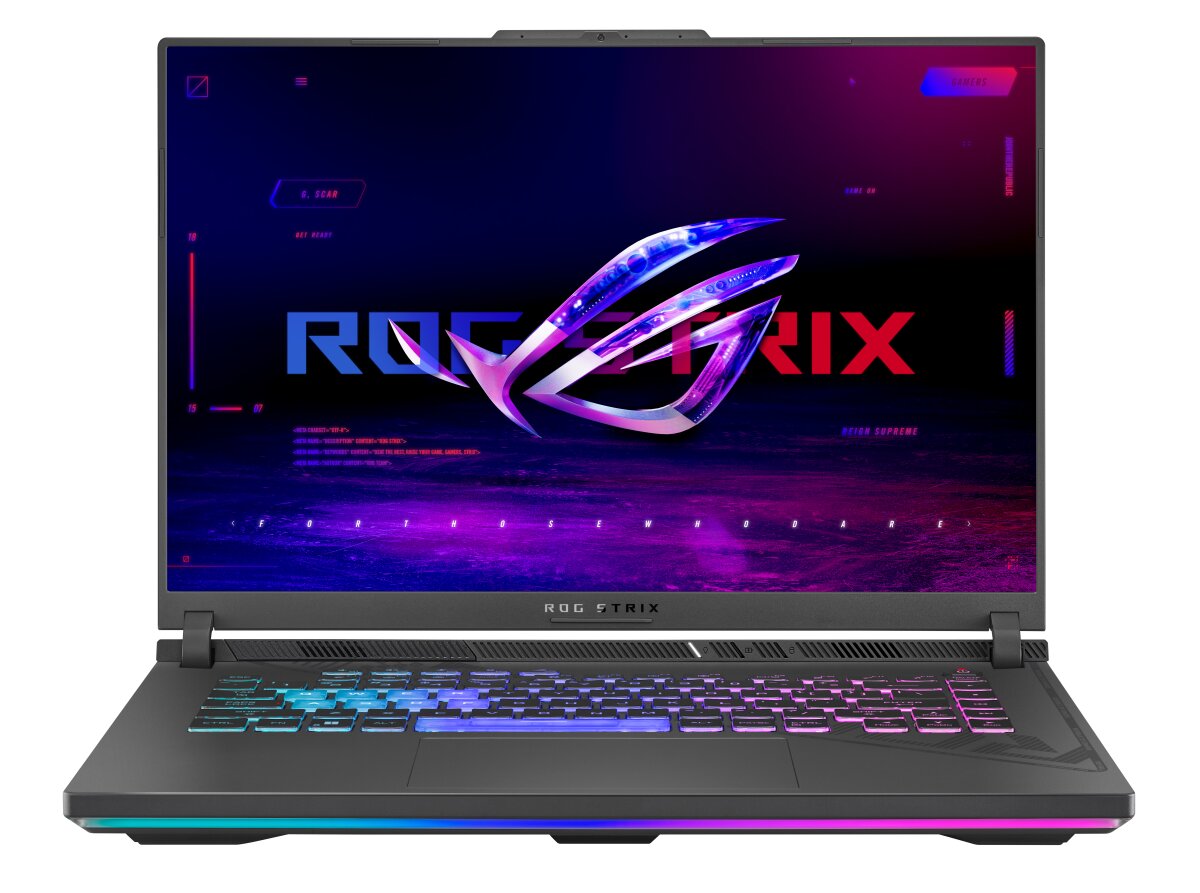

ASUS ROG G614JJ-DS71-CA RAM upgrade specifications
The ASUS ROG Strix G16 G614JJ-DS71-CA laptop features DDR5-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum RAM capacity of 32 GB total. Memory modules operate at 4800 MHz frequency. Compatible DDR5 SO-DIMM modules can be installed in either slot for performance enhancement. Specifications indicate dual-slot configuration allowing for 16 GB capacity per module installation for maximum memory support.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 21 March 2023 |
Additional Notes
- Dual channel architecture requires matching module capacities in both slots to maximize memory controller bandwidth and minimize system latency.
- The integrated memory controller likely downclocks higher frequency modules to the platform limit of 4800 MHz regardless of the installed hardware capability.
- Upgrading the ASUS ROG G614JJ-DS71-CA to the maximum capacity necessitates replacing existing modules if both slots are occupied from the factory.
- Hardware stability depends on using non ECC unbuffered modules specifically designed for the SO DIMM form factor to ensure proper physical clearance within the chassis.
- The 32 GB ceiling indicates a firmware or motherboard limitation that prevents the utilization of high density 32 GB or 48 GB single sticks.
- Physical installation requires grounded handling to prevent electrostatic discharge from damaging the sensitive DDR5 voltage regulation circuitry located directly on the modules.
