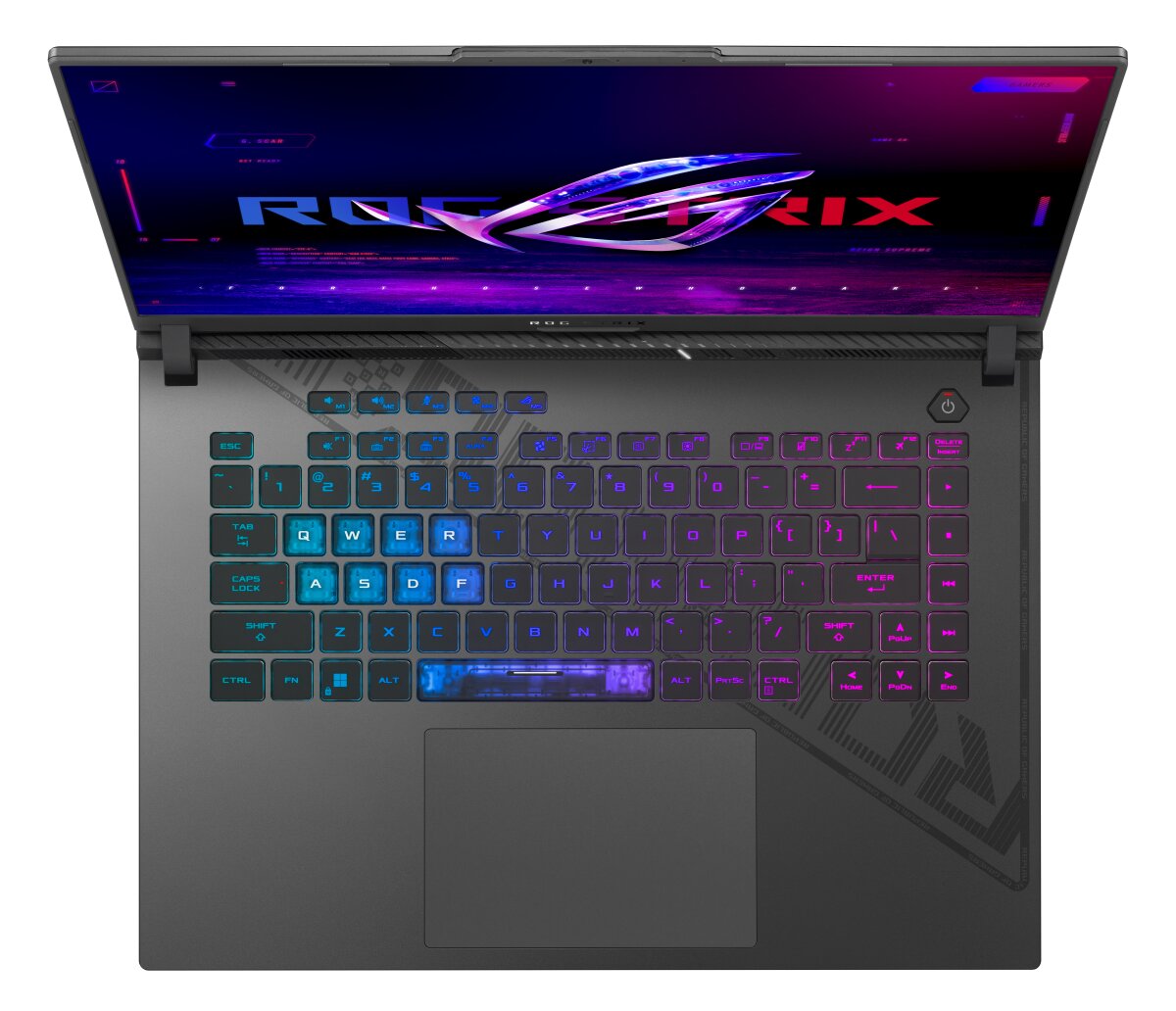

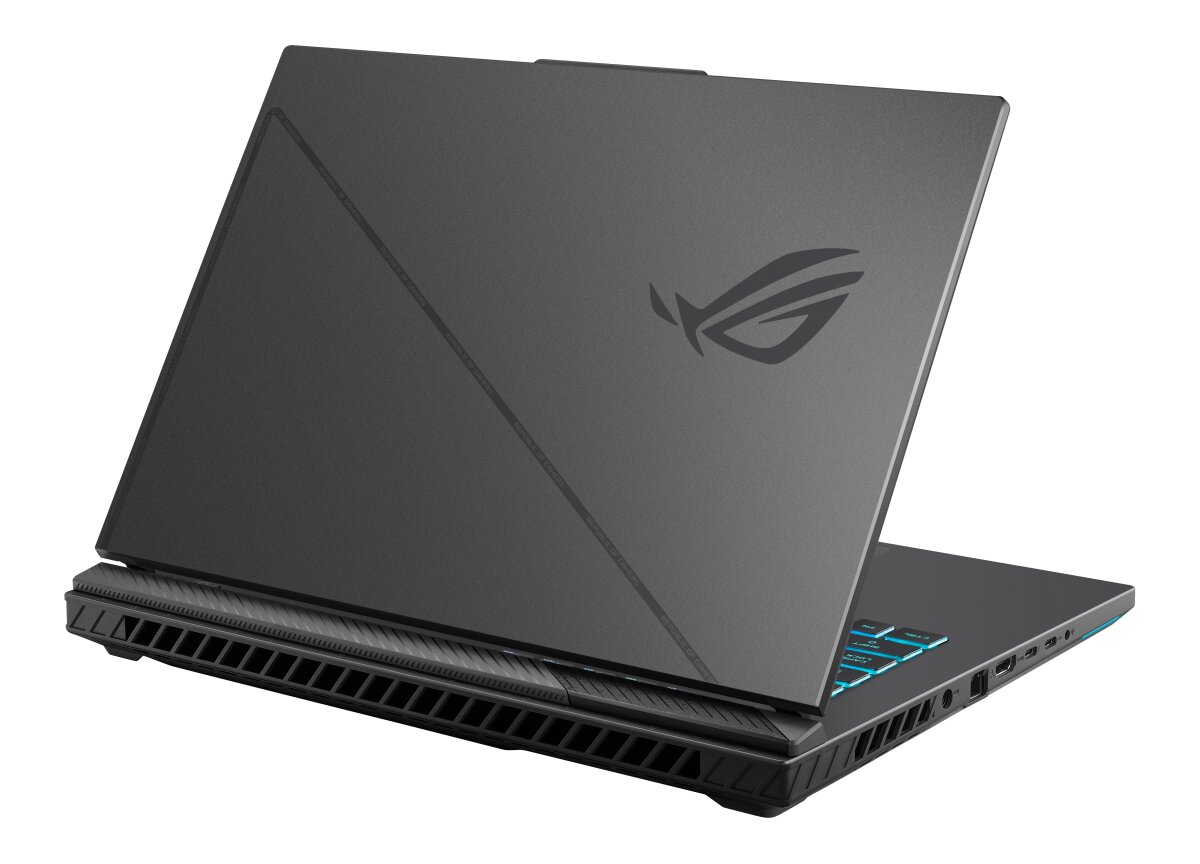

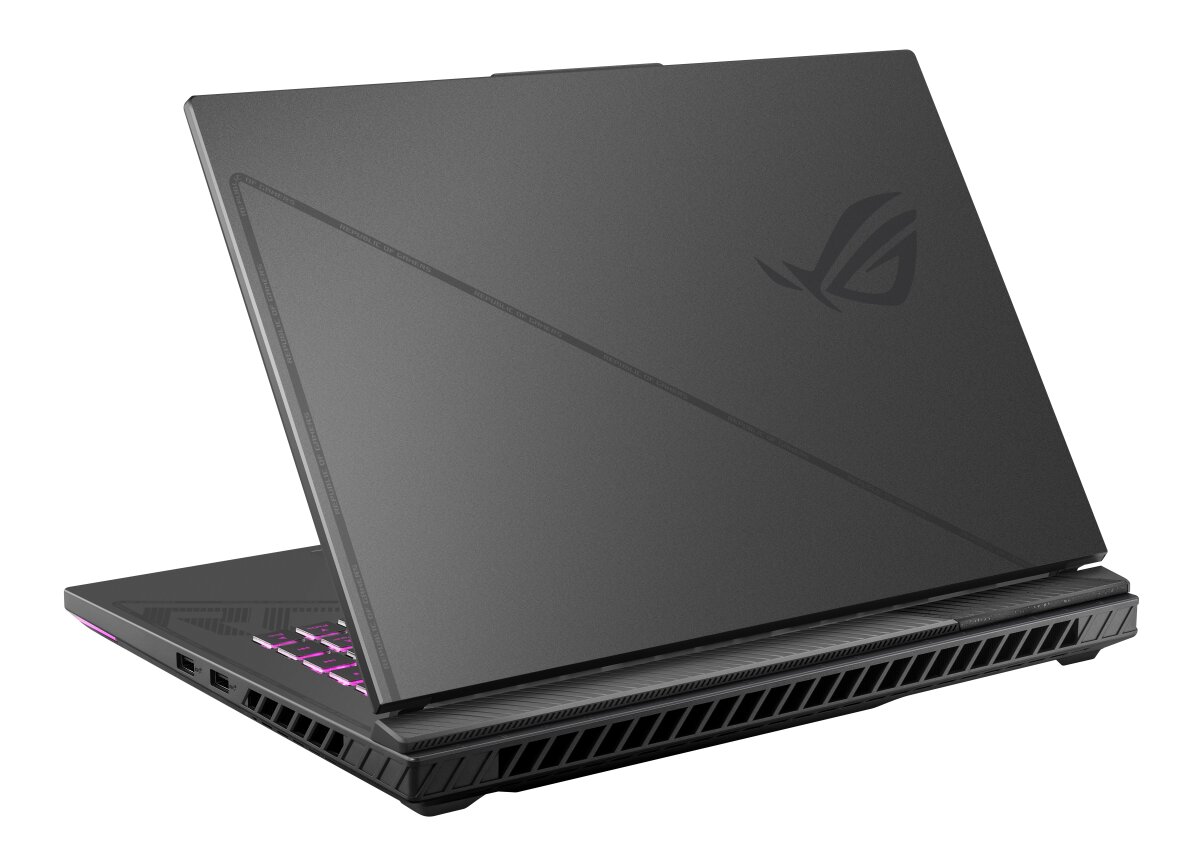

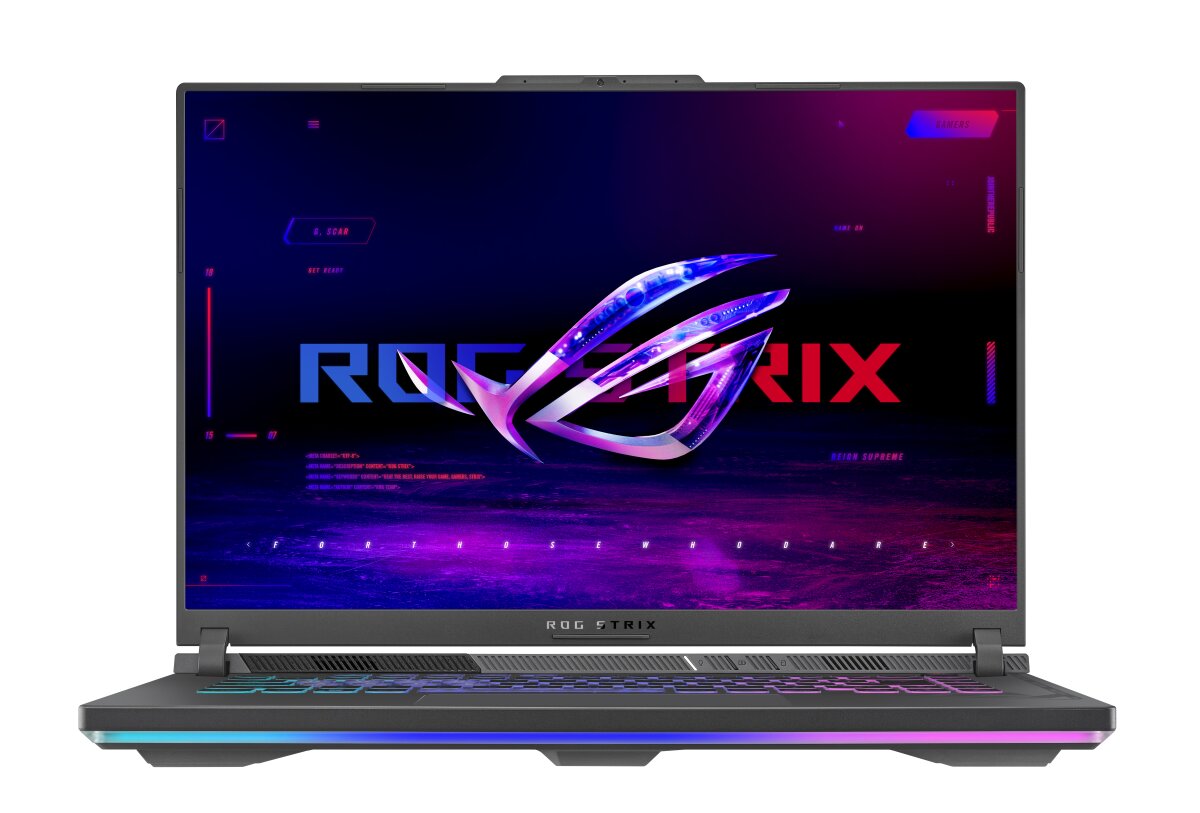

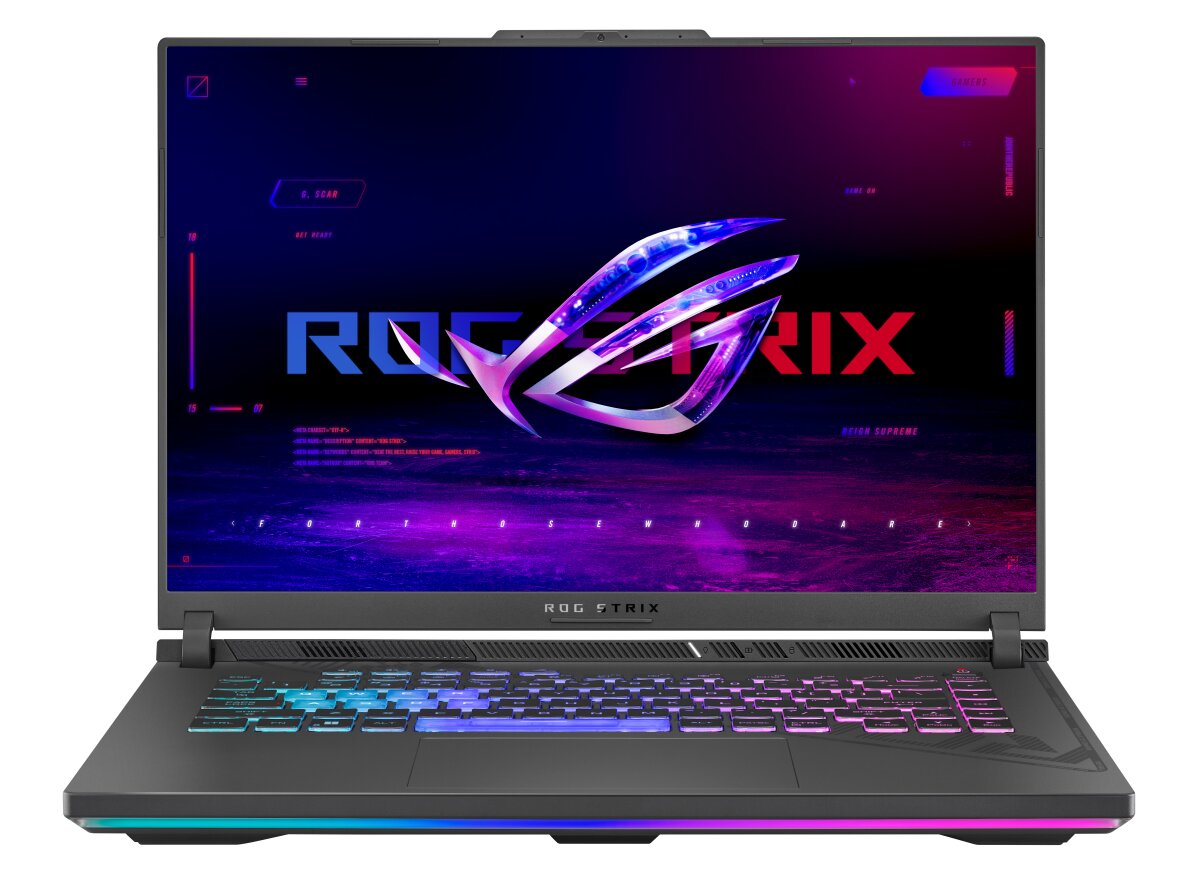

ASUS ROG G614JV-N3084W RAM upgrade specifications
ASUS ROG Strix G16 G614JV-N3084W RAM upgrade specifications include DDR5-SDRAM memory compatible with 2x SO-DIMM slots. Maximum capacity reaches 32 GB, with memory modules operating at 4800 MHz frequency. Upgrade slots support SO-DIMM form factor, enabling memory expansion to enhance system performance specifications. Compatible DDR5 RAM modules can be installed to upgrade existing memory configuration.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 16 February 2023 |
Additional Notes
- Dual channel mode functionality requires identical module capacities in both slots to prevent asynchronous bandwidth drops.
- The hardware architecture of the ASUS ROG G614JV-N3084W dictates a maximum threshold of 16 GB per slot for a combined total of 32 GB.
- Installing modules with frequencies higher than 4800 MHz results in automatic downclocking to match the system bus speed limit.
- The use of SO-DIMM slots implies that memory is not soldered to the motherboard allowing for future hardware swaps without professional desoldering tools.
- Accessing the memory slots involves removing the base panel which may require tools specifically for plastic clips to avoid physical casing damage.
- Upgrading to the maximum supported capacity minimizes data swapping to the slower SSD during heavy multitasking or high resolution asset rendering.
- Mixing modules from different manufacturers is possible but often leads to increased latency timings as the system defaults to the slowest common profile.
