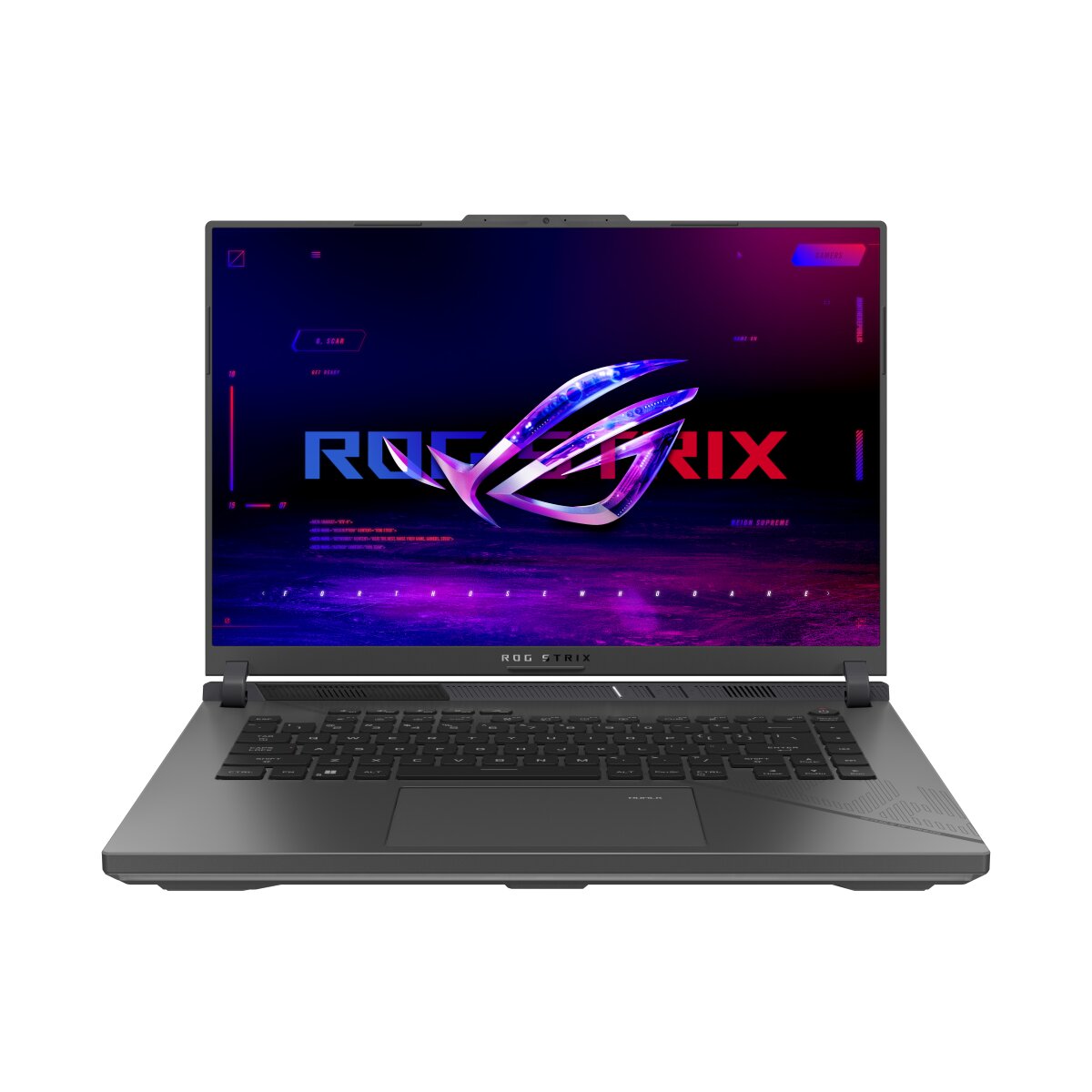

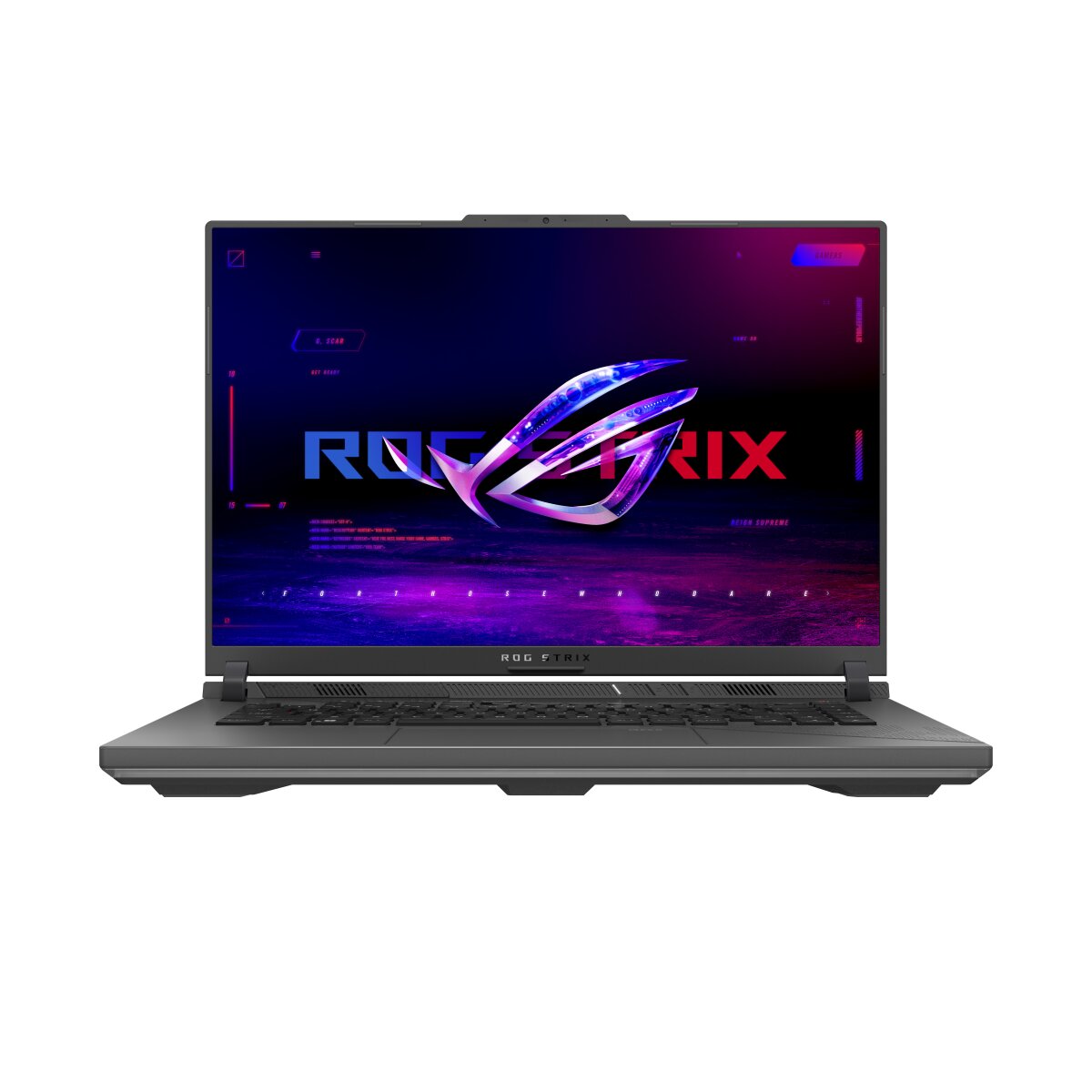

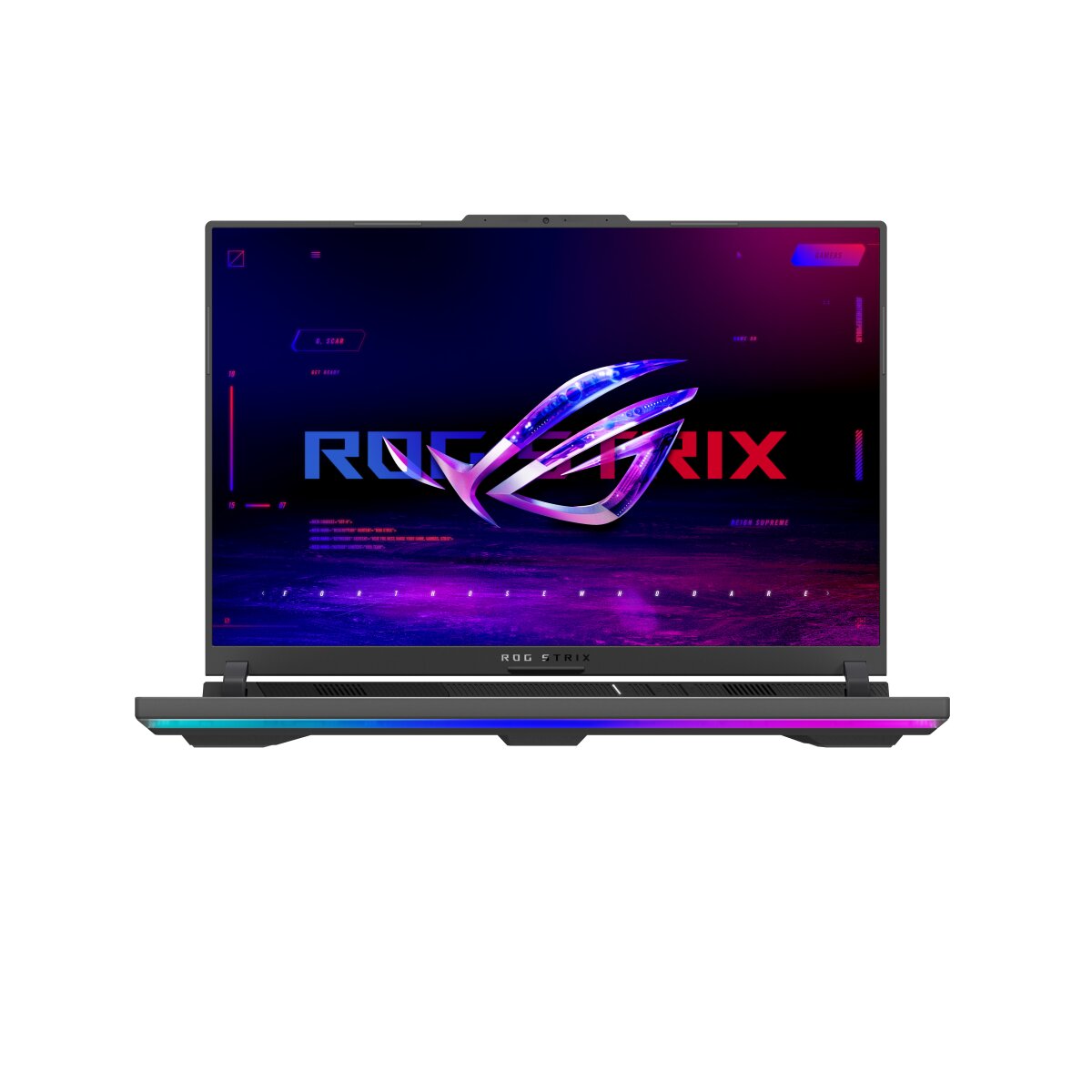

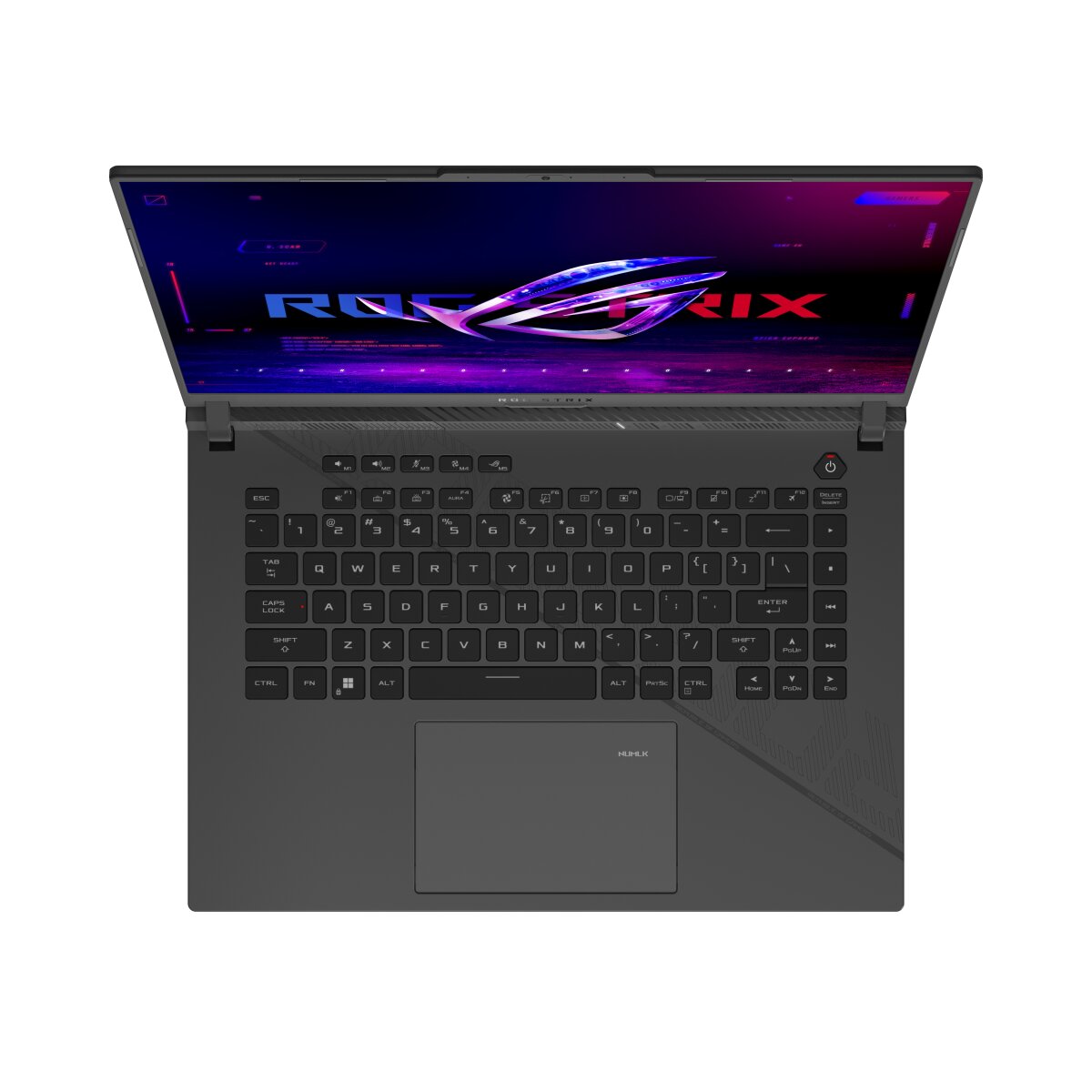

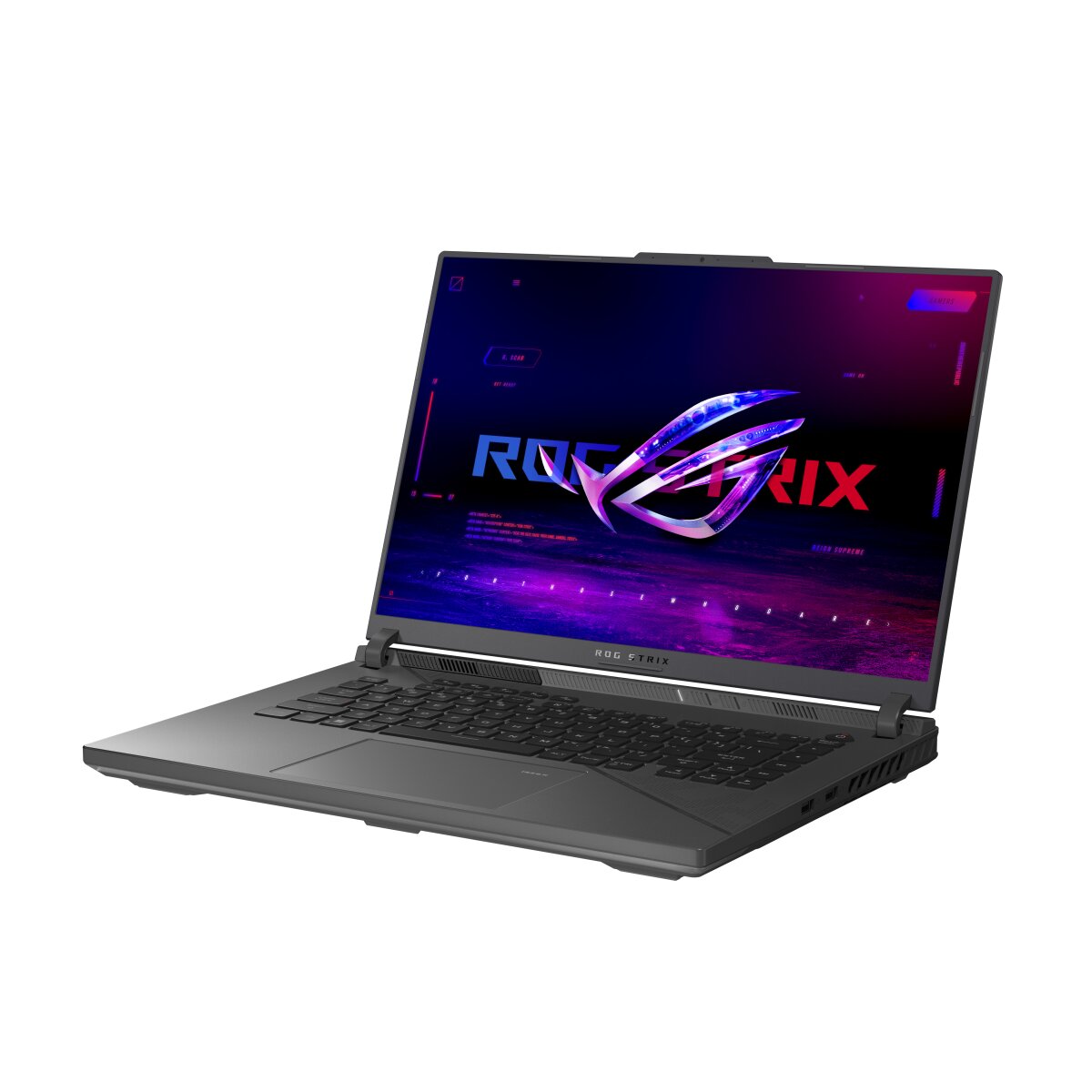

ASUS ROG G614JVR-N3117-Gaming RAM upgrade specifications

ASUS ROG Strix G16 G614JVR-N3117-Gaming laptop memory upgrade specifications include DDR5-SDRAM compatible RAM modules. The system features 2x SO-DIMM slots supporting maximum capacity of 32 GB total memory. Upgrade components must be DDR5-SDRAM type with 5600 MHz frequency operating at SO-DIMM form factor specifications. Compatible memory modules can be installed in either available slot to expand existing RAM capacity within the 32 GB maximum threshold.

Additional Notes

• The presence of 2 SO-DIMM slots confirms a dual-channel memory architecture which allows for doubled peak theoretical bandwidth compared to single-channel configurations.
• Upgrading the ASUS ROG G614JVR-N3117-Gaming beyond the 32 GB threshold requires exceeding official manufacturer validation and may result in system instability or failure to boot.
• The 5600 MHz clock speed necessitates matching primary and secondary timings across both modules to prevent the BIOS from downclocking the memory to a lower JEDEC baseline frequency.
• Intermixing memory modules with different density layouts or ranks causes the memory controller to default to the slowest common denominator which increases latency.
• Internal physical access for part replacement typically requires the removal of the bottom chassis cover which exposes delicate ribbon cables for the lighting synchronization system.
• Heat dissipation and thermal throttling risks increase if aftermarket memory modules include thick integrated heat spreaders that obstruct internal airflow within the slim chassis.
• Voltage requirements for high-speed DDR5 modules must adhere to standard 1.1V specifications to ensure compatibility with the fixed power delivery of the motherboard.
