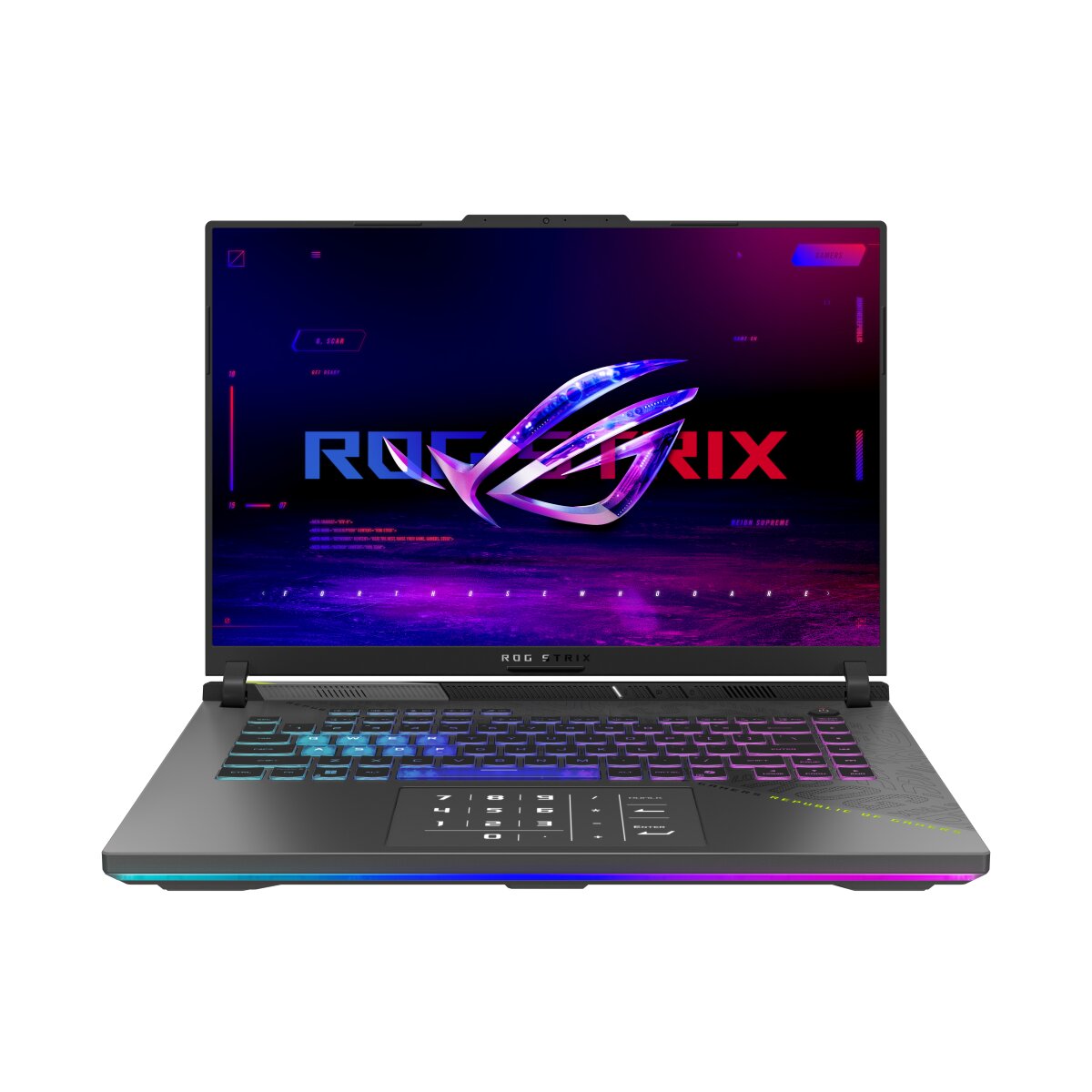

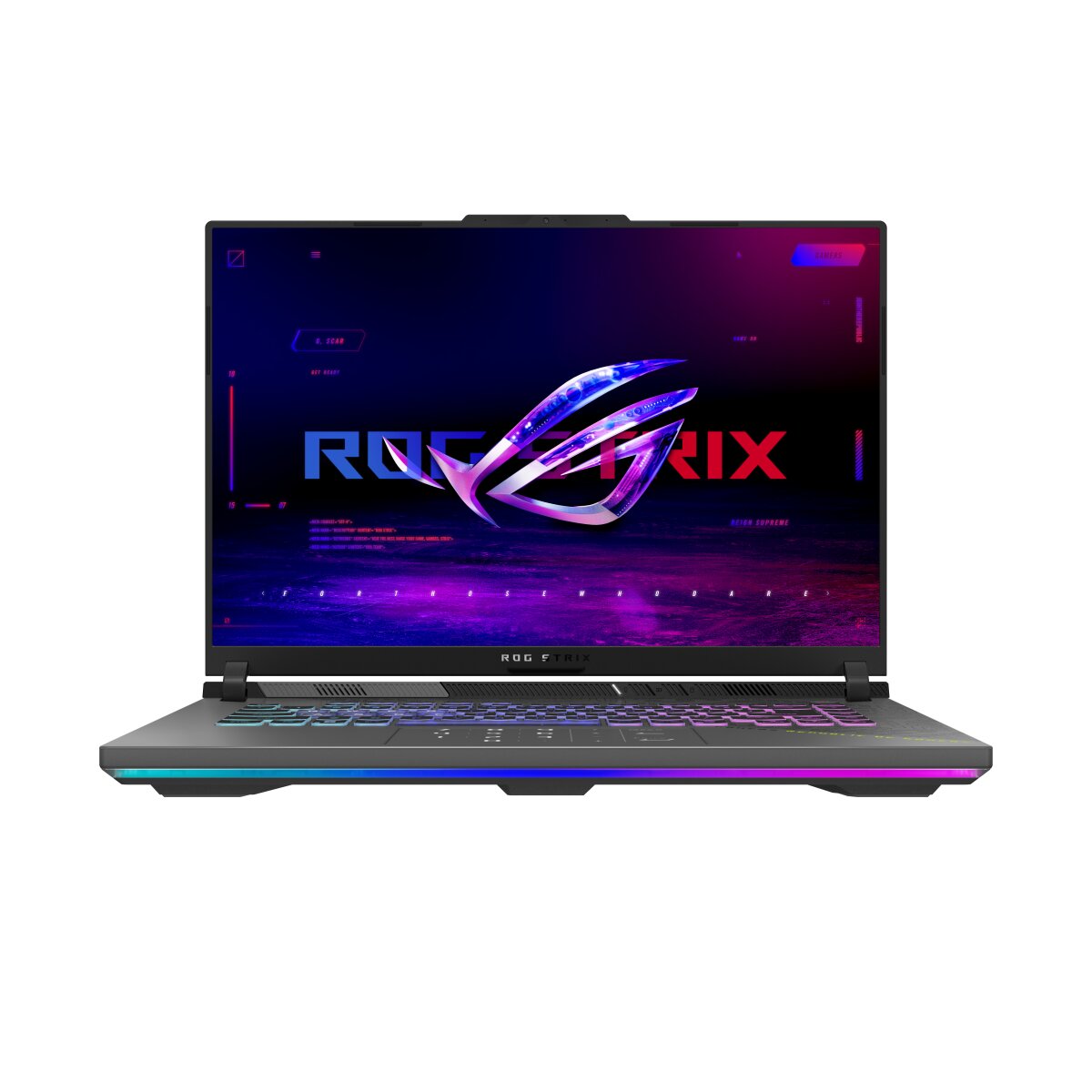

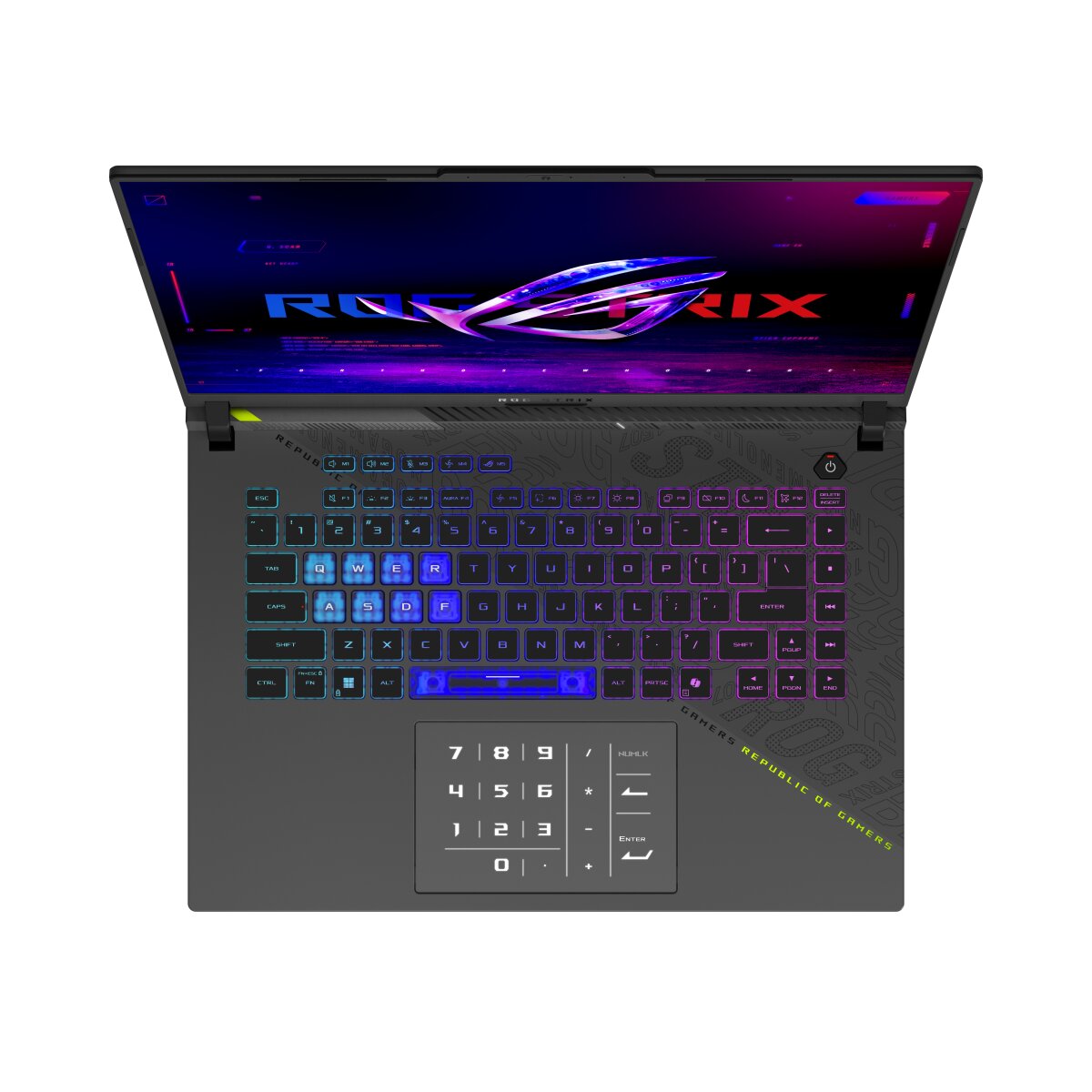

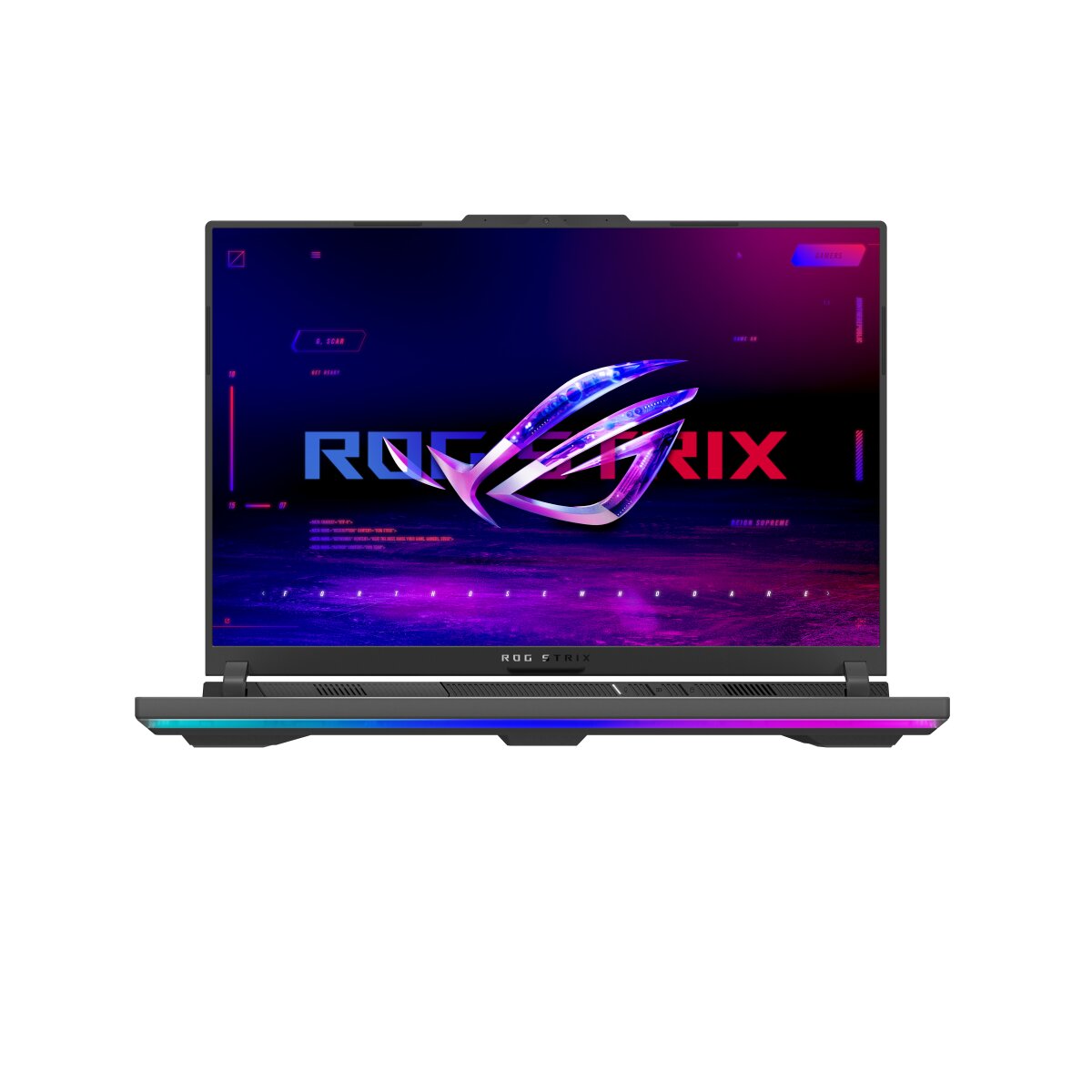

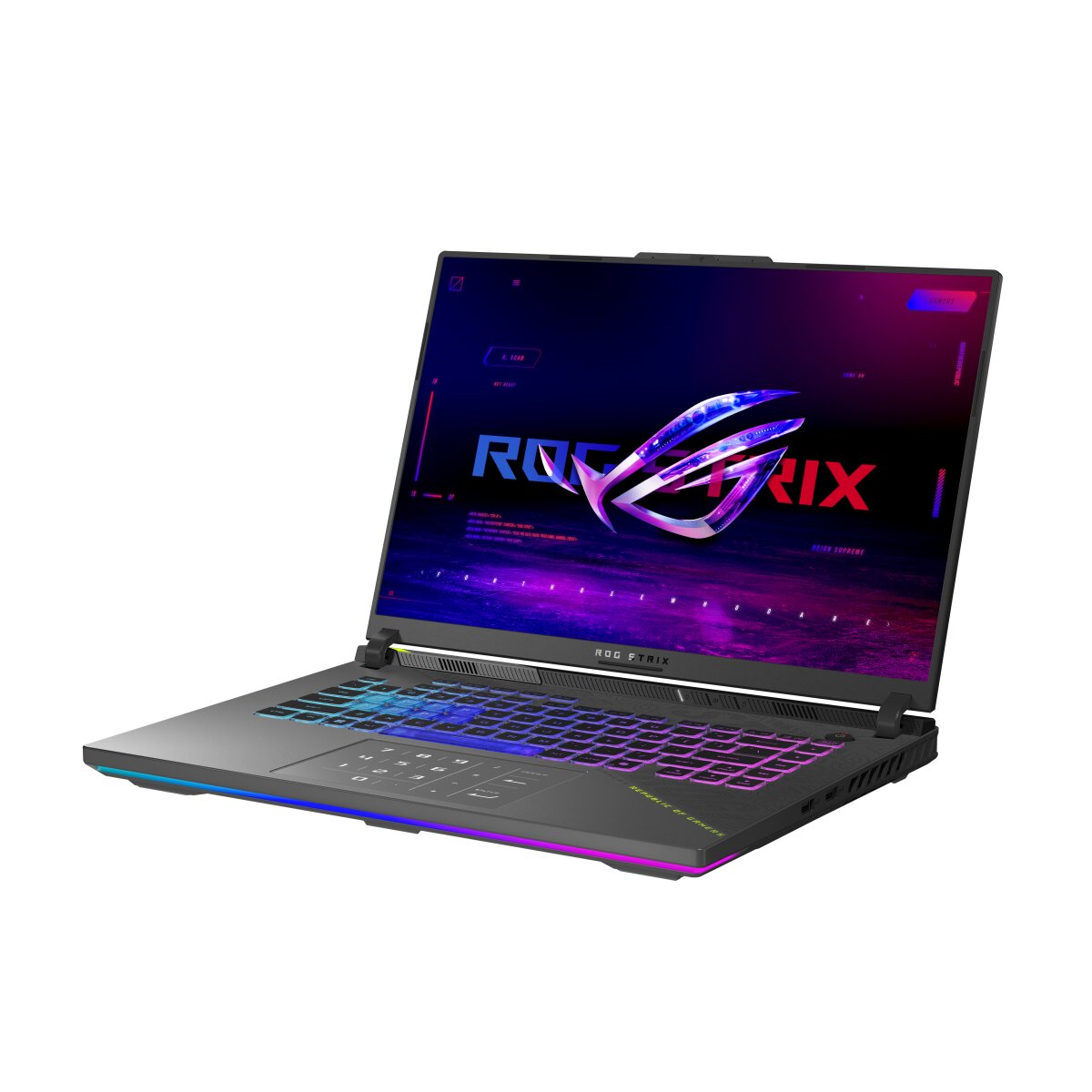

ASUS ROG G614PM-RV075W RAM upgrade specifications

The ASUS ROG Strix G16 G614PM-RV075W laptop features two SO-DIMM slots for DDR5-SDRAM memory upgrades. The system supports a maximum RAM capacity of 64 GB total, with compatible modules operating at 5200 MHz frequency. Memory upgrade specifications indicate SO-DIMM form factor compatibility for both upgrade slots, enabling users to expand the laptop's memory capacity up to the maximum supported configuration.

Additional Notes

• DDR5-5200 modules operate at JEDEC standard speeds, meaning third-party memory without manufacturer-specific tuning profiles will function without BIOS customization, though performance gains from higher-frequency DDR5 variants remain inaccessible without manual overclocking.
• The 2-slot SO-DIMM configuration on the ASUS ROG G614PM-RV075W permits symmetric dual-channel operation only when both slots contain matched capacity modules; single-slot populations default to single-channel mode, reducing memory bandwidth by approximately 50 percent and creating measurable performance degradation in CPU-bound gaming and content creation workloads.
• 64 GB maximum capacity accommodates current and near-term software demands, but upgrade planning from 32 GB to 64 GB requires simultaneous replacement of both modules rather than additive expansion, since retention of existing 32 GB modules leaves no usable slot for a second 32 GB upgrade.
• SO-DIMM physical dimensions restrict compatibility exclusively to notebook-grade memory products; desktop DDR5 UDIMM modules are mechanically incompatible and cannot be force-fitted into these slots without permanent socket damage.
• The 2-slot limitation means that even with maximum capacity achieved, memory expansion beyond 64 GB remains permanently impossible through this hardware platform, requiring a system replacement for future capacity scaling.
• Latency characteristics of DDR5-5200 modules introduce approximately 5-15 nanoseconds higher command latency compared to optimized DDR5-6400 or higher variants, which may compress single-threaded CPU responsiveness in latency-sensitive applications despite identical clock cycle speeds.
