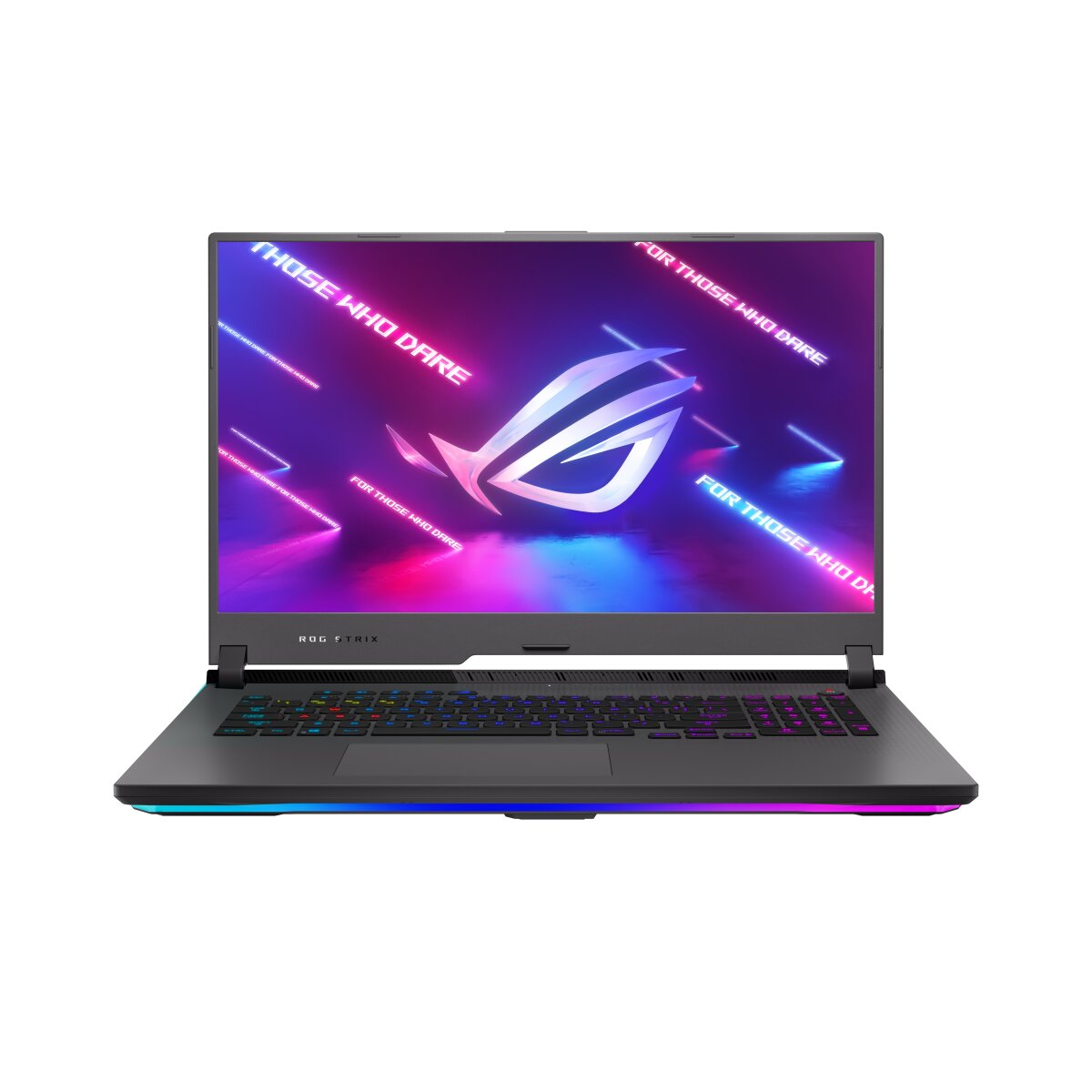

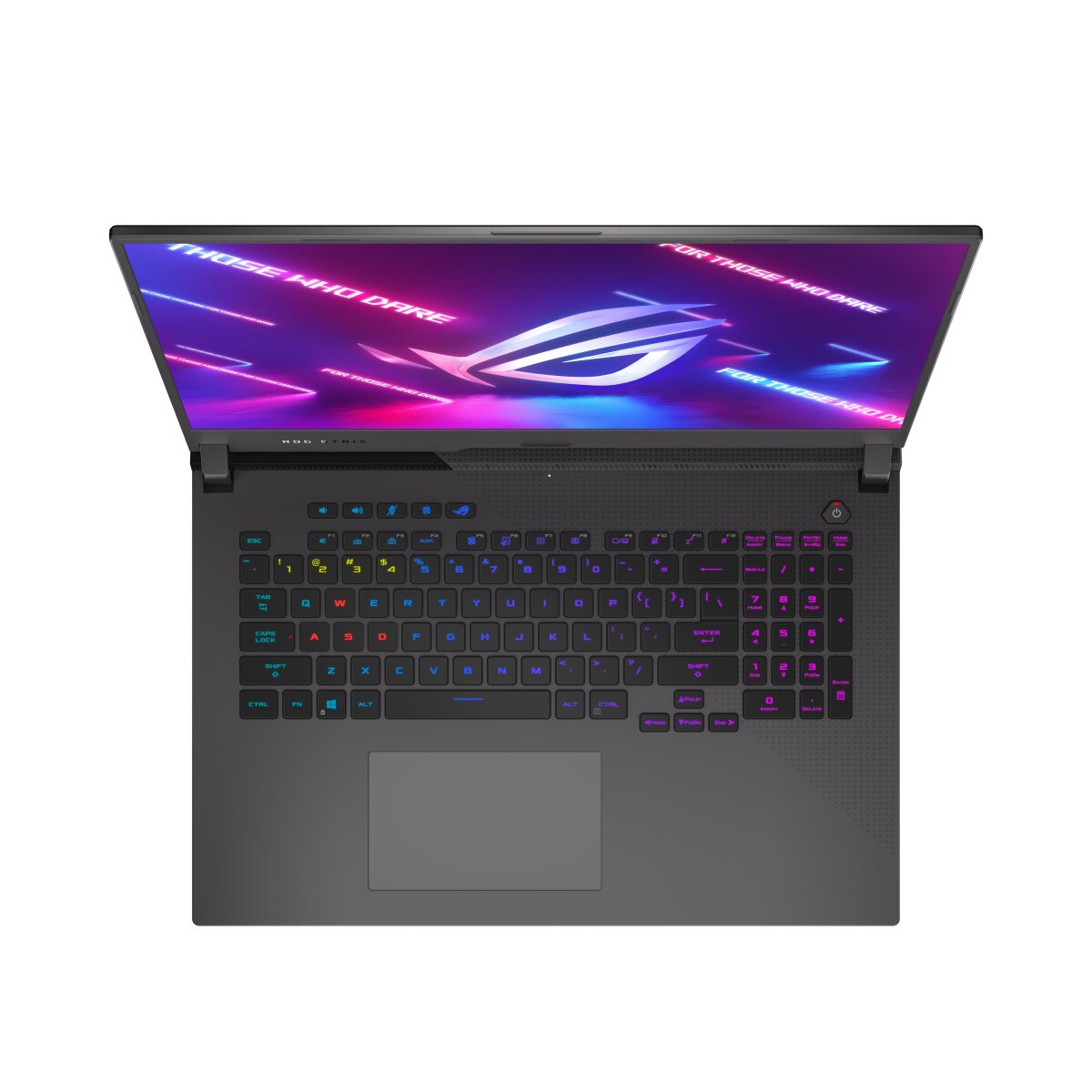

ASUS ROG G713IE-HX021W RAM upgrade specifications

ASUS ROG Strix G17 model G713IE-HX021W features DDR4-SDRAM memory upgradeable through 2x SO-DIMM slots. Maximum RAM capacity reaches 32 GB total. Compatible memory operates at 3200 MHz frequency. Upgrade specifications support DDR4 SO-DIMM form factor modules. Current configuration and maximum capacity specifications enable memory expansion for enhanced multitasking and performance capabilities in gaming and professional applications.

Additional Notes

• The dual slot architecture for the ASUS G713IE-HX021W enables dual channel memory mode which doubling the available bandwidth between the processor and the system memory.
• Hardware limitations on the motherboard chipset restrict the total addressable memory to 32 GB regardless of the physical capacity of individual modules installed in the SO-DIMM slots.
• Utilizing modules with higher frequencies than 3200 MHz will result in downclocking to match the hardwired speed of the memory controller.
• Physical installation requires small form factor modules specifically designed for notebook motherboards rather than full sized desktop memory sticks.
• Latency performance depends on the CAS timing of the installed modules since the system cannot automatically overclock memory via XMP profiles in most BIOS configurations.
• Replacing factory installed modules involves removing the entire bottom chassis panel which may expose internal components to electrostatic discharge risks during the upgrade process.
• Mismatched module capacities or timings across the two slots will force the system to operate in single channel mode or default to the lowest common denominator for stable operation.
