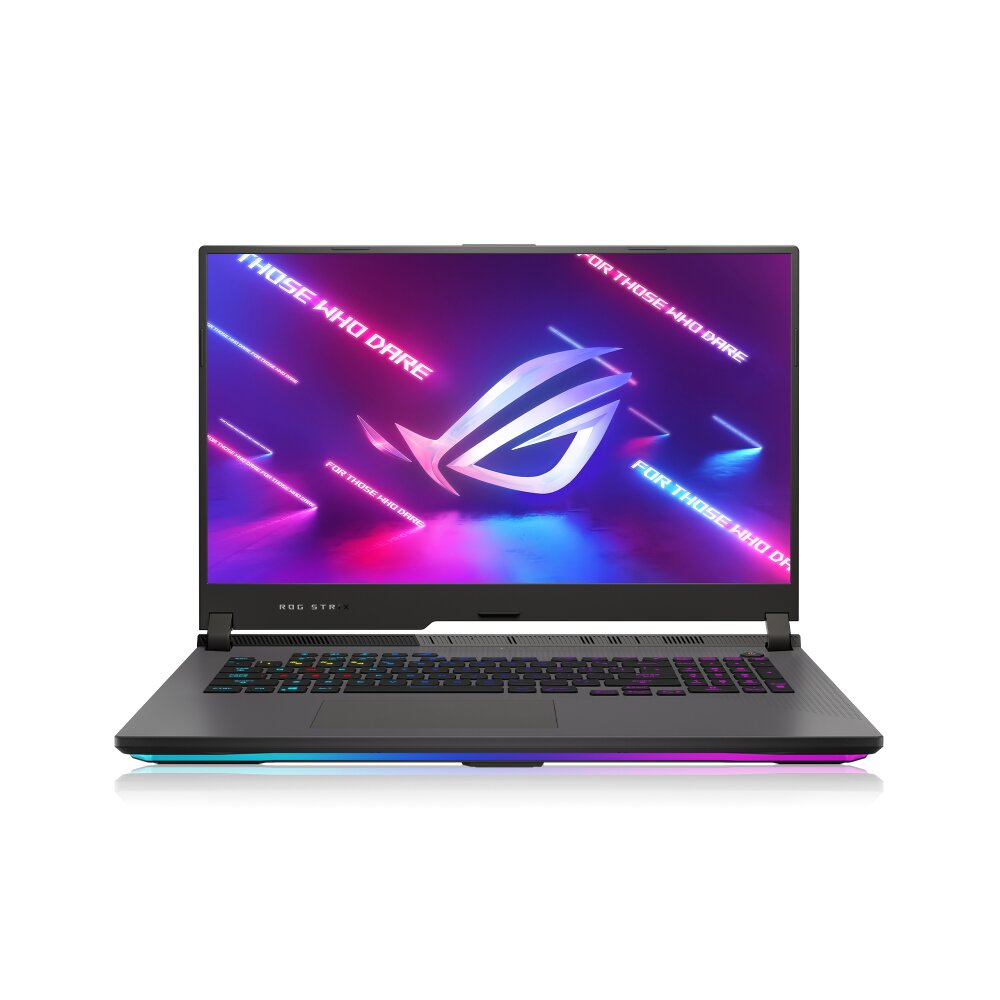

ASUS ROG G713IM-HX055W RAM upgrade specifications

ASUS ROG Strix G17 G713IM-HX055W laptop features 2x SO-DIMM slots for memory upgrades. Specifications support DDR4-SDRAM operating at 3200 MHz frequency. Maximum RAM capacity reaches 32 GB total. Compatible upgrade modules must utilize SO-DIMM form factor. Memory specifications allow configurations up to 32 GB for enhanced multitasking performance. Existing memory slots accommodate standard DDR4 modules. Upgrade path supports doubling capacity within maximum specifications.

Additional Notes

• The ASUS ROG G713IM-HX055W accepts only DDR4 SO-DIMM modules, which restricts upgrades to laptop-specific memory form factors and excludes desktop DDR4 variants.
• With 2 slots available and a 32 GB maximum capacity ceiling, the upgrade path is constrained to either 2x16 GB configurations; the laptop cannot accommodate asymmetrical pairing beyond this limit without hitting the total capacity cap.
• DDR4-3200 MHz is the qualified frequency; memory modules rated above 3200 MHz will be downclocked to this specification, negating any performance gain from higher-speed DIMMs and potentially creating compatibility risk if BIOS does not recognize the higher-rated modules.
• SO-DIMM installation requires removal of the bottom panel and typically demands disconnection of the battery; the upgrade process is not field-user-friendly and may void warranty coverage if performed outside authorized service channels.
• Dual-channel configuration is achievable only with matching DIMM pairs; mismatched capacities or single-DIMM installations will result in reduced memory bandwidth, creating latency penalties during multi-threaded workloads.
• The 32 GB hard ceiling reflects the memory controller's addressable range on the underlying processor; expansion beyond this threshold is not possible through any upgrade path on this chassis.
