ASUS ROG G713IM-HX055 RAM upgrade specifications

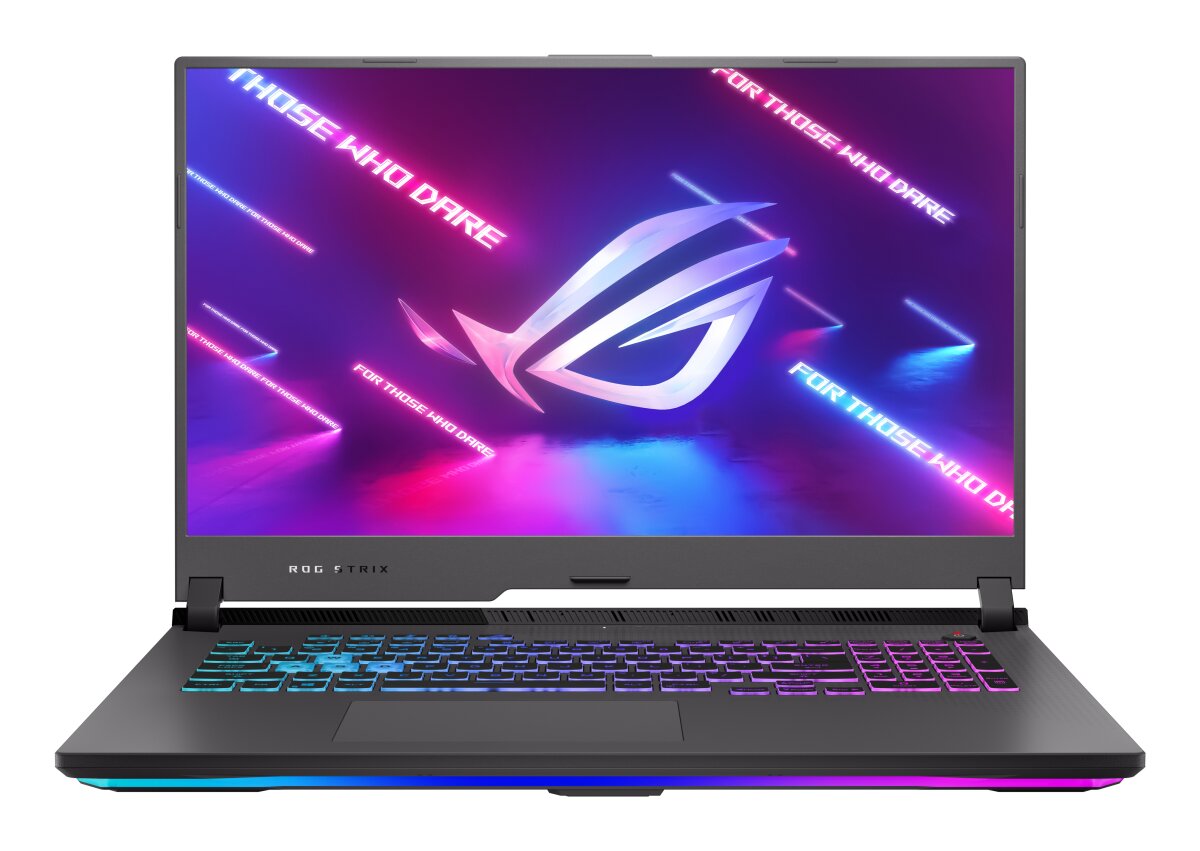

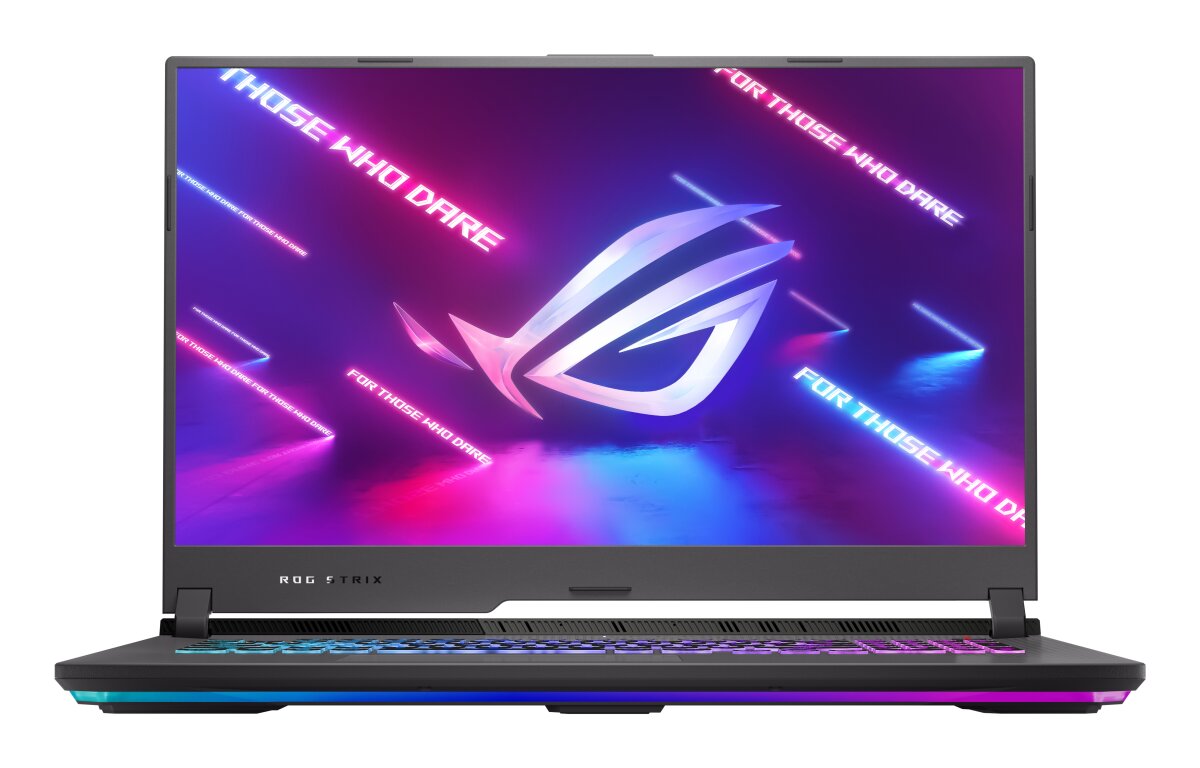

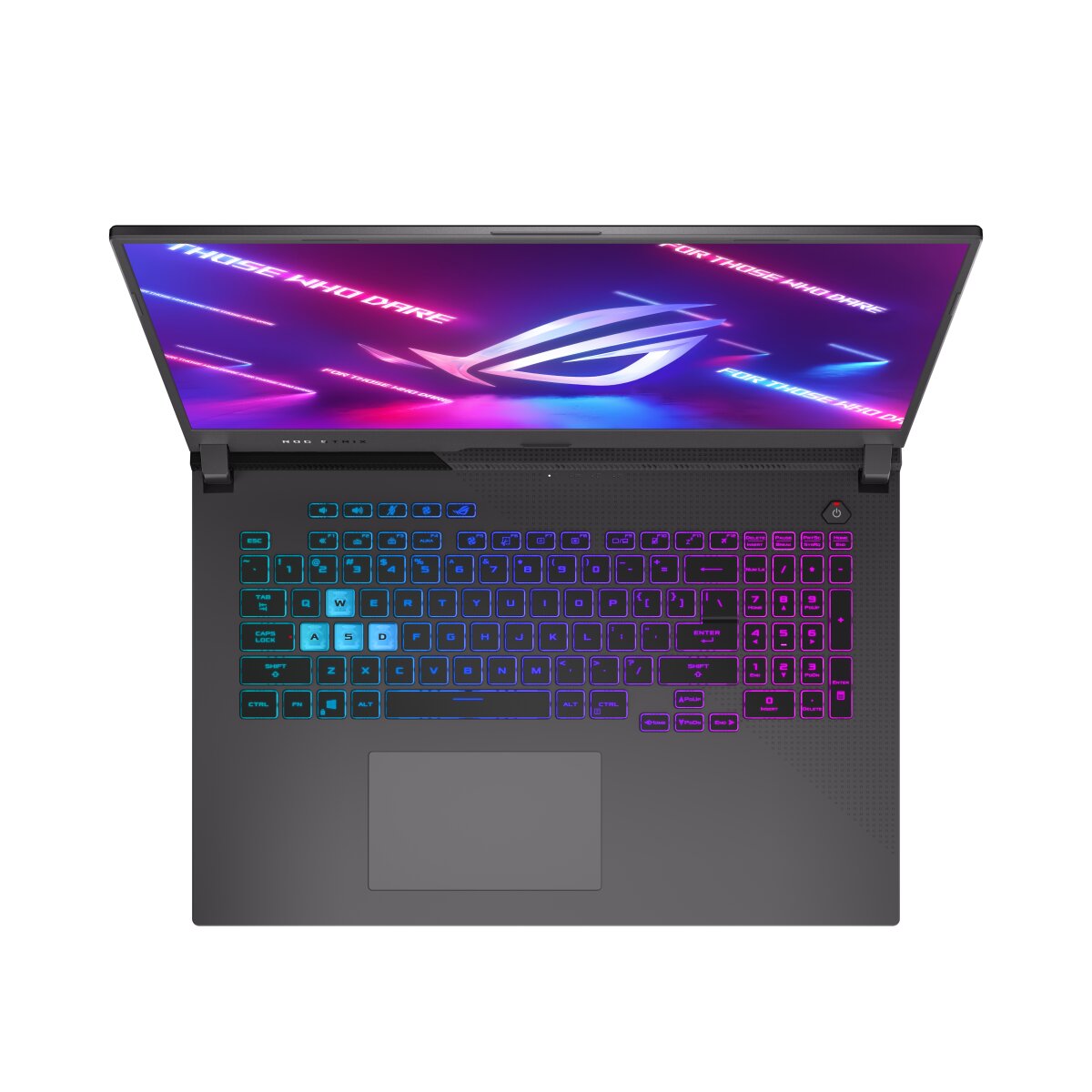

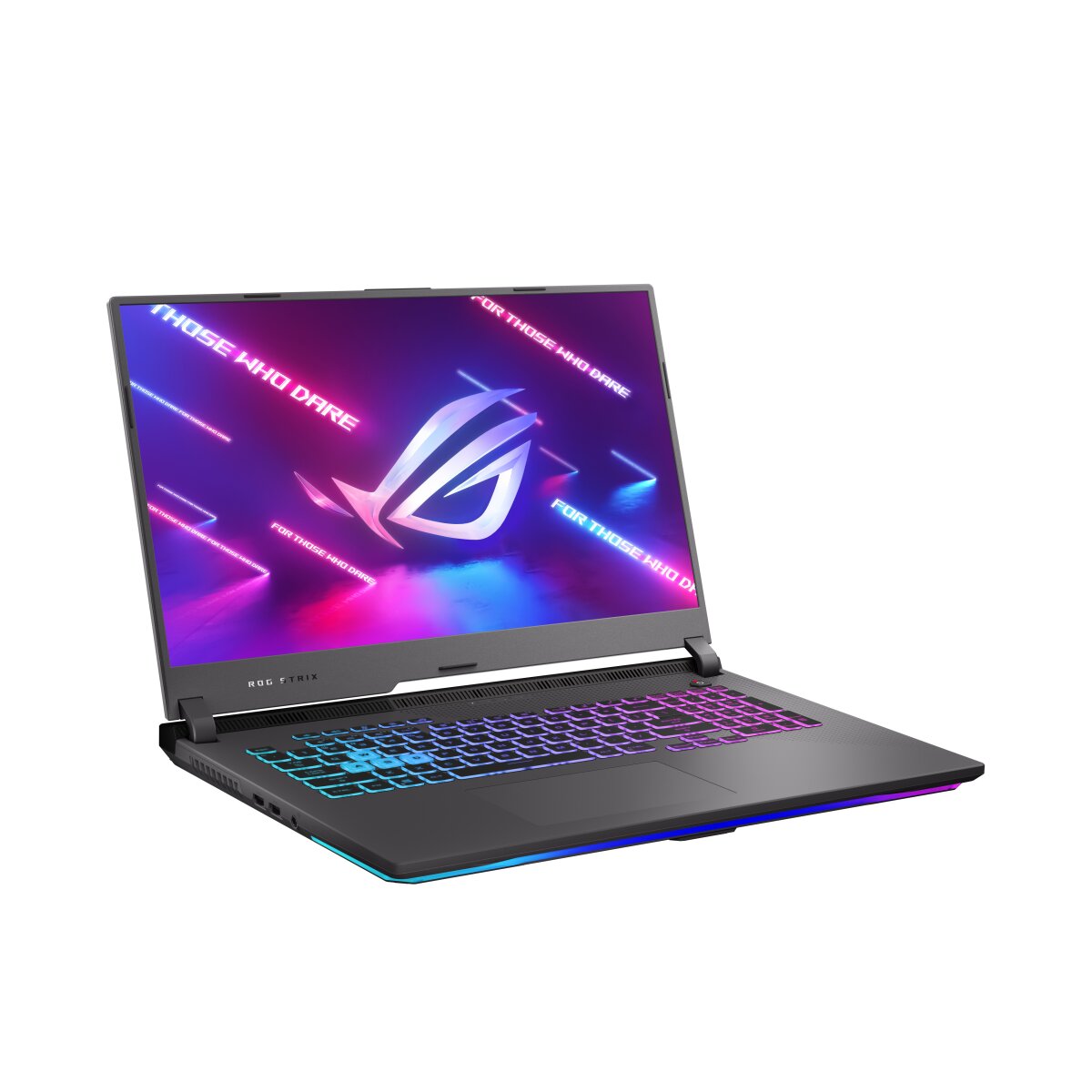

ASUS ROG Strix G17 model G713IM-HX055 features two SO-DIMM slots supporting DDR4-SDRAM memory upgrades. Maximum RAM capacity reaches 32 GB, with compatible modules operating at 3200 MHz frequency. Existing memory can be expanded through the dual SO-DIMM slots, enabling users to upgrade from factory configurations. Specifications indicate SO-DIMM form factor compatibility for this gaming laptop series. DDR4-SDRAM technology at 3200 MHz frequency supports performance-oriented upgrades for the G713IM-HX055 model within the maximum 32 GB capacity constraint.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 26 October 2022 |
Additional Notes
- Dual channel mode functionality requires identical capacity and frequency across both physical slots to maximize memory controller throughput.
- The hardware architecture of the ASUS ROG G713IM-HX055 limits total addressable memory to 32 GB regardless of higher capacity modules entering the market.
- Installation of memory modules exceeding 3200 MHz will result in automatic downclocking to remain within the defined bus speed limits.
- Upgrading memory requires the removal of the bottom chassis cover which may involve delicate cable ribbons for integrated light bars.
- The SO-DIMM form factor necessitates 260 pin modules specifically designed for mobile chipsets rather than desktop DIMM counterparts.
- Mixing internal latency timings between two different brands can trigger system instability or boot failures on this specific firmware version.
- Thermal dissipation within the compact memory compartment relies on passive airflow provided by the primary cooling fans.
