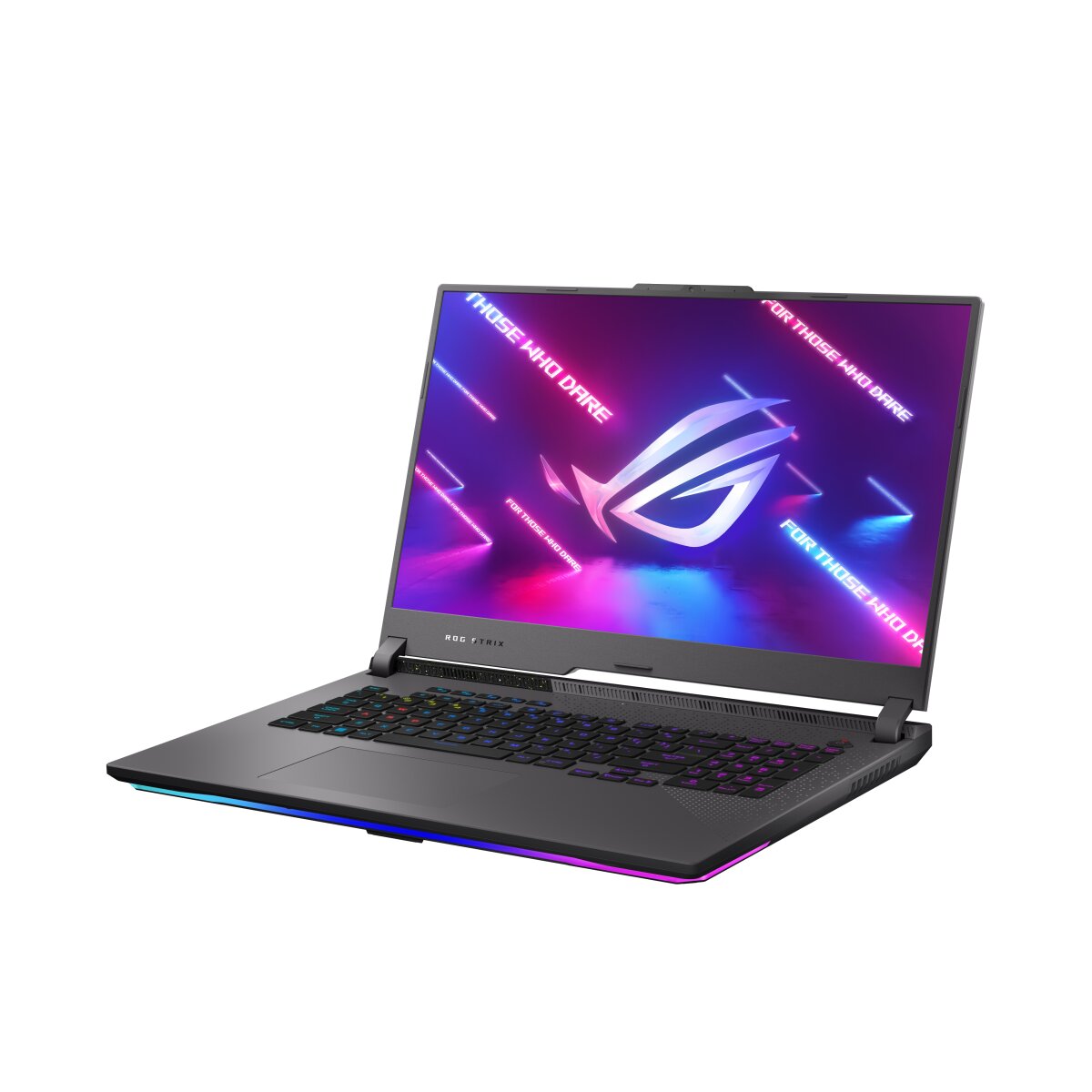

ASUS ROG G713PV-HX048W RAM upgrade specifications

ASUS ROG Strix G17 G713PV-HX048W features DDR5-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum capacity of 32 GB. Compatible RAM modules operate at 4800 MHz frequency. Upgrade specifications indicate DDR5 memory type in SO-DIMM form factor for laptop expansion. Maximum RAM capacity reaches 32 GB total across both available slots on ROG Strix G17 series gaming laptop.

Additional Notes

• The ASUS ROG G713PV-HX048W accepts only DDR5 modules, making DDR4 memory physically and electrically incompatible due to different notch positions and voltage requirements.
• The 32 GB ceiling limits configurations to either 2x16 GB modules or asymmetric combinations, preventing use of higher-density 24 GB or 32 GB individual modules.
• DDR5-4800 represents the JEDEC baseline standard, meaning modules rated at 5200 MHz, 5600 MHz, or higher will downclock to 4800 MHz operation without delivering advertised performance gains.
• SO-DIMM form factor restricts compatibility to laptop-specific memory modules, as desktop DIMM variants will not physically fit the slot design.
• Dual-channel architecture requires matched pairs to maintain optimal bandwidth, though mismatched capacities will still function in asymmetric mode with reduced performance on the larger module.
• The 4800 MHz frequency specification indicates maximum supported speed by the memory controller, attempting to force higher speeds through XMP/EXPO profiles may cause boot failures or system instability.
• Occupied slot configuration affects heat dissipation patterns, as populated adjacent SO-DIMM slots share thermal zones that may throttle under sustained memory-intensive workloads.
• DDR5's on-die ECC operates independently of user-accessible capacity, providing background error correction without consuming addressable memory space or requiring specific module selection.
• Voltage regulation occurs on DDR5 modules themselves rather than the motherboard, meaning incompatible PMIC designs on off-specification modules may prevent POST completion.
• Warranty preservation typically requires avoiding disassembly of soldered components, though SO-DIMM replacement generally falls within user-serviceable maintenance parameters depending on regional regulations.
