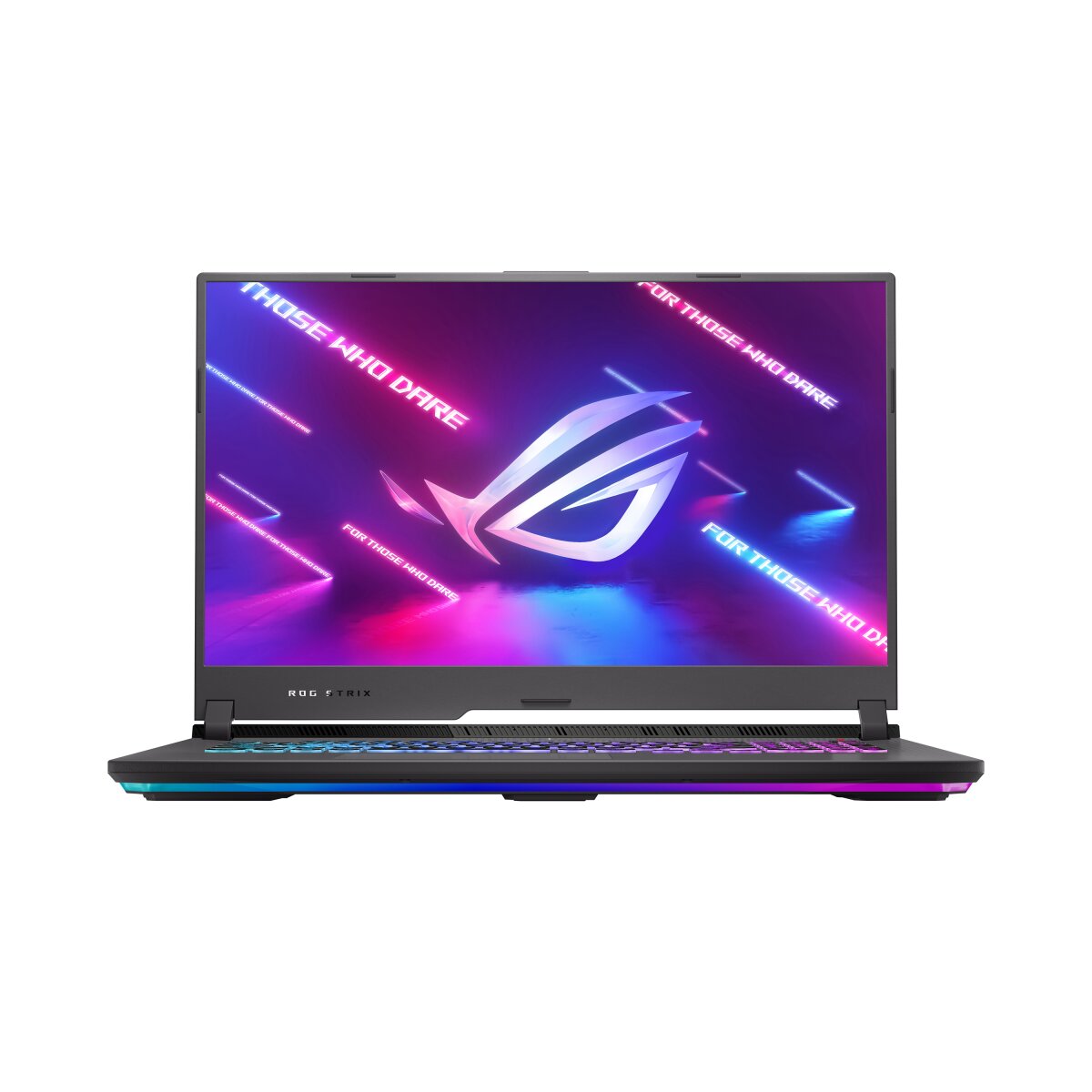

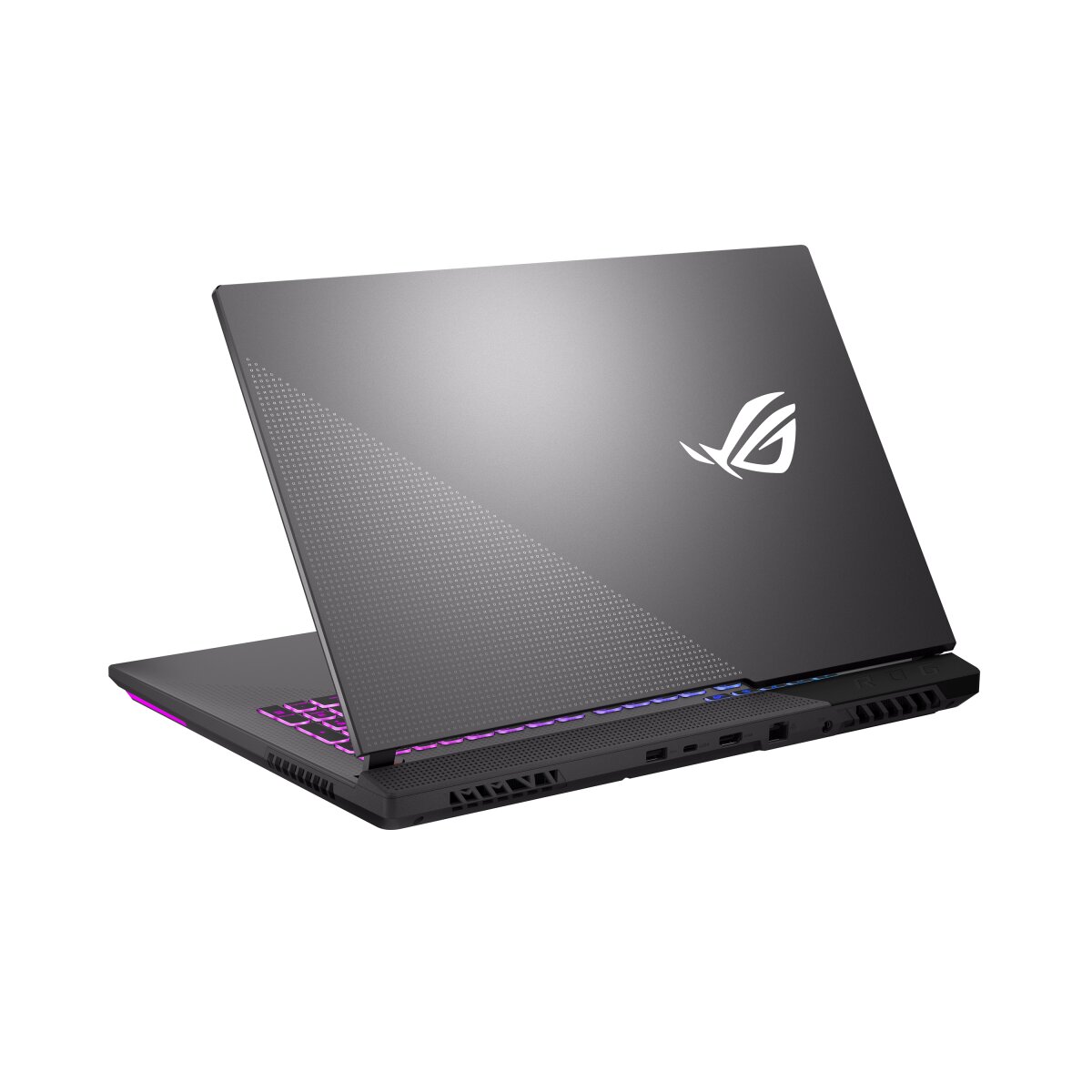

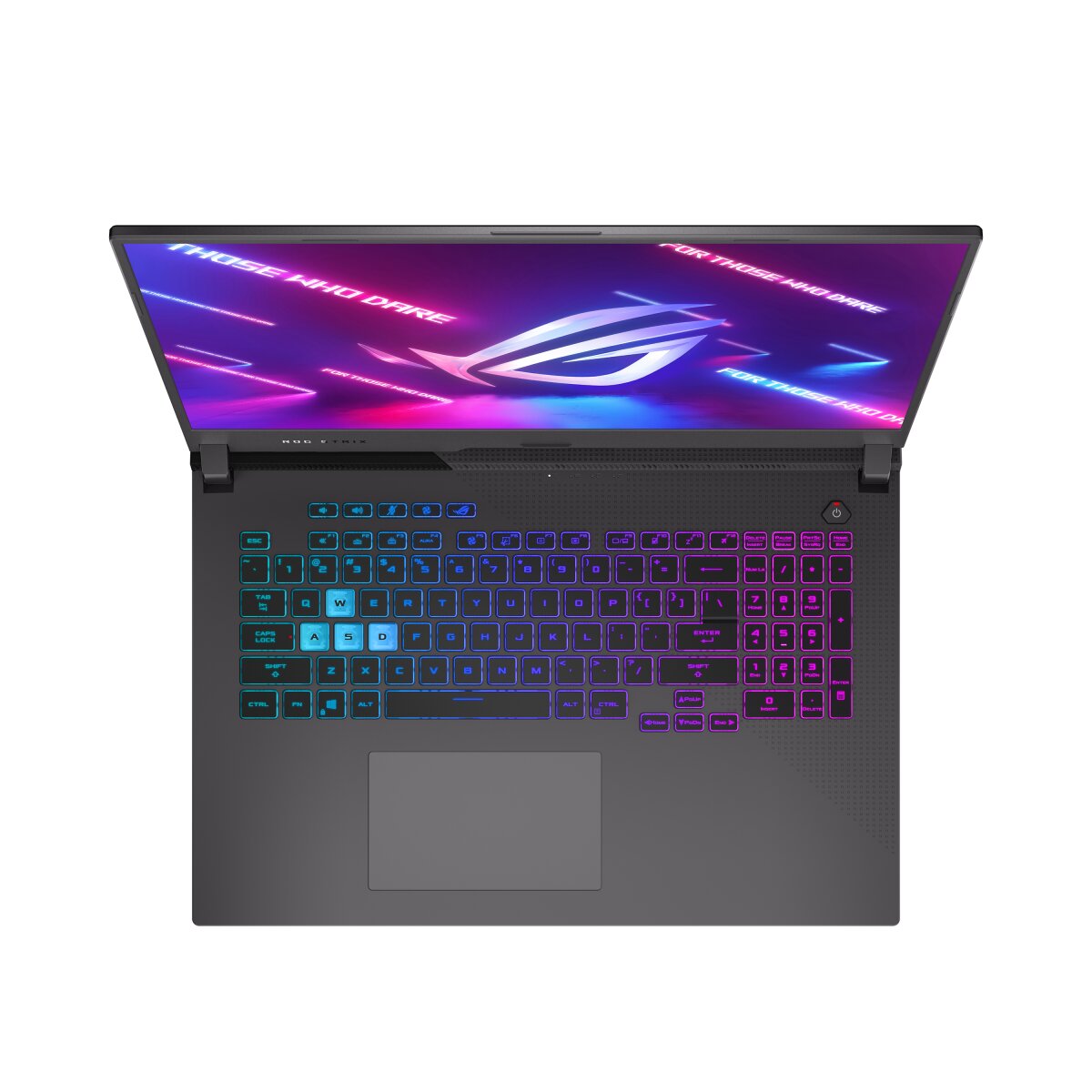

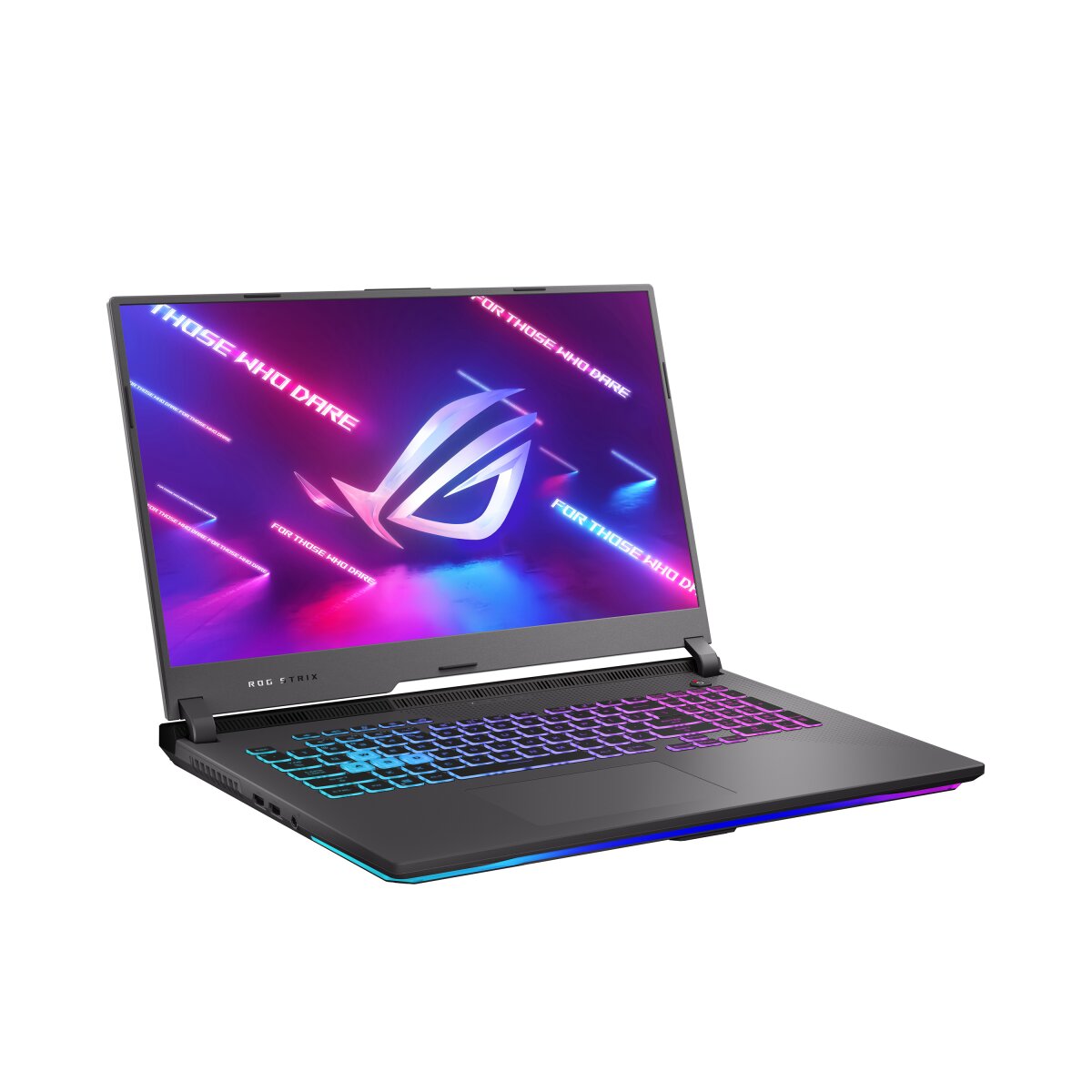

ASUS ROG G713QE-RB74 RAM upgrade specifications
ASUS ROG Strix G17 G713QE-RB74 laptop supports DDR4-SDRAM memory upgrades through two SO-DIMM slots. Maximum compatible RAM capacity reaches 32 GB total. Memory specifications include 3200 MHz frequency operation. Upgrade configurations utilize standard SO-DIMM form factor modules. Compatible memory modules must meet DDR4 specifications and frequency requirements for optimal performance in this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 16 October 2021 |
Additional Notes
- Dual channel architecture requires matching memory modules in both slots to provide maximum memory bandwidth for the processor.
- The maximum capacity cap of 32 GB indicates a motherboard firmware restriction that prevents the usage of high density 32 GB single sticks.
- Utilizing memory with speeds exceeding 3200 MHz results in downclocking to the system bus limit rather than achieving advertised module frequencies.
- Integrated graphics performance in the ASUS ROG G713QE-RB74 relies heavily on system RAM speed and will suffer if single channel configurations are used.
- The SO-DIMM form factor necessitates the use of 260-pin modules specifically designed for mobile chipsets rather than desktop equivalents.
- Accessing the memory slots requires the removal of the bottom chassis panel which involves disconnecting delicate internal ribbon cables for the lighting system.
- Physical height limitations within the laptop casing prohibit the installation of memory modules equipped with thick heat spreaders.
- Mixing modules with different latency ratings forces the system to operate at the timings of the slowest installed component.
