ASUS ROG G713QM-HG023 RAM upgrade specifications
ASUS ROG Strix G17 model G713QM-HG023 features DDR4-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum capacity of 32 GB total. Compatible memory operates at 3200 MHz frequency. Upgrade specifications enable expansion from factory configuration to full 32 GB capacity using compatible DDR4 SO-DIMM modules matching specifications provided.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 02 February 2021 |
Additional Notes
- Dual channel mode requires identical module capacities in both slots of the ASUS ROG G713QM-HG023 to maintain optimal memory bandwidth during intensive tasks.
- The chipset architecture limits the total addressable memory to 32 GB, rendering higher capacity modules incompatible or unrecognized by the system firmware.
- Utilizing memory modules with higher frequency ratings than 3200 MHz results in automatic downclocking to match the integrated memory controller specifications.
- The SO-DIMM form factor necessitates the use of small outline modules, as standard desktop DIMMs are physically incompatible with the internal motherboard layout.
- Simultaneous occupation of both physical slots is required to achieve the highest possible data transfer rates for the processor.
- Installing modules with differing CAS latency values forces the system to operate at the timings of the slowest installed stick, potentially increasing overall system latency.

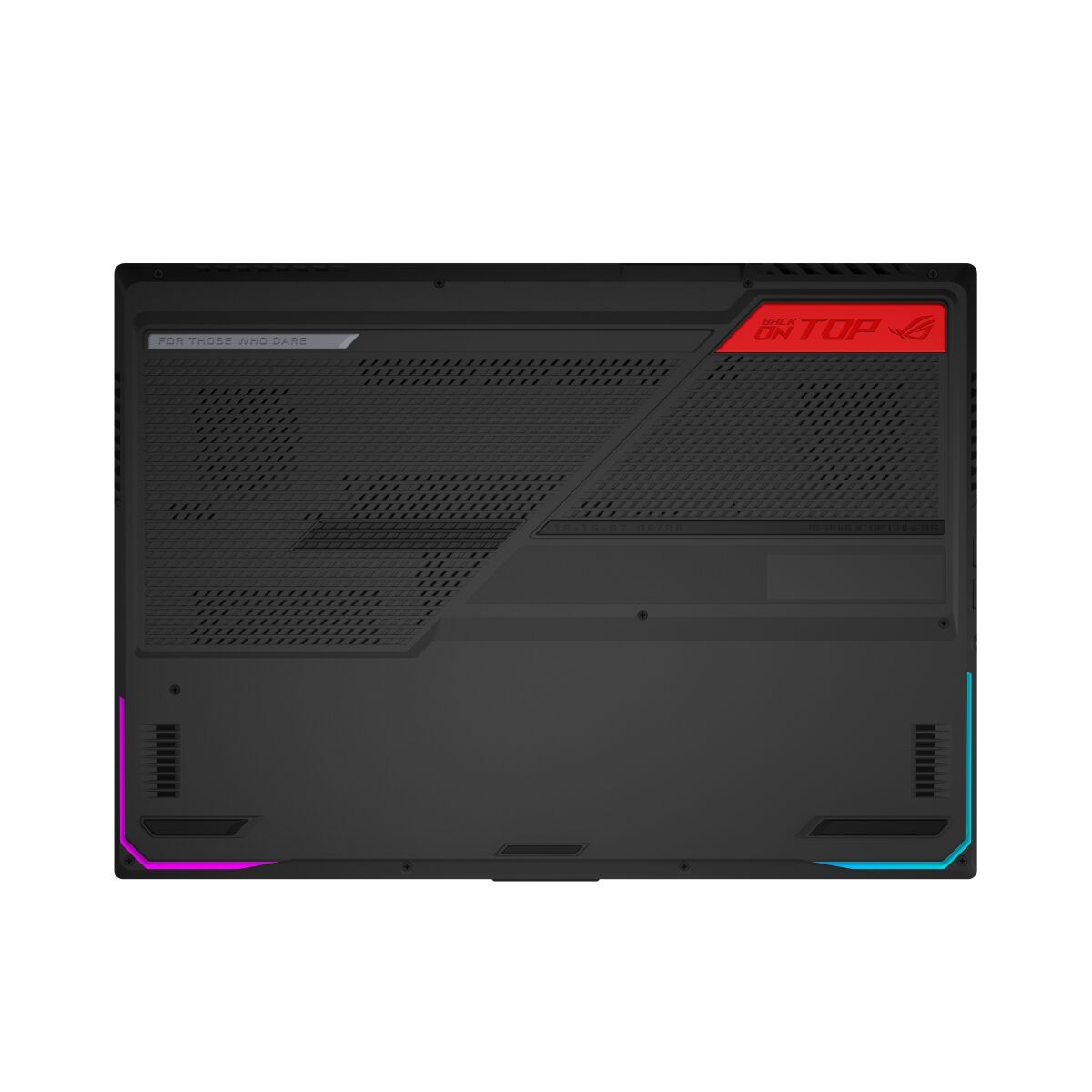

- Internal access for memory replacement requires the removal of the bottom chassis panel, which involves navigating delicate internal ribbon cables for the integrated lighting zones.
