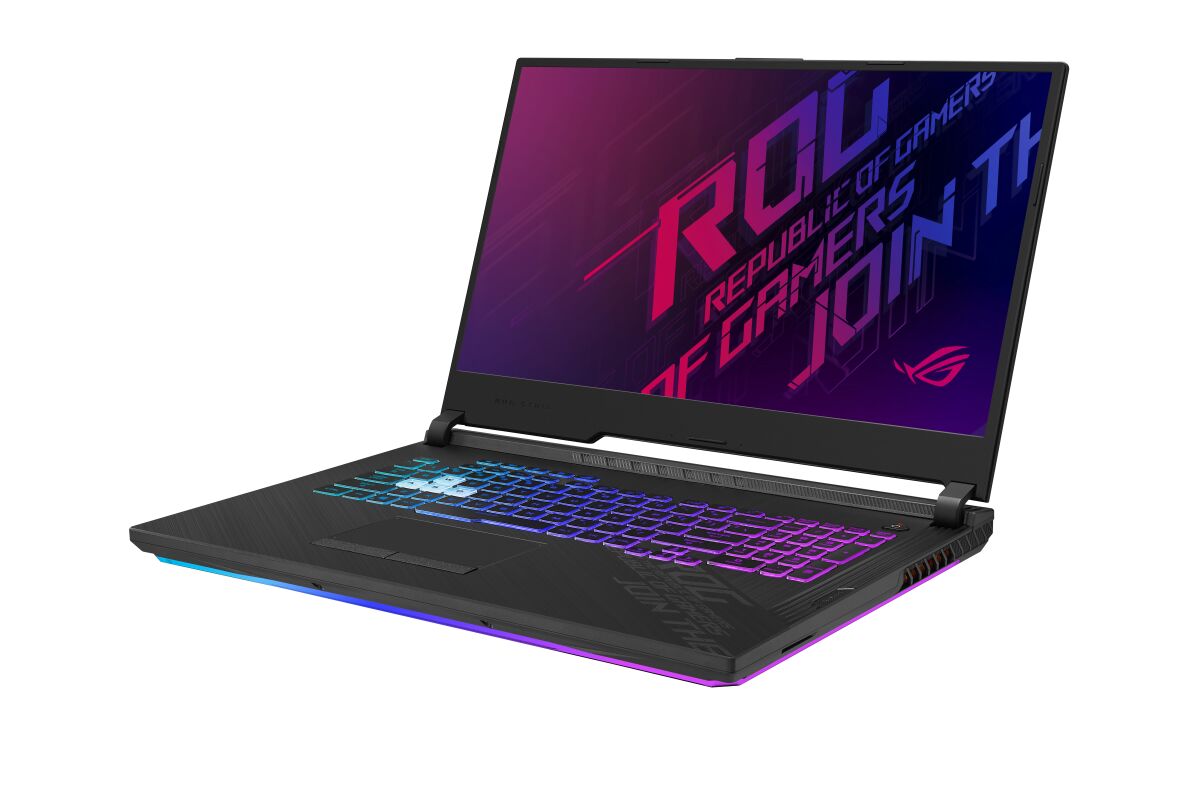

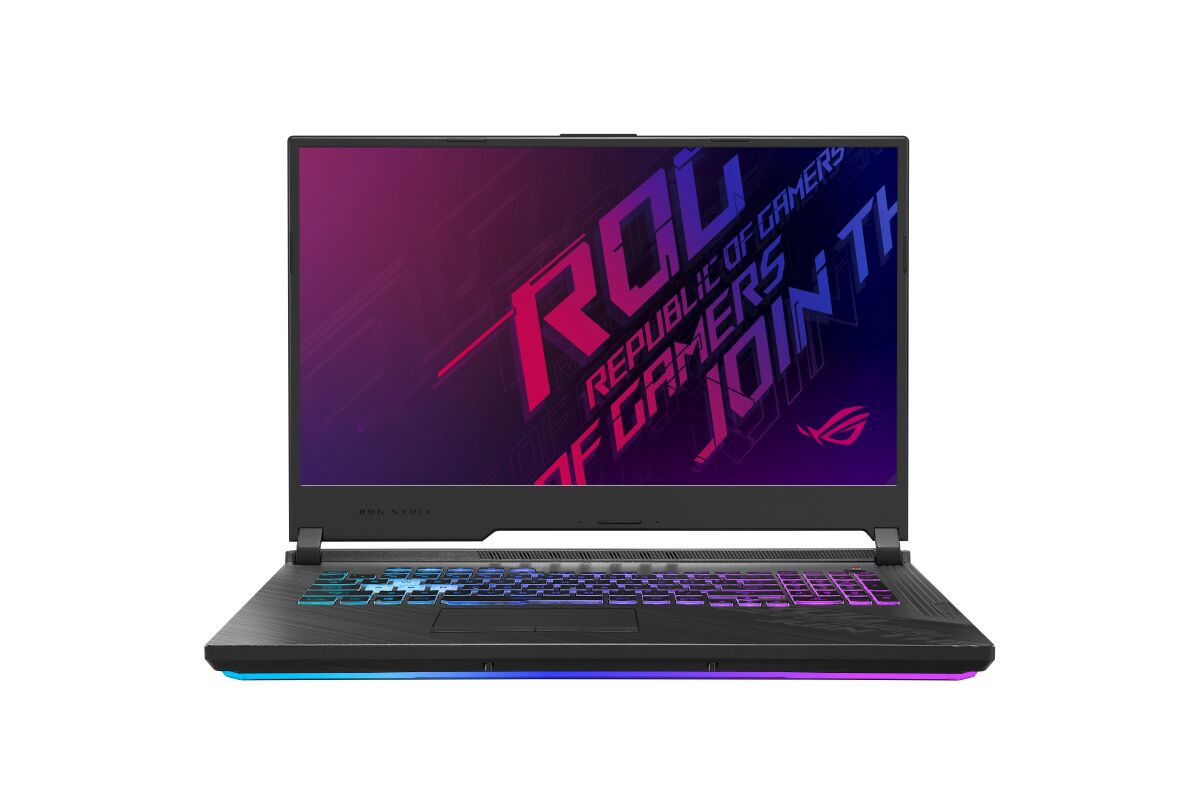

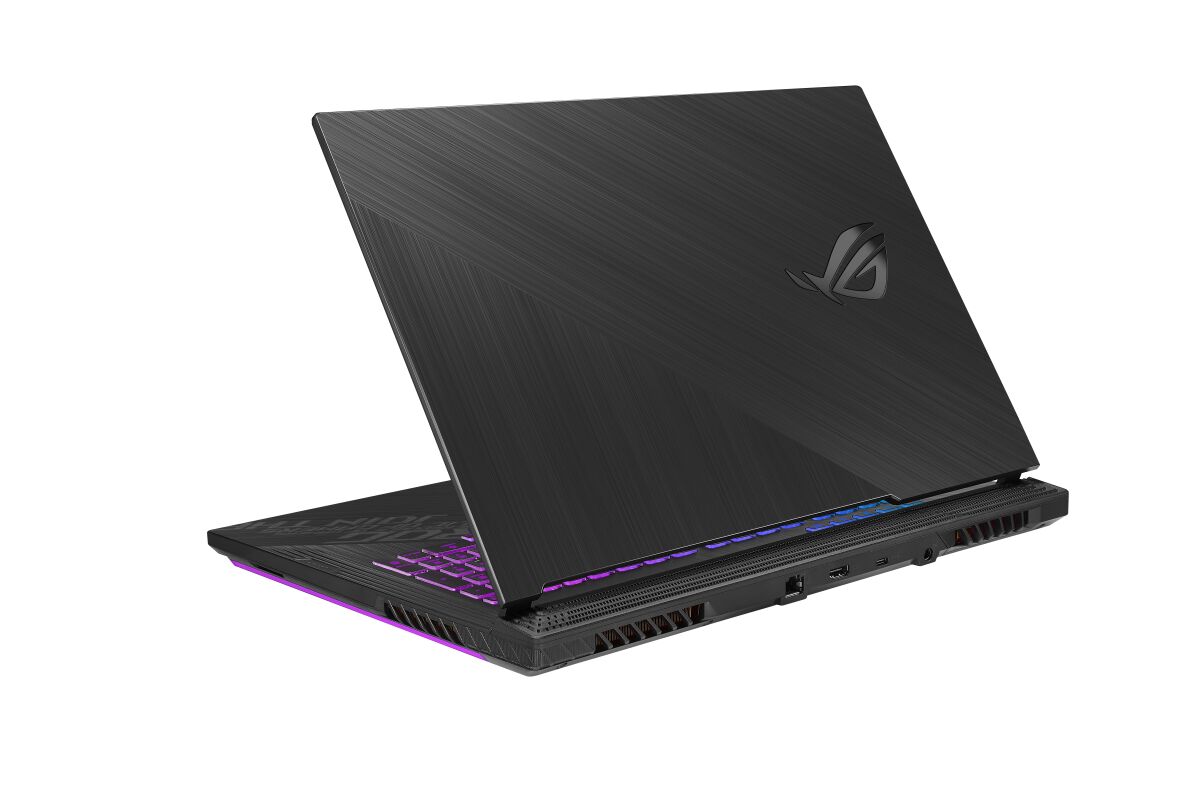

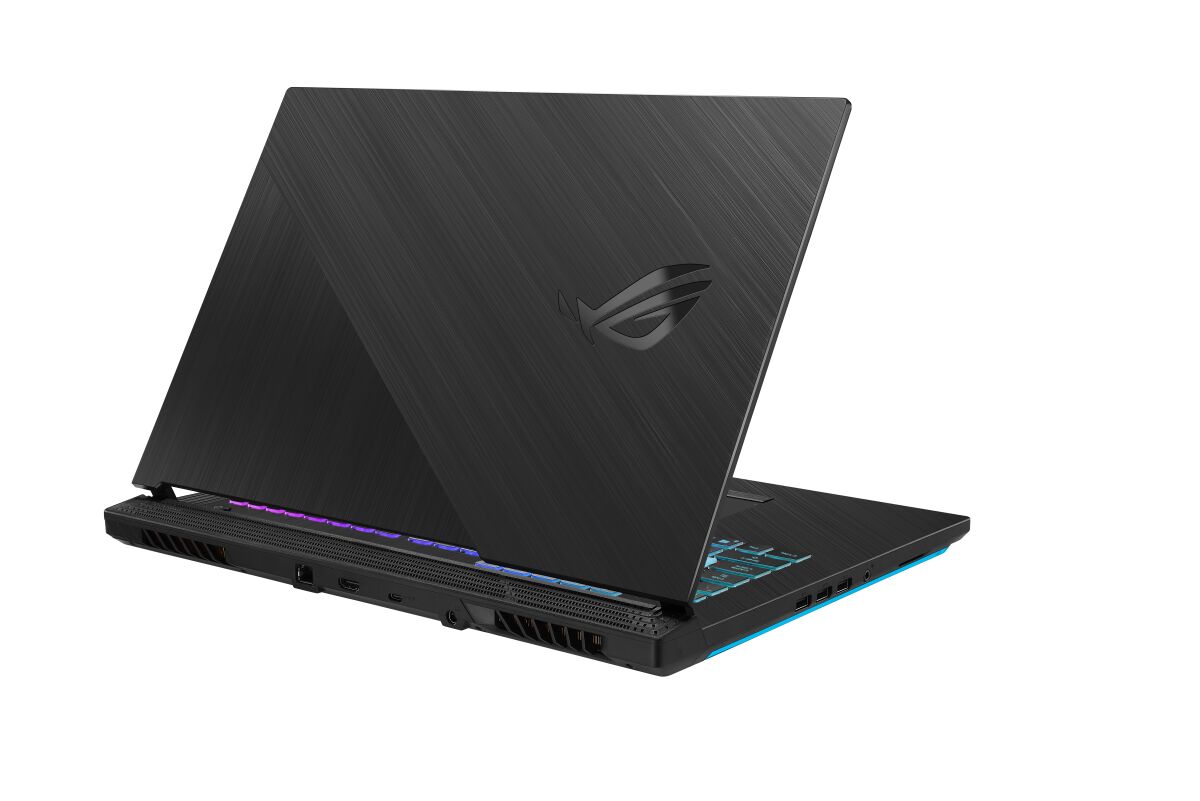

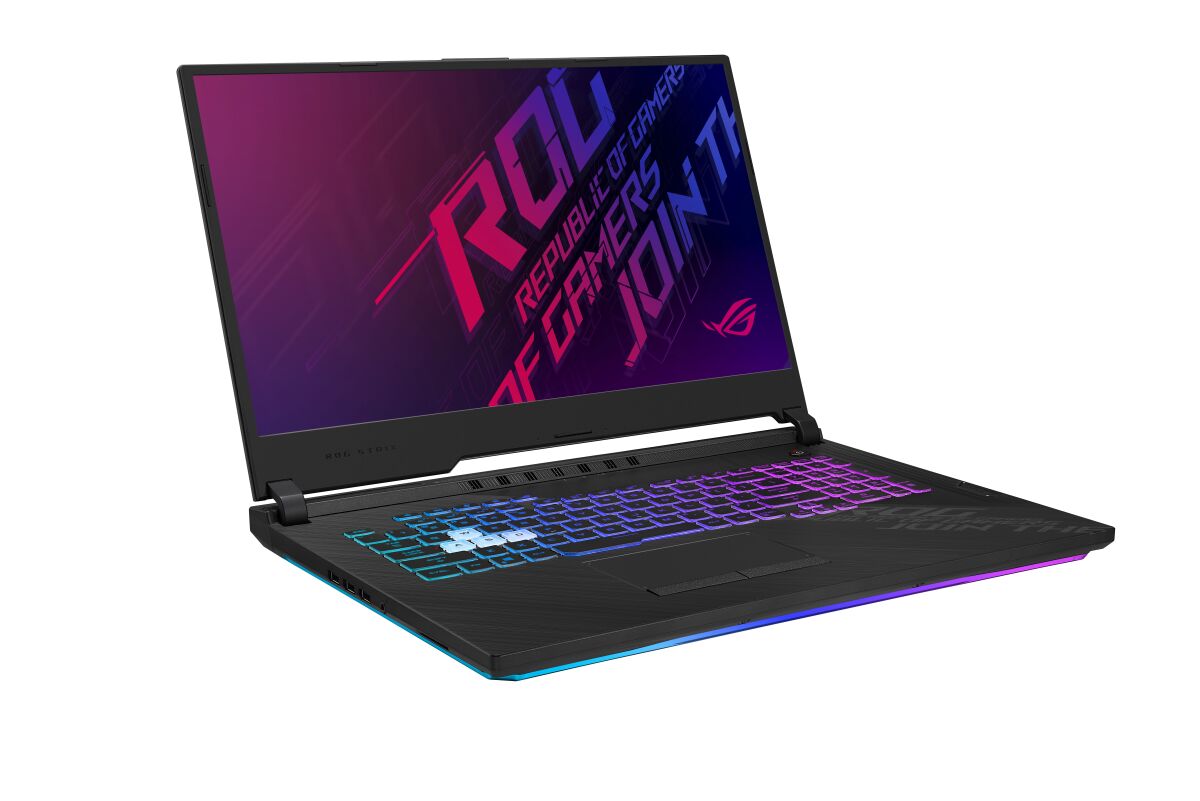

ASUS ROG G713QR-HG016 RAM upgrade specifications

ASUS ROG Strix G17 G713QR-HG016 laptop memory upgrade specifications indicate DDR4-SDRAM compatibility with 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB total. Compatible memory modules operate at 3200 MHz frequency and utilize SO-DIMM form factor specifications. RAM upgrade options accommodate standard DDR4 memory configurations for this gaming laptop model.

Additional Notes

• Dual channel mode requires identical module densities across both SO-DIMM slots to prevent memory bandwidth halving.
• The absence of soldered memory on the ASUS G713QR-HG016 motherboard allows for the total replacement of factory modules if faulty.
• Installing modules with lower latency timings than the factory defaults can improve CPU-bound gaming frame rates without exceeding the 3200 MHz clock ceiling.
• The 32 GB capacity limit indicates the BIOS or memory controller does not officially support 32 GB high-density sticks in a 64 GB configuration.
• Standard voltage DDR4 SO-DIMMs are necessary to ensure system stability as the chipset lacks support for legacy DDR3L or newer DDR5 power delivery standards.
• Upgrading beyond the pre-installed capacity necessitates the removal of existing modules because no empty expansion slots remain available.
• Memory speed will automatically downclock to match the slowest installed module if mismatched frequencies are used in the two available slots.
• Accessing the internal slots involves removing the bottom chassis panel which may requires careful handling of the integrated LED light bar ribbon cables to avoid hardware damage.
