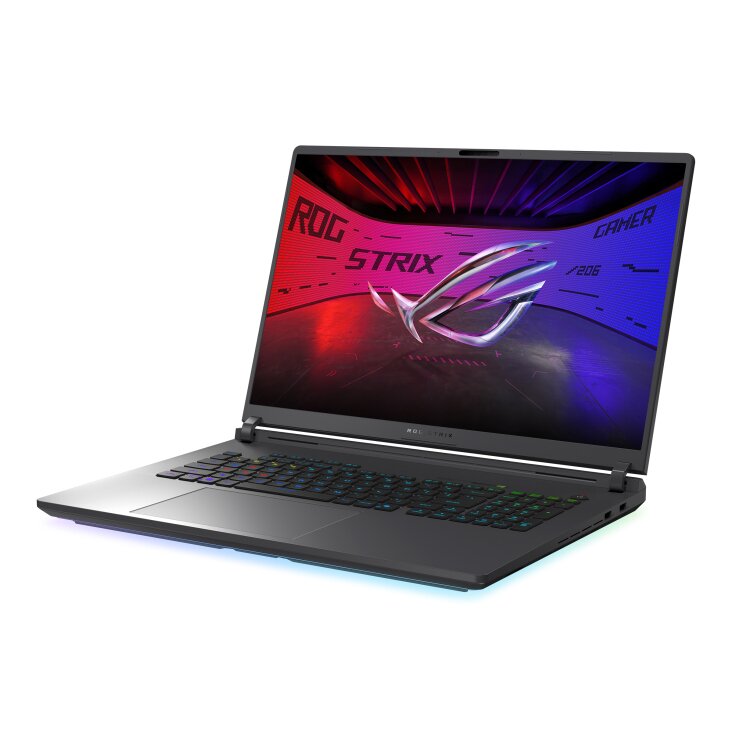

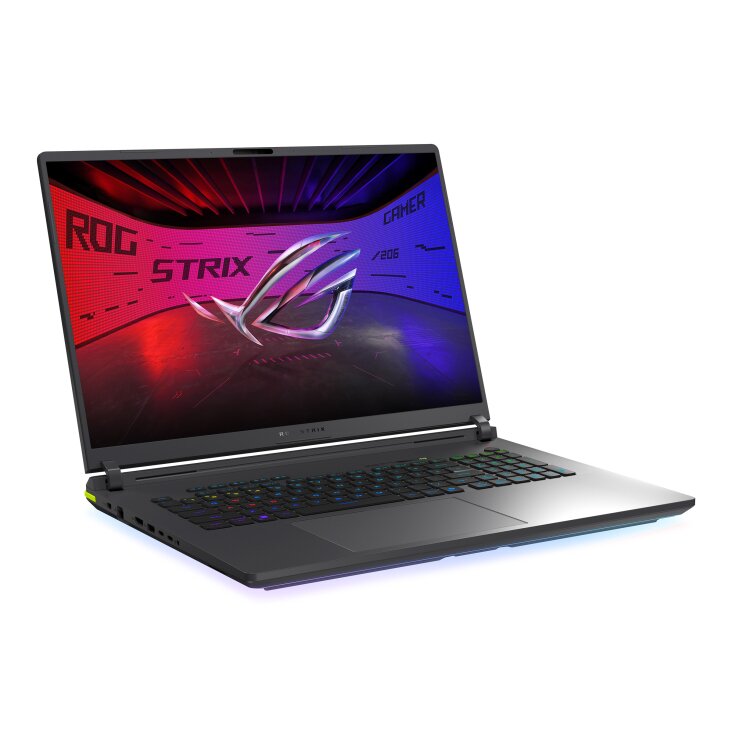

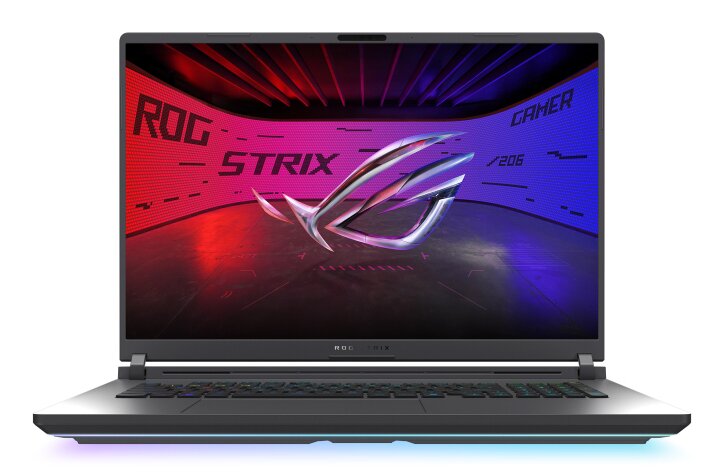

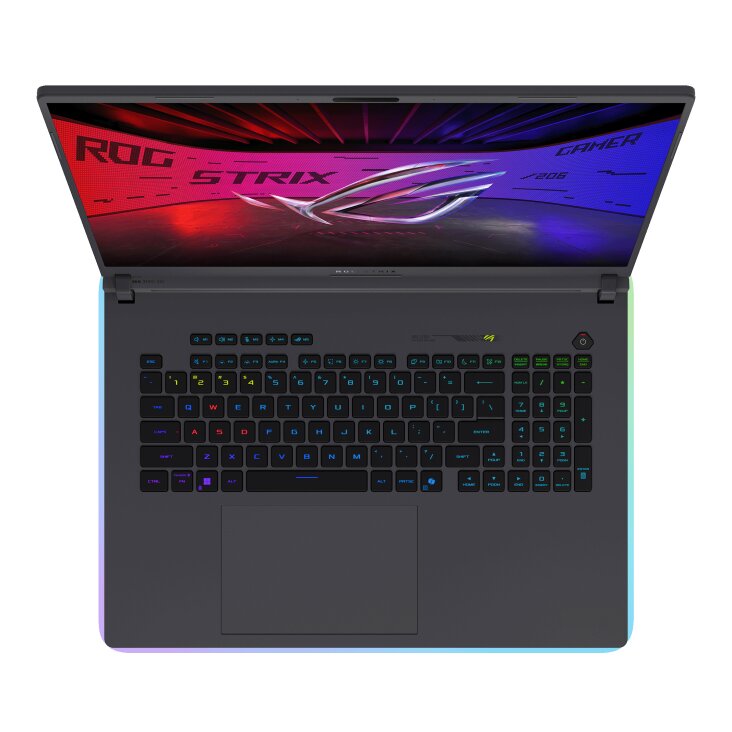

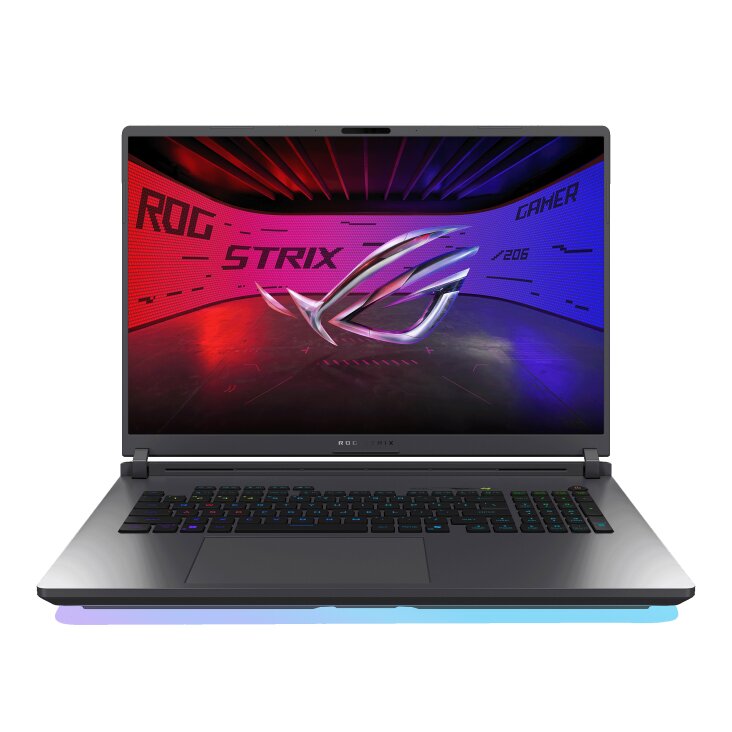

ASUS ROG G815JHR-S8029W RAM upgrade specifications

ASUS ROG Strix G18 G815JHR-S8029W laptop features DDR5-SDRAM memory upgrade capabilities with 2x SO-DIMM slots supporting maximum capacity of 64 GB. Memory specifications include DDR5 technology operating at 5600 MHz frequency. Upgrade compatibility requires SO-DIMM form factor modules. Current configuration and available slots allow for memory expansion to reach maximum specifications of 64 GB total capacity.

Additional Notes

• The ASUS ROG G815JHR-S8029W accommodates DDR5 memory exclusively, which means DDR4 modules cannot be installed regardless of available slot count. This incompatibility is permanent and unalterable through firmware.
• The 2 SO-DIMM slot configuration creates a single upgrade pathway: both slots must contain matching capacity modules to achieve the 64 GB maximum. Asymmetrical pairing (such as 32 GB + 16 GB) operates at reduced bandwidth efficiency due to memory controller architecture constraints.
• Native 5600 MHz operation requires DDR5 modules rated specifically for this frequency or higher. Purchasing modules rated below 5600 MHz results in automatic frequency degradation to the module's lower specification, reducing system memory throughput.
• SO-DIMM form factor restricts module length to approximately 67 mm. Large heatspreaders or tall thermal management accessories on replacement modules may contact internal components or impede installation, particularly near the memory slot area.
• The laptop's integrated memory controller negotiates timing parameters with DDR5 modules during boot. Mixing first and second generation DDR5 variants (different JEDEC standards within the 5600 MHz specification) may produce stability issues or force the system to operate at conservative timings, negating performance gains.
• Replacing both modules simultaneously rather than upgrading a single slot avoids potential latency inconsistencies caused by memory interleaving across different module speeds or manufacturing batches.
