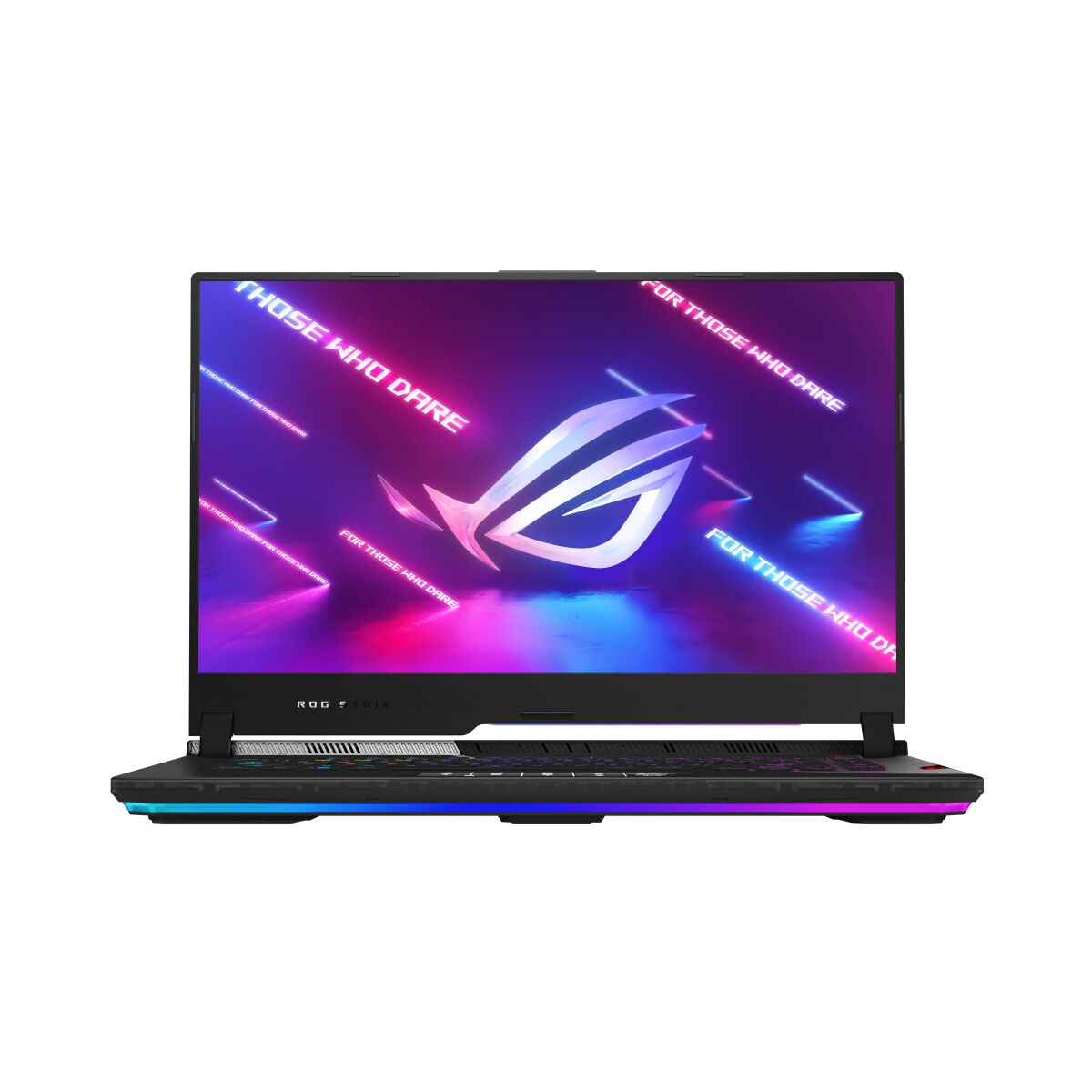

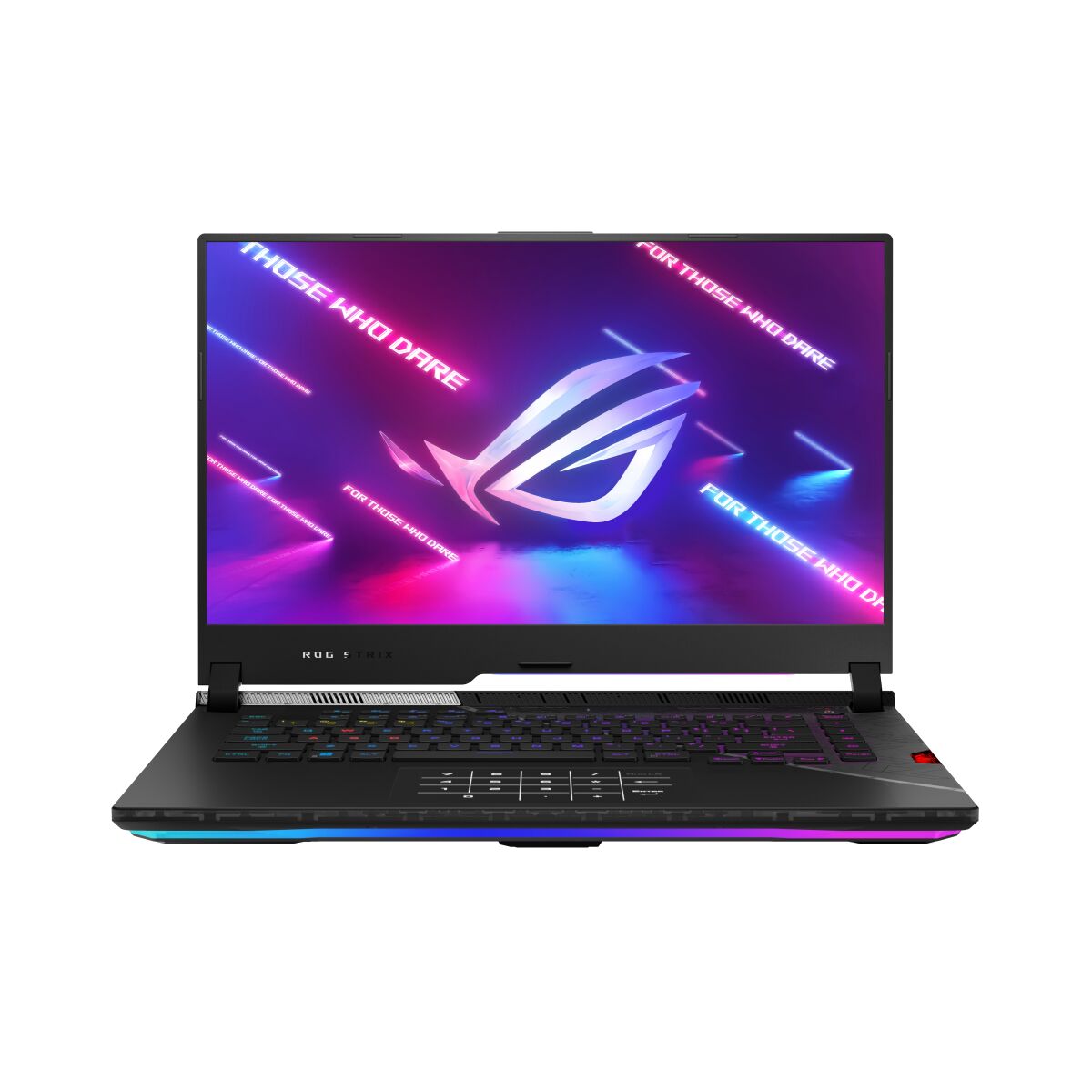

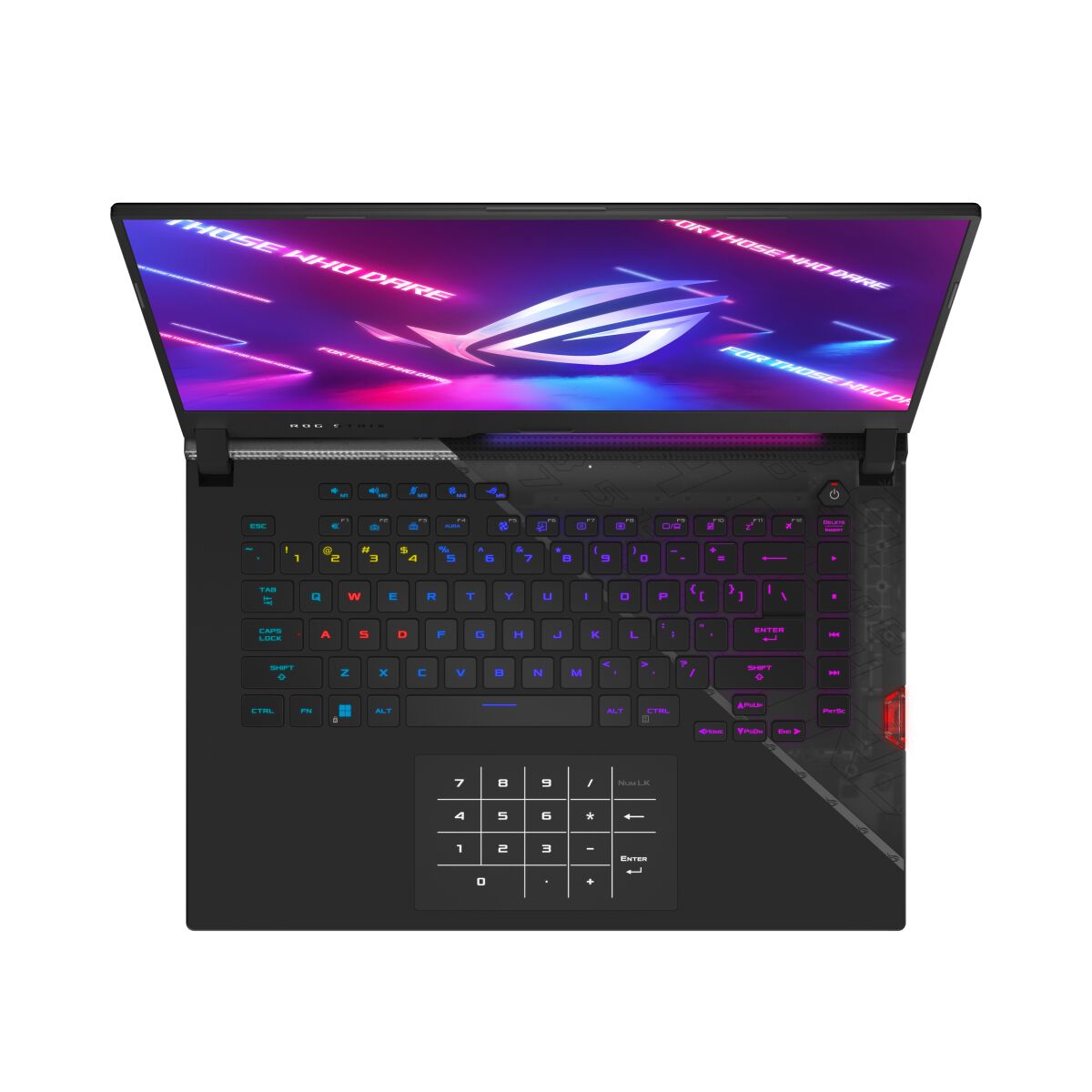

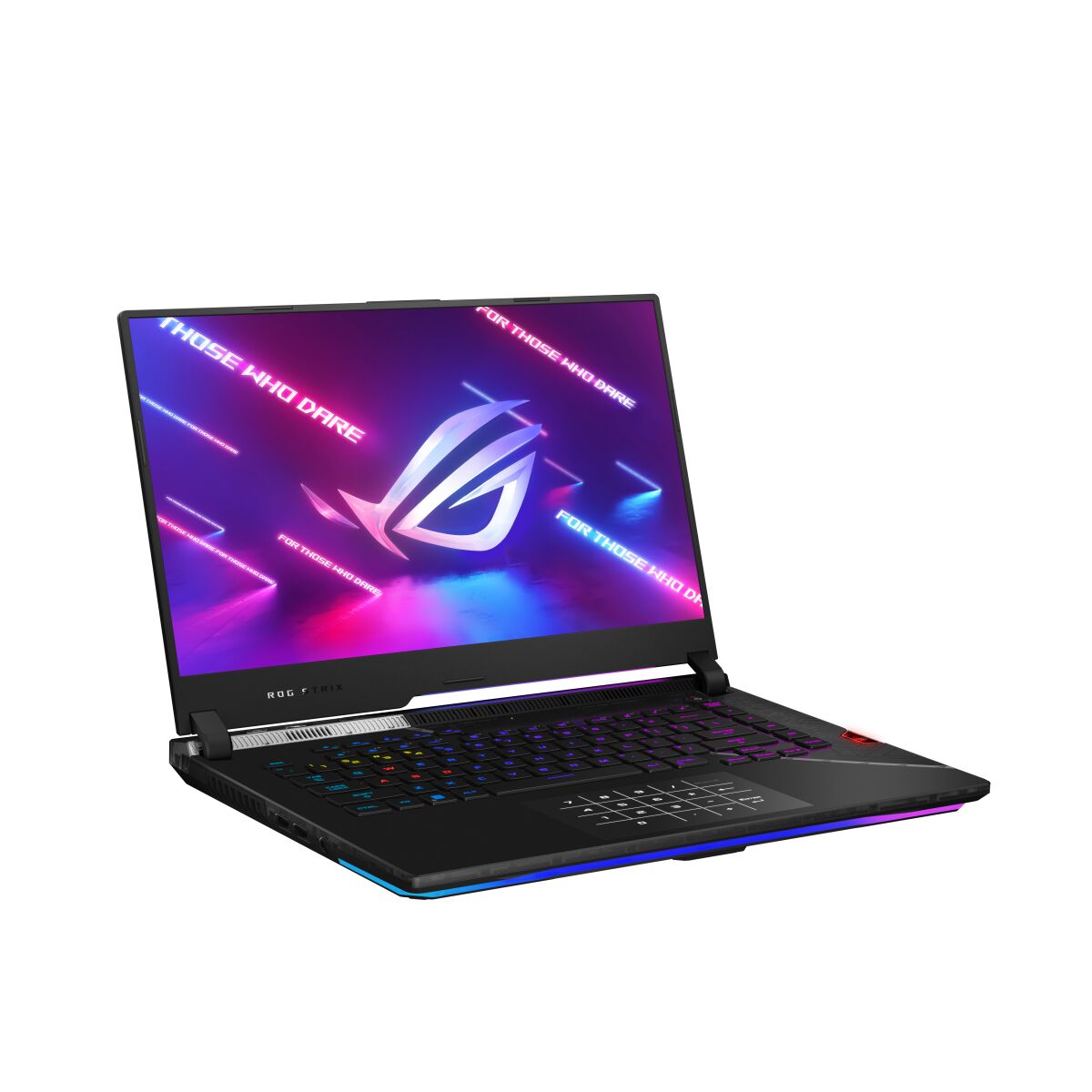

ASUS ROG G533ZW-LN086W-BE RAM upgrade specifications
ASUS ROG Strix SCAR 15 model G533ZW-LN086W-BE supports DDR5-SDRAM memory upgrades. The laptop features 2x SO-DIMM slots with maximum RAM capacity of 64 GB. Compatible memory modules operate at 4800 MHz frequency. Specifications indicate support for SO-DIMM form factor DDR5 memory, enabling users to upgrade existing memory configurations up to the maximum supported capacity.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 10 January 2022 |
Additional Notes
- DDR5-SDRAM modules operate at increased latency compared to DDR4 equivalents, requiring compatible BIOS firmware to execute rated timing specifications. Verification of current system BIOS version against ASUS ROG support documentation is necessary before module installation to prevent performance degradation or boot failures.
- The 2 SO-DIMM slot configuration permits maximum capacity expansion to 64 GB through dual 32 GB modules. Upgrading from factory-installed capacity requires removal of existing modules, which may void coverage if performed outside authorized service channels. Confirmation of warranty terms regarding end-user RAM modification is advised prior to purchase.
- 4800 MHz DDR5 bandwidth saturation occurs when paired with high-core-count mobile processors. Real-world performance gains diminish beyond 4800 MHz frequency unless the system operates under sustained multi-threaded workloads exceeding 8 concurrent threads. Lower frequency DDR5 modules (4400 MHz, 4600 MHz) function identically in this platform due to memory controller limitations.
- SO-DIMM form factor restricts module dimensions to 67.6 mm length. Aftermarket heat spreaders or specialized cooling fins on alternative RAM products may physically obstruct chassis closure or interfere with internal cooling airflow paths. Standard low-profile modules without extended thermal hardware ensure compatibility without clearance issues.
- Mixed-capacity configurations (16 GB plus 32 GB modules) activate Flex Mode in the memory controller, reducing effective dual-channel bandwidth utilization to that of the smaller module. Matched pair installation (identical capacity and frequency) preserves full interleaved performance across both slots.
