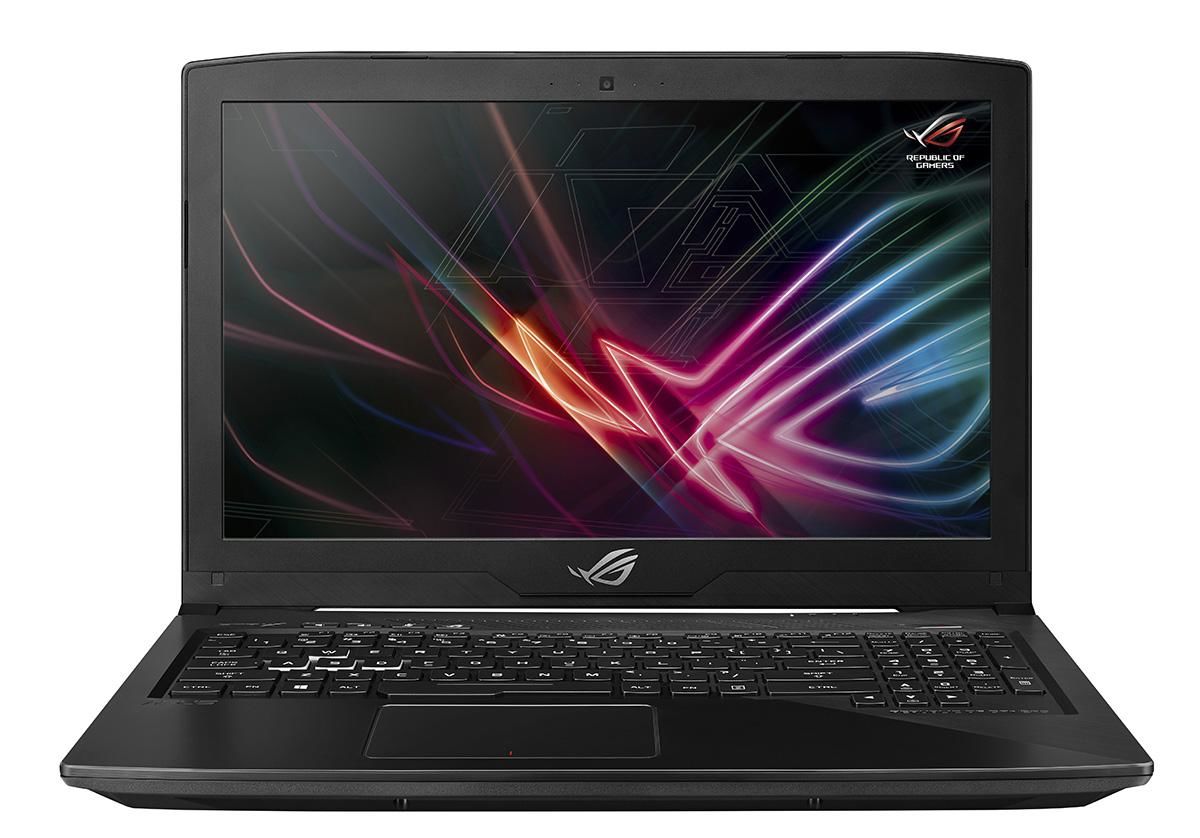

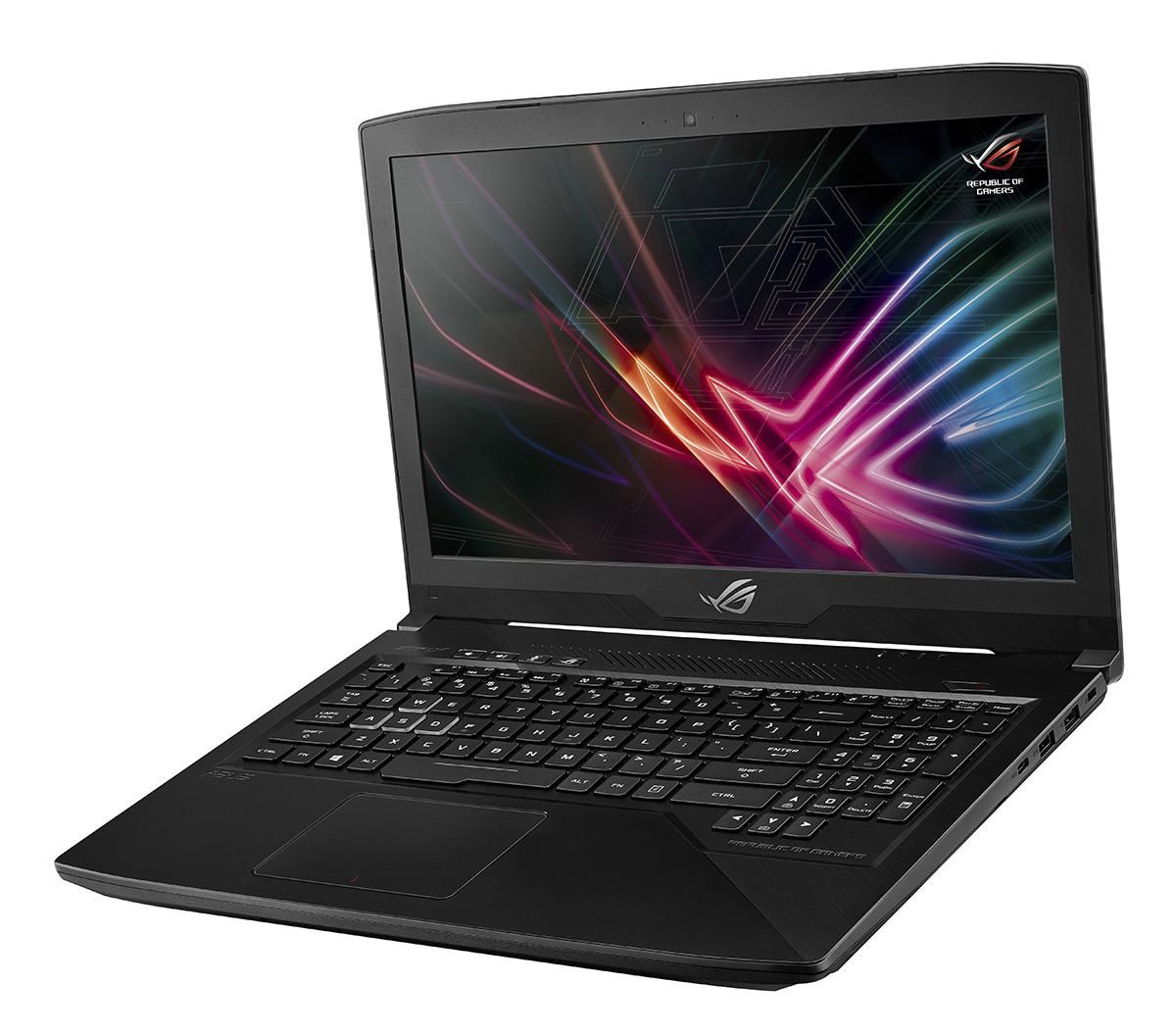

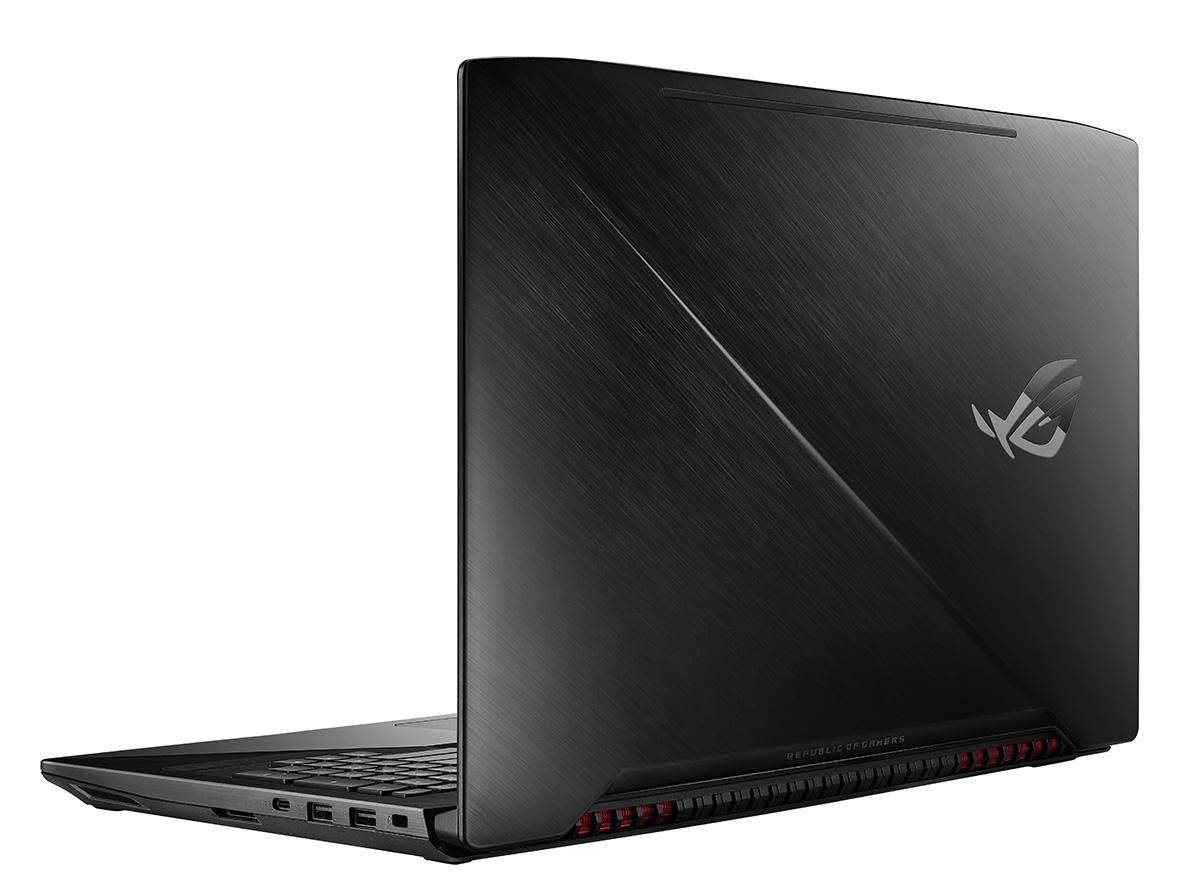

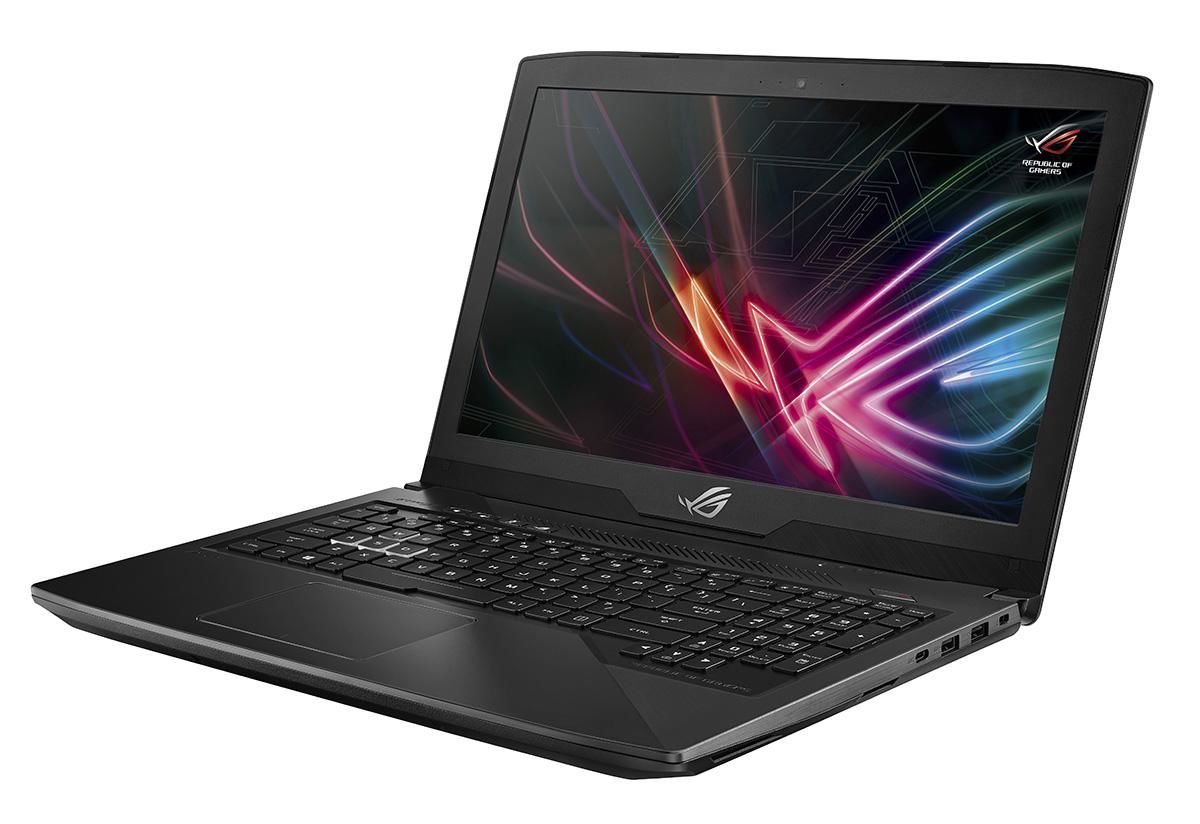

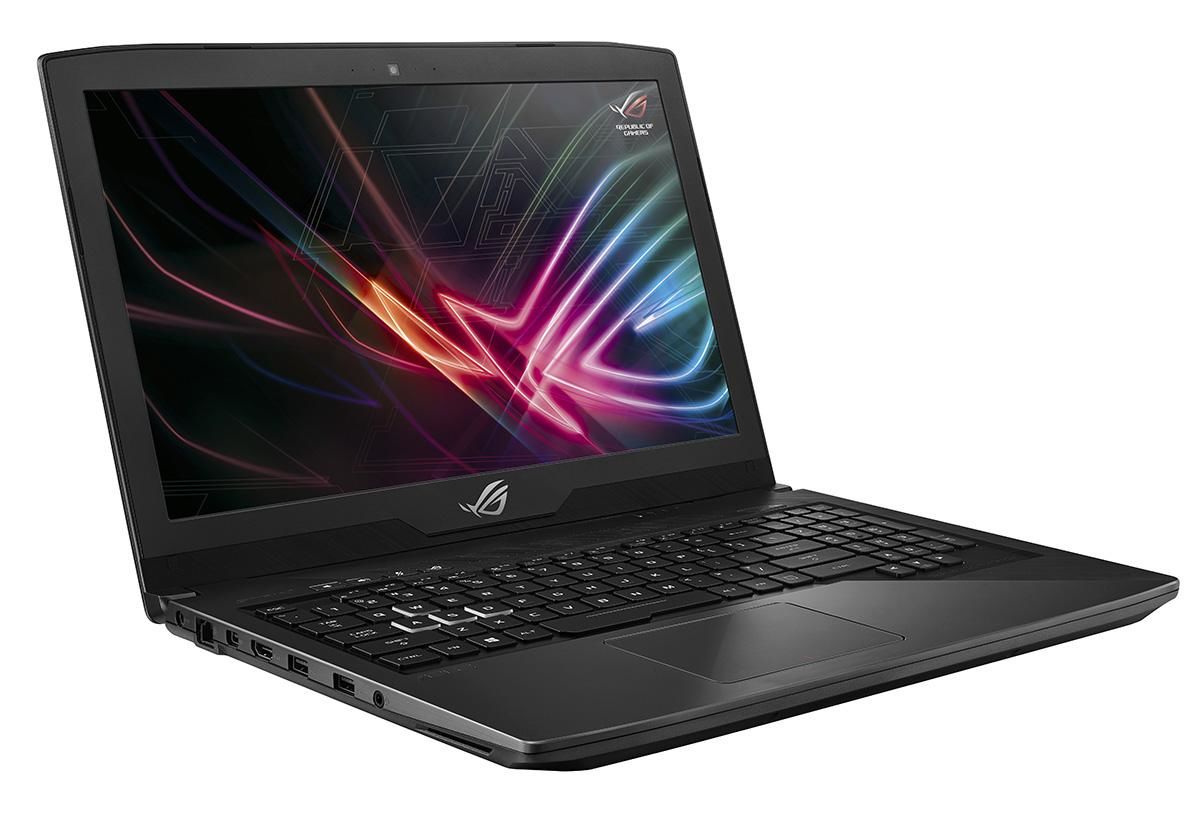

ASUS ROG GL503GE-EN234T RAM upgrade specifications
The ASUS ROG Strix GL503GE-EN234T gaming laptop features two SO-DIMM memory slots supporting DDR4-SDRAM upgrade capacity. Maximum compatible RAM reaches 32 GB total, with specifications supporting 2666 MHz frequency. The SO-DIMM form factor enables memory module installation for enhanced multitasking and performance capabilities. This laptop model accommodates standard DDR4 memory upgrades within specifications defined by ASUS, allowing users to expand system memory for improved computing performance.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 29 October 2019 |
Additional Notes
- Dual channel memory architecture requires installing modules in pairs to achieve maximum theoretical memory bandwidth for the ASUS ROG GL503GE-EN234T.
- Physical access to both SO-DIMM slots typically necessitates the removal of the entire base panel since this chassis lacks a dedicated quick access hatch for memory.
- Mixing modules with different Cas Latency ratings will force the system to default to the timings of the slowest installed stick.
- The internal memory controller will downclock any modules exceeding 2666 MHz to match the platform speed limit regardless of the advertised frequency on the sticker.
- Total system capacity is restricted by the BIOS to 32 GB necessitating a maximum of 16 GB per individual slot.
- Installation of non-ECC unbuffered memory is mandatory as the chipset does not support error correction code modules used in server environments.
- Upgrading beyond the factory configuration does not void the hardware warranty provided no physical damage occurs to the internal components during the process.
- The use of high density 16 GB modules allows for a 32 GB configuration which significantly reduces page file reliance during heavy multitasking or video rendering tasks.
