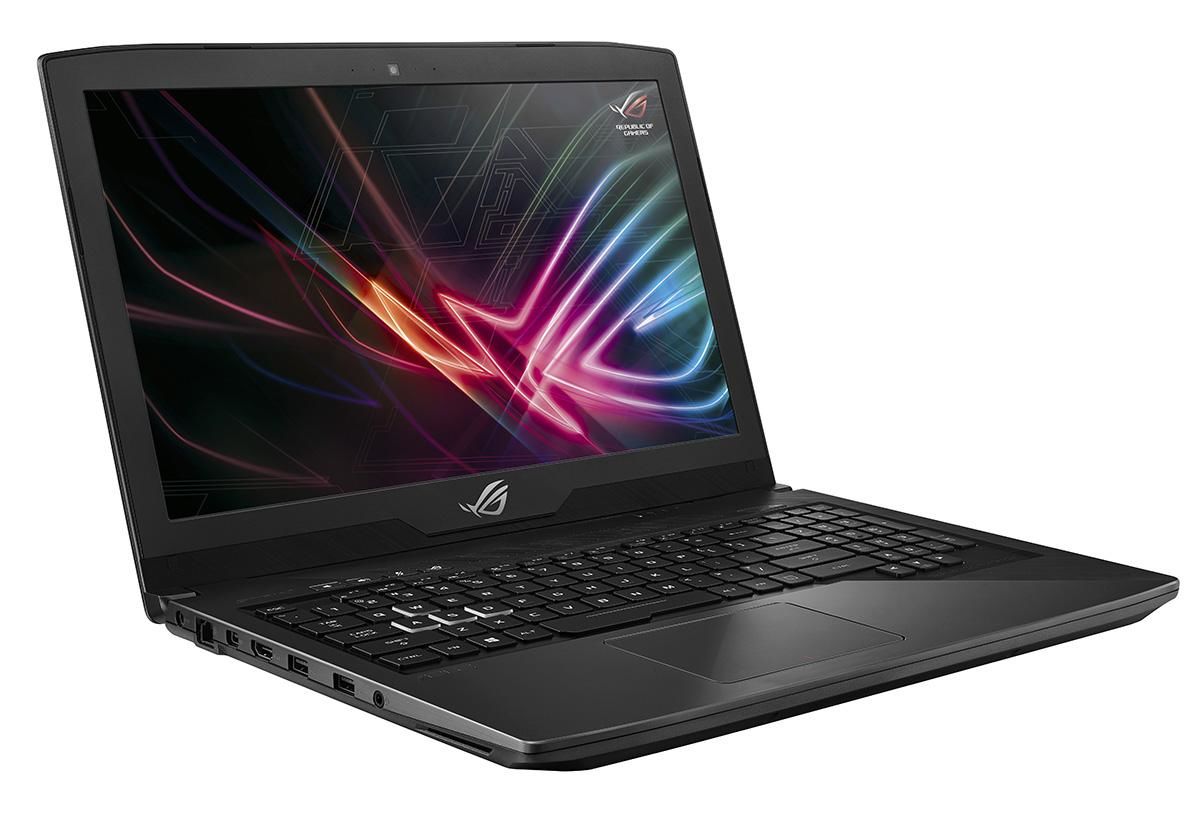

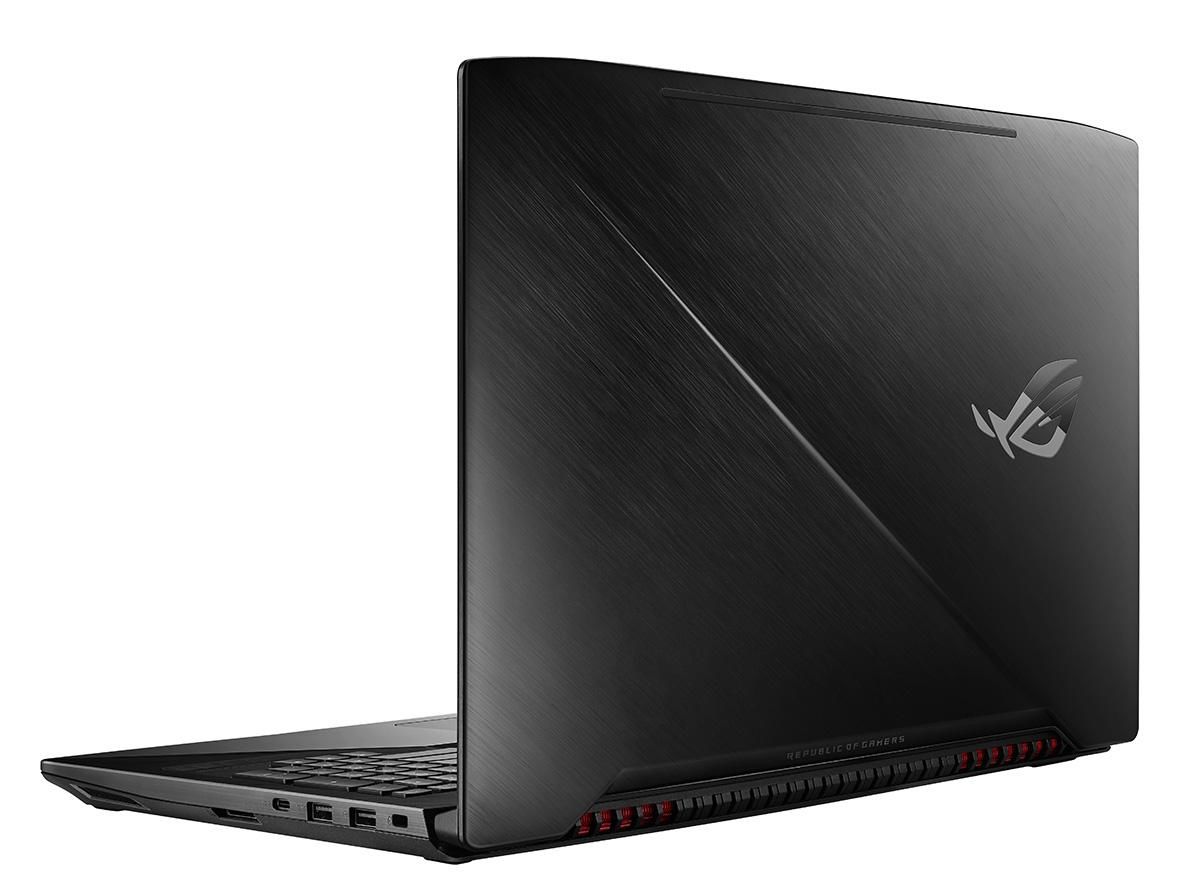

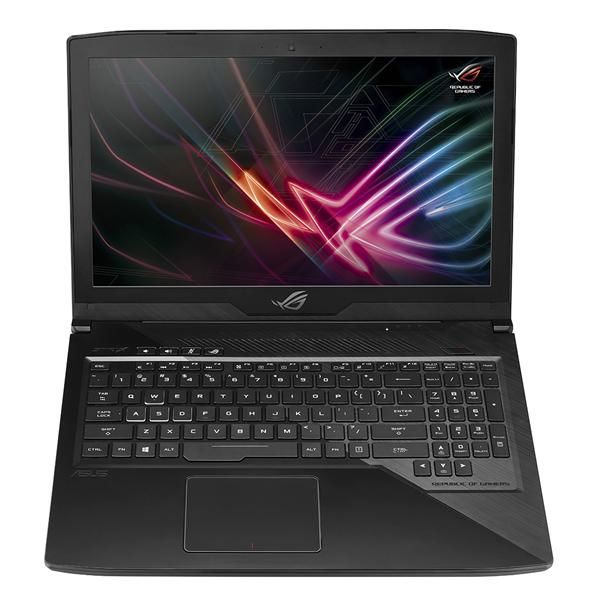

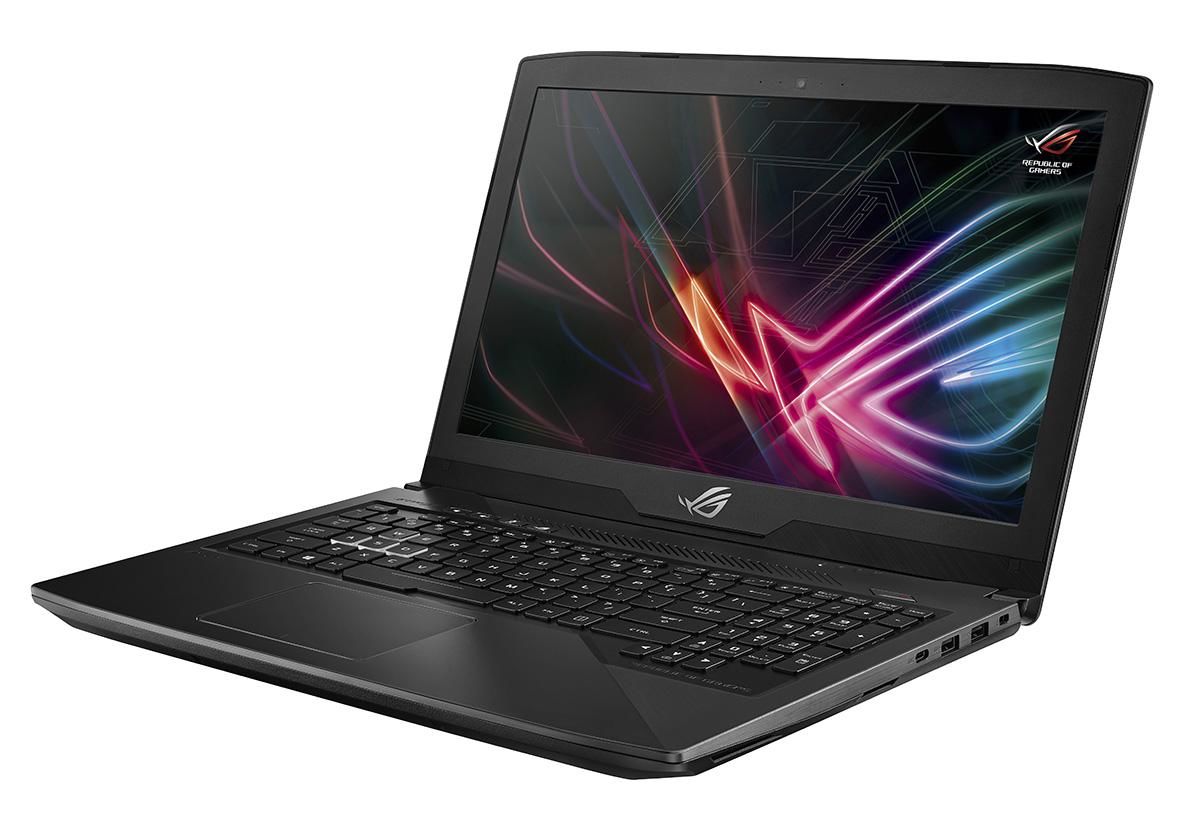

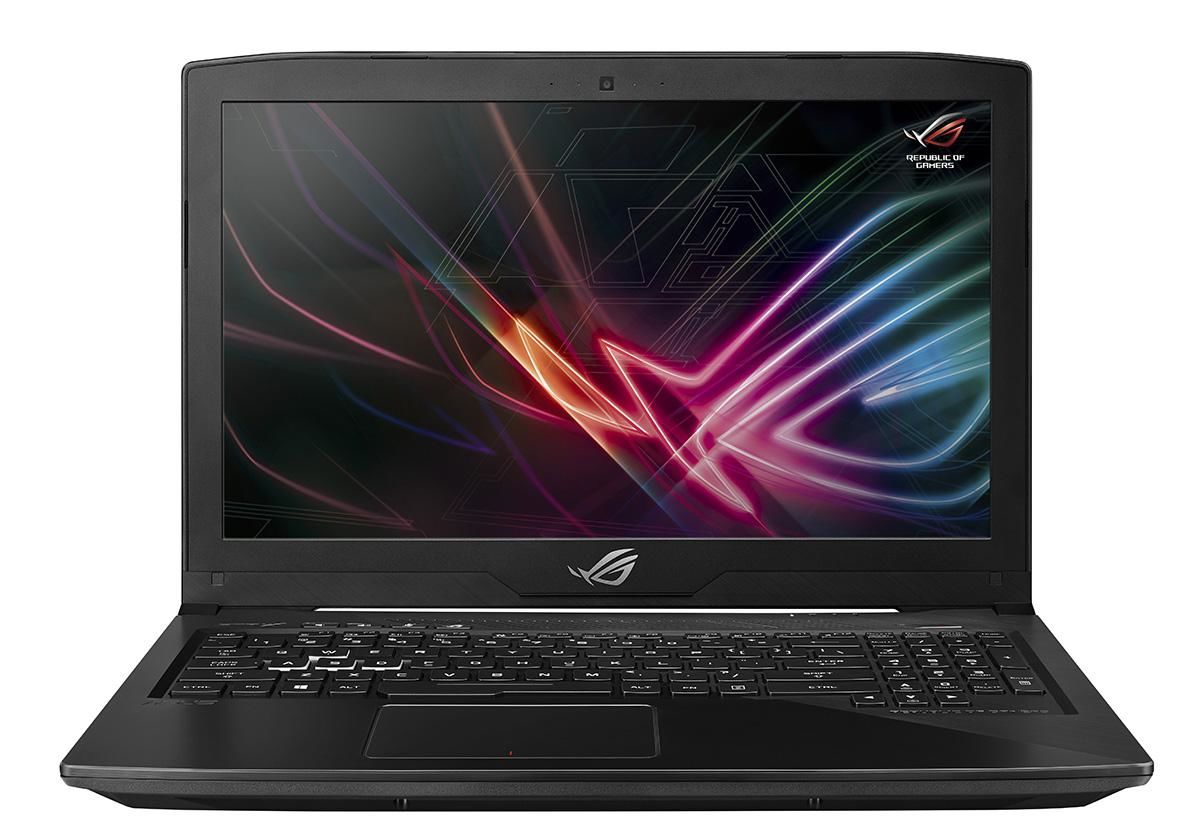

ASUS ROG GL503VD-FY101 RAM upgrade specifications
ASUS ROG Strix GL503VD-FY101 laptop supports DDR4-SDRAM memory upgrades with 2x SO-DIMM slots. Maximum RAM capacity reaches 32 GB total. Compatible memory operates at 2400 MHz frequency using SO-DIMM form factor. Specifications indicate upgrade potential for this gaming laptop model, allowing users to expand system memory beyond factory configuration within maximum capacity constraints.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 30 July 2018 |
Additional Notes
- The dual channel configuration requirement necessitates installing modules in matched pairs to avoid memory bandwidth halving.
- The specialized chassis design of the ASUS ROG GL503VD-FY101 incorporates a dedicated quick access panel on the base for memory swaps without removing the entire bottom plate.
- Installing modules with speeds exceeding 2400 MHz results in automatic downclocking due to firmware limitations on the memory controller.
- Voltage requirements for the SO-DIMM slots dictate the use of DDR4L or standard 1.2V modules to prevent thermal instabilities or boot failures.
- Occupying both slots with 16 GB modules is necessary to reach the maximum threshold as there are no soldered memory components on the motherboard.
- Physical height limitations of the internal bay restrict the use of memory modules equipped with oversized aftermarket heat spreaders.
- Mixing internal memory ranks or densities between the 2 slots can trigger timing latencies that degrade system stability during high load gaming scenarios.
