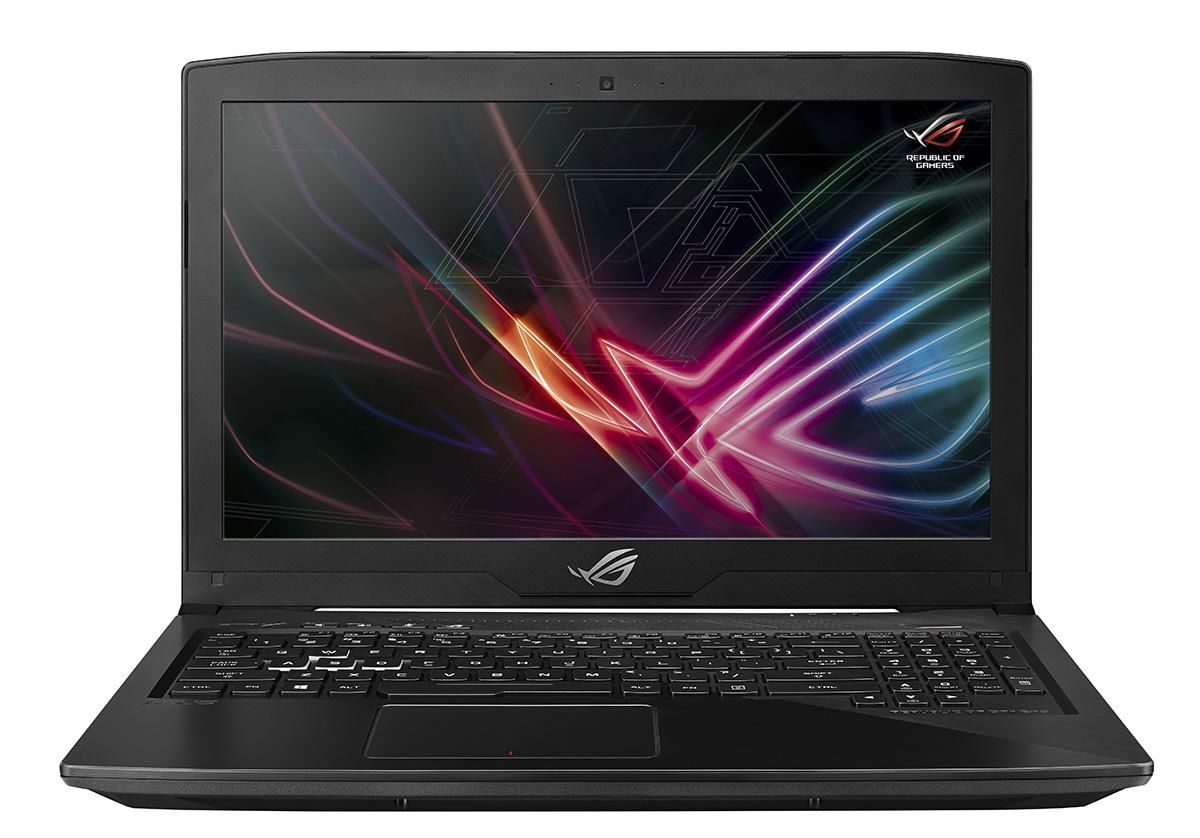

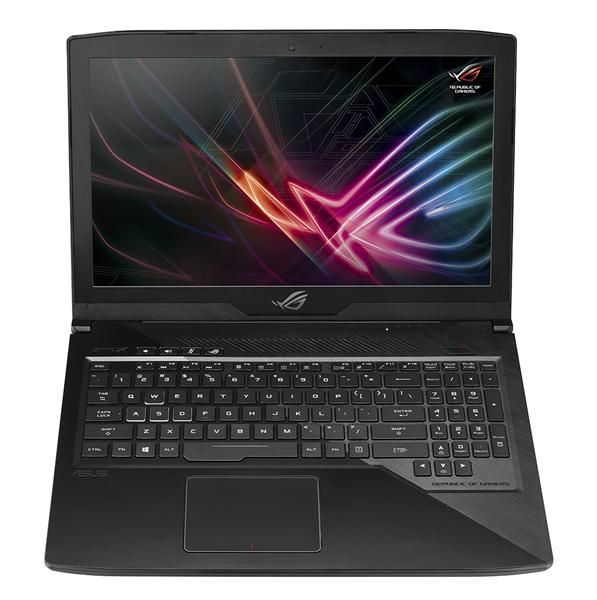

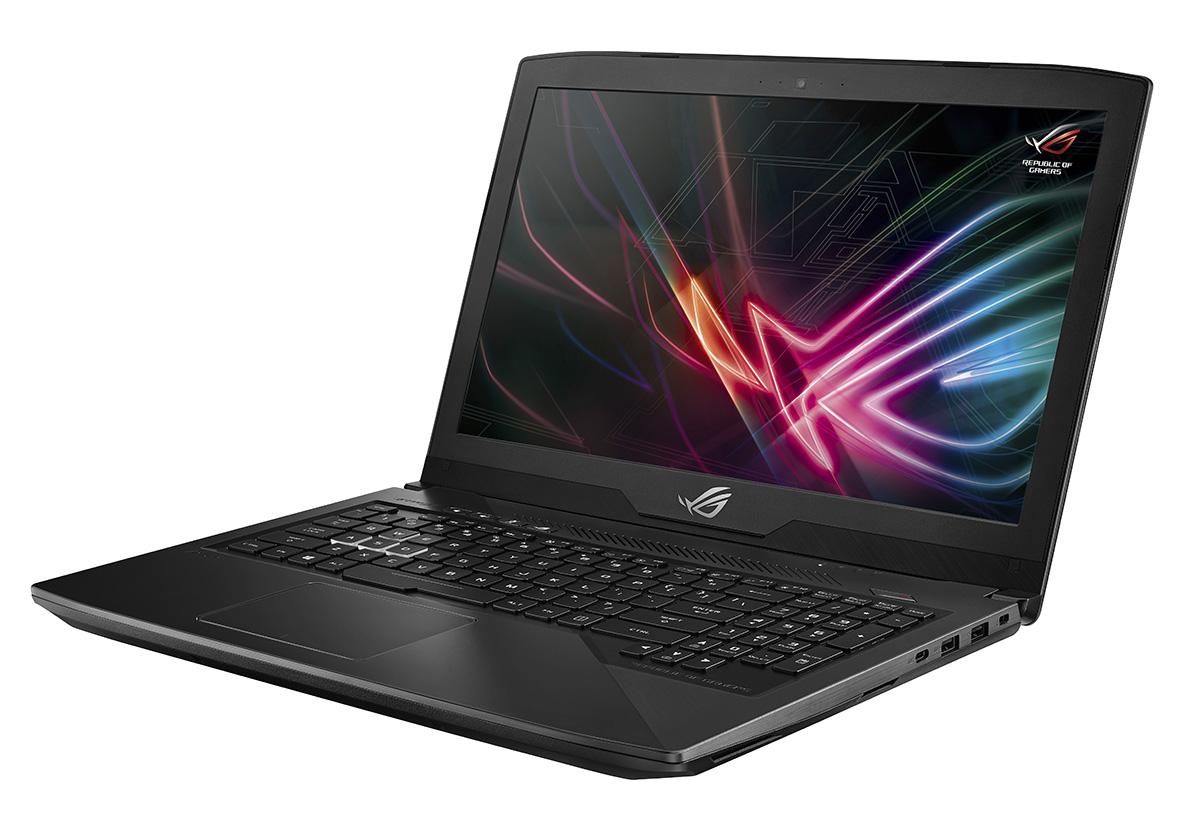

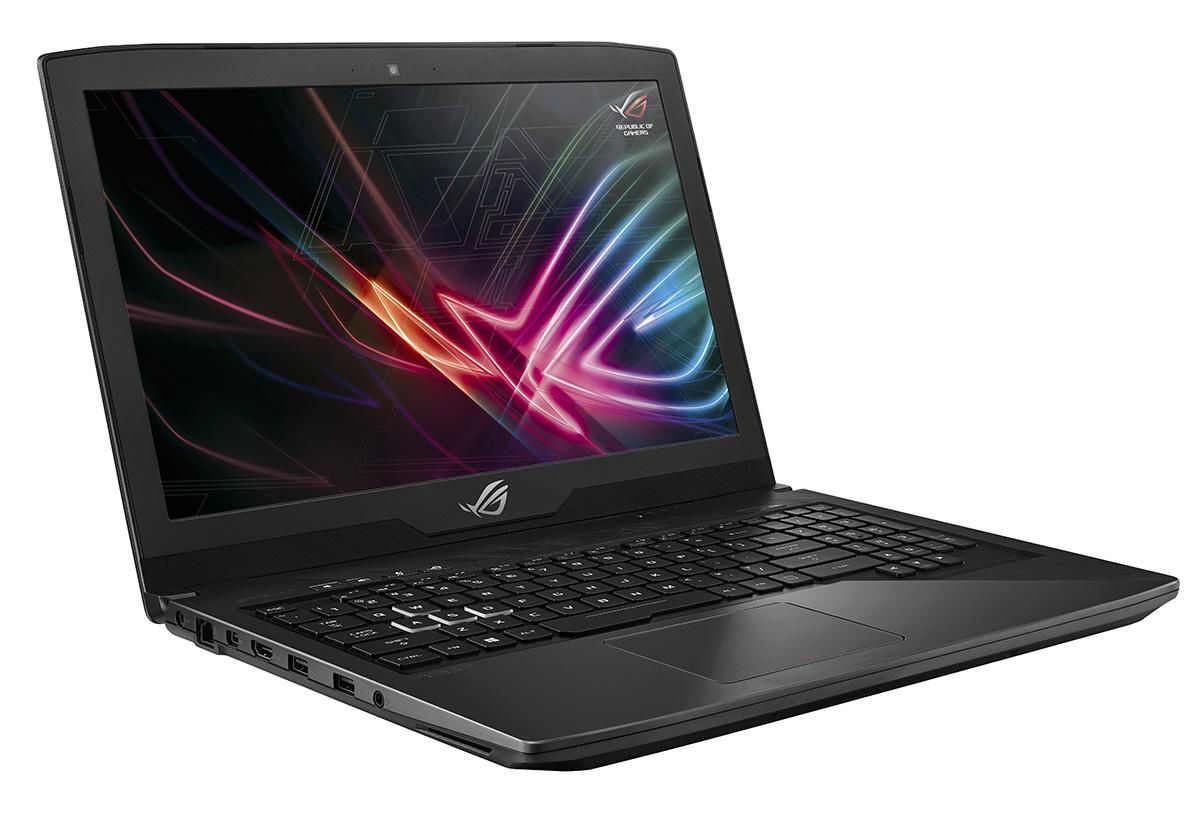

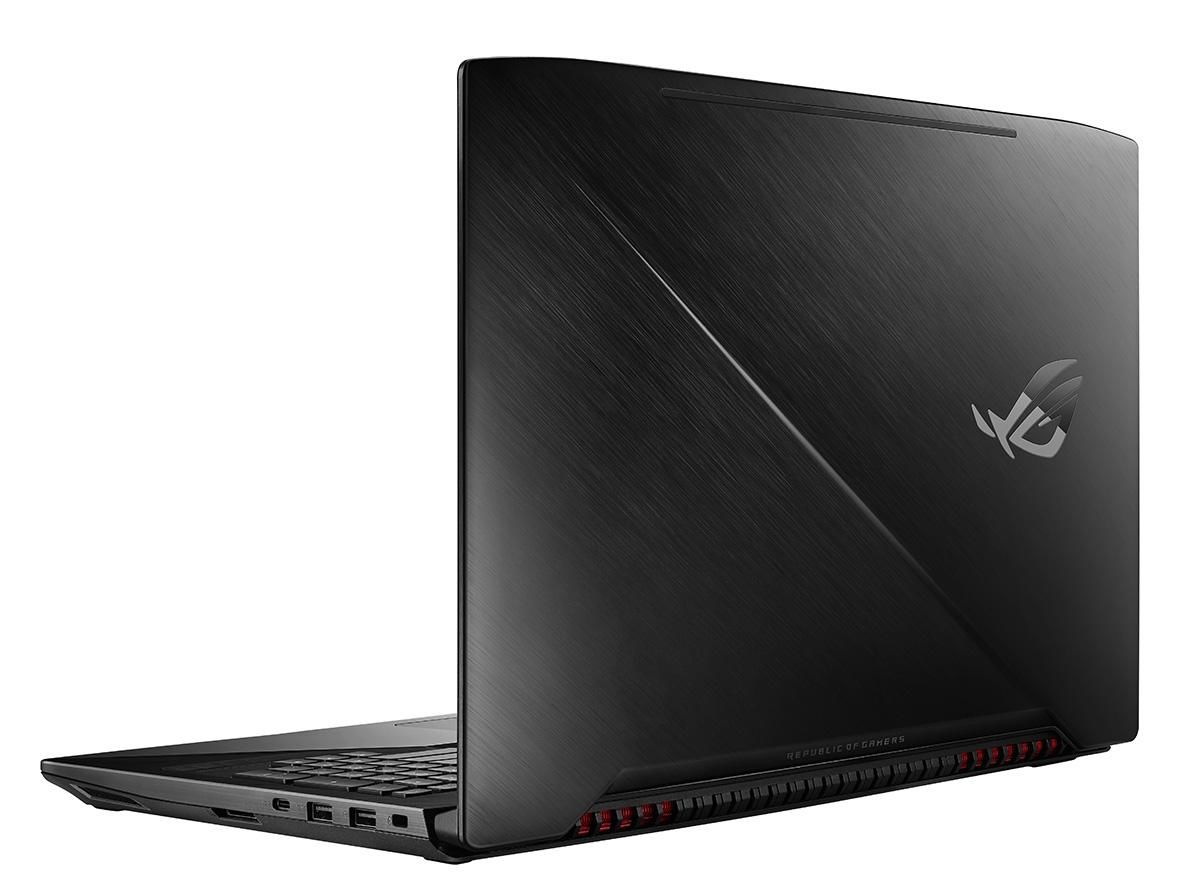

ASUS ROG GL503VM-FY212T RAM upgrade specifications

ASUS GL503VM-FY212T ASUS GL503VM-FY212T ASUS GL503VM-FY212T ASUS GL503VM-FY212T ASUS GL503VM-FY212T

The ASUS ROG Strix GL503VM-FY212T supports DDR4-SDRAM memory upgrades through two SO-DIMM slots. The laptop specifications indicate a maximum RAM capacity of 32 GB, with compatible memory operating at 2400 MHz frequency. Memory upgrade options accommodate DDR4 SO-DIMM modules, allowing users to expand the existing memory configuration up to the specified maximum capacity. The dual-slot architecture enables flexible memory configurations for enhanced system performance.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR4-SDRAM
Frequency2400 MHz
Maximum RAM32 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-2400 (PC4-19200)
Bandwidth19.2 GB/s
Laptop Release date16 February 2019

Additional Notes

  • The ASUS ROG GL503VM-FY212T supports dual-channel memory architecture through its 2 SO-DIMM slots, enabling bandwidth doubling when matched modules are installed in both positions.
  • DDR4-2400 operates at a lower voltage (1.2V) compared to older DDR3 standards, reducing thermal output during extended gaming or processing tasks.
  • The 32 GB maximum capacity limit is imposed by chipset memory controller addressing capabilities, restricting configurations to either 2x16 GB or asymmetric combinations totaling no more than this threshold.
  • SO-DIMM form factor measures 67.6mm in length versus 133.35mm for standard DIMMs, making desktop memory modules physically incompatible despite identical DDR4 specifications.
  • Memory installed beyond the validated 2400 MHz frequency will downclock to this rated speed due to JEDEC profile enforcement in the system BIOS.
  • Accessing the memory slots typically requires bottom panel removal, which may involve warranty seal breakage depending on regional service policies and manufacture date.
  • Single-channel operation with only 1 occupied slot delivers half the theoretical bandwidth (19.2 GB/s versus 38.4 GB/s), creating potential GPU bottlenecks during VRAM-intensive rendering.
  • Non-ECC unbuffered modules are required, as registered or error-correcting variants will not initialize during POST due to incompatible SPD programming.
  • Mixing modules with different CAS latencies forces all installed memory to operate at the slowest timing values, potentially degrading performance below single-module configurations in latency-sensitive applications.
  • The memory controller does not support XMP or overclocking profiles, limiting performance to JEDEC-standard specifications regardless of module capabilities.
