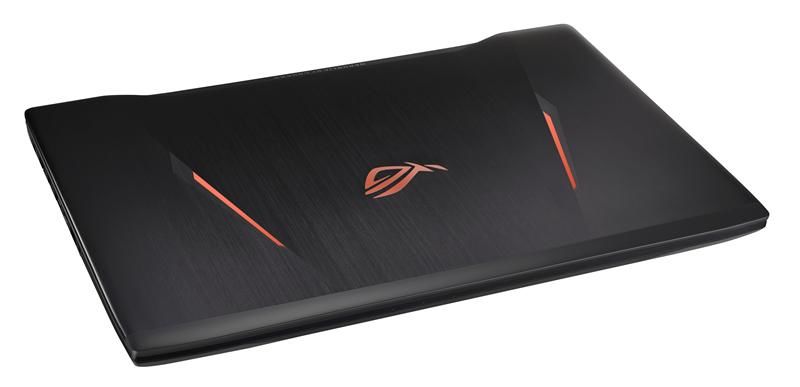

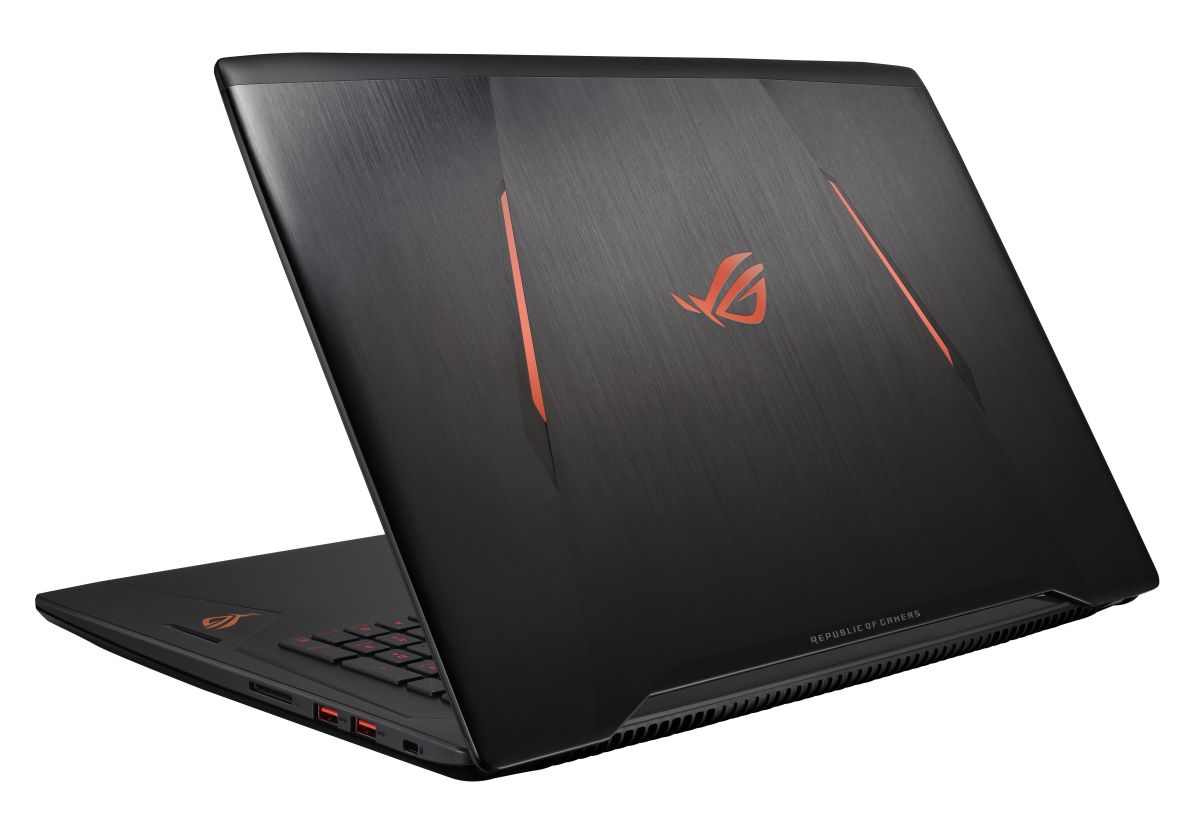

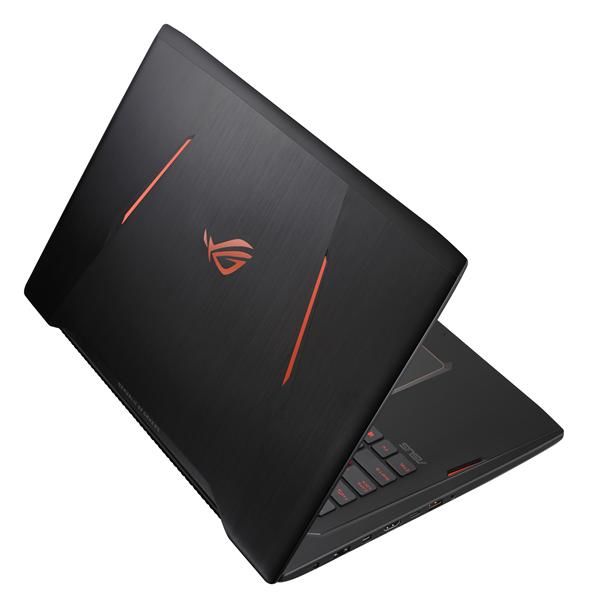

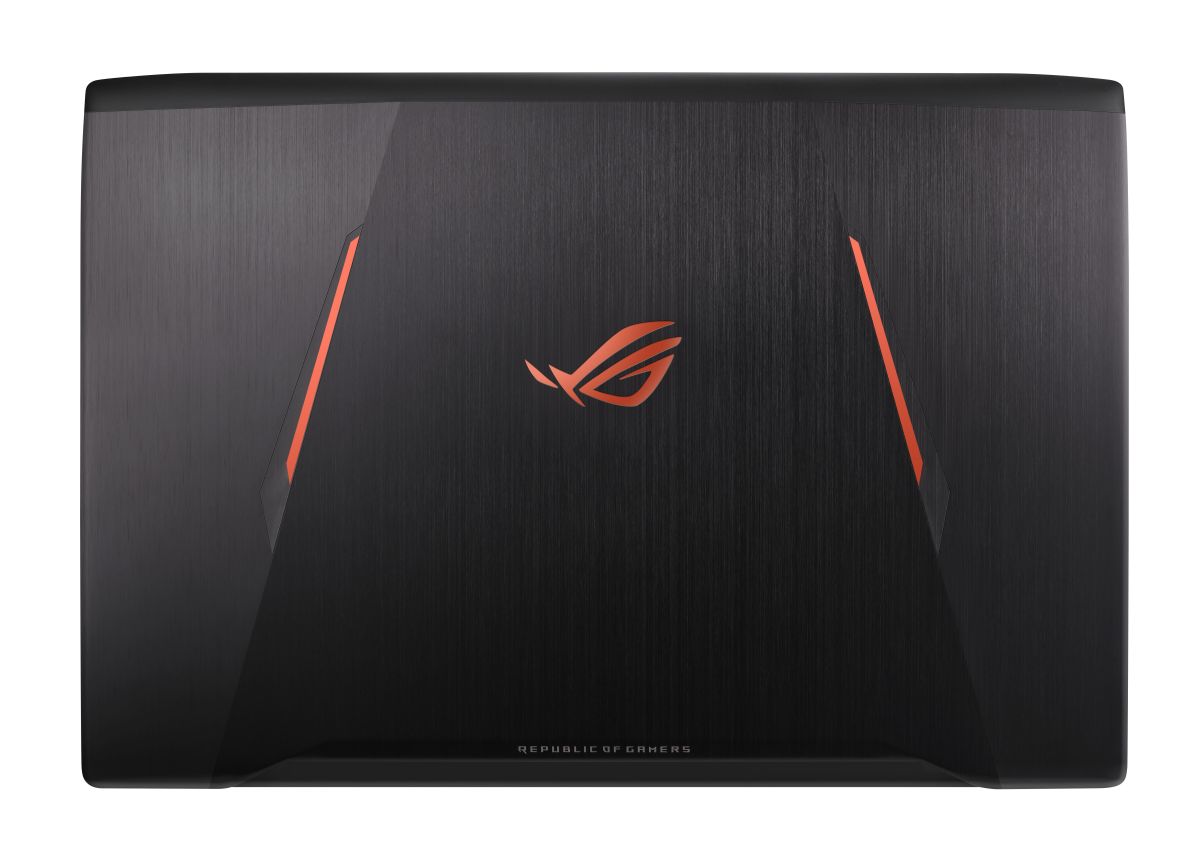

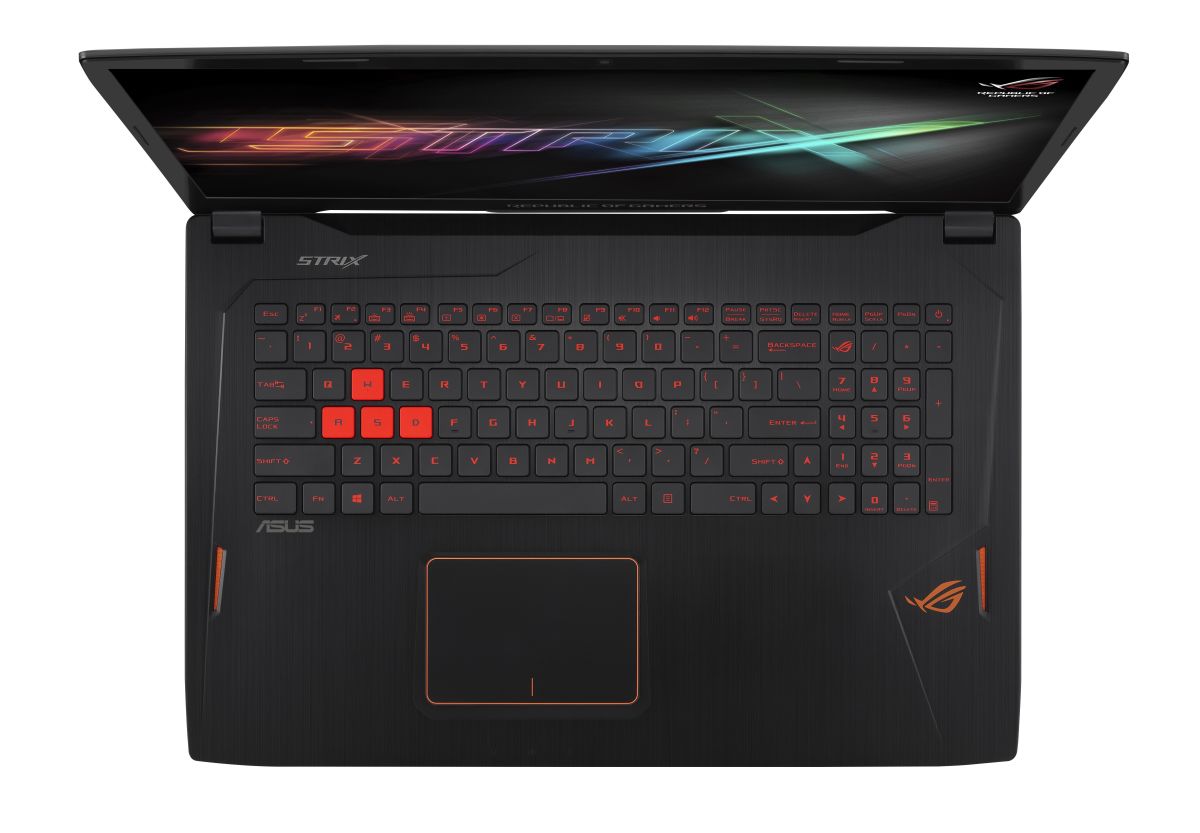

ASUS ROG GL702VM-BA322T RAM upgrade specifications

The ASUS ROG Strix GL702VM-BA322T laptop features DDR4-SDRAM memory specifications with two SO-DIMM slots available for upgrades. The system supports a maximum RAM capacity of 32 GB total, with memory operating at 2133 MHz frequency. Compatible memory modules must utilize the SO-DIMM form factor to ensure proper installation and functionality. Current upgrade specifications indicate support for DDR4 memory technology, enabling users to expand the laptop's memory capacity up to the specified maximum limit of 32 GB when both slots are populated with compatible modules.

Additional Notes

• The 2133 MHz frequency specification indicates DDR4-2133 compliance, meaning faster modules rated at 2400 MHz or 2666 MHz will downclock to match this limit imposed by the chipset or BIOS.
• Single-channel configurations with only 1 occupied slot will halve memory bandwidth, creating a bottleneck for GPU-intensive applications that benefit from dual-channel operation.
• The 32 GB maximum capacity requires 2 modules of 16 GB each in a dual-channel configuration, as asymmetric capacities (such as 8 GB plus 16 GB) may force single-channel mode on certain portions of memory.
• SO-DIMM form factor prohibits installation of standard desktop DIMM modules due to physical incompatibility in pin count and physical dimensions.
• Mixing modules with different timings (CAS latency values) typically forces all modules to operate at the slowest common timing specification, reducing potential performance.
• Non-matching voltage requirements between old and new modules can prevent POST or cause system instability, as DDR4 operates at 1.2V standard with some modules requiring 1.35V.
• The 2-slot limitation means capacity upgrades require complete replacement of existing modules rather than incremental additions beyond the second slot.
• ECC memory modules are incompatible with consumer chipsets typically found in ROG gaming laptops, despite sharing the DDR4 SO-DIMM form factor.
• Registered (RDIMM) or load-reduced (LRDIMM) modules will not function in this unbuffered memory architecture common to mobile platforms.
• Thermal throttling may occur with higher-density modules if the laptop's cooling system was originally designed around lower-capacity configurations generating less heat.
