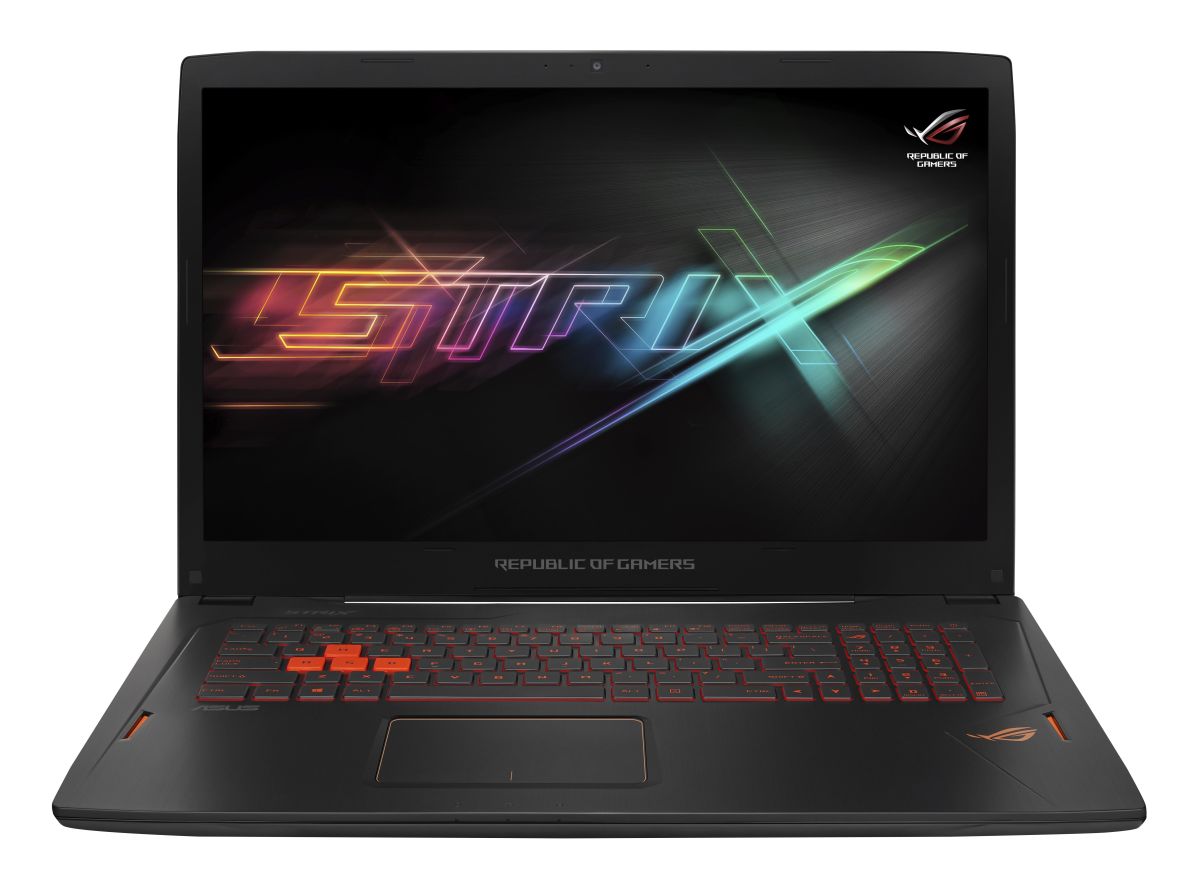

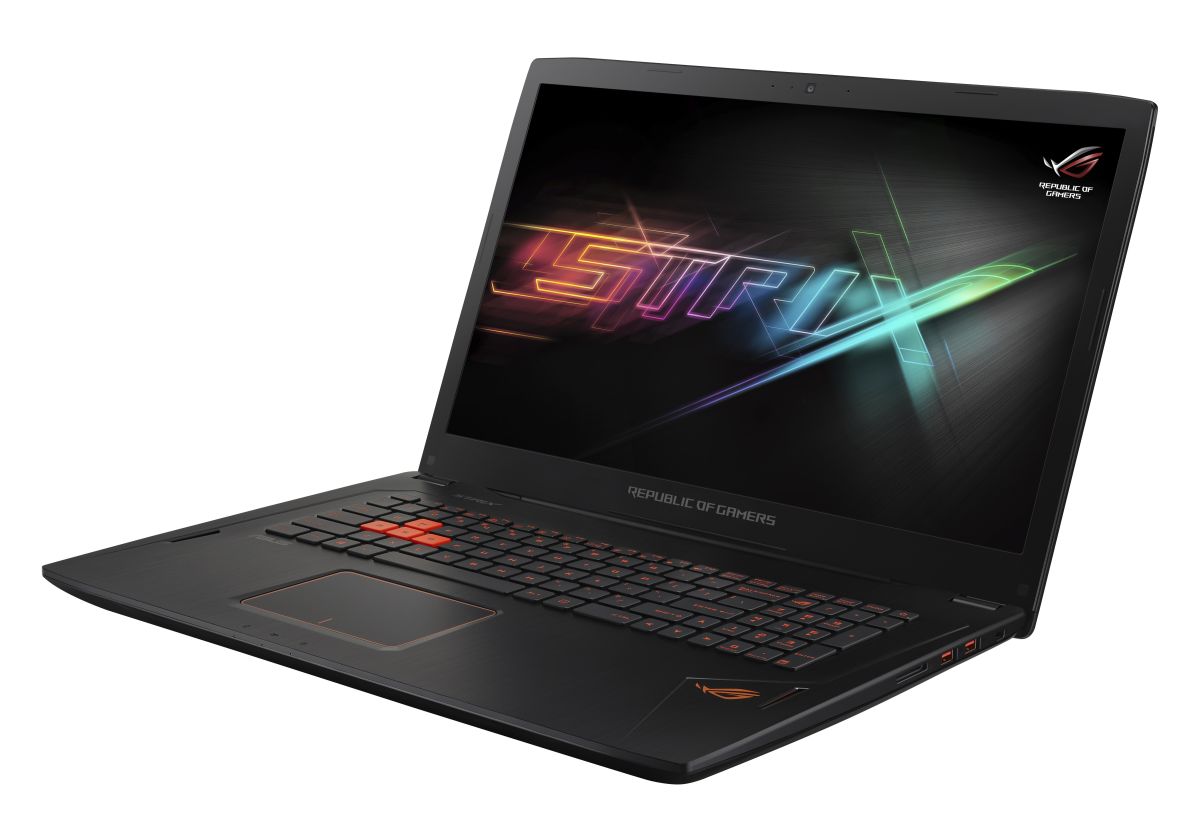

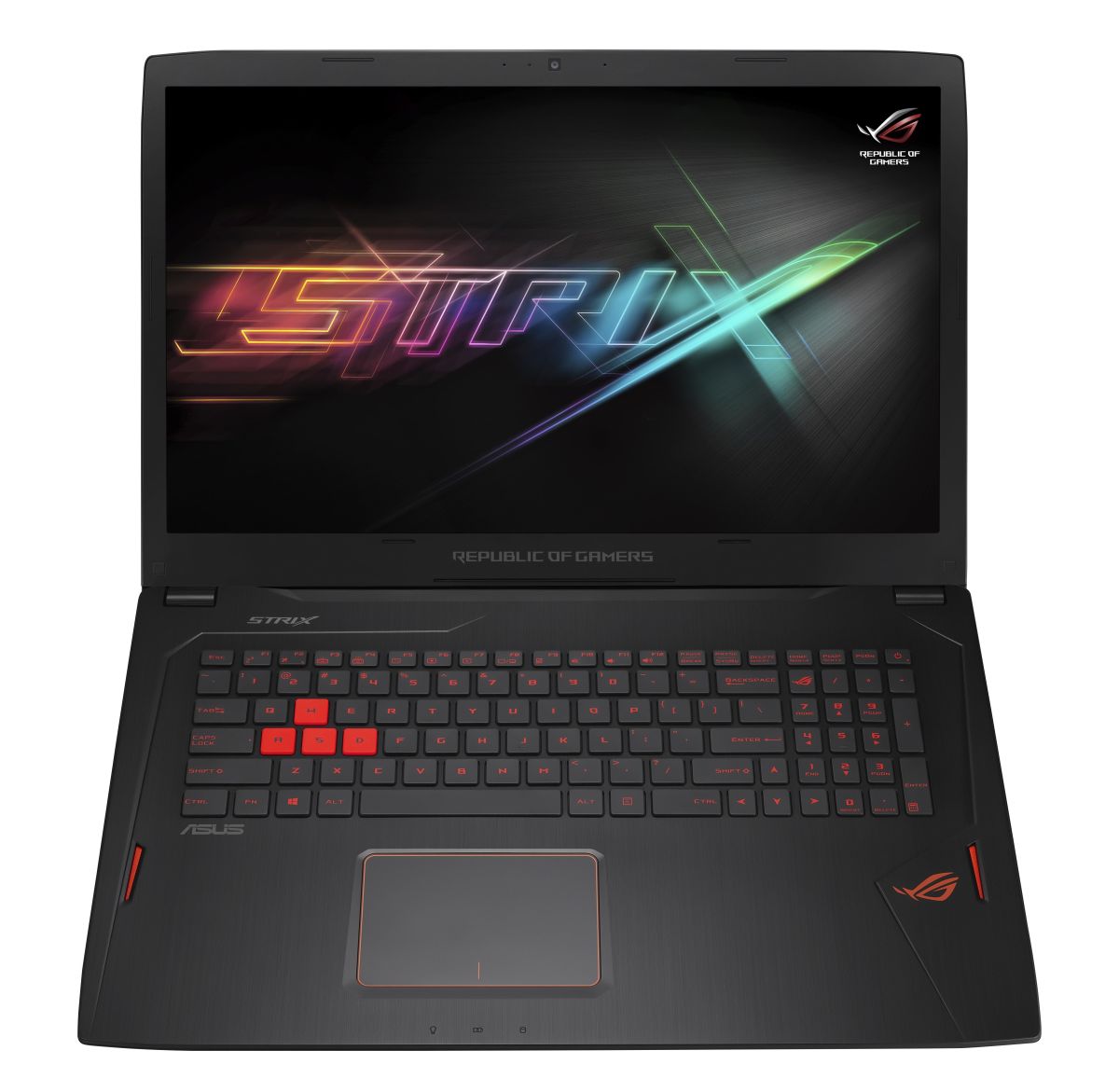

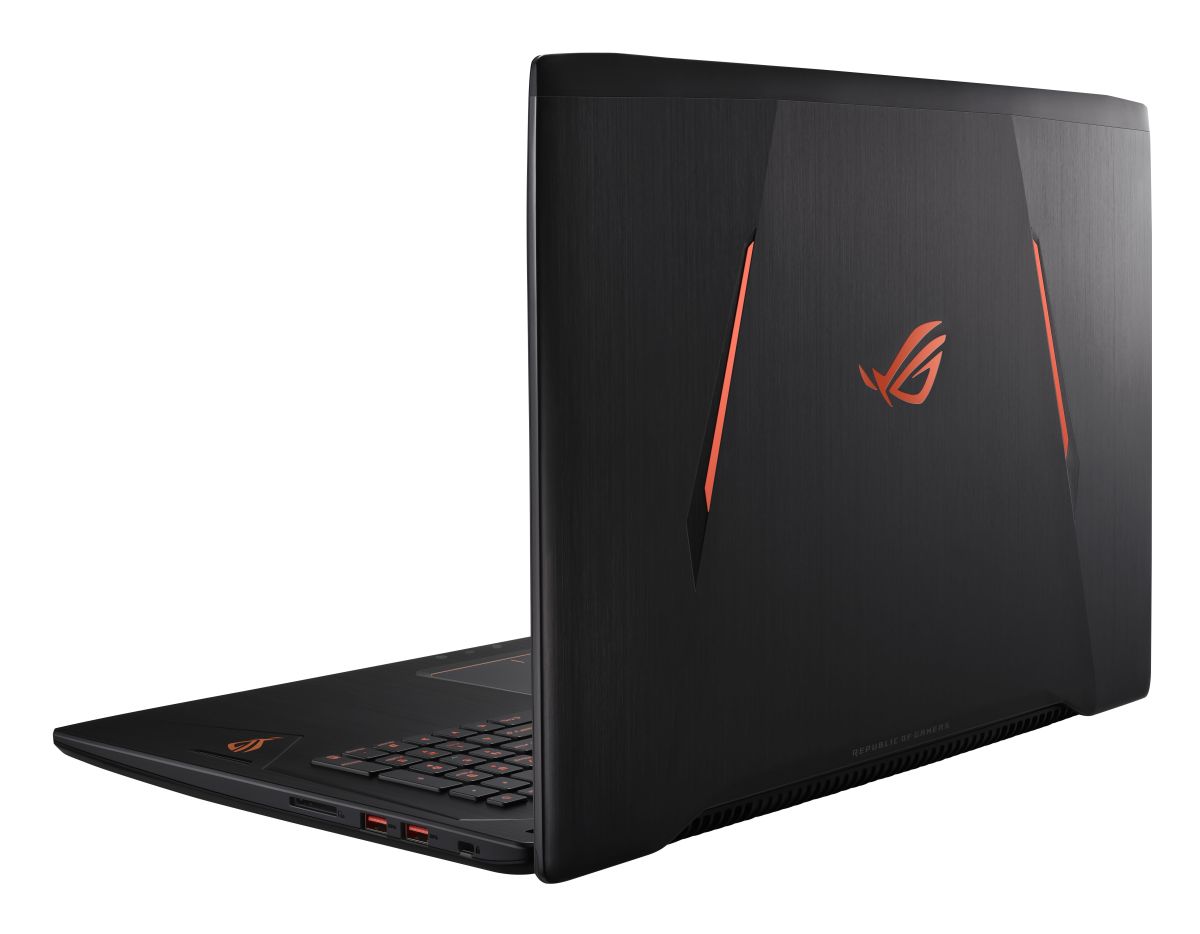

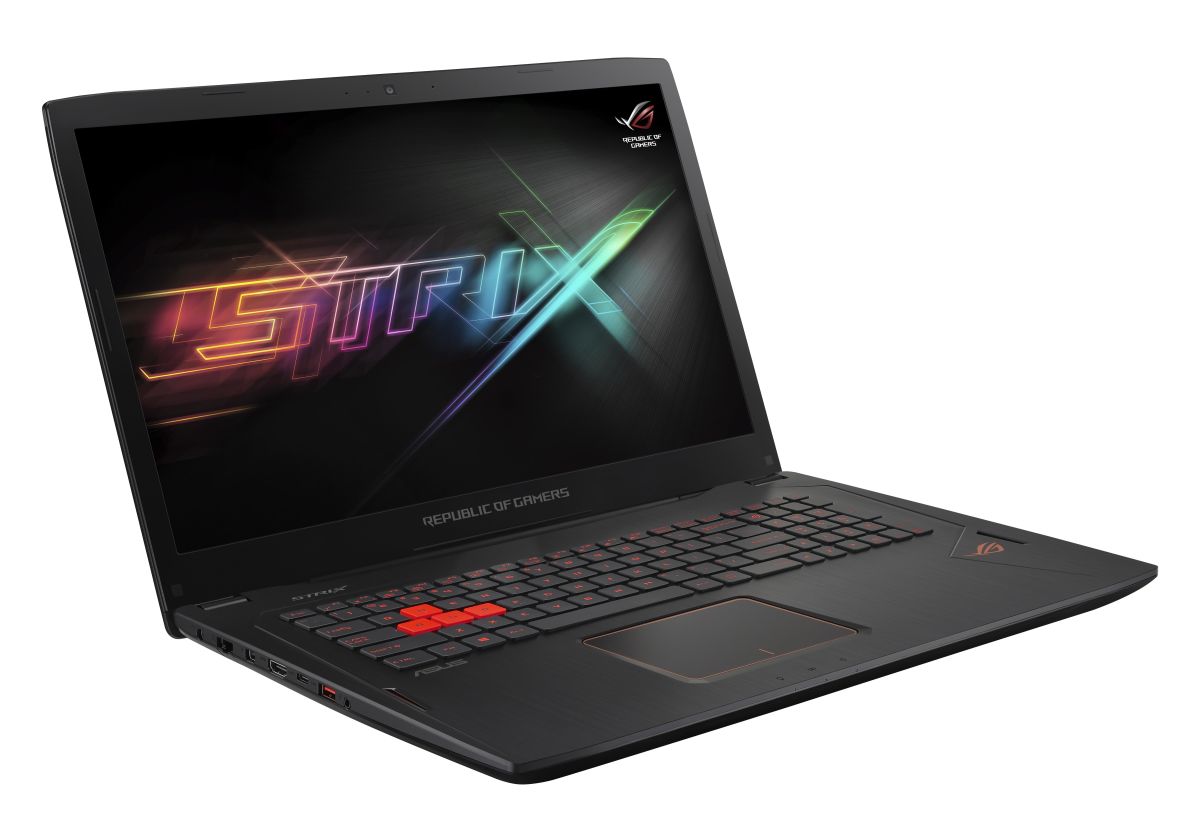

ASUS ROG GL702VM-BA324 RAM upgrade specifications
ASUS ROG Strix GL702VM-BA324 laptop supports DDR4-SDRAM memory upgrades with 2x SO-DIMM slots. Maximum RAM capacity reaches 32 GB. Compatible memory modules operate at 2400 MHz frequency with SO-DIMM form factor. Specifications enable dual-channel memory configuration for enhanced performance on gaming and professional workstation tasks. Memory upgrade options accommodate both single and dual-module configurations within specified slot constraints.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 28 September 2017 |
Additional Notes
- The motherboard chipset enforces a 32 GB ceiling regardless of module availability, preventing future expansion beyond 2x16 GB configurations.
- SO-DIMM form factor restricts module selection to laptop-specific memory, eliminating compatibility with standard desktop DIMM modules.
- 2400 MHz represents the maximum validated frequency for this platform; higher-speed modules will downclock to this specification.
- Dual-channel architecture requires matched pairs for optimal memory bandwidth, as mismatched modules force single-channel operation.
- Only 2 physical slots exist, requiring removal of existing modules when upgrading beyond factory configuration.
- DDR4 voltage requirements (1.2V standard) differ from DDR3/DDR3L, making cross-generation modules physically and electrically incompatible.
- The 2400 MHz specification indicates 6th or 7th generation Intel platform constraints, as earlier generations lack DDR4 support entirely.
- Module removal typically requires bottom panel disassembly, which may void seals on certain warranty programs.
- Asymmetric configurations (e.g., 8 GB + 16 GB) remain functional but sacrifice half the potential memory bandwidth during simultaneous access operations.
- Non-ECC unbuffered modules are required; server-grade registered or ECC memory will fail POST initialization.
- CAS latency variations within DDR4-2400 specification (CL15, CL16, CL17) produce measurable differences in latency-sensitive workloads.
- Single 32 GB module configurations are impossible due to the 2-slot physical limitation and per-slot density constraints.
